Mechanical Lugs for Applications up to 36kV

Mechanical Lugs for Applications up to 36kV
larger imageMove mouse over the image to magnify
These lugs are designed for use on Aluminium or Copper conductors and are suitable for applications up to 36kV.

FEATURES
  • Wide application range
  • Shear head bolts with predetermined shear torque
  • Lug bodies are made of high-tensile, tin-plated Aluminium alloy and bolts from special Aluminium alloy
  • Centered hole and inserts
DATA SHEET
BLMT-BSMB EPP-1233-1 13

SELECTION AND APPLICATION TABLE
  APPLICATION RANGE/CONDUCTOR TYPE
CAT NO.   AL CIRCULAR STRANDED AL CIRCULAR SOLID AL SECTOR STRANDED AL SECTOR SOLID CU CIRCULAR STRANDED CU CIRCULAR SOLID CU SECTOR STRANDED
BLMT-25/95-XX mm²
mm
mm
25-95
-
5.7-12.5
25-95
-
5.5-11
25-70
95*
-
16-95
-
4.8-12.5
10-50
3.6-8
-
25-70
95*
-
-
-
-
BLMT-35/150-XX mm²
mm²
mm
35-150
-
6.8-15
35-150
-
6.5-14
50-95
120*-150*
-
50-120
-
-
35-150
-
6.6-15
35-50
-
6.5-8
50-95
120*-150*
-
BLMT-95/240-XX mm²
mm²
mm
95-240
-
11-19.2
95-240
-
10.5-18
95-150
185*-240*
-
95-150
185(90°)
-
95-240
-
11-19.2
-
-
-
95-150
185*-240*
-
BLMT-120/300-XX mm²
mm²
mm
120-300
-
12.7-23.1
150-300
-
12.9-19.8
120-185
240*-300*
-
120-240
-
-
120-300
-
12.7-22.6
-
-
-
120-185
240*-300*
-
BLMT-185/400-XX mm²
mm²
mm
185-400
-
15.5-24.6
185-400
-
14.8-24.6
185-240
300*-400*
-
185-240
-
-
185-400
-
15.5-24.6
-
-
-
185-240
300*-400*
-
BLMT-500/630-XX mm²
mm
500-630
25.3-32.5
500-630
24-28.6
-
-
-
-
500-630
25.3-32.5
-
-
-
-
*Compacted XX Palm Hole Diameter

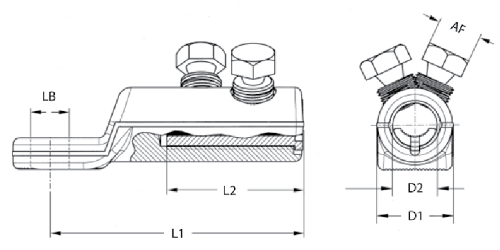

LMT
Dimensions Contact Bolts
Cat No. Conductor Size Palm Hole
Diameter LB (mm)
L1 L2 D1 D2 Quantity Head Size
AF (mm)
Qty
BLMT-25-95-13
25-95
13
60
30
24
12.8
1
13
BLMT-25-95-17
25-95
17
60
30
24
12.8
1
13
BLMT-35-150-13
35-150
13
86
35
28
15.8
1
17
BLMT-95-240-13
95-240
13
112
60
33
20
2
19
BLMT-95-240-17
95-240
17
112
60
33
20
2
19
BLMT-120-300-13
120-300
13
115
65
37
24
2
22
BLMT-120-300-17
120-300
17
115
65
37
24
2
22
BLMT-185-400-13
185-400
13
137
80
42
25.5
3
22
BLMT-185-400-17
185-400
17
137
80
42
25.5
3
22
BLMT-500-630-13
500-630
13
150
95
50
33
3
27
BLMT-500-630-17
500-630
17
150
95
50
33
3
27
BLMT-500-630-21
500-630
21
150
95
50
33
3
27
