Sediver Standard Profile Ball & Socket Type -70kN/100kN

Sediver Standard Profile Ball & Socket Type -70kN/100kN
larger imageMove mouse over the image to magnify

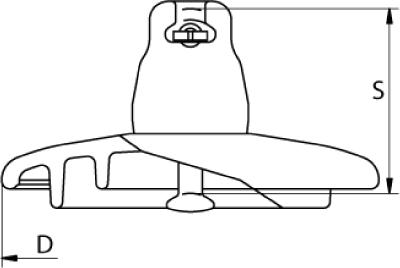

Toughened Glass Suspension Insulators 1


For IEC/BS String Electrical Ratings Click the Link Below:


TECHNICAL SPECIFICATIONS  /  CAT NO. F70/127 F70/146 F100/127 F100/146
IEC CLASS (1)   U70BS U70BL U100BS U100BL
MINIMUM MECHANICAL FAILING LOAD kN 70 70 100 100
DIAMETER (D) mm 255 255 255 255
SPACING (S) mm 127 146 127 146
CREEPAGE DISTANCE mm 320 320 320 320
METAL FITTING SIZE (2)   16A 16A 16A 16A
POWER FREQUENCY WITHSTAND VOLTAGE
- DRY, 1 MINUTE kV 70 70 70 70
- WET, 1 MINUTE kV 40 40 40 40
DRY LIGHTNING IMPULSE WITHSTAND VOLTAGE kV 100 100 100 100
PUNCTURE WITHSTAND VOLTAGE kV 130 130 130 130

(1)  In accordance with IEC publication 60305
(2)  In accordance with IEC publication 60120
Cat No. Minimum Mechanical
Failing Load (kN)
Diameter (D)
(mm)
Spacing (S)
(mm)
Creepage Distance
(mm)
Qty
F70/127
70
255
127
320
F70/146
70
255
146
320
F100/127
100
255
127
320
F100/146
100
255
146
320
