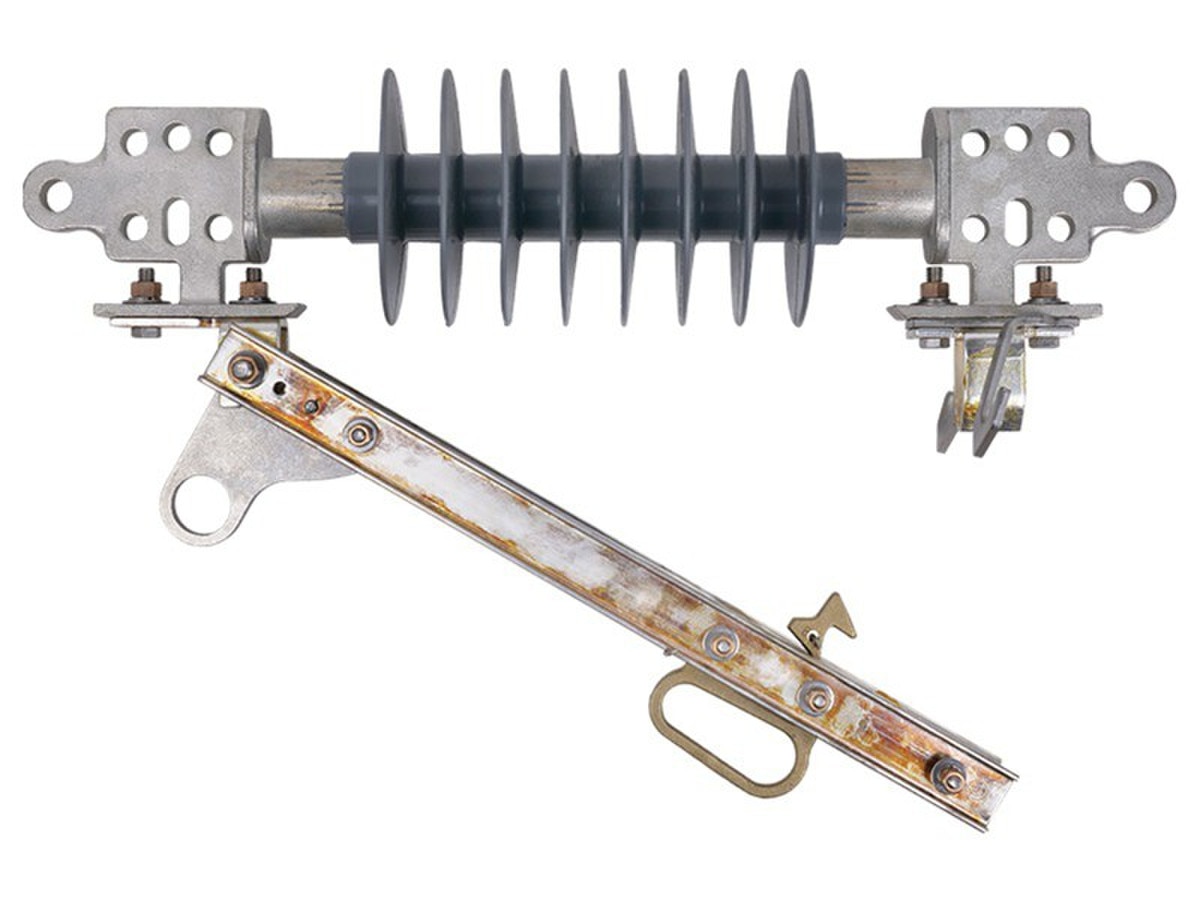

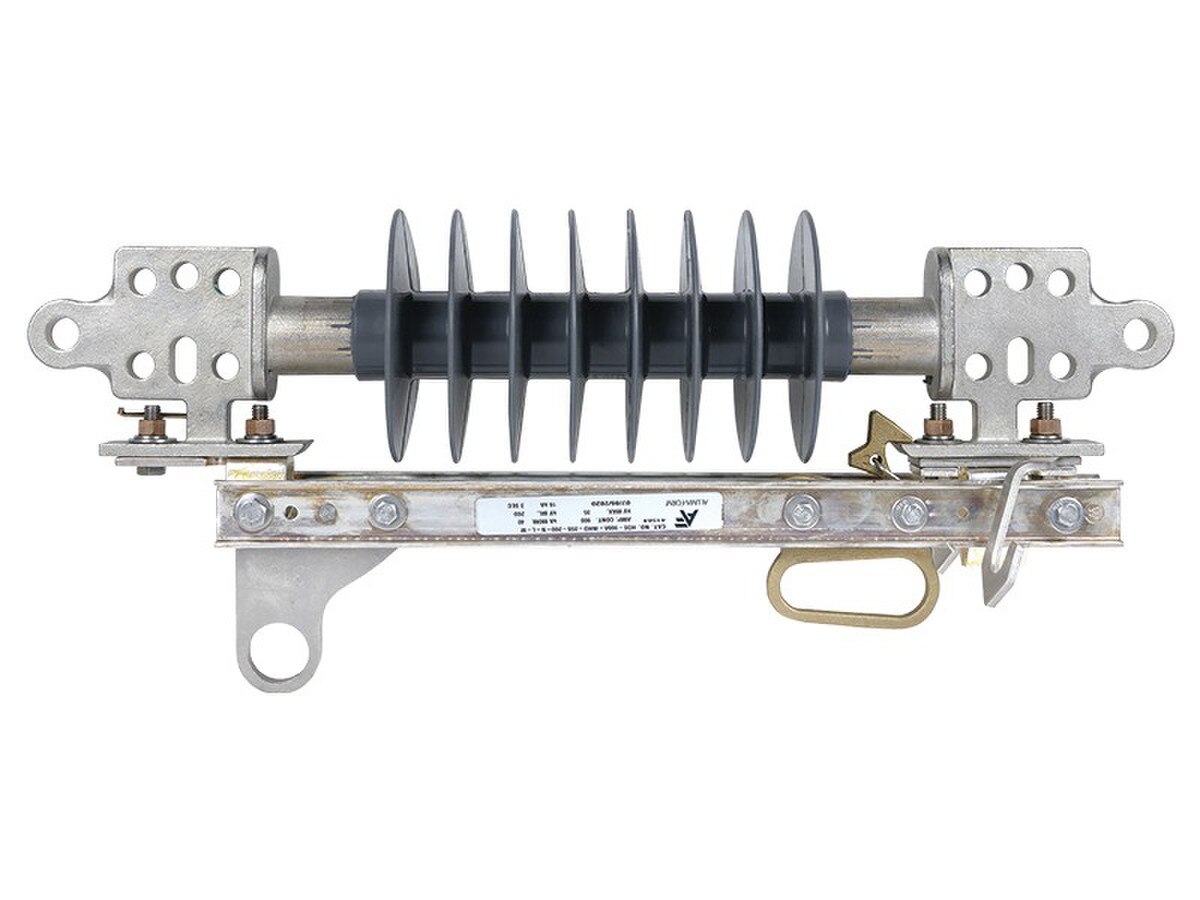

Aluma Form MV Inline Disconnect Switch

BEST-IN-CLASS DESIGN & PERFORMANCE

SUPERIOR MECHANICAL PERFORMANCE

• Rigid Blade Design
• Easiest blade to pull and close (longest mechanical advantage)
• Contact design avoids any areas for trapped ice to interfere with blade structure
• Large formed galvanised steel load buster hook
  • Optimally positioned for easy loadbuster tool attachment and removal after opening
  • Stronger than castings

SUPERIOR ELECTRICAL PERFORMANCE

• Best electrical conductivity
• Full silver plating on hinge, contact and blades
• Maximum contact temperature 10-15%lower than competitors

Alternative configurations and connections available, 25kA sym 1 sec short-time withstand
