Fuse Link DIN Type Size 00 - (NH00)

(0)No Reviews yet

Fuse Link DIN Type Si

Back

The device has a rated voltage of 690V AC and a rated breaking capacity of 120kA. It adheres to the standard specifications of IEC EN 60269-2-1 and falls under the class gG/gL.

Back

DIMENSIONS


Fuse link DIN
Back

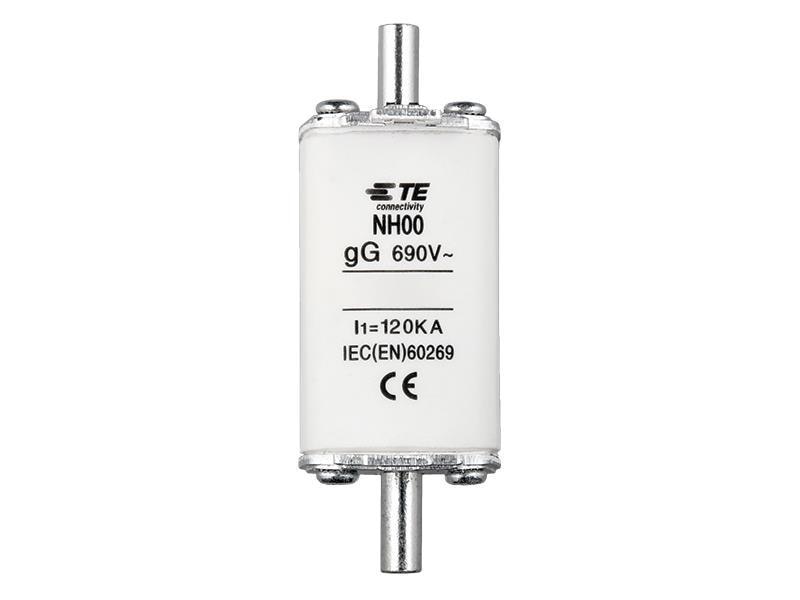

TNNH0032 32 78.5 35 15 45 29 49 11.5 10 6 2.5
TNNH0063 63 78.5 35 15 45 29 49 11.5 10 6 2.5

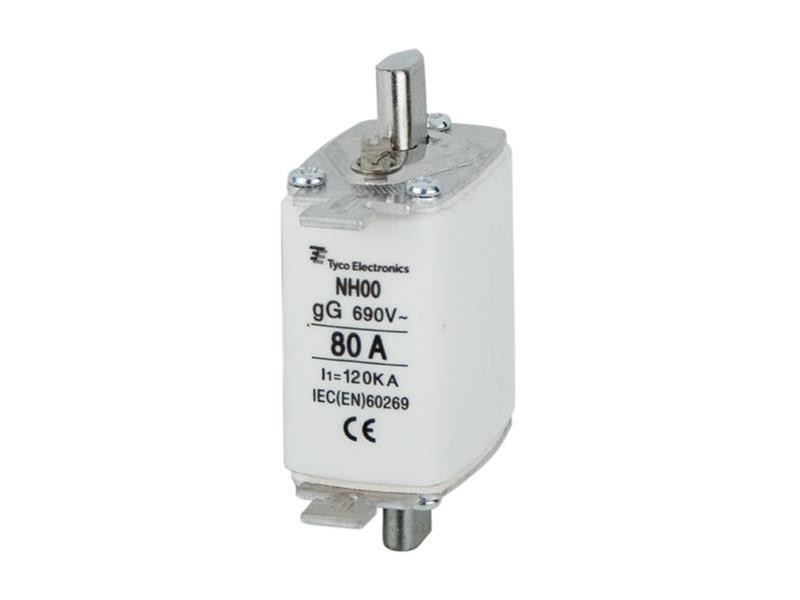

TNNH0080 80 78.5 35 15 45 29 49 11.5 10 6 2.5

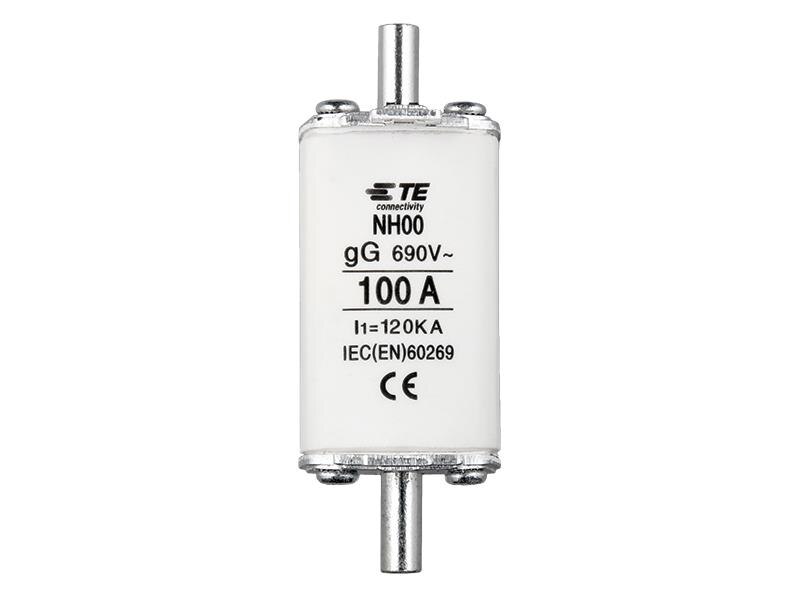

TNNH00100 100 78.5 35 15 45 29 49 11.5 10 6 2.5

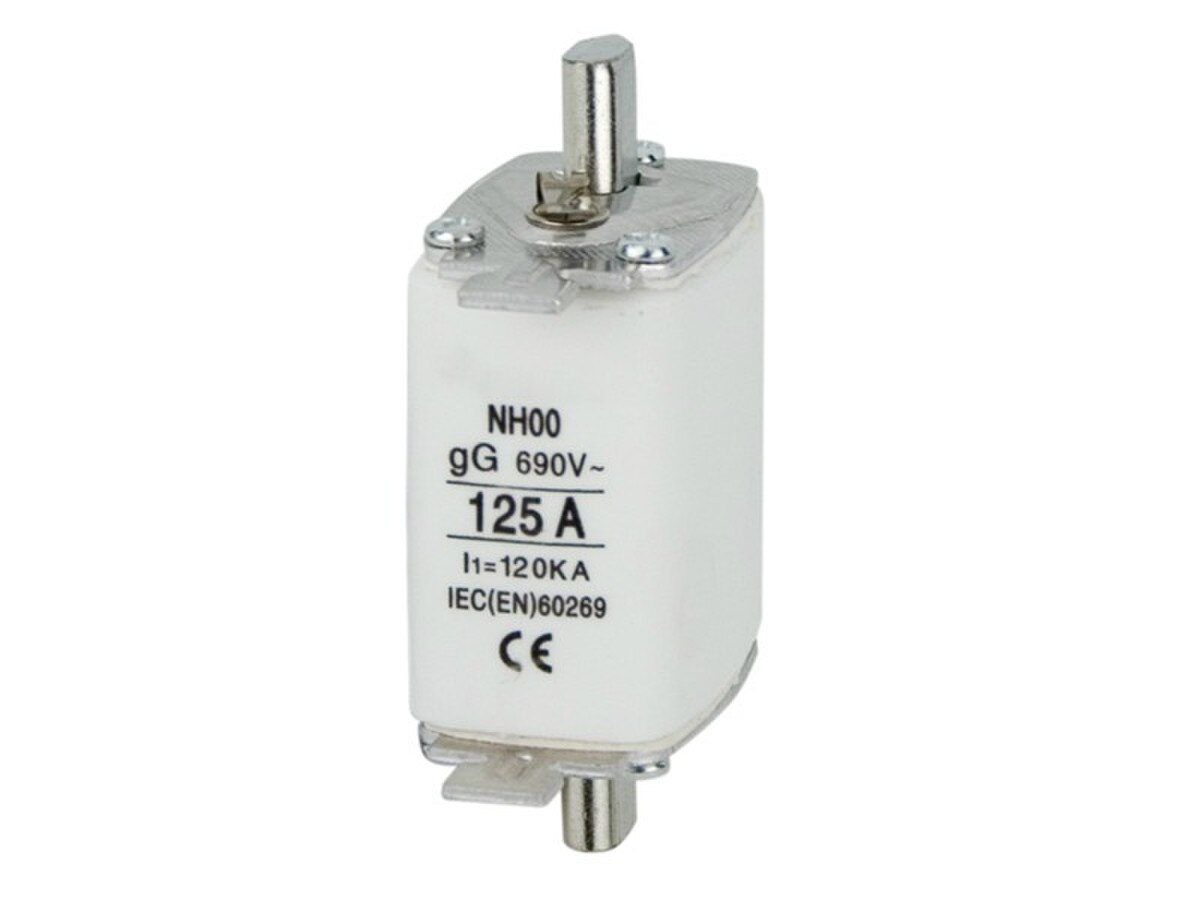

TNNH00125 125 78.5 35 15 45 29 49 11.5 10 6 2.5

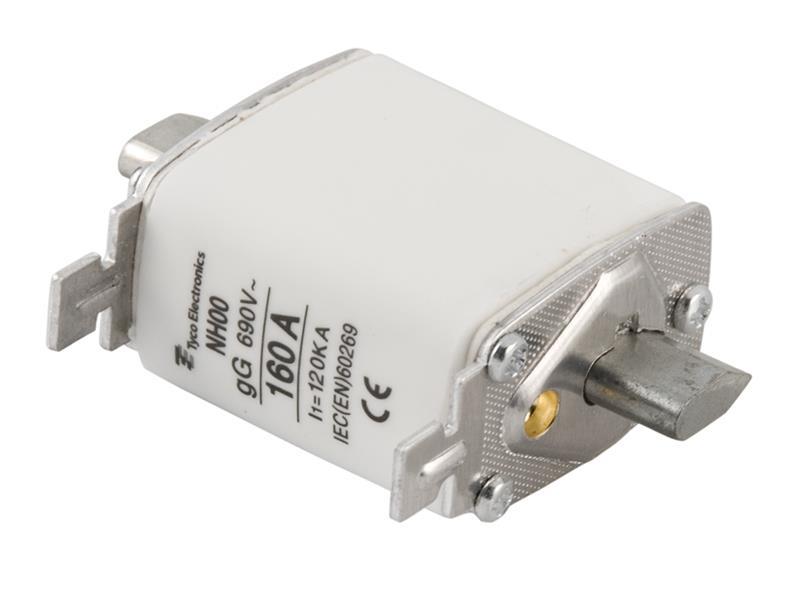

TNNH00160 160 78.5 35 15 45 29 49 11.5 10 6 2.5

Dimensions (mm)

Cat No.

Amps

A

B

C

D

E

F

G

H

I

J

Qty

Price
