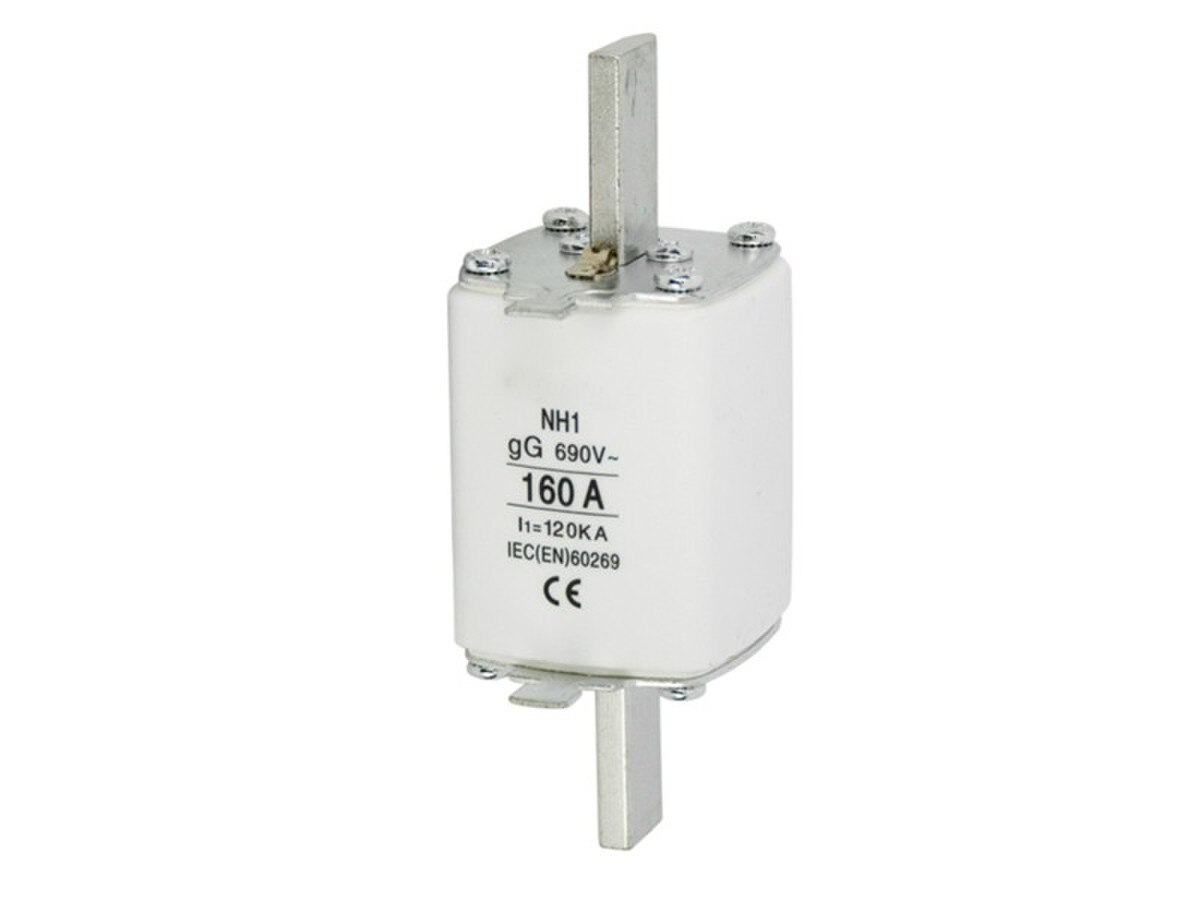

Fuse Link DIN Type Size 1 - (NH1)

(0)No Reviews yet

Fuse Link DIN Type Si

Back

The device has a rated voltage of 500V/690V AC and a rated breaking capacity of 120kA. It complies with the standard specifications of IEC EN 60269-2-1 and is classified under gG/gL.

Back

DIMENSIONS


Fuse link DIN
Back
TNNH163 63 135 40 21 48 48 68 12 10 6 2.5

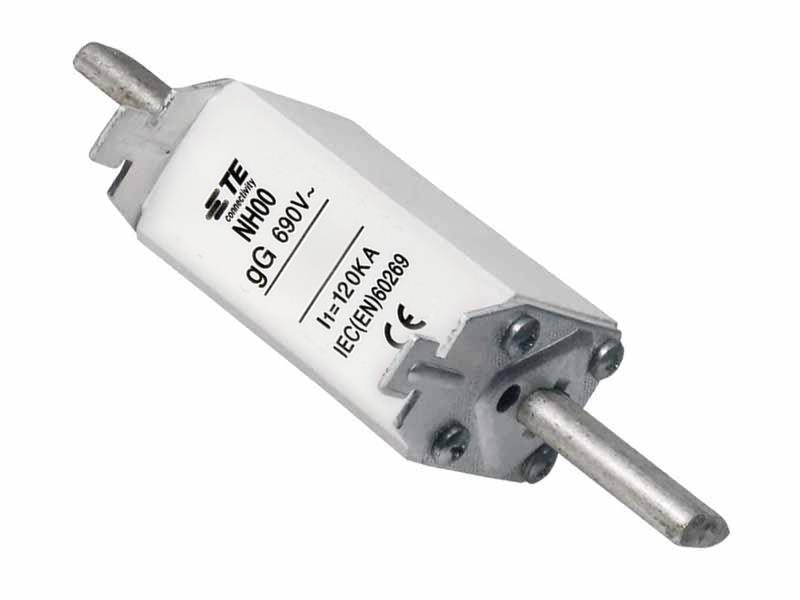

TNNH180 80 135 40 21 48 48 68 12 10 6 2.5

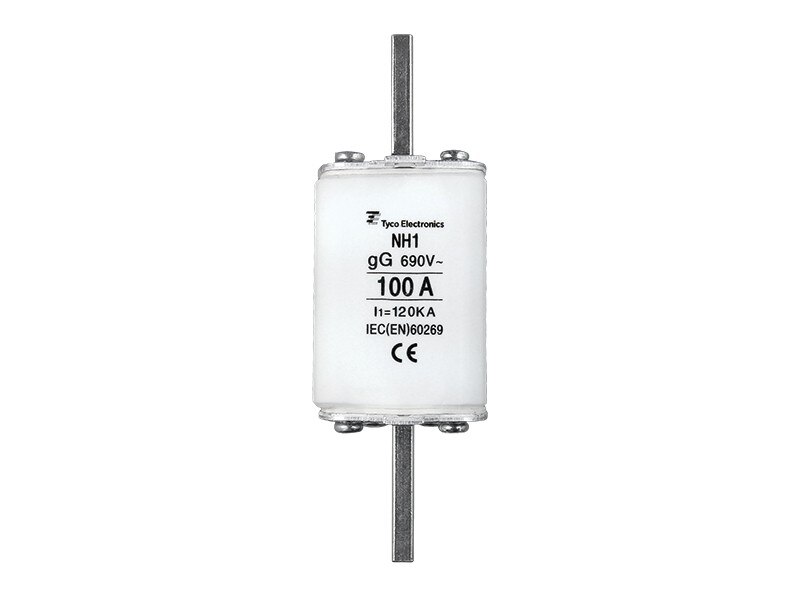

TNNH1100 100 135 40 21 48 48 68 12 10 6 2.5

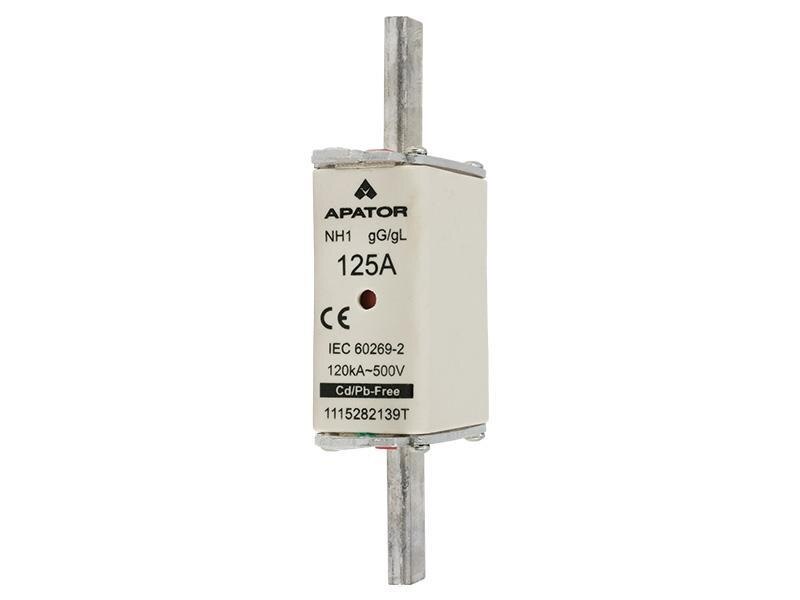

TNNH1125 125 135 40 21 48 48 68 12 10 6 2.5

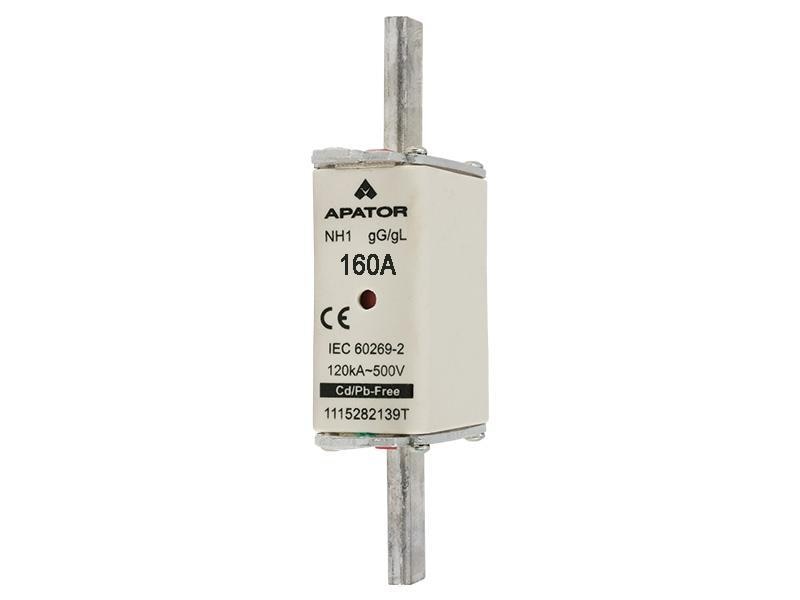

TNNH1160 160 135 40 21 48 48 68 12 10 6 2.5

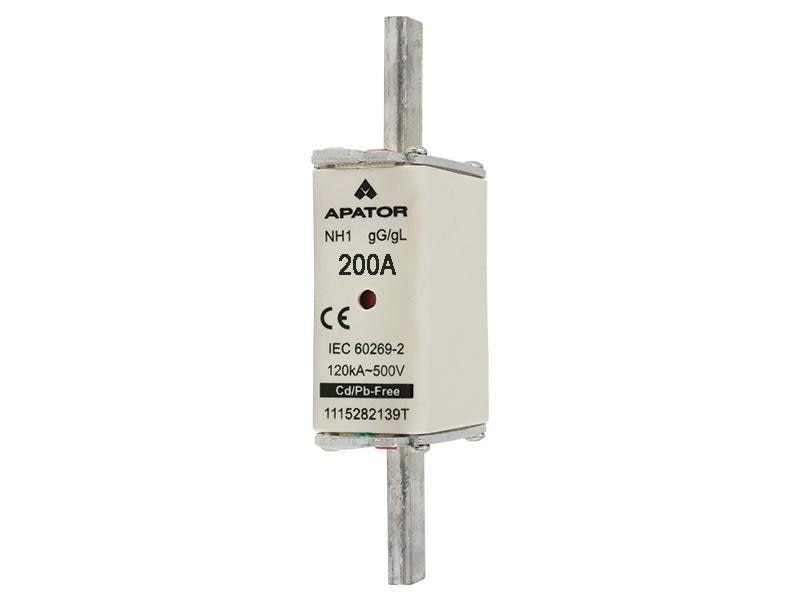

TNNH1200 200 135 40 21 48 48 68 12 10 6 2.5
TNNH1250 250 135 40 21 48 48 68 12 10 6 2.5

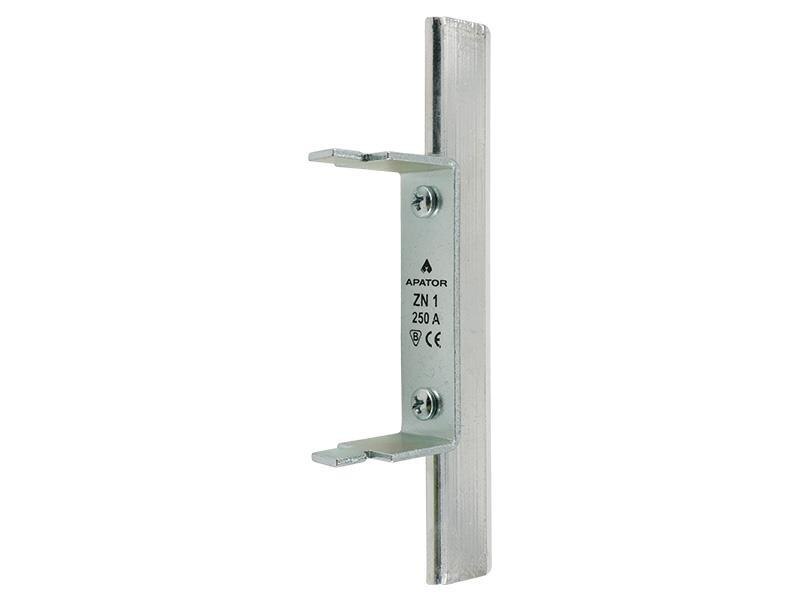

TNDIN1250A 250 135 40 21 68 10 6 2.5

Dimensions (mm)

Cat No.

Amps

A

B

C

D

E

F

G

H

I

J

Qty

Price

Back
