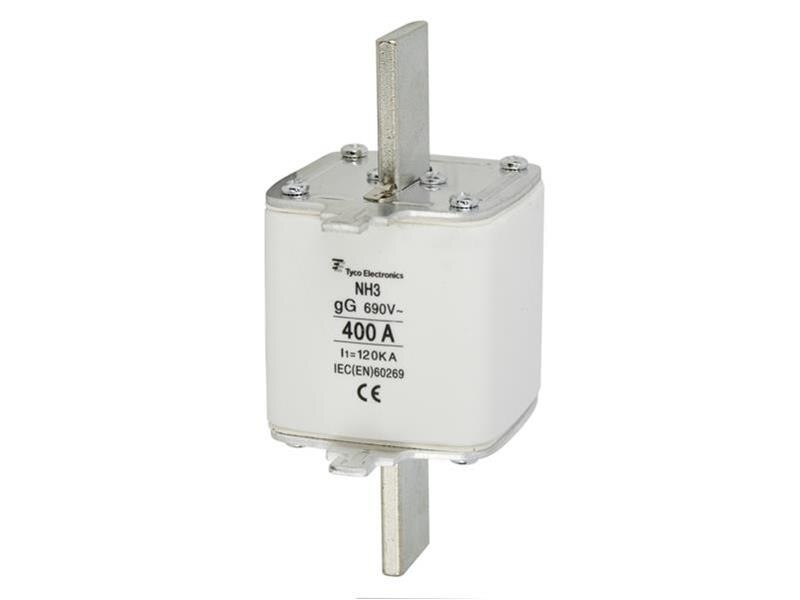

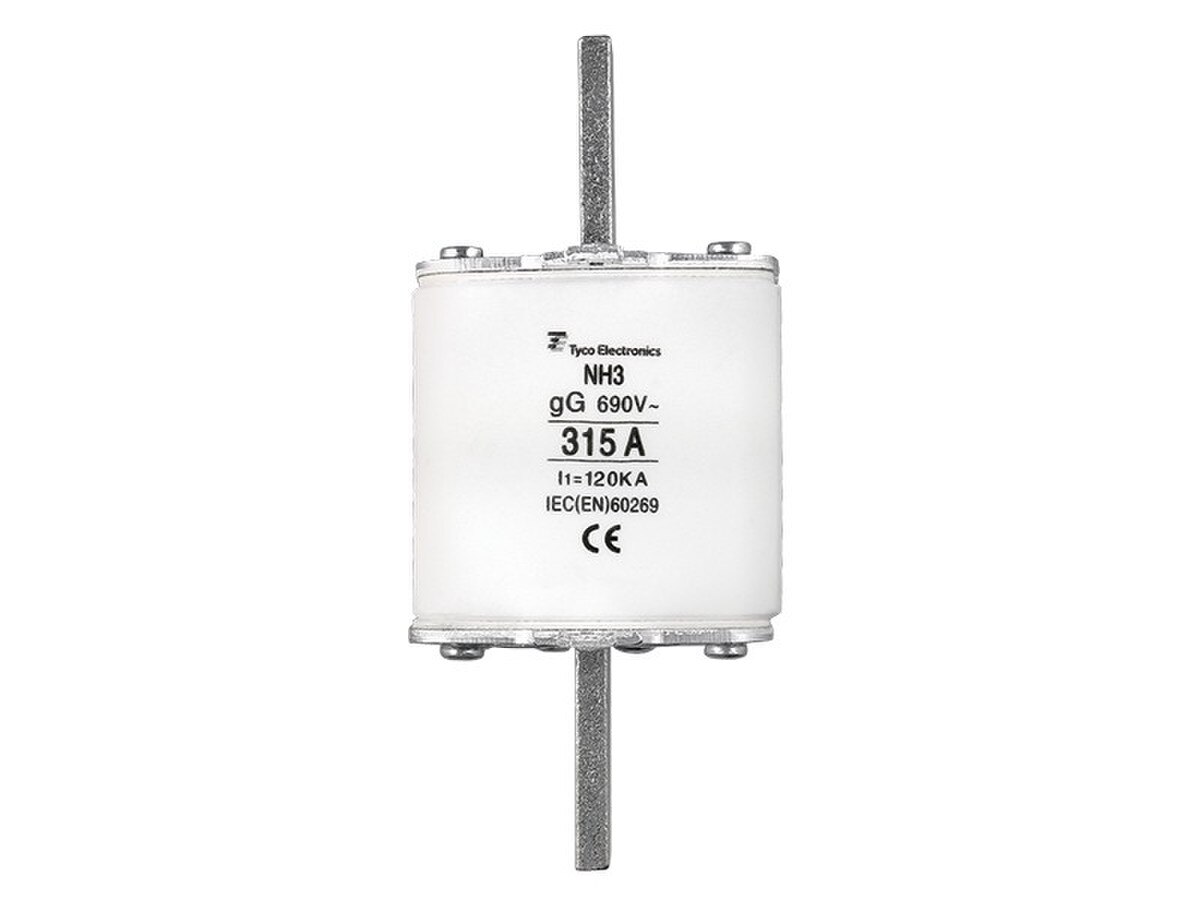

Fuse Link DIN Type Size 3 - (NH3)

(0)No Reviews yet

Fuse Link DIN Type Si

Back

The device has a rated voltage of 500V/690V AC and a rated breaking capacity of 120kA. It complies with the standard specifications of IEC EN 60269-2-1 and is classified under gG/gL.

Back

DIMENSIONS


Fuse link DIN
Back
TNNH3315 315 150 60 33 67 67 68 14 10 6 2.5
TNNH3400 400 150 60 33 67 67 68 14 10 6 2.5
TNNH3500 500 150 60 33 67 67 68 14 10 6 2.5
TNNH3630 630 150 60 33 67 67 68 14 10 6 2.5
TNDIN3630A 630 150 60 33 SOLID LINK SOLID LINK 68 SOLID LINK 10 6 2.5

Dimensions (mm)

Cat No.

Amps

A

B

C

D

E

F

G

H

I

J

Qty

Price
