Ground Mats

(0)No Reviews yet

Description

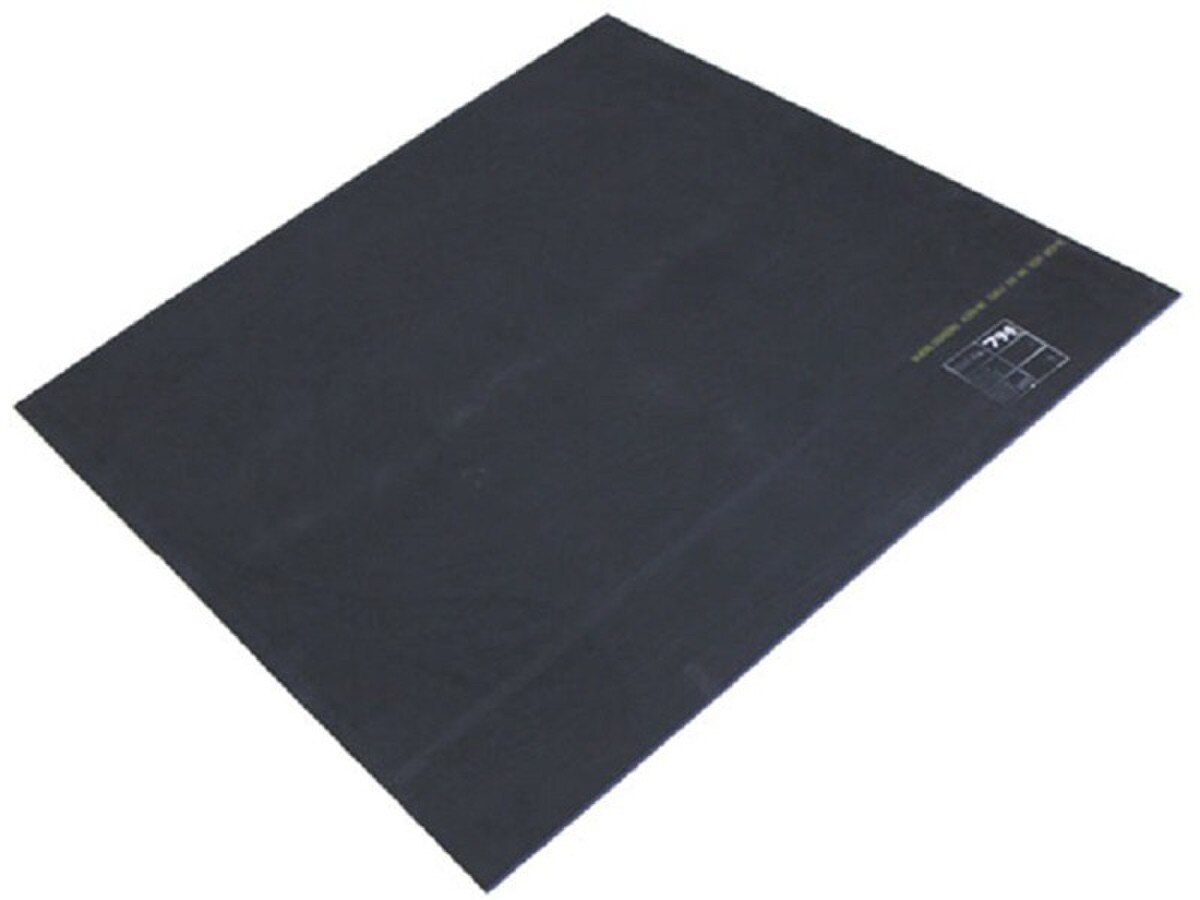

Ground mats available for LV and MV applications. These ground mats are made with an anti-slip surface design to enhance user safety.

For any mats not shown in the table below, please contact us for pricing and availability.

Rubber Insulating Mats provided in a range of protection levels up to 36kV
Commonly used when undertaking works on Pillars, Pits, Substations, and Switchboards
Additional Protection when undertaking potentially live electrical works
Made of EPDM rubber

1810-4 EPDM Ground Mat 650V 0.9 0.9 6 Black

Quantity

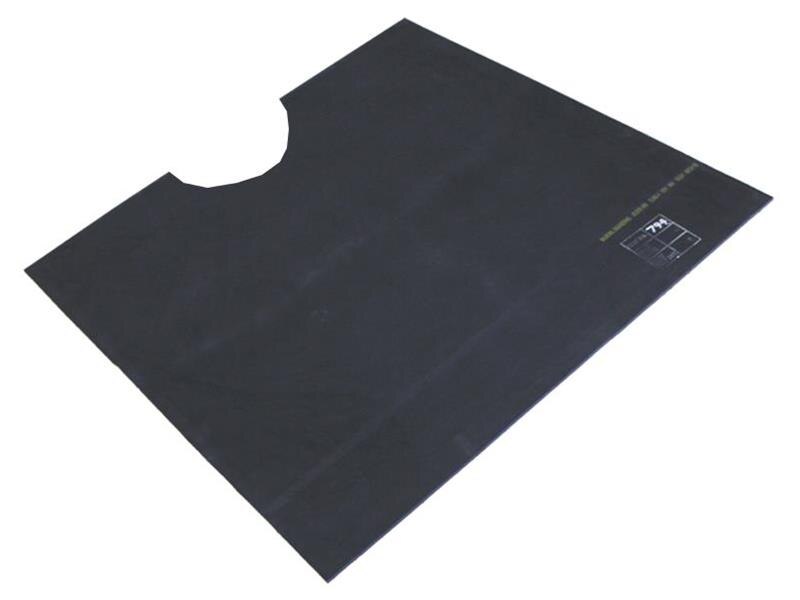

1810-1 EPDM Ground Mat with hole cut out in one side Class 0, 1000V 1 1 6 Black

Quantity

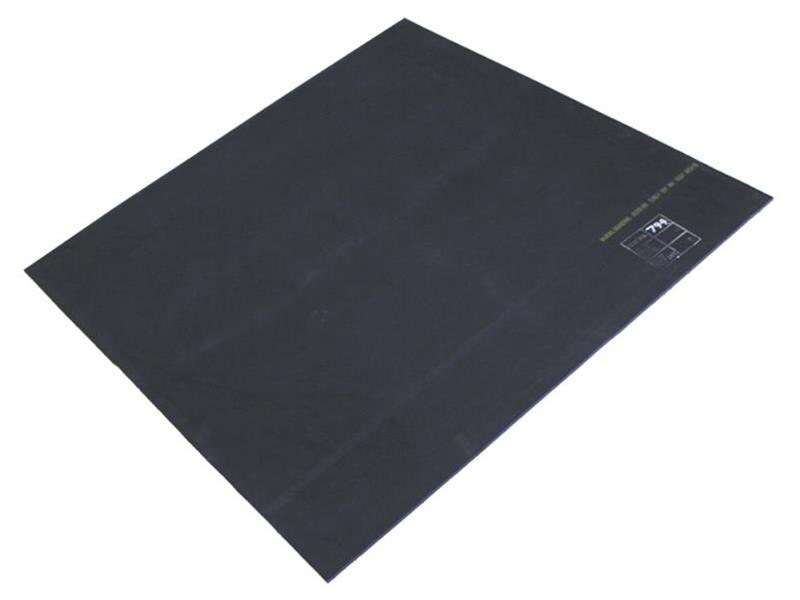

TN-1810 EPDM Ground Mat Class 0, 1000V 1 1 6 Black

Quantity

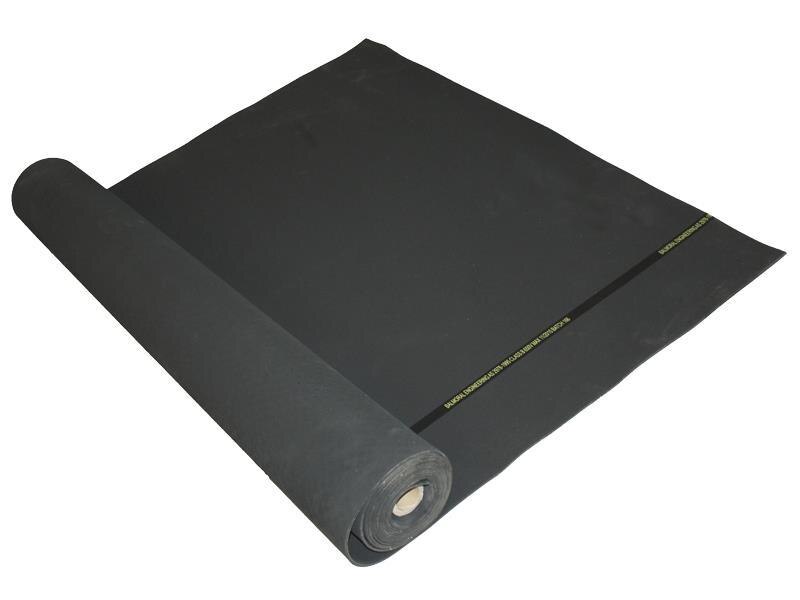

1810-ROLL EPDM Ground Mat Class 0, 1000V 10 1 6 Black

Quantity

TN-1812 EPDM Ground Mat Class 2, 17kV 1 1 6 Black

Quantity

TN-1814 EPDM Ground Mat Class 4, 36kV 1 1 6 Black

Quantity

1814-ROLL EPDM Ground Mat Class 4, 36kV 10 1 6 Black

Quantity


	Cat No.	Description	Voltage	Length (m)	Width (m)	Thickness (mm)	Colour	Qty	Price
