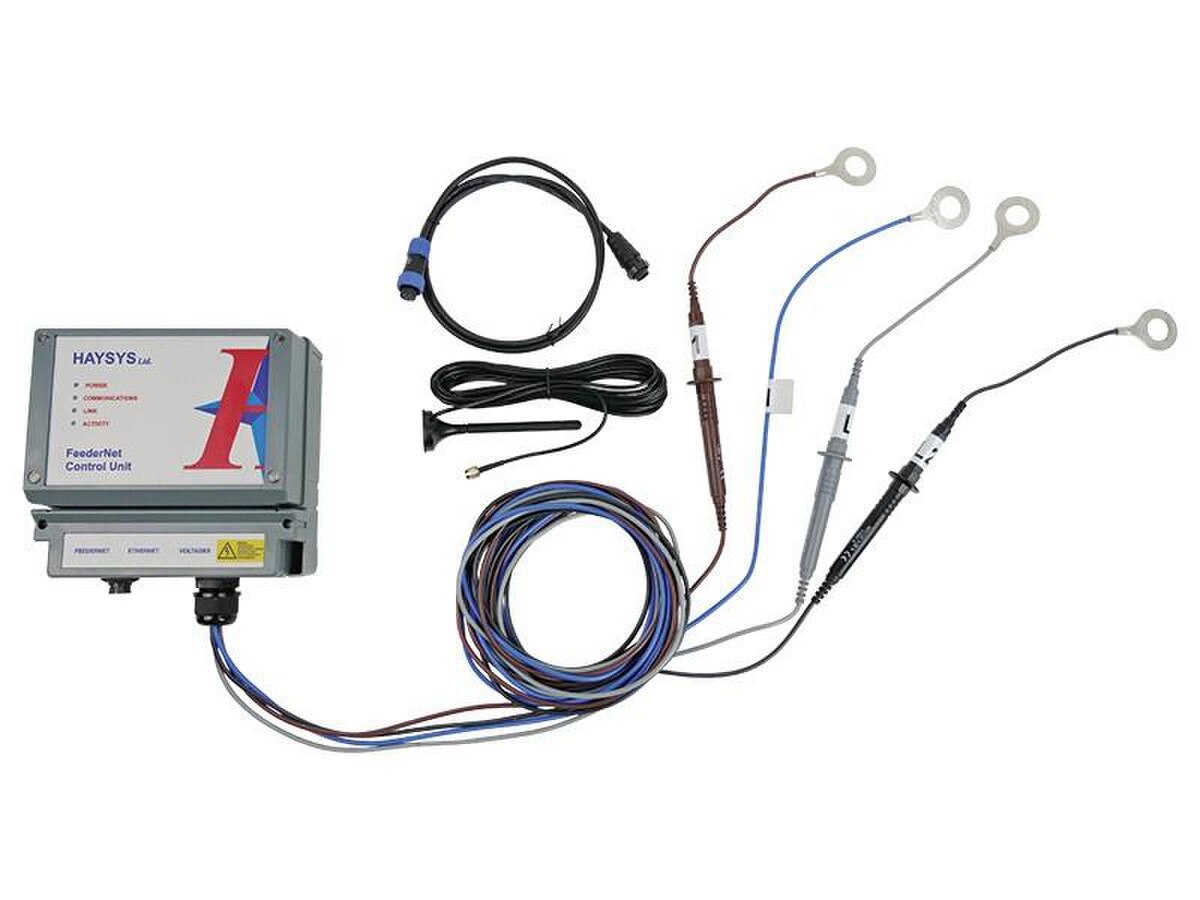

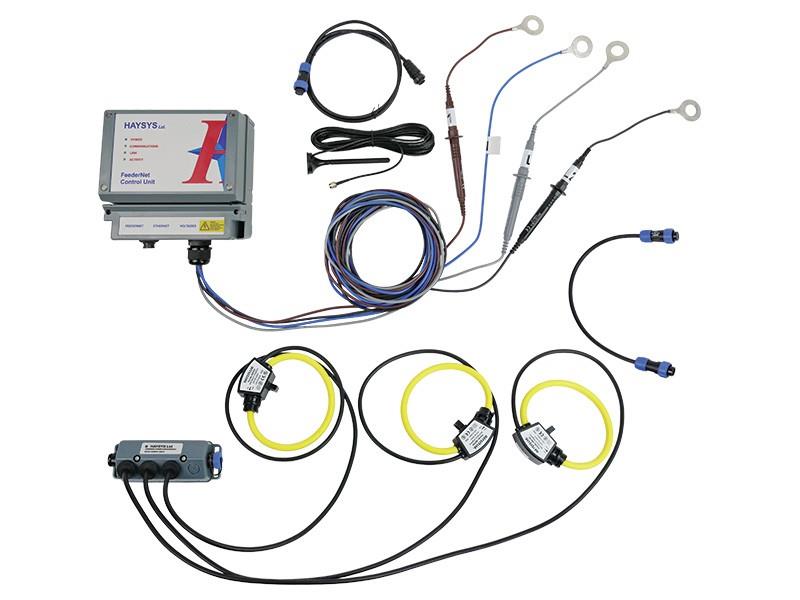

Haysys Feedernet LV Monitoring
Description
Flexibility, Simplicity, and Speed
The Haysys solution provides easy-to-install hardware that keeps a complex cabling scenario to a minimum and mindfulness of space requirements.
Primarily targeted for use on outgoing feeders of the LV Distribution Transformer, the Feedernet LV Monitor can be deployed anywhere single or multiple load monitoring is required. The system actively sums the outgoing feeders to provide a total (incoming) load.
Identify phase balancing, overloading, power factor and THD issues or supplement grid-wide ADMS implementations with valuable Feeder load and voltage data.
Features
- Fast retrofit installation
- Fast commissioning with Android App

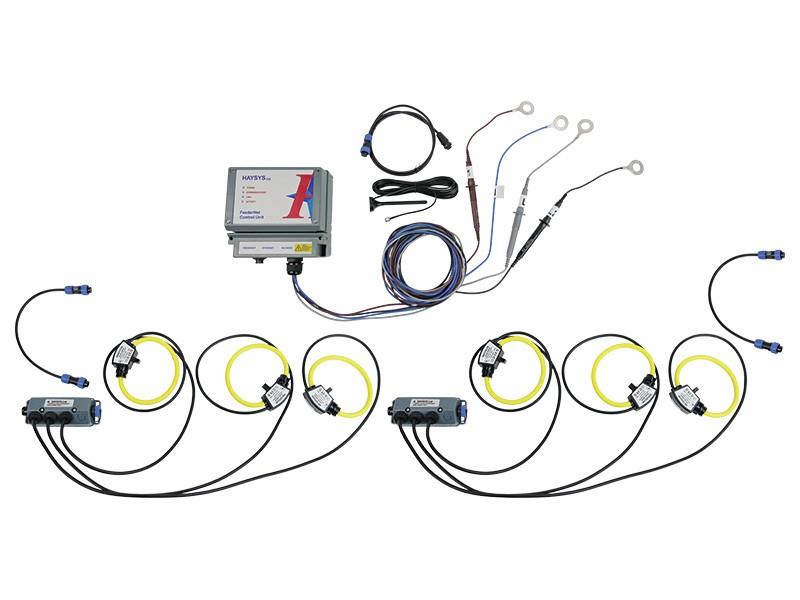

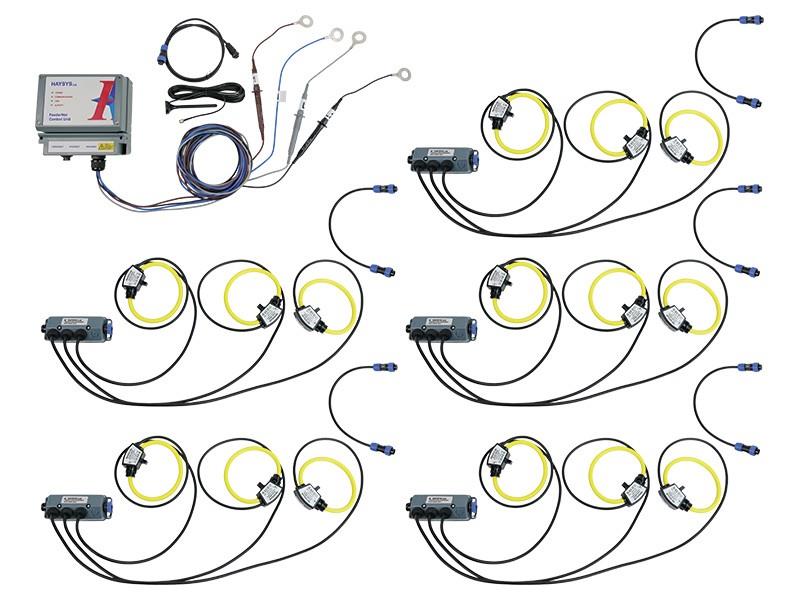

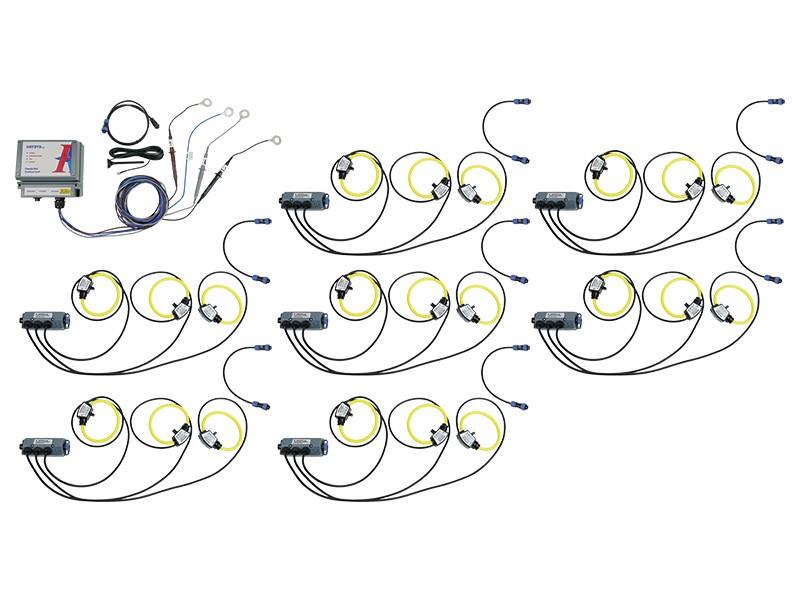

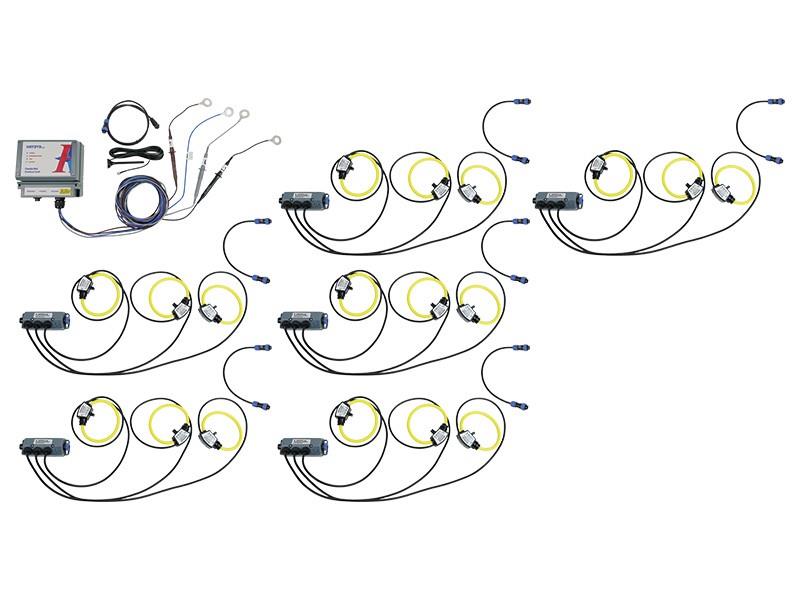

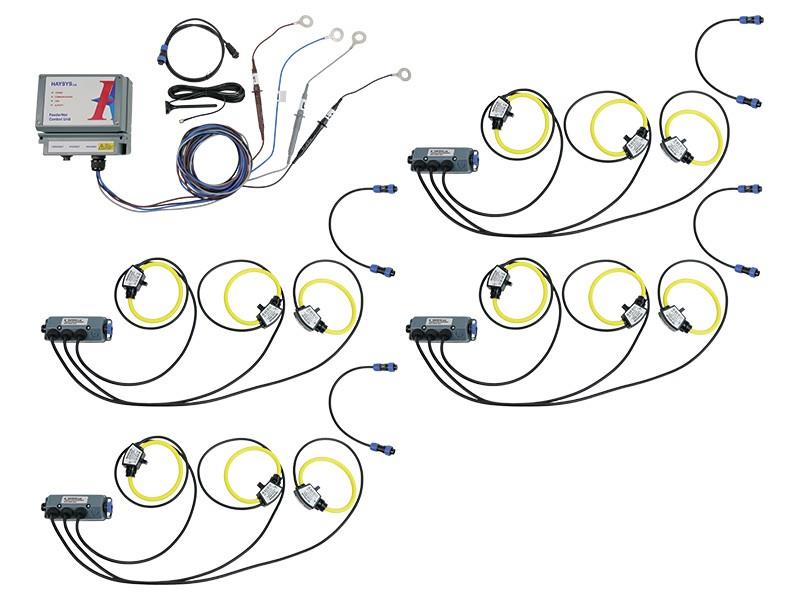

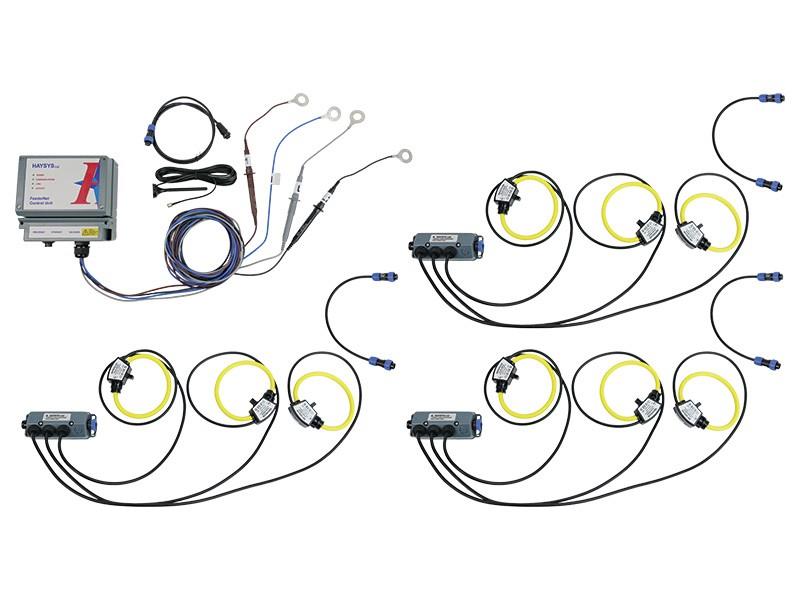

- Add up to 8 x 3-phase feeders in daisy chain setup

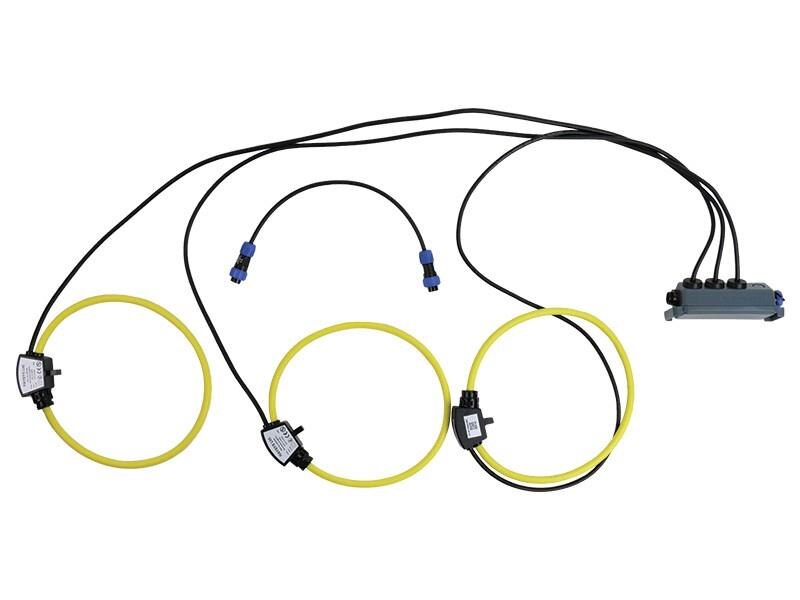

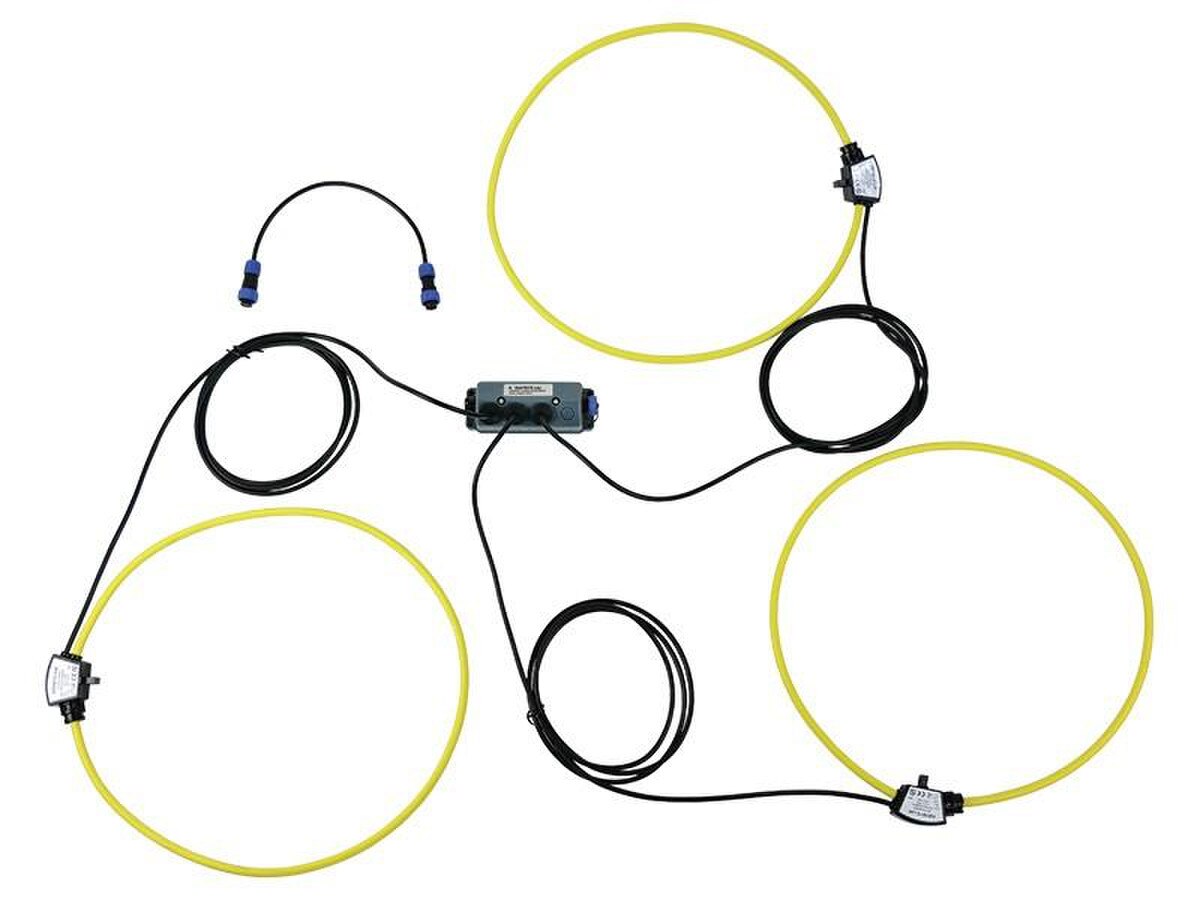

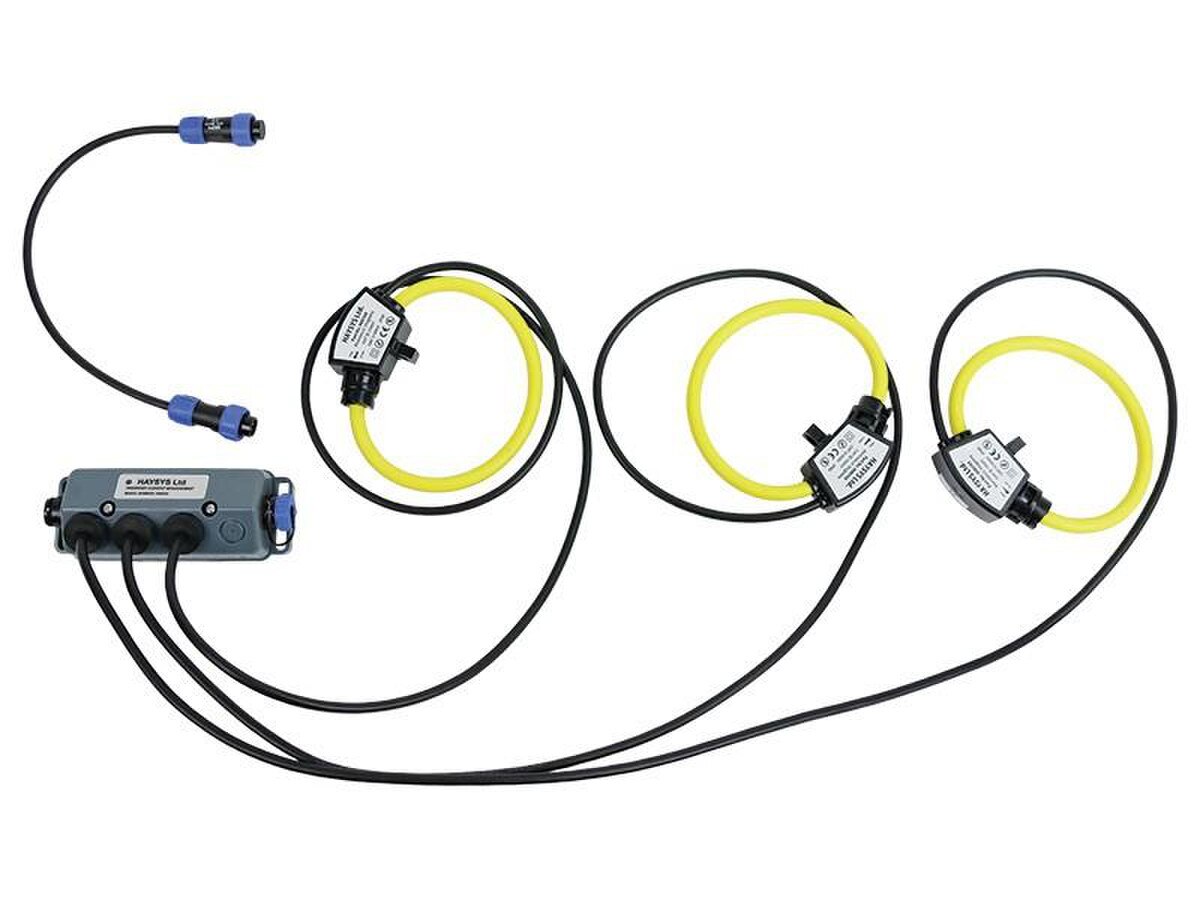

- 3 x Rogowski coil sizes (60mm / 150mm / 300mm)

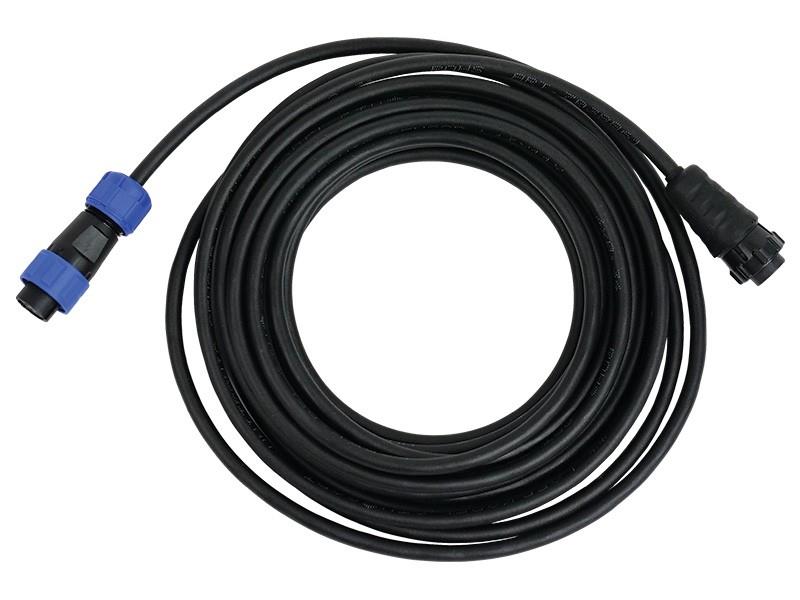

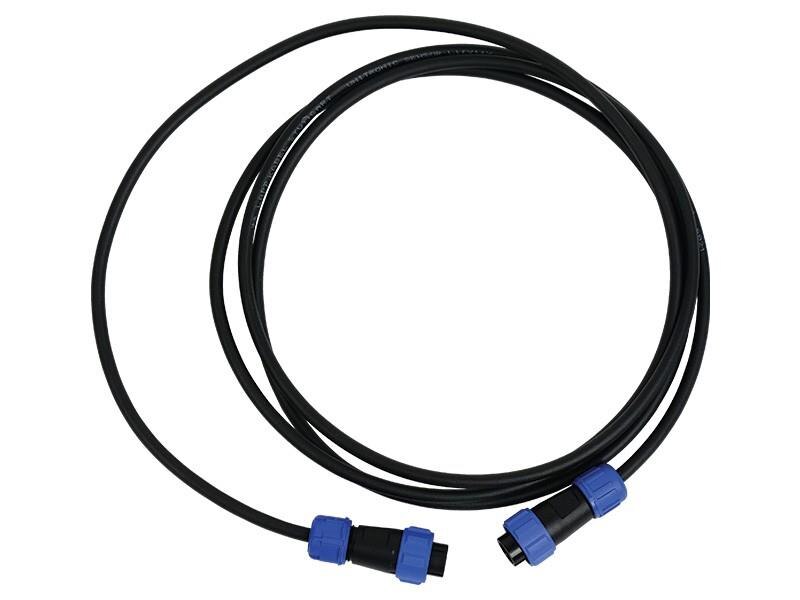

- Feedernet bus wiring harness minimises sensor cabling
- Modular design allows automatic detection of additional sensors
- Cellular 4G LTE CAT1 or Optional Ethernet backhaul
- SCADA / DNP3 / MODBUS / IEC61850 / Azure Cloud compatible
- Multiple export formats available
- Staging web portal for administration and data analysis
- Over-the-air configurations + firmware updates
- Already in use in NZ
Cat No. | Description | Qty | Price |
|---|
