Mains Service Insulation Piercing Connectors

(0)No Reviews yet

Mains Service Insulat

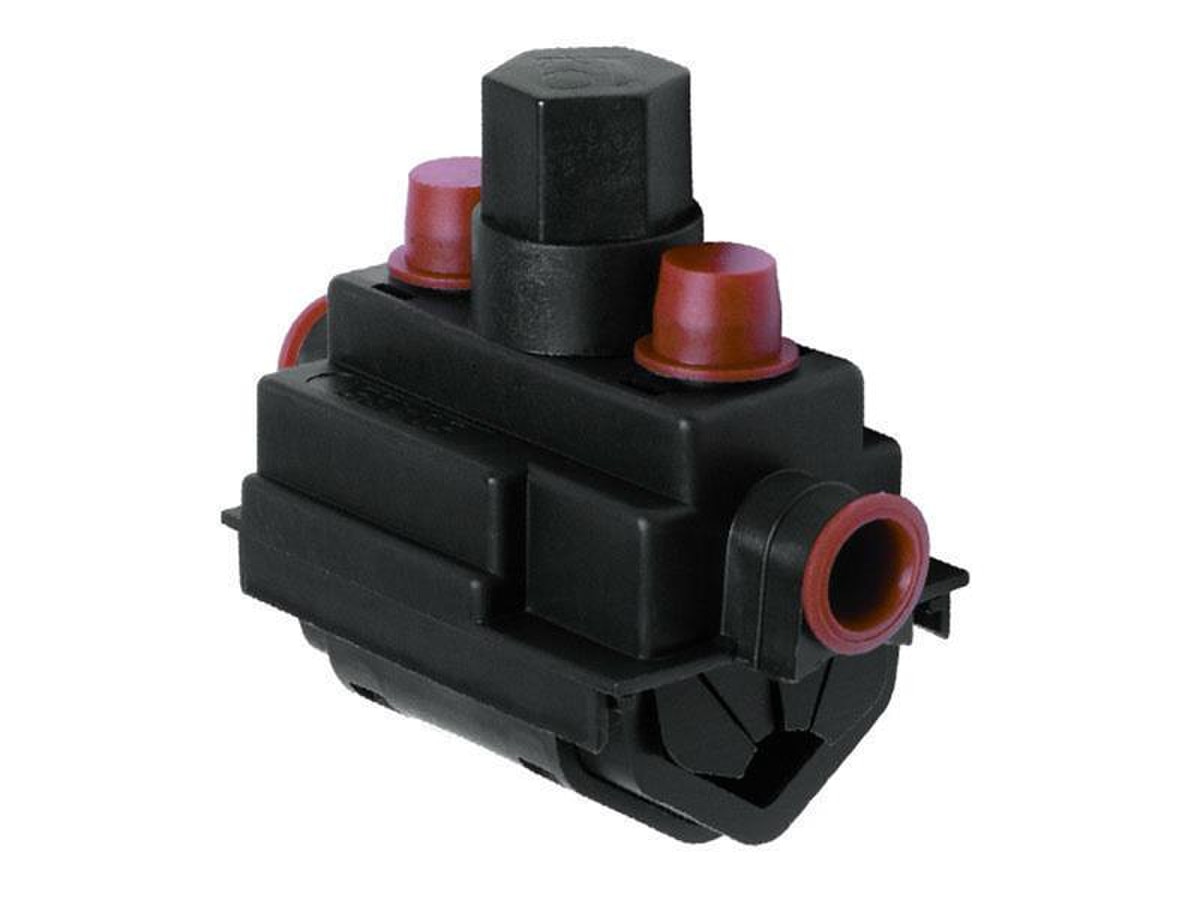

MSIP Connectors

These insulating piercing connectors are intended for 'live' jointing on to LV mains cables (when following suitable procedures.


The connectors are a fully shrouded connector body with a shear head bolt that detaches once the correct torque is reached.


Suitable for up to 300mm² main & up to 2x35mm² service conductors

Designed and tested to IEC 61238-1

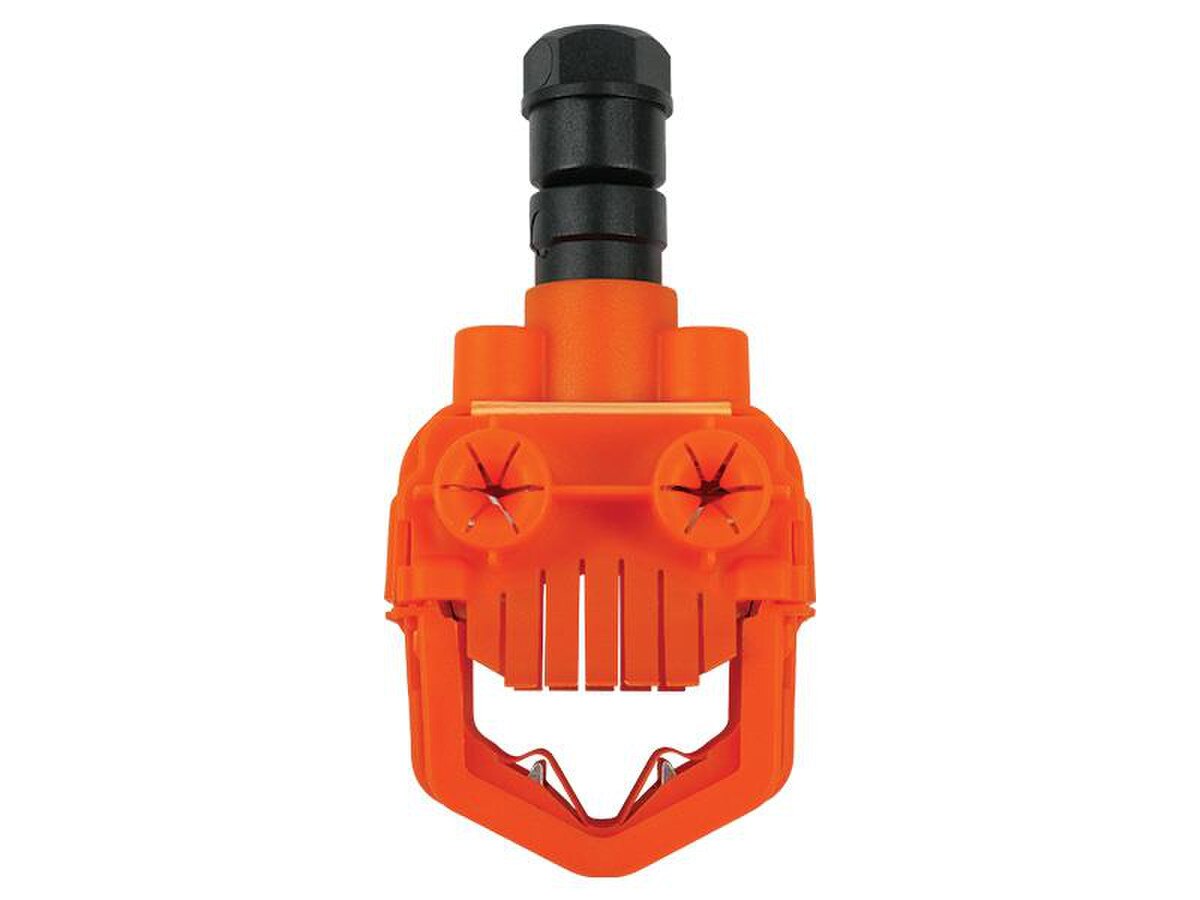

LVIP Connectors

LVIP connectors allow live jointing of solid or stranded service cables up to 35mm2 onto low voltage main cables from 50mm2 up to 300mm2 including imperial equivalent sizes. This includes sector or round conductors with XLPE, PVC or paper insulation.

  • Fully insulated for live working
  • 5kV withstand testing to increase the installers’ safety
  • Reduced profile lowering resin volume needed
  • Ergonomic design allowing 2 service connections from each LVIP connector
  • Reduce stock levels with only two connectors covering a wide range of cable diameters from 50-300mm2
  • Shear torque controlled mains connections for quick, consistent and easy installation
  • Tested to IEC 61238

Back

Dimensions


Dimensions
Back
MSIP_EPP-1738.pdf
Back
MSIP185 83 60 48 19MM SOCKET, 3MM ALLEN KEY 50-185 4-35
MSIP300 83 60 55 19MM SOCKET, 3MM ALLEN KEY 185-300 4-35

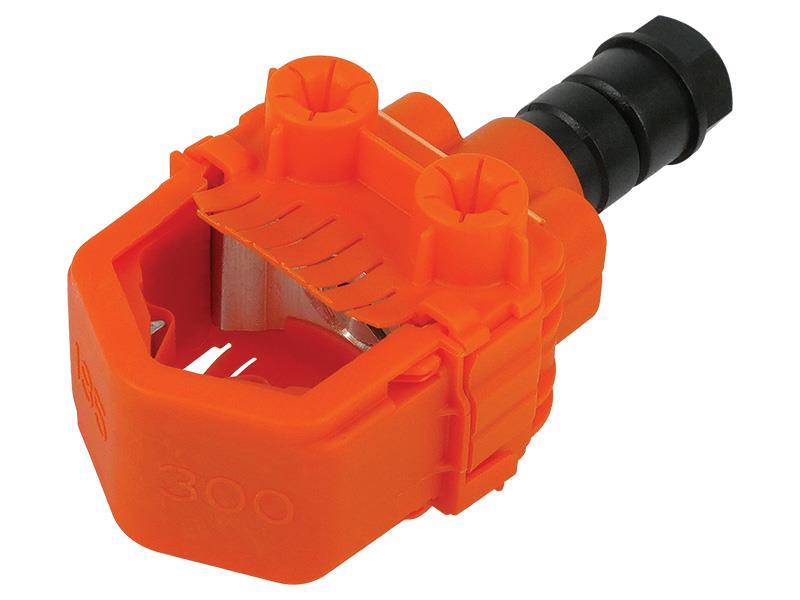

LVIP-185/300 50 106.3 53.3 17MM SOCKET 185-300 4-35

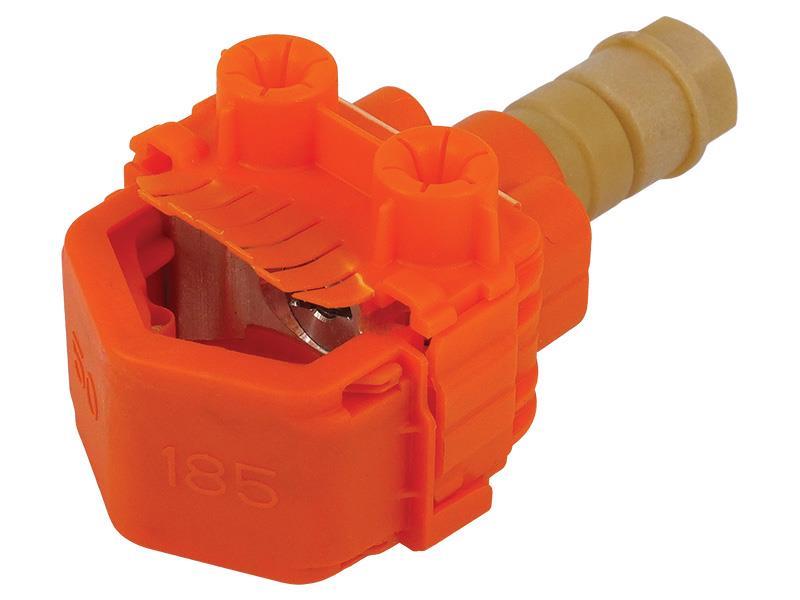

LVIP-50/185 50 106.3 53.3 17MM SOCKET 50-185 4-35

Dimensions (mm)

Cat No.

L

H

W

Application Tool

Main Conductor (mm2)

Take Off Connector Size Range (mm²)

Qty

Price

Back
