Modular Seal

(0)No Reviews yet

GKD seals are sold by the segment, contact us to ensure you get the right parts for your application.

Modular Seal

Back

Description

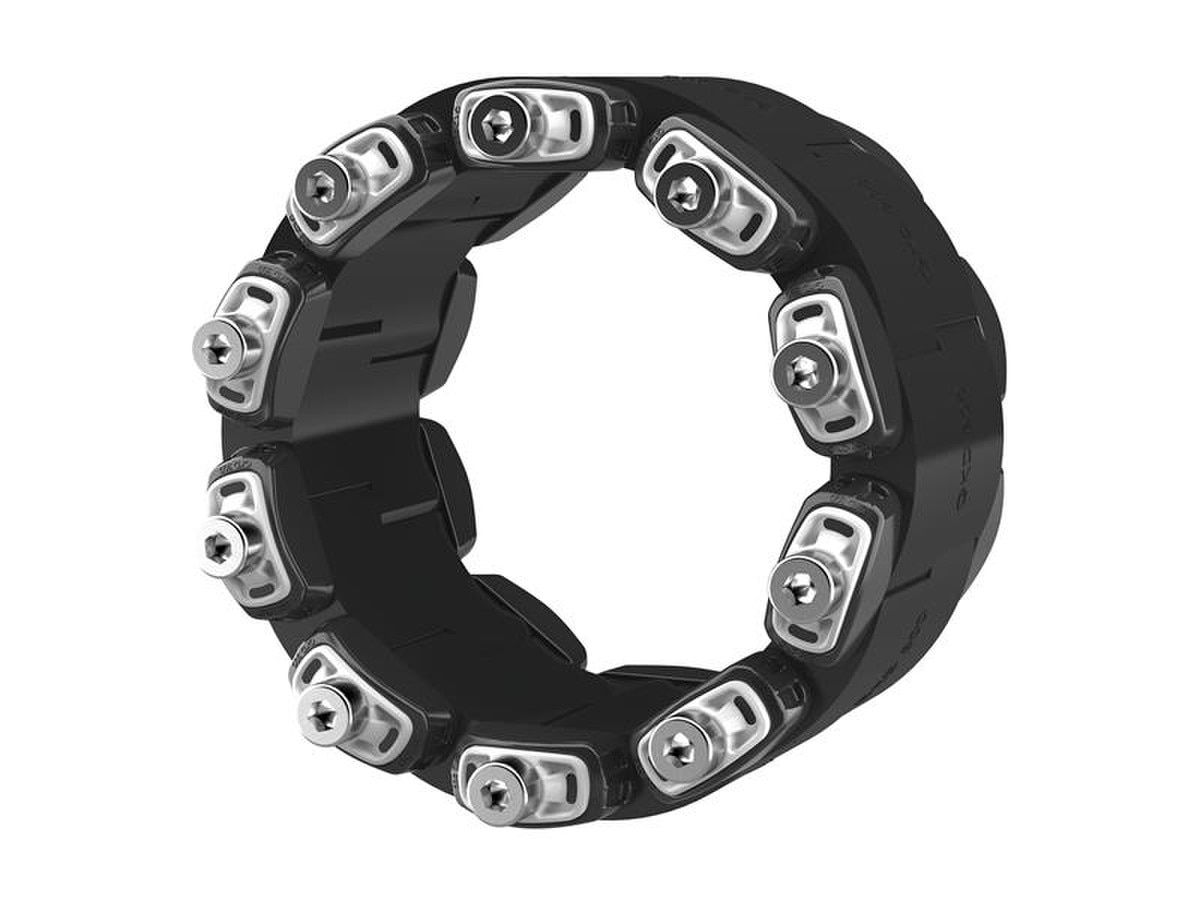

For sealing new or already installed pipes in core drill holes or wall sleeves. The modular design allows the use of all possible pipe types and diameter combinations.


Advantages

  • With integrated installation control - no torque control key required
  • No retightening required
  • Nuts moulded into the pressure plate, therefore no loose parts
  • Optimised bolt geometry
  • Made in Germany - stocked in New Zealand
  • Suitable for retrofit sealing
  • Waterproof concrete stress class 1 and 2
  • Gastight and watertight
  • Radon-proof

Materials

  • Rubber: EDPM or NBR
  • Screws and nuts: stainless steel V4A (AISI 316L)
  • Press plates: glass fibre reinforced polyamide
Back

Downloads


GKD_EN_230126.pdf
3030366562 1 x GKD200 EPDM50 MODULAR SEAL SEGMENT 75 21.3 - 323.9 12.7 - 16.0
1410030001 1 x GKD300 EPDM50 MODULAR SEAL SEGMENT 100 58 - 463 18.5 - 23
1410031501 1 x GKD315 EPDM50 MODULAR SEAL SEGMENT 100 60.3 - 463 23.25 - 26.0
1410032501 1 x GKD325 EPDM50 MODULAR SEAL SEGMENT 110 152.2 - 716 24.0 - 30.0
3030366569 1 x GKD340 EPDM50 MODULAR SEAL SEGMENT
1410040001 1 x GKD400 EPDM50 MODULAR SEAL SEGMENT 150 168.3 - 1230 36.5 - 43.0

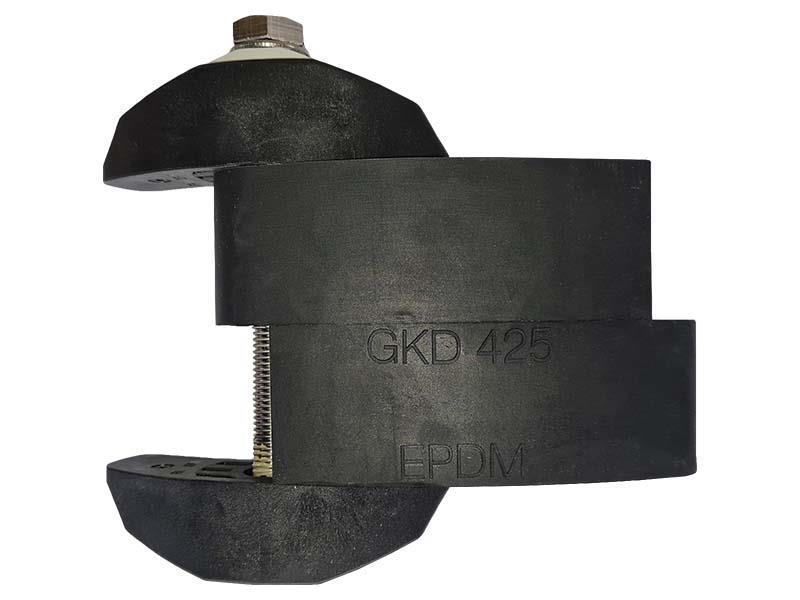

1410042501 1 x GKD425 EPDM50 MODULAR SEAL SEGMENT 125 177.8 - 1230 29.0 - 36.0
1410044001 1 x GKD440 EPDM50 MODULAR SEAL SEGMENT 125 177.8 - 1230 29.0 - 36.0

Cat No.

Description

Required Wall Thickness (mm)

Carrier pipe OD (mm)

Annular Space (mm)

Qty

Price
