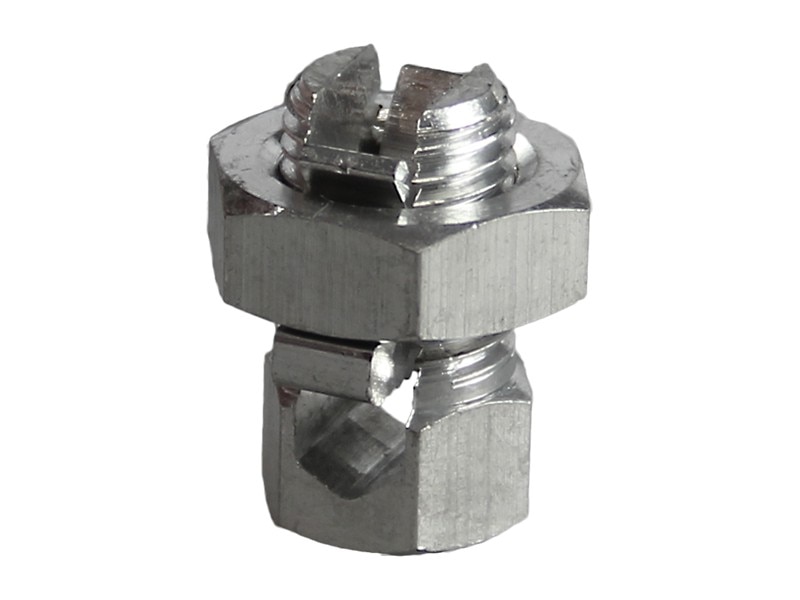

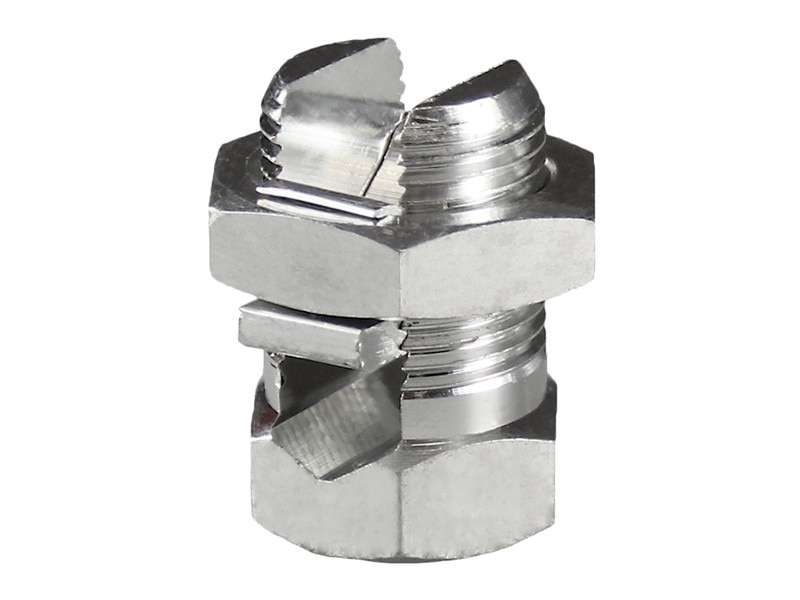

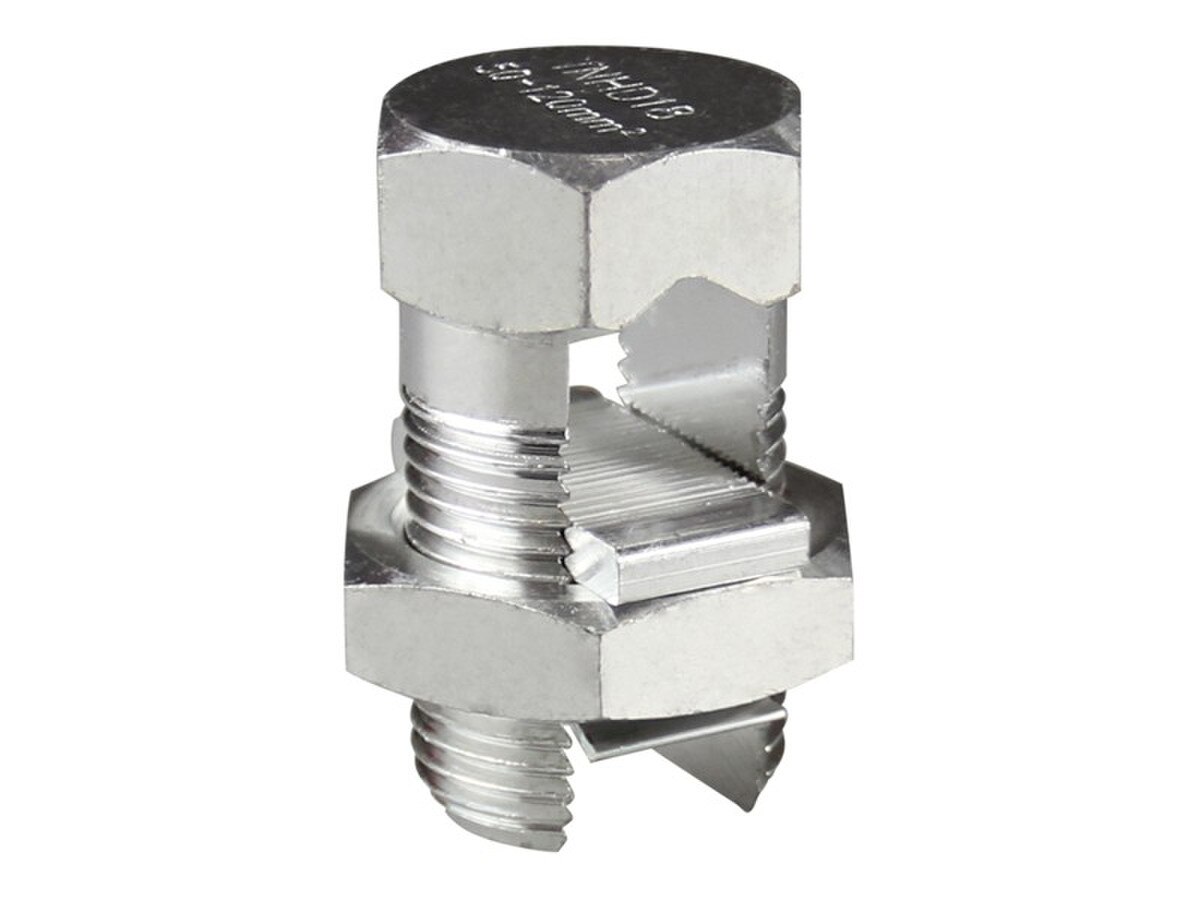

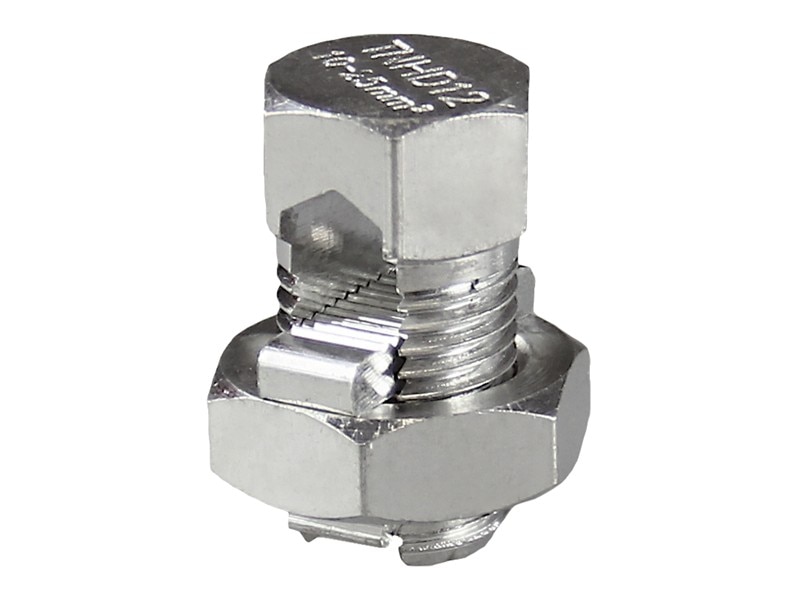

Split Bolt Connectors (BS 3288)

(0)No Reviews yet

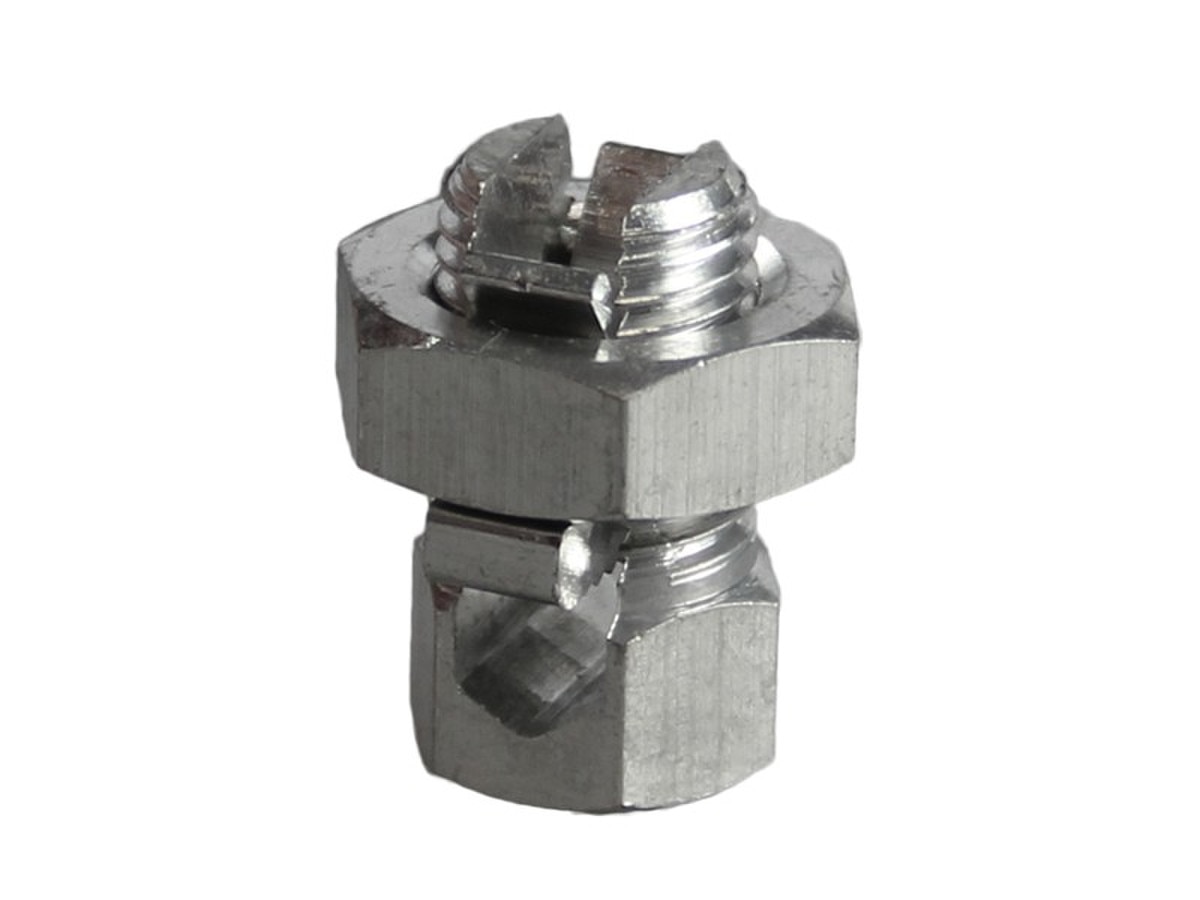

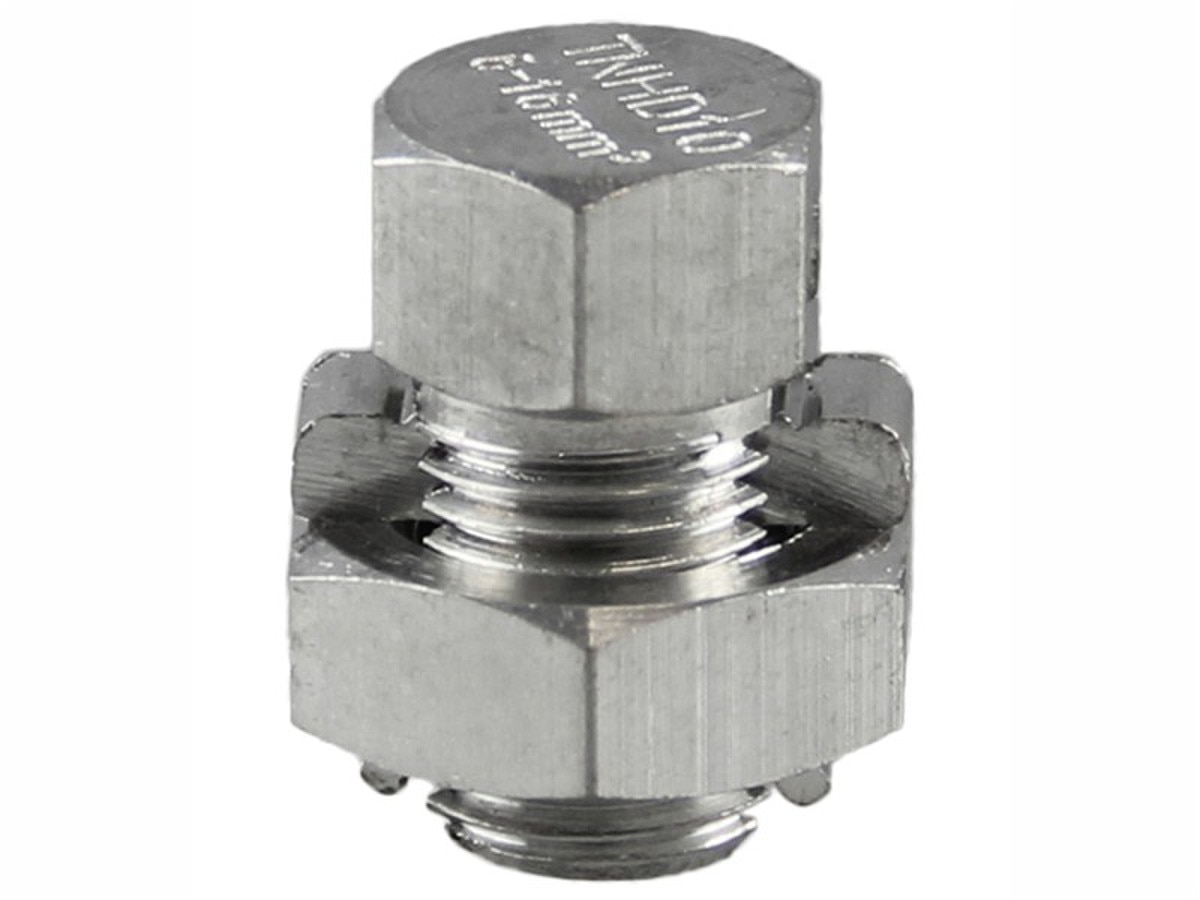

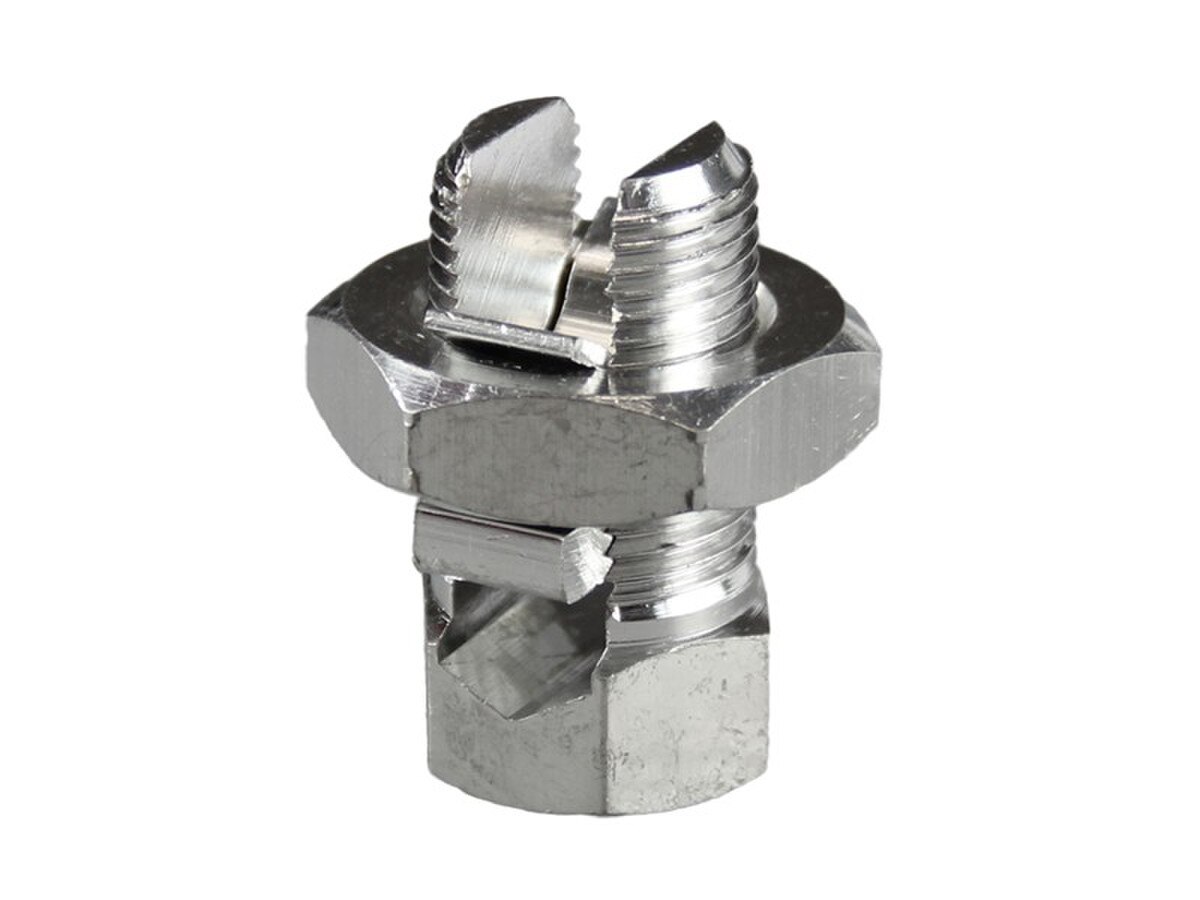

This style of split bolt connector is recognised as a fast, simple and cost effective solution for use on overhead copper lines. The range offers a solution for wire from 2x4mm² to 2x120mm².

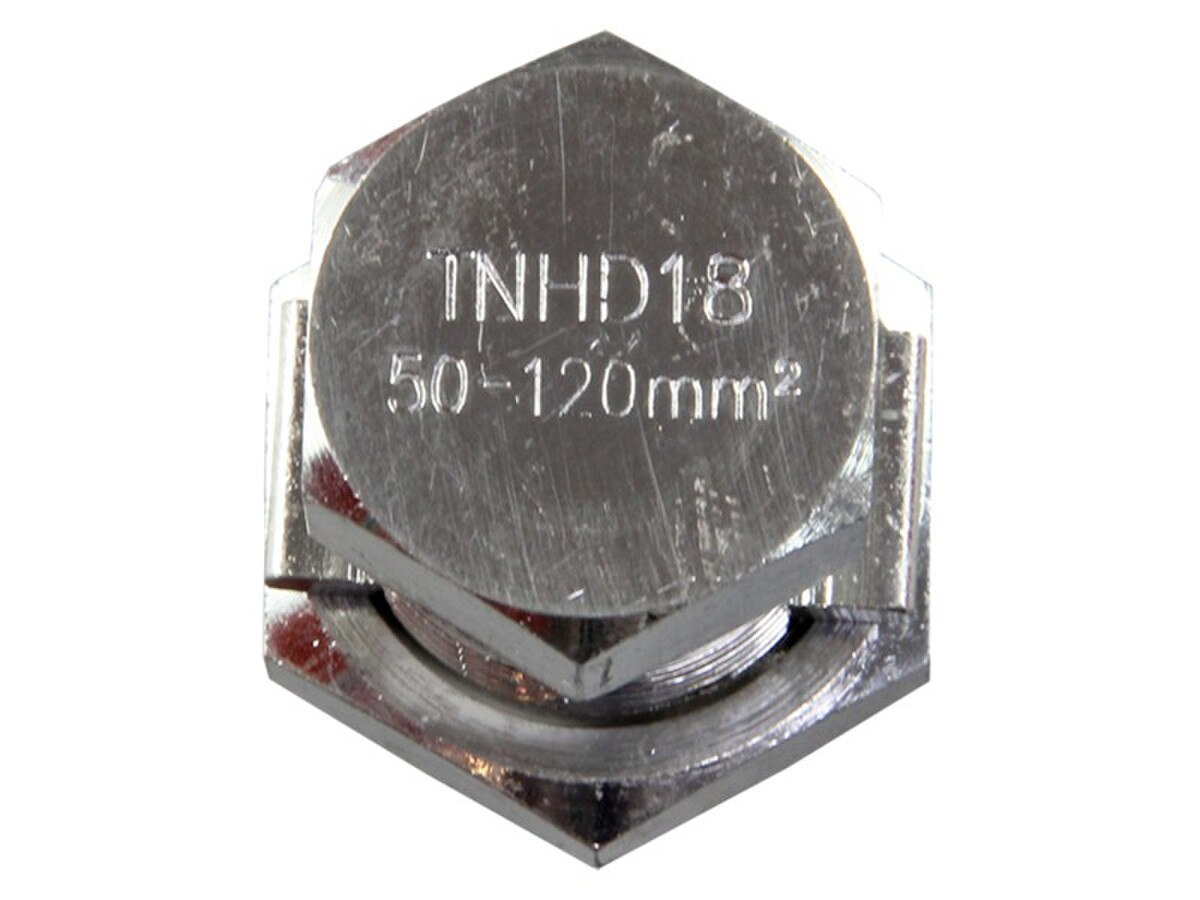

The part number and cable range (min/max size of each of the two conductors being joined) are engraved on the connector for fast confirmation of connector choice. These connectors are range taking, simple to install and remove, they don't require any special tooling and are very inexpensive.

Made of tinned brass

Tested to meet all requirements of British Standard BS 3288.

DIMENSIONS

TNHD Illustrations-794-238

TNHD9 4-7 2.7-4.1 7/.036-7/.044 13.3 11.16 9.52 19.0 13.5 15.5 5.0 4.2

Quantity

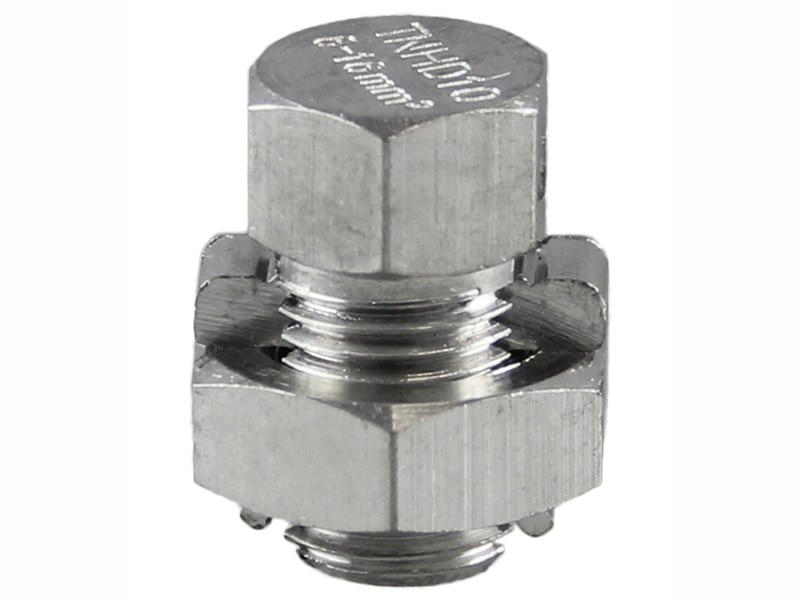

TNHD10 6-16 3.8-5.8 7/.052-7/.064 19.0 13.4 13.0 24.0 16.0 21.0 6.5 5.9

Quantity

TNHD12 10-25 4.3-6.6 7/.064-7/.083 20.8 15.2 14.2 28.5 19.6 24.0 6.5 6.8

Quantity

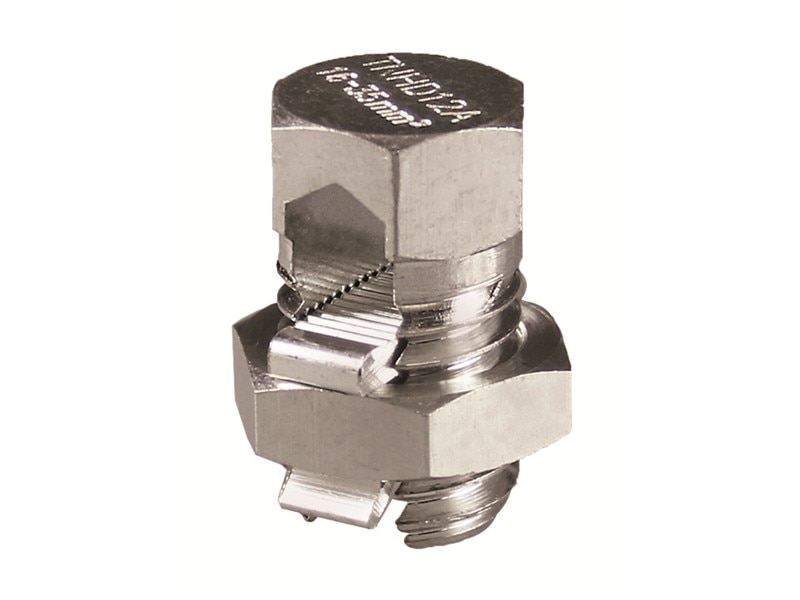

TNHD12A 16-35 5.3-8.12 7/.067-19/.064 23.3 18.05 17.8 32.5 23.0 28.5 7.0 8.2

Quantity

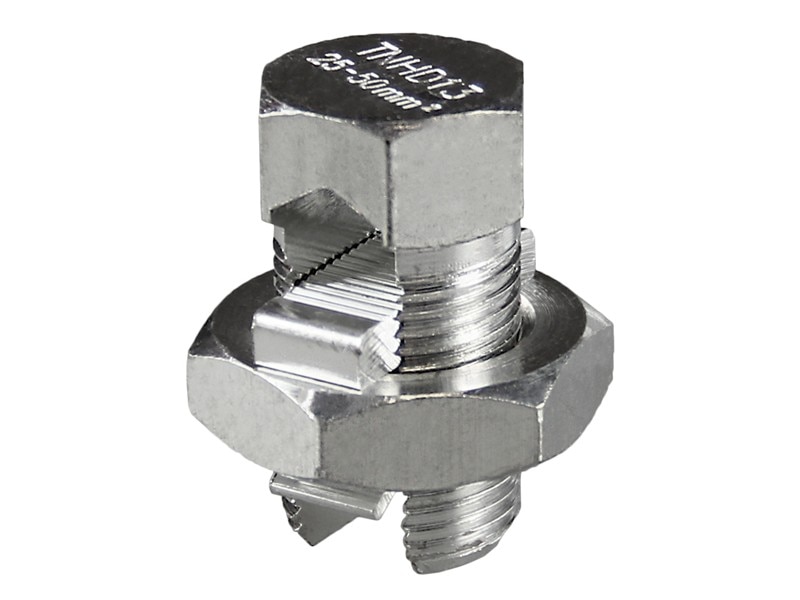

TNHD13 25-50 6.6-10.16 7/.083-19/.072 30.4 20.8 20.5 40.0 29.0 34.0 8.5 10.2

Quantity

TNHD14 25-70 7.3-11.17 7/.083-19/.083 30.4 23.75 22.8 41.5 29.5 36.0 9.5 11.2

Quantity

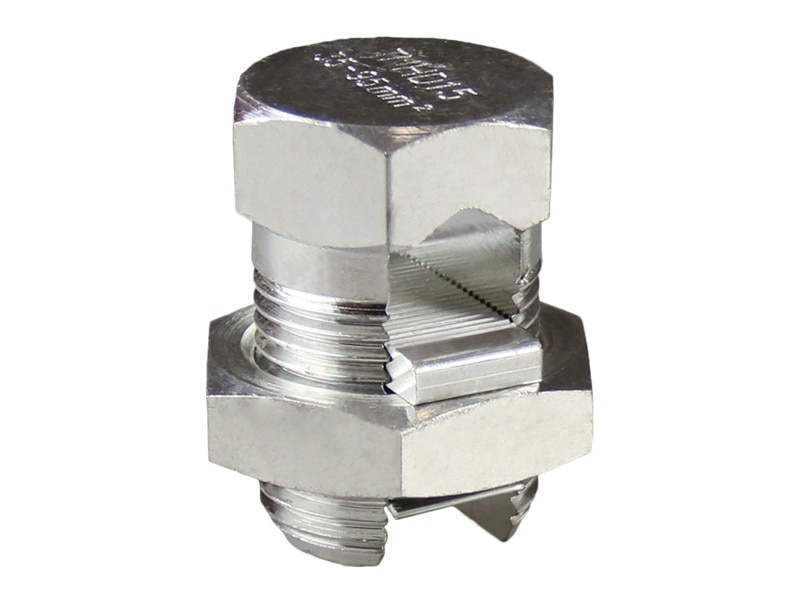

TNHD15 35-95 8.8-13.46 7/.116-37/.072 37.4 30.5 28.0 46.5 33.5 38.0 9.5 14.0

Quantity

TNHD18 50-120 10.5-16.10 19/.0/83-37/.083 37.4 30.5 28.0 54.5 40.5 45.0 9.5 16.3

Quantity

		Size Range of Each Conductor Being Jointed			Dimensions (mm)
	Cat No.	mm²	mm OD	Stranding	A	B	C	D	E	F	G	H	Qty	Price
