Split Bolt Connectors (ESAAS)

(0)No Reviews yet

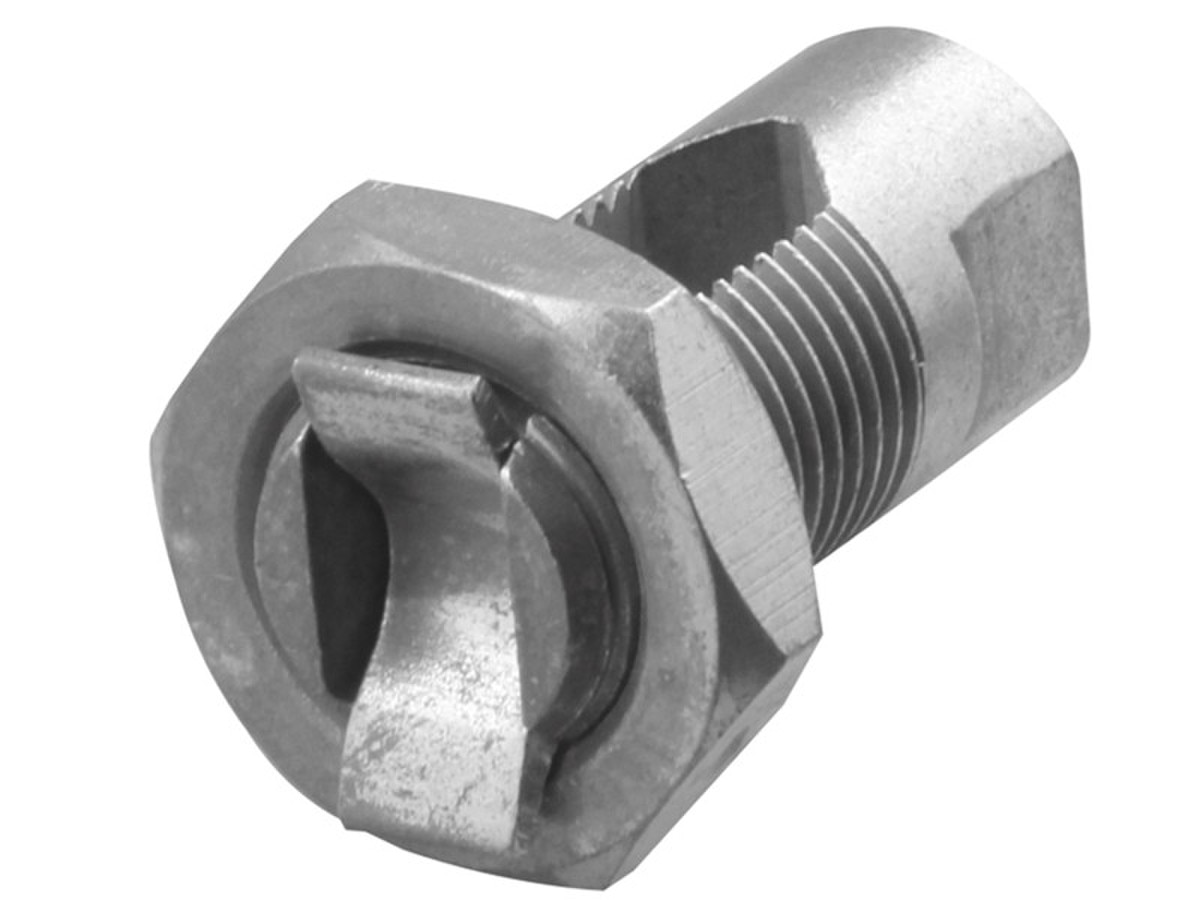

Split Bolt Connectors

For fast fixing of parallel conductors. Bervic split bolt clamps are made of 100% Australian brass and have an electro-tinned finish.

All dimensions are to Electrical Supply Association of Australia Standards (ESAAS). Supplied in sturdy cardboard cartons and available in 5 different sizes.

Back

DIMENSIONS


Split Bolts
Back
Back
B24T ELECTRO TINNED 35 7/.104 8.5 5/8" 13.2 36.5 9.5 14.3 23.2 6.3
B25T ELECTRO TINNED 3 70 19/.083 10.9 7/8" 17.9 44.5 9.5 22.2 27.7 7.1

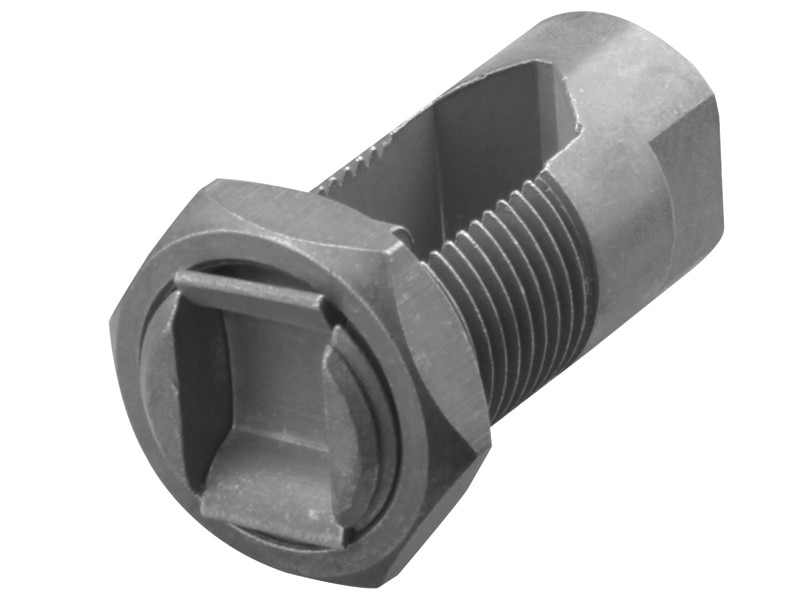

B26T ELECTRO TINNED 95 19/.101 12.9 7/8" 17.9 50.8 9.5 22.2 27.7 7.1

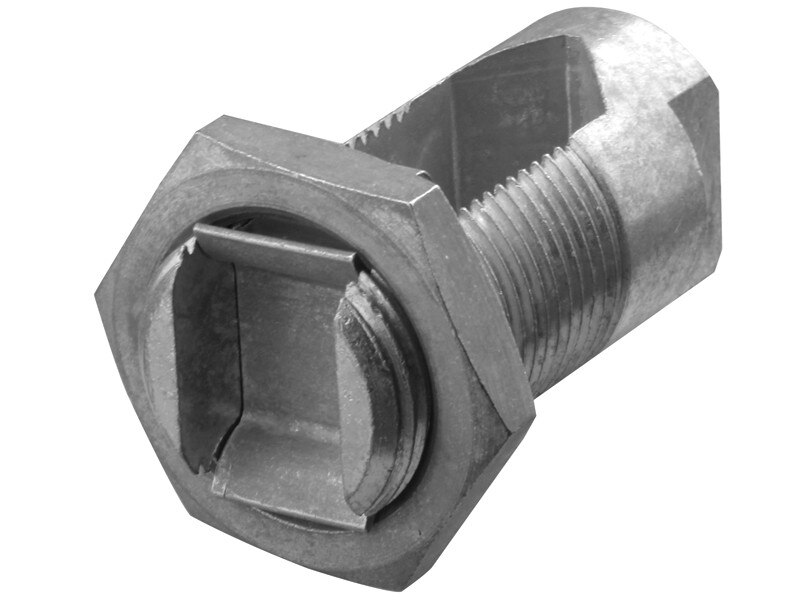

B28T ELECTRO TINNED 182 37/.103 18.5 1 1/4" 23.2 66.7 9.5 25.4 42.1 7.9

Max Conductor Size

Dimensions (mm) - Except B which is inches

Cat No.

Body

mm2

Stranding

A

B

C

D

E

F

G

H

Qty

Price

Back
