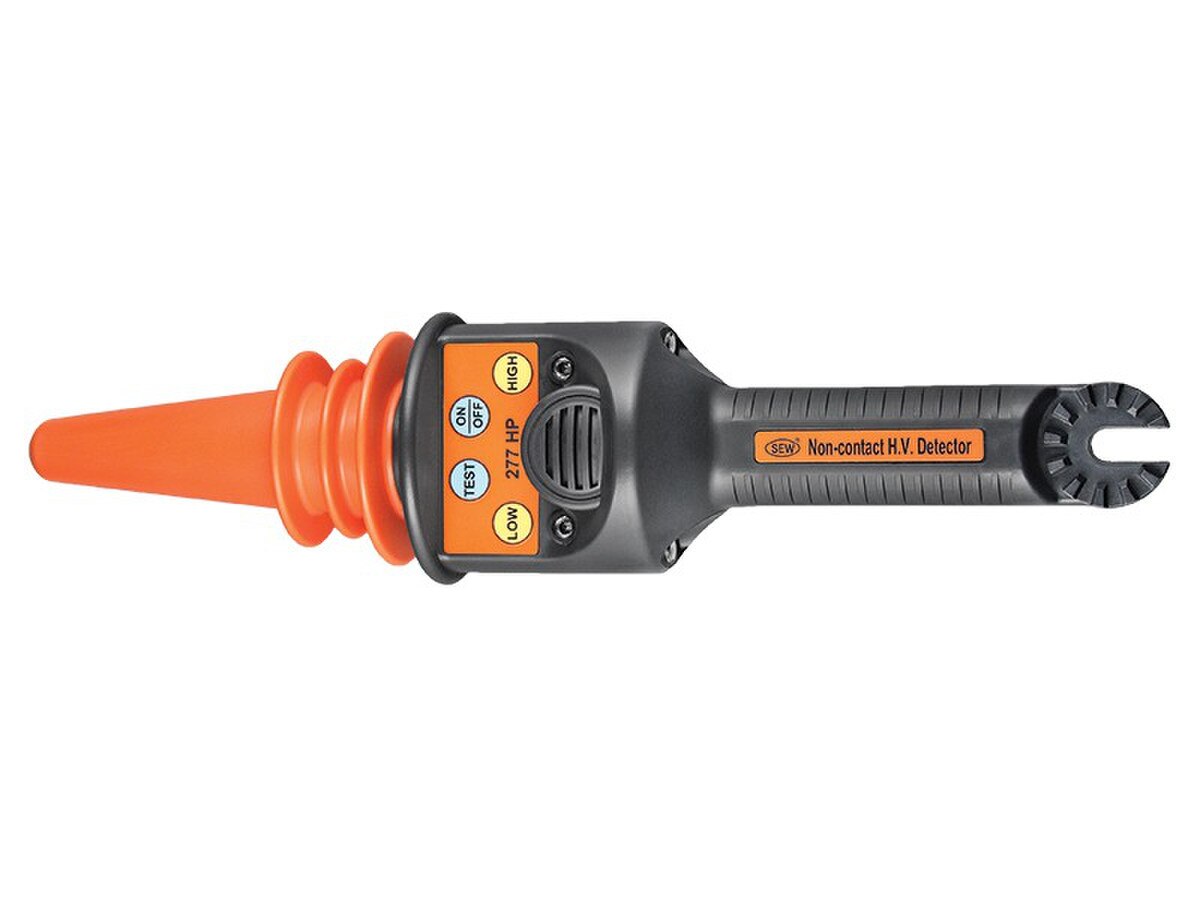

TN277NZHP Voltage Detector & Accessories
The TN277NZHP is an ideal tool for checking the presence of AC high voltages and AC low voltages in cables, wall outlets, fuses etc. It provides a non-contact detection for AC voltages from 50V ~132kV. It is also suitable for industrial, utility and mine safety applications.
KEY FEATURES
2 ranges for selection ( 2 function buttons )- LOW :50V~1.5kV. Press the LOW button for low voltage detection.
- HIGH : 1.5kV~132kV. Press the HIGH button for high voltage detection.
Power consumption:
- Off : Less than 5uA
- Low voltage detection mode: Less than 40mA High
- Voltage detection mode: Less than 40mA
Circuit test function
- Press the Test button to make sure the whole circuit is working well before testing actual high voltage circuits.
APPLICATIONS
- Non-contact detection of live voltages
- Find faults in cables
- Check and detect live high voltage cables
- Trace live wires
- Check high frequence radiation
- Check grounding equipment
- Detect residual or induced voltages
SPECIFICATIONS
| Specifications | |
|---|---|
| Operating Temperature | 0°C to 50°C |
| Dimensions | 318(L) x 75(W) x 71(D)mm |
| Weight (battery included) | Approx. 227g |
| Power source | 9V(6LF22)x 1 Alkaline battery |
| Safety standards | EN 61326-1 EN 61000-4-2 EN 61000-4-3 |
| Accessories | Instruction manual Carry case Battery |
