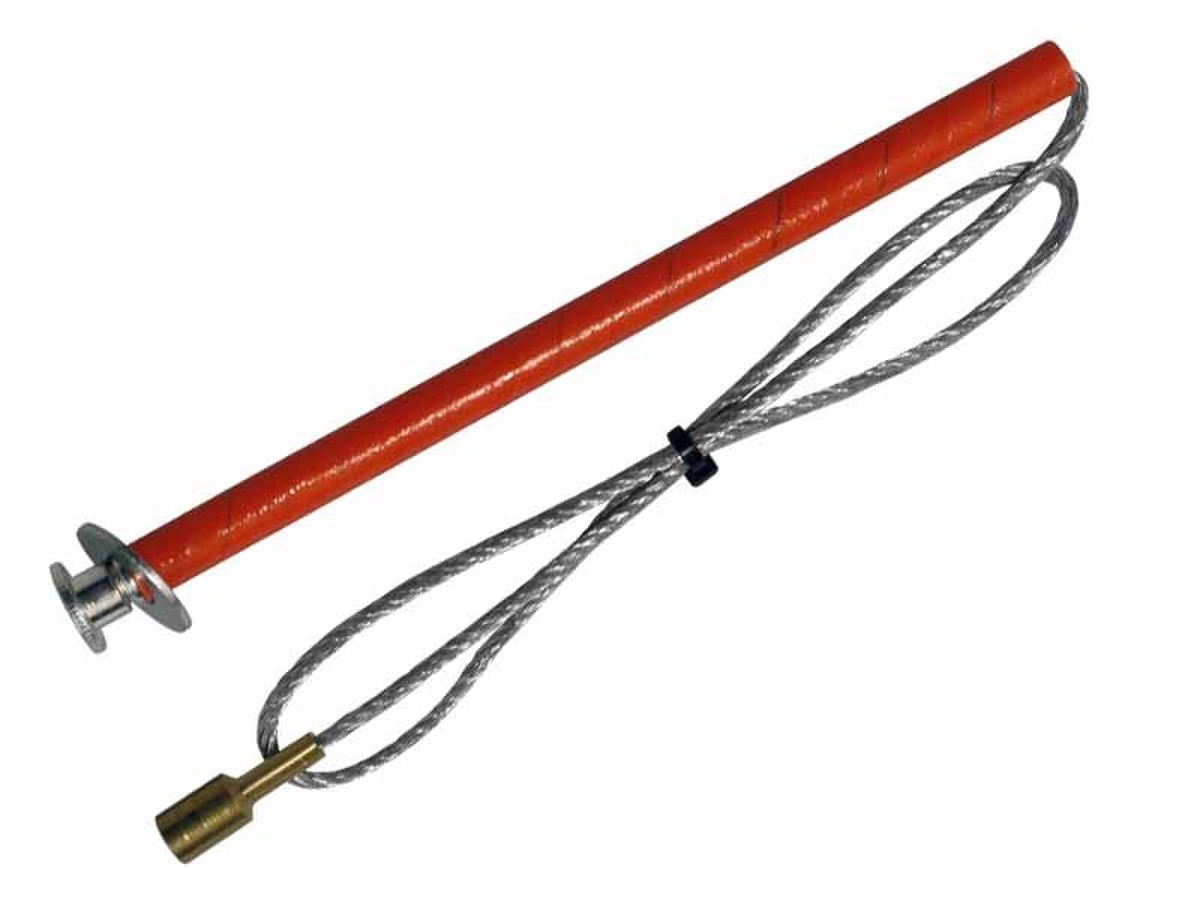

AB Chance Type K and Type T fuse links - 11kV, 22kV, 33kV

(0)No Reviews yet

AB Chance Type K and

Description

Chance Type K and Type T fuse links are made in complete accordance with ANSI/NEMA standards. Chance fuse links assure system protection because they are precision manufactured. The fusible materials used in Chance Fuse Links are under continual control during manufacture. Pre-tested to guarantee their electrical values, these materials are held to precise tolerances. At critical points during the manufacturing process, rigid inspections are made.


Chance Type K and Type T fuse links are designed to carry 150% of their rated current without damage to the fuse link itself or the cutout in which it is installed. This capacity is for special loading situations, such as short-time overloads and cold load pick-up.


Type T Fuse Links: Slower time current characteristics. Coordinate particularly well with automatic oil-circuit reclosers.

Type K Fuse Links: Fast characteristics to meet existing coordination schemes as established by ANSI/NEMA.

Back

Downloads

Back

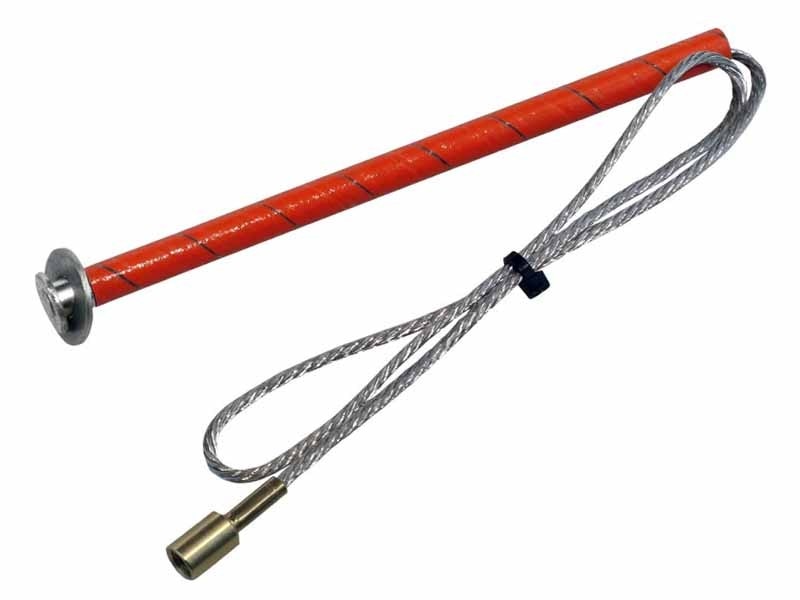

M2TA23 T - SLOW 2 23
M2KA23 K - FAST 2 23

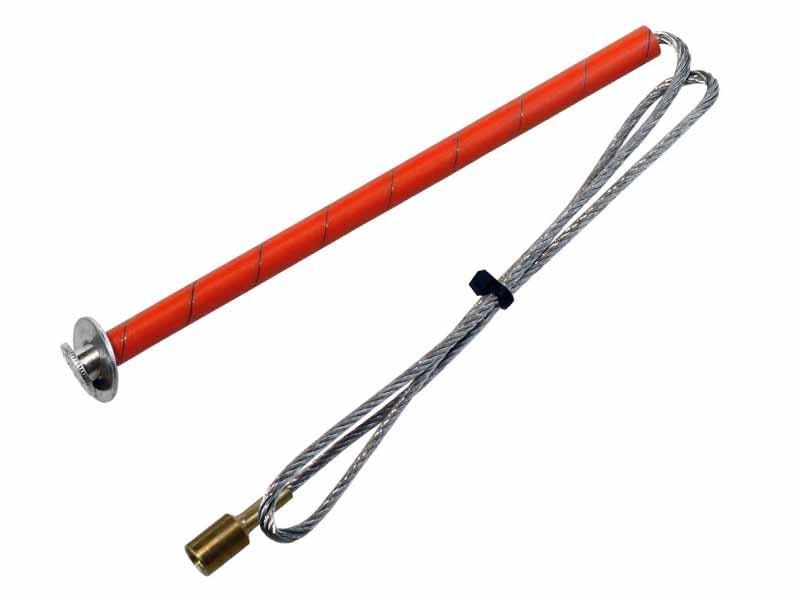

M3TA23 T - SLOW 3 23
M3KA23 K - FAST 3 23

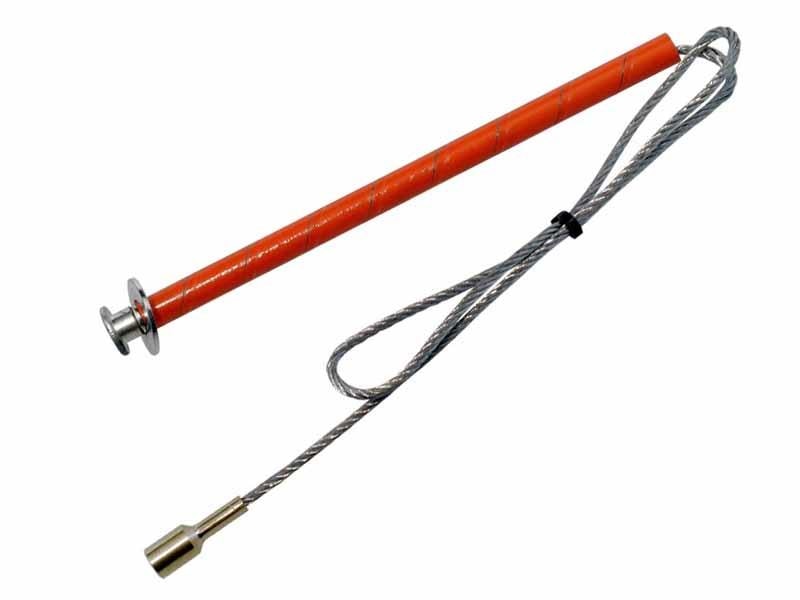

M6TA23 T - SLOW 6 23

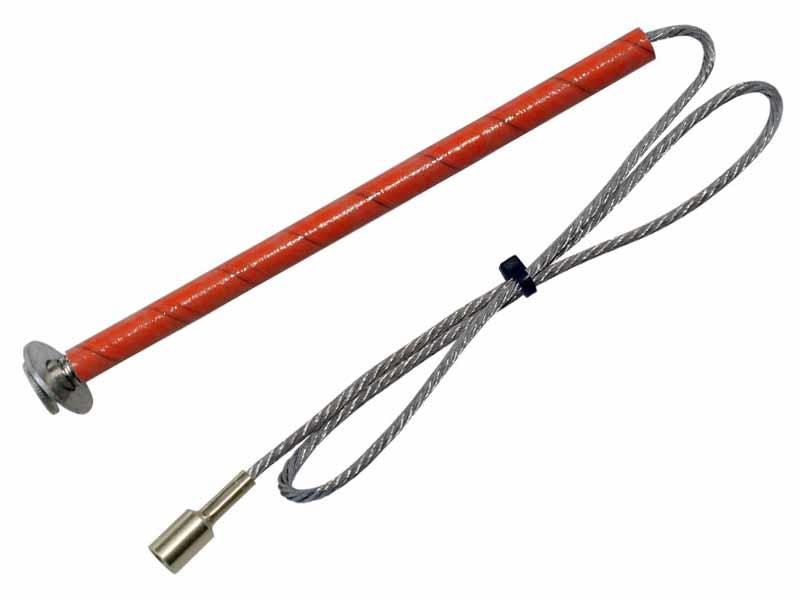

M6KA23 K - FAST 6 23

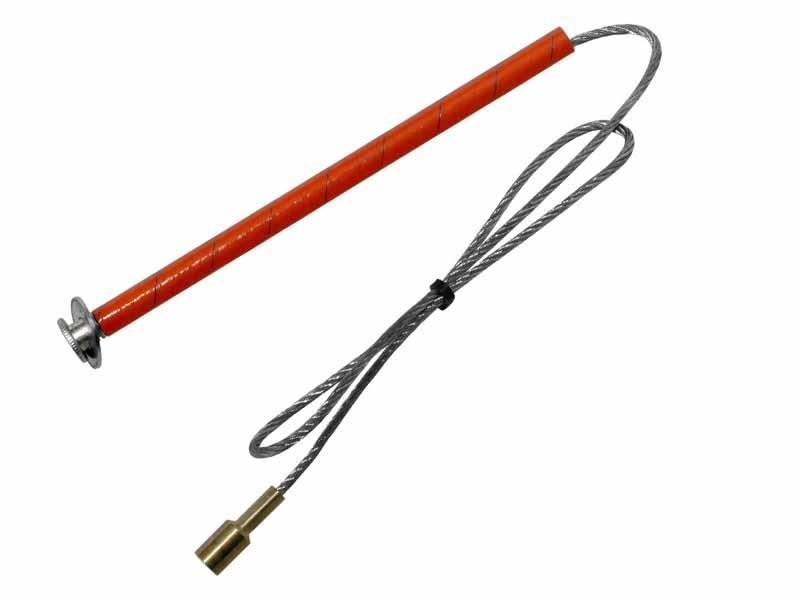

M8TA23 T - SLOW 8 23
M8KA23 K - FAST 8 23

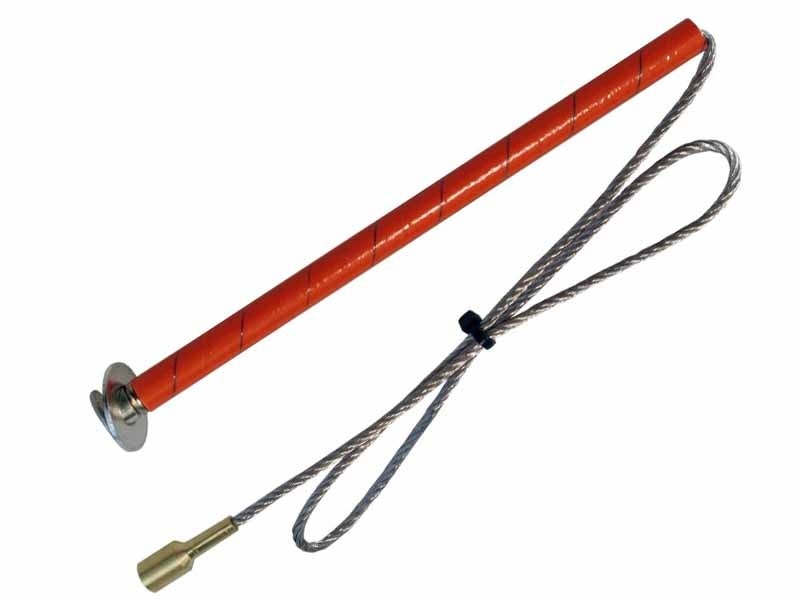

M10TA23 T - SLOW 10 23
M10KA23 K - FAST 10 23

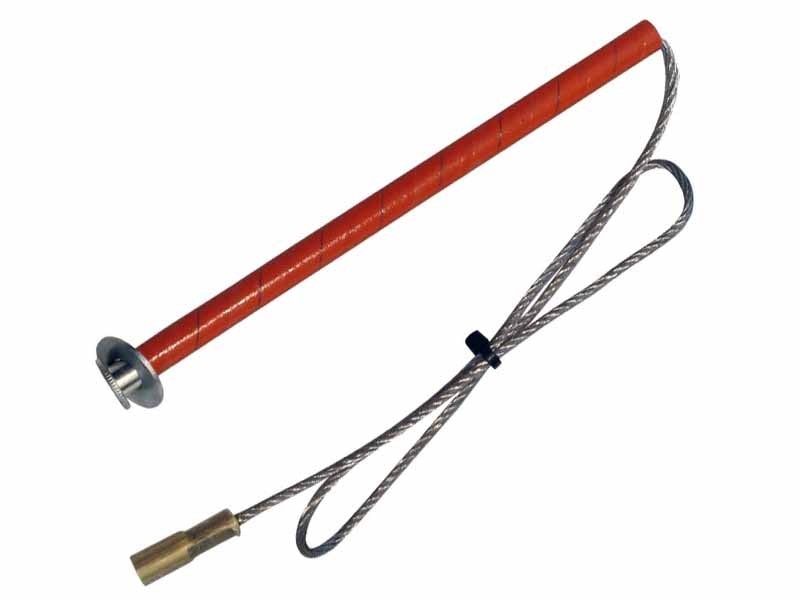

M15TA23 T - SLOW 15 23
M15KA23 K - FAST 15 23

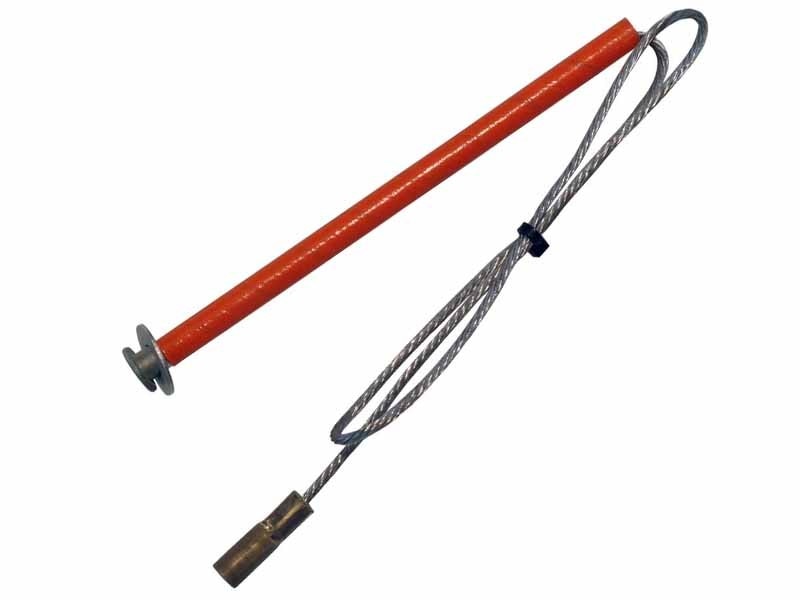

M20TA23 T - SLOW 20 23
M20KA23 K - FAST 20 23
M25TA23 T - SLOW 25 23

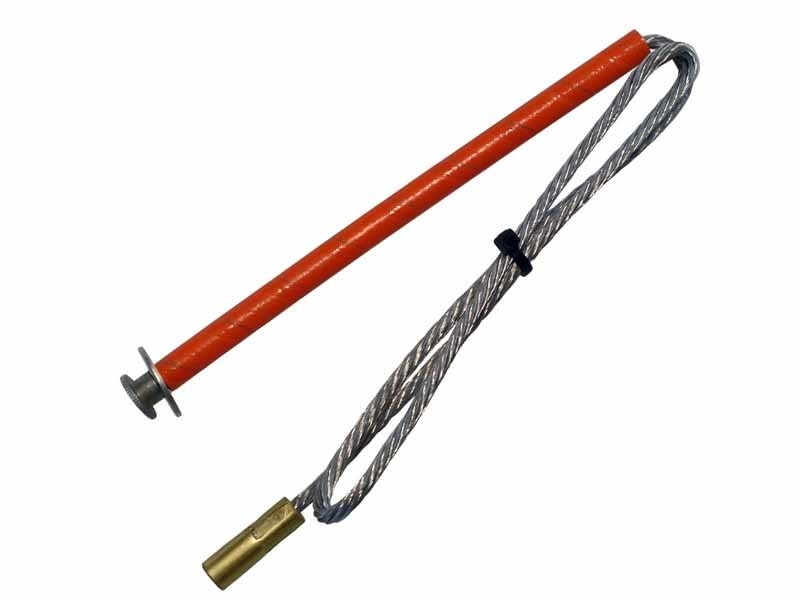

M25KA23 K - FAST 25 23

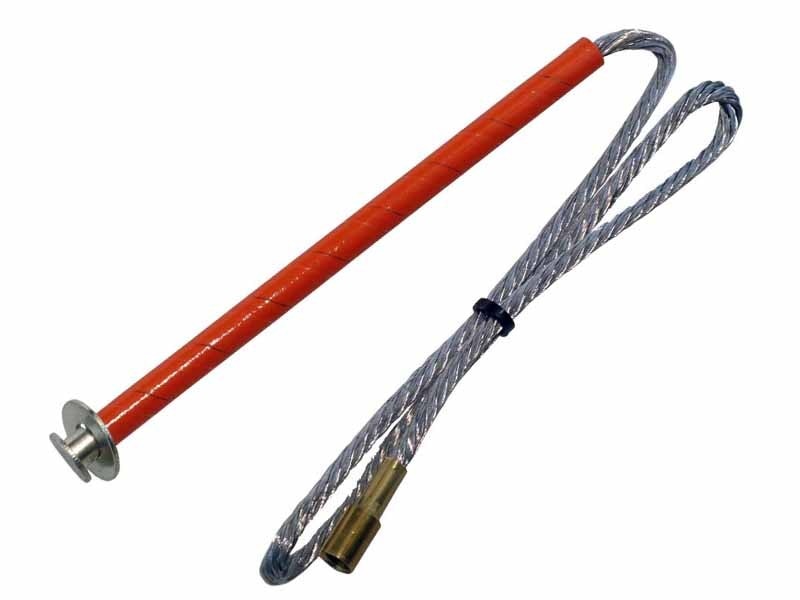

M30TA23 T - SLOW 30 23
M30KA23 K - FAST 30 23

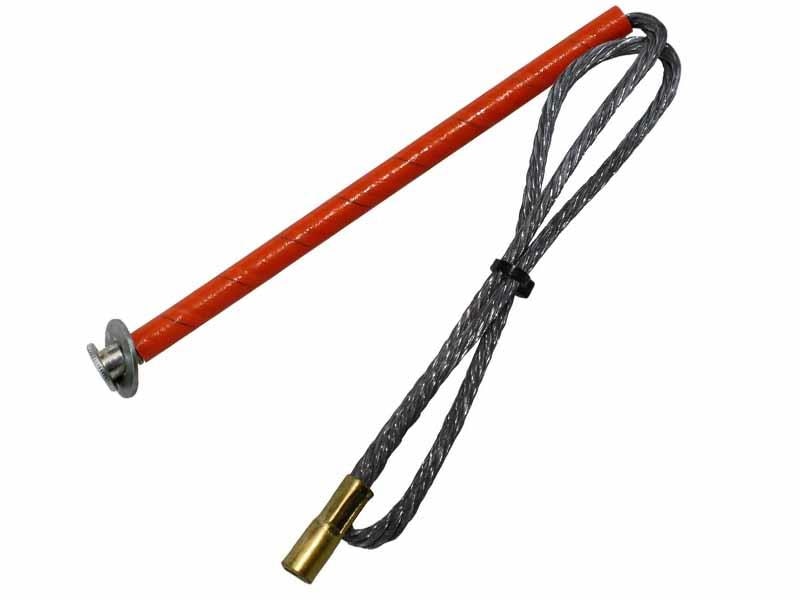

M40TA23 T - SLOW 40 23
M40KA23 K - FAST 40 23
M50TA23 T - SLOW 50 23
M50KA23 K - FAST 50 23

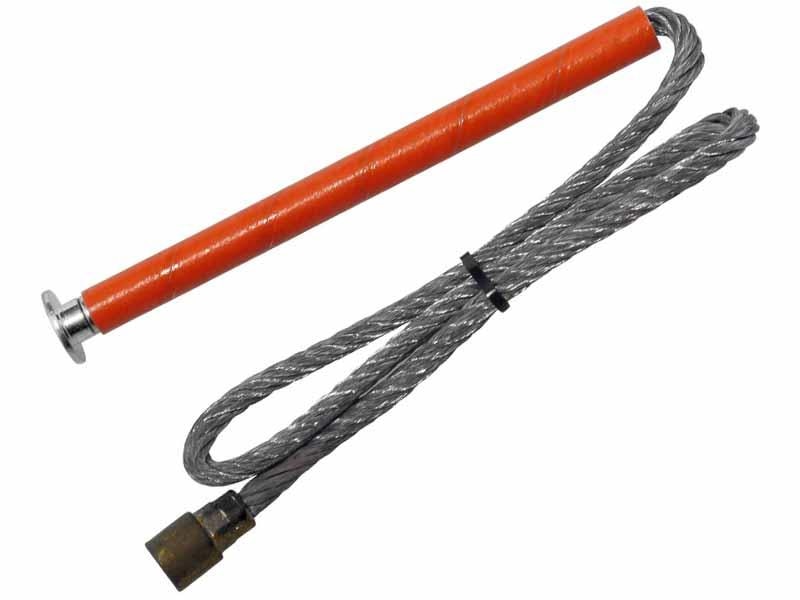

M65TA23 T - SLOW 65 23

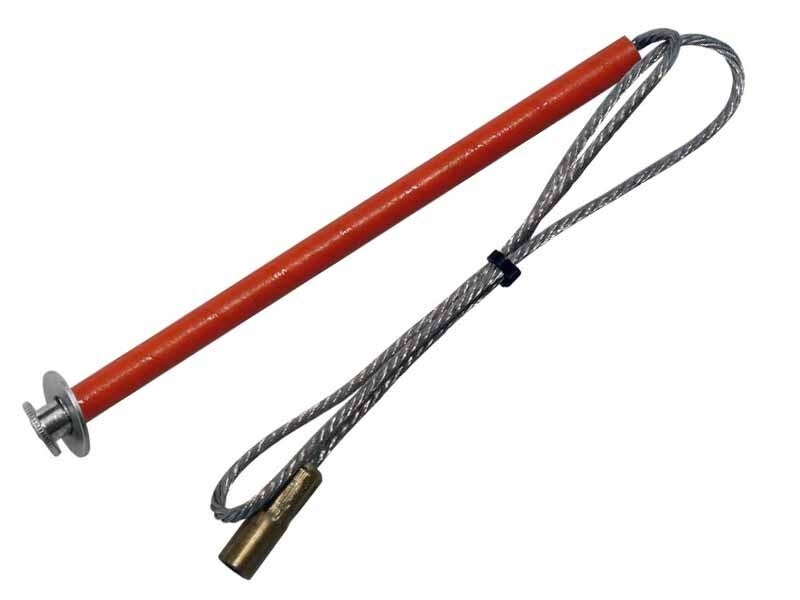

M65KA23 K - FAST 65 23

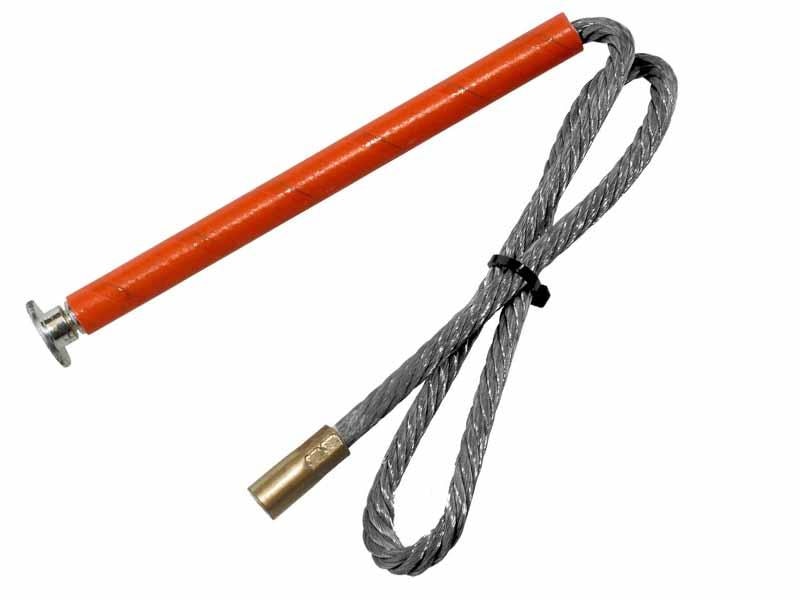

M80TA23 T - SLOW 80 23
M80KA23 K - FAST 80 23

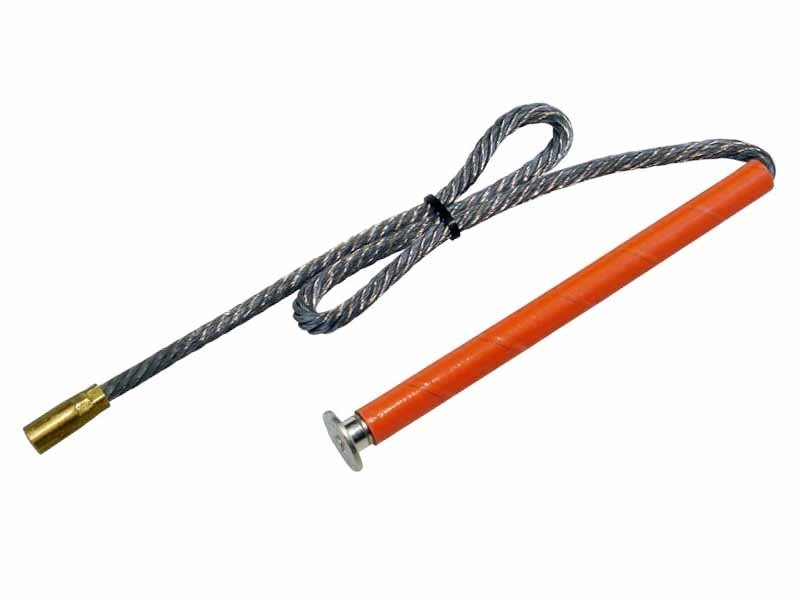

M100TA23 T - SLOW 100 23
M100KA23 K - FAST 100 23

Cat No.

Speed

Amps

Size (inch)

Qty

Price
