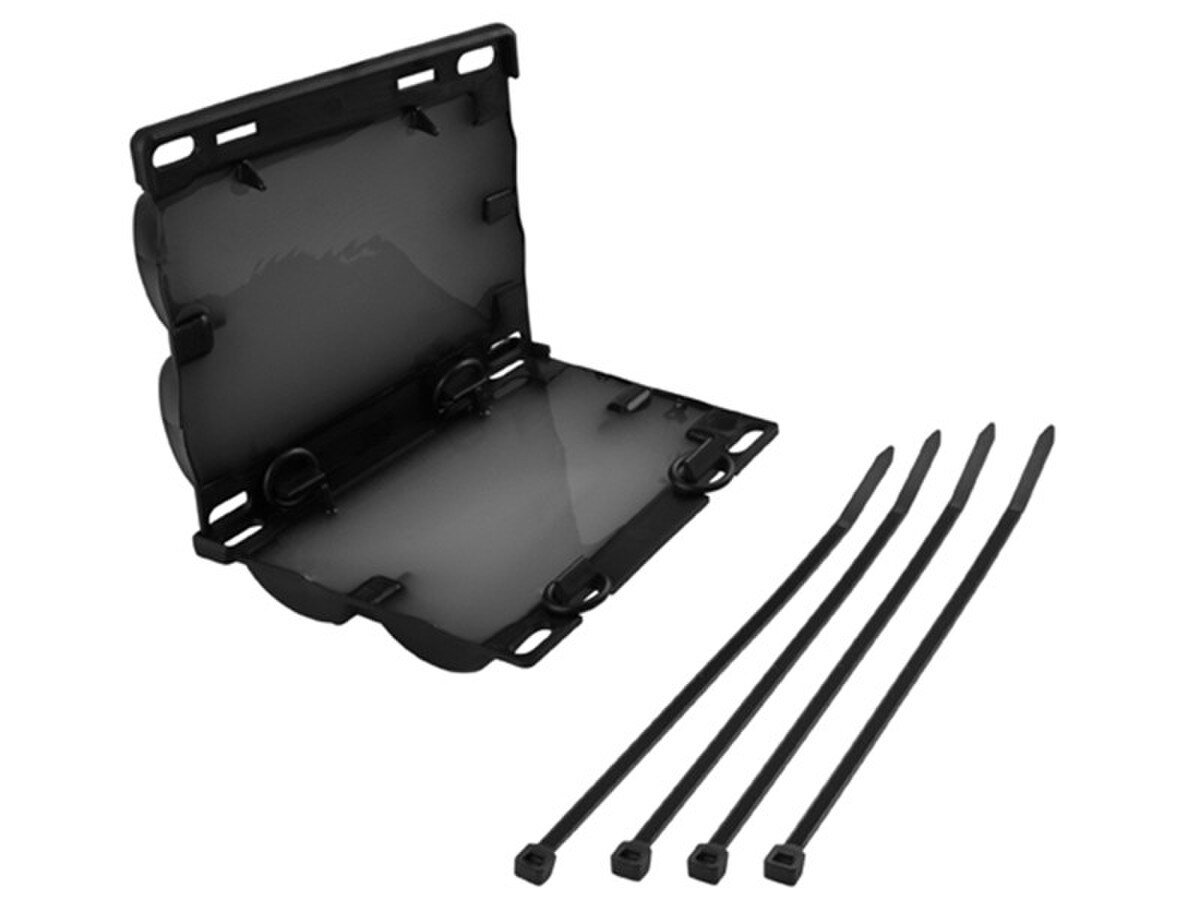

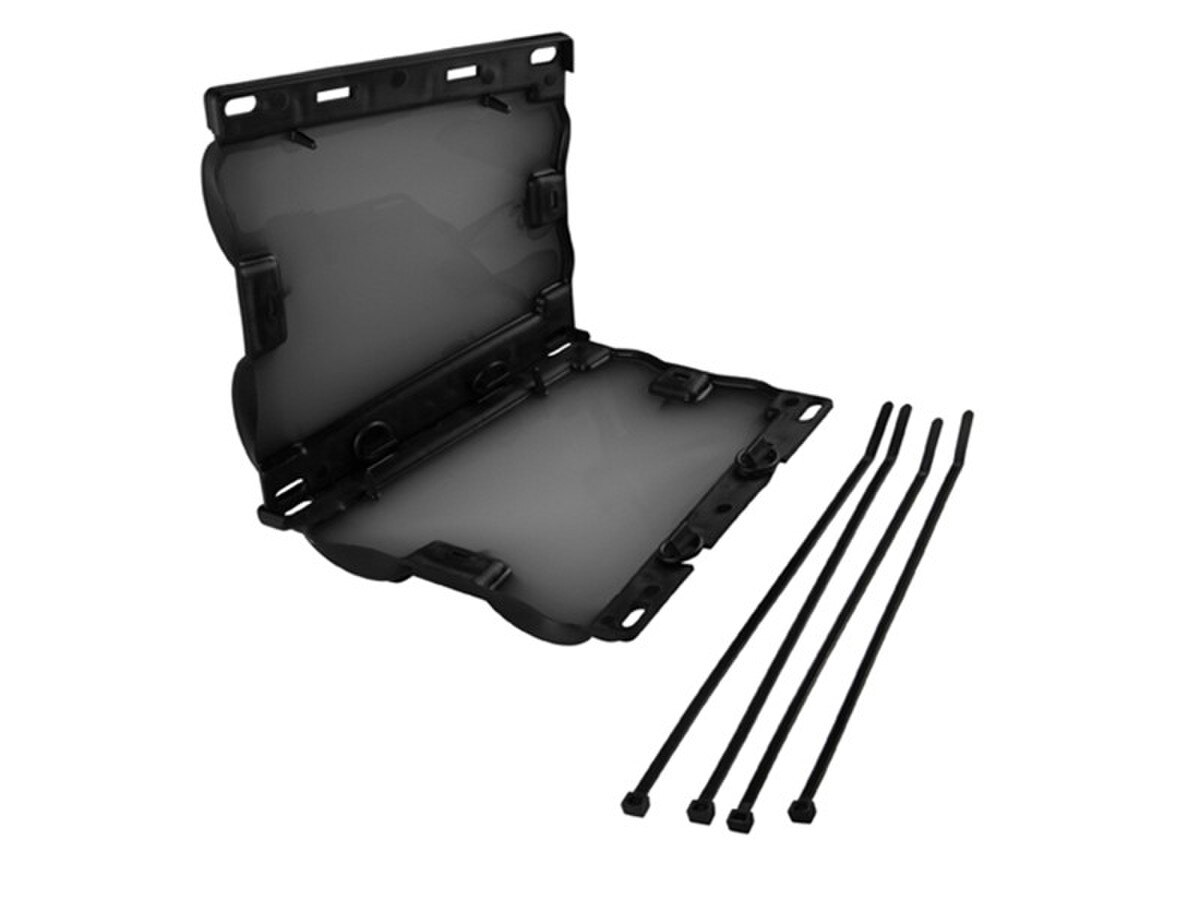

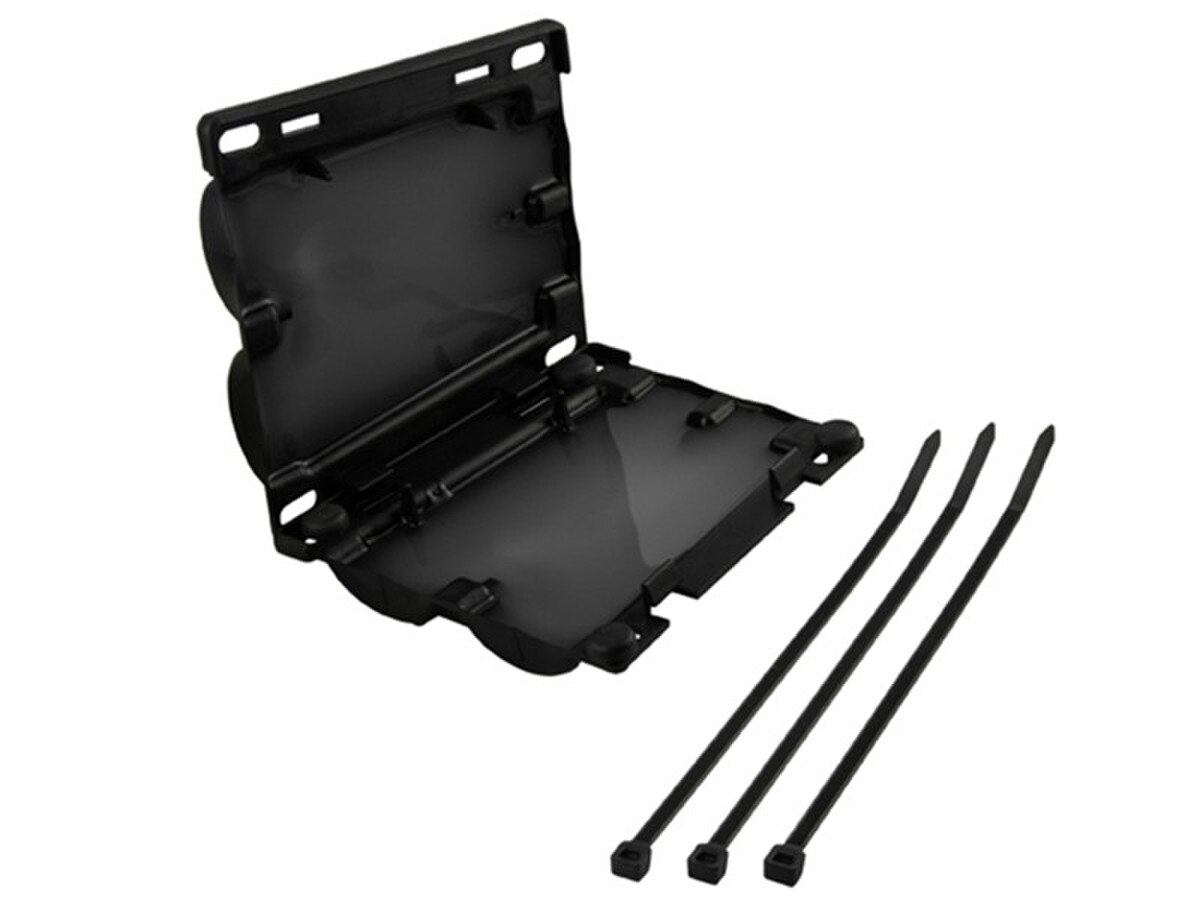

AMPACT Gel Covers

AMPACT GelPact covers provide corrosion protection for AMPACT connectors in any environment but they are extremely effective in severely corrosive environments such as coastal or heavily polluted areas. GelPact covers will prevent corrosion from forming on newly installed AMPACT connectors in aerial applications.

For existing AMPACT connections, installing a GelPact cover will help to arrest the progress of any corrosion that might be forming in the connection. Made of sturdy, black, UV stable plastic.

These covers are ready to snap on quickly and start providing corrosion protection for your electrical network. Easy to select, just three sizes of GelPact covers accommodate the entire AMPACT connector product line.

Easy to Install - remove the O rings from the connector, simply align the two half shells together around the AMPACT connection and snap them together with your hands. Assemble cable ties through the slots and tighten. There’s nothing to cut, no loose parts to drop, and no tools required. GelPact covers are just as easy to re-enter, just cut the cable ties and tabs. Pry the two half-shells apart with a screwdriver.

GelPact cover kits feature revolutionary Raychem PowerGel sealing gel which provides an excellent moisture seal over a wide temperature range (-40 C to 105 C). PowerGel sealing gel offers excellent insulating properties and acts as a vibration damper, as well.
