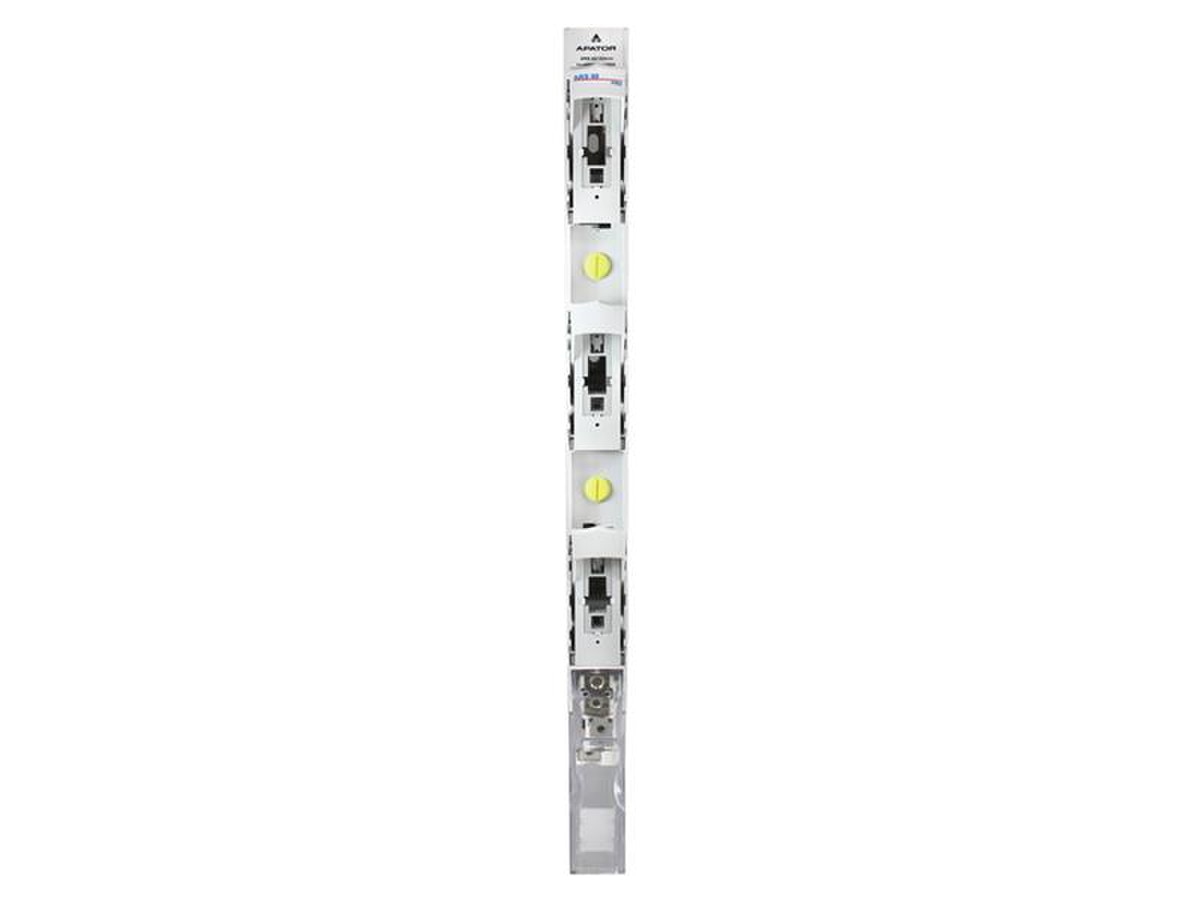

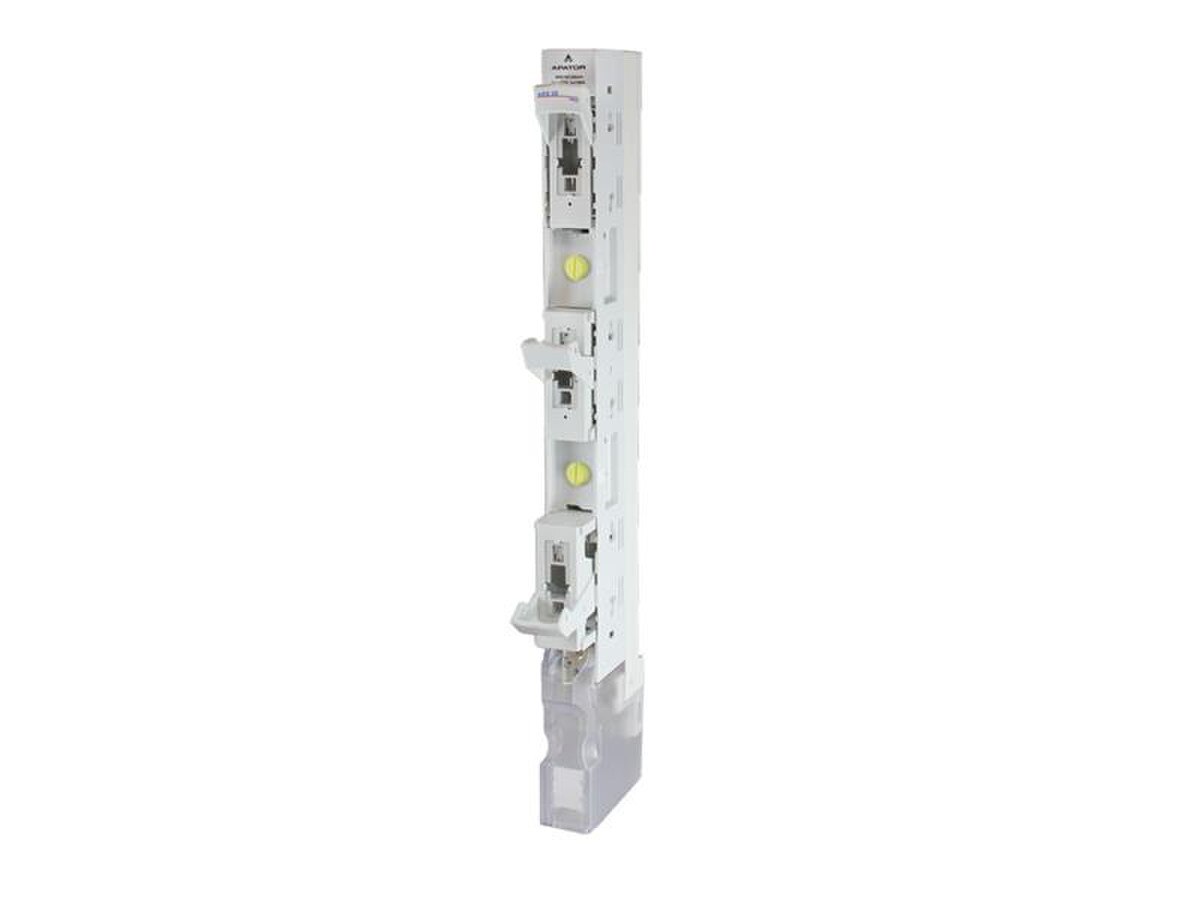

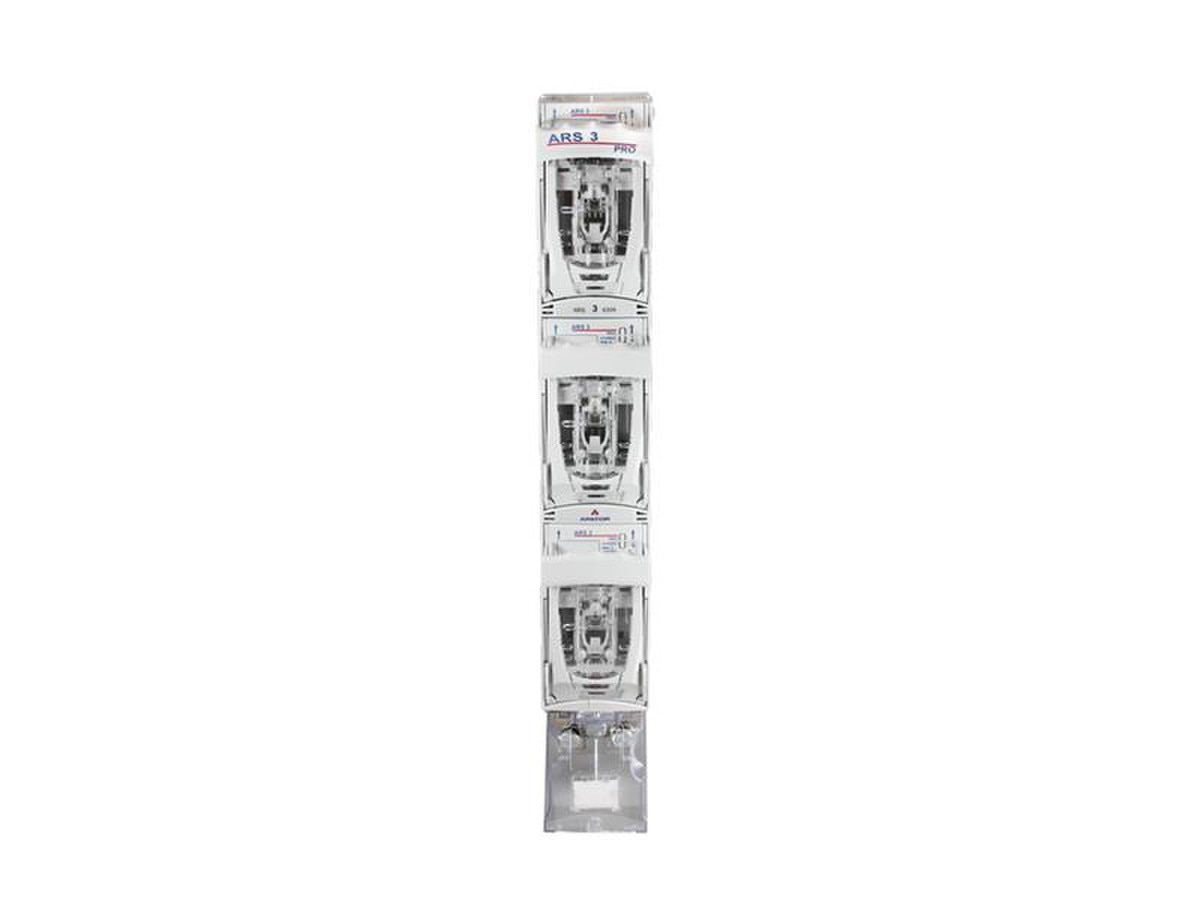

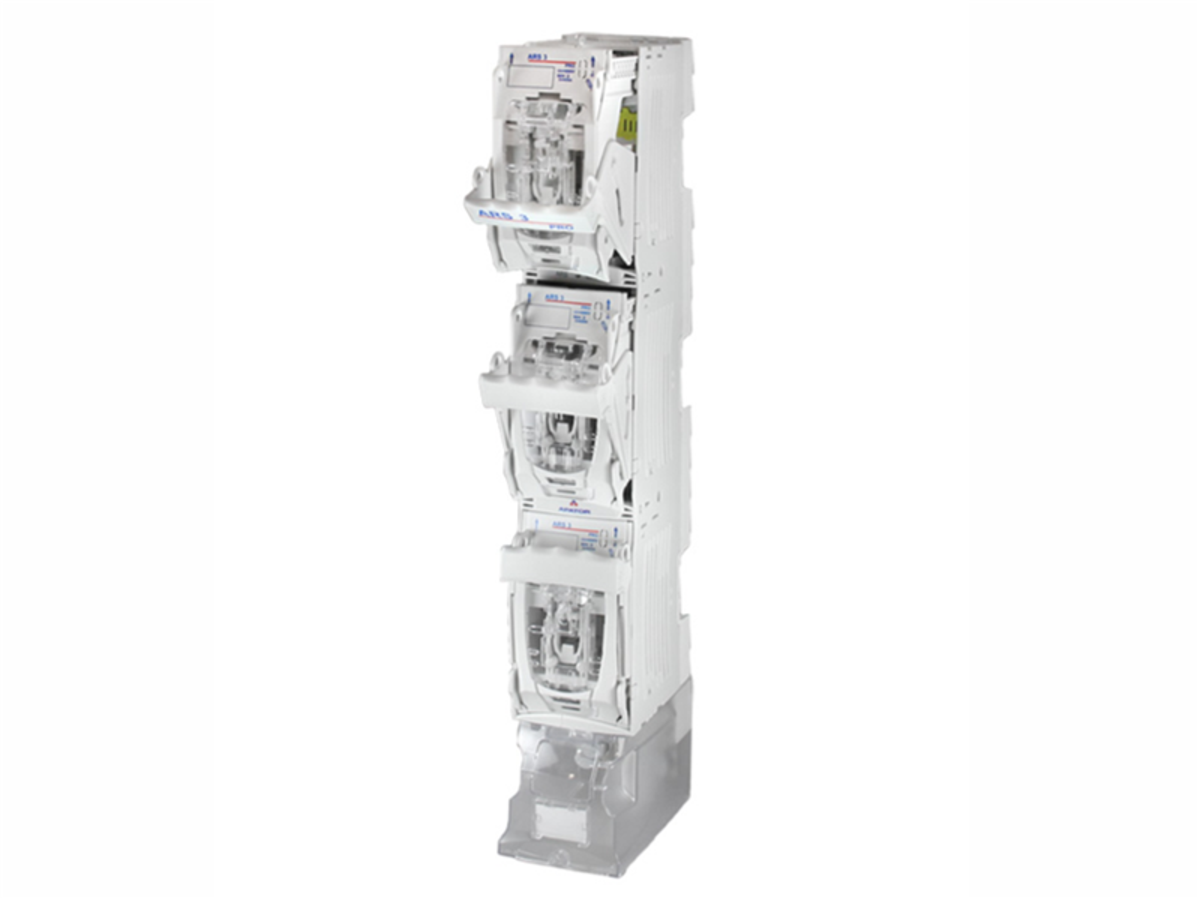

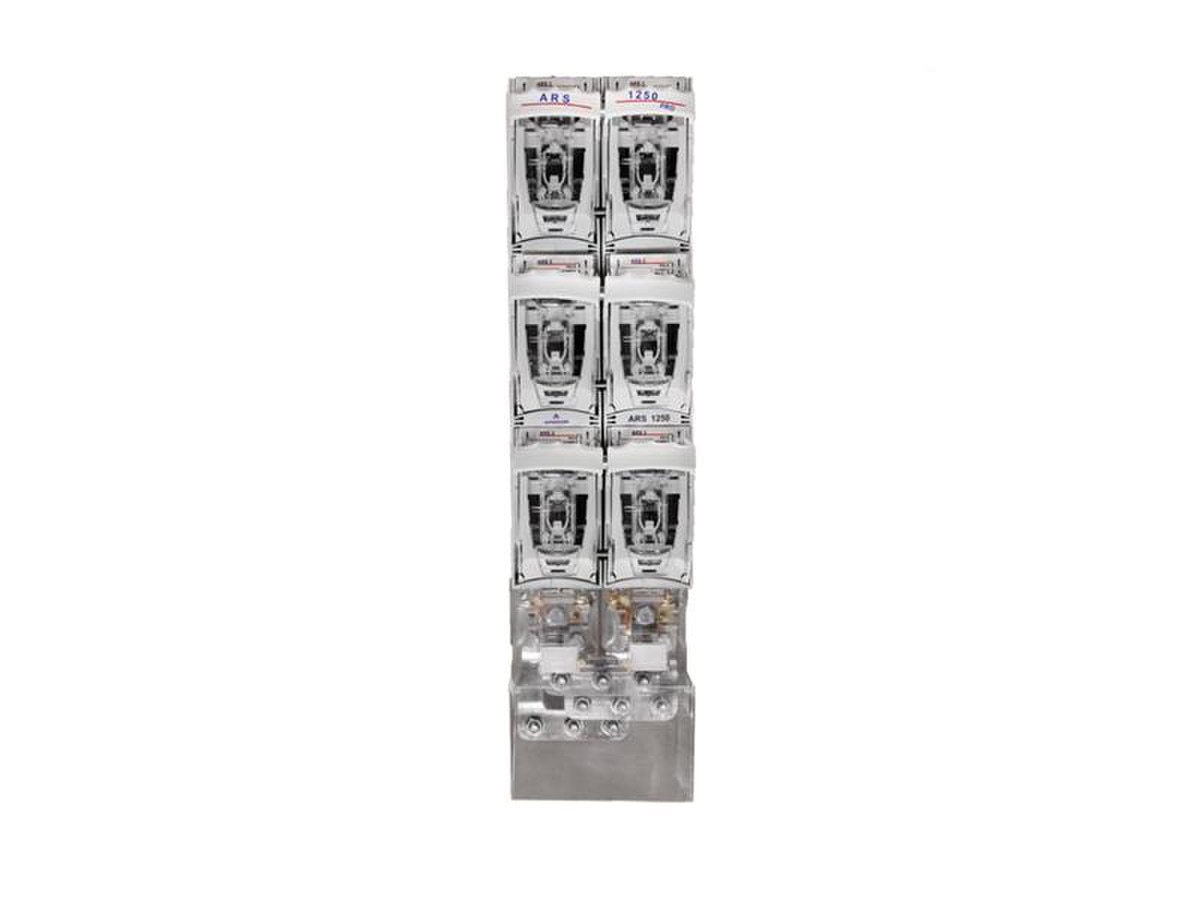

ARS PRO - Vertical Fuse Switch Disconnect
Description
Designed for distribution of electricity and protection of electrical equipment against short circuits and overloads with industrial fuse links
- Fibreglass reinforced, self extinguishing thermoplastics of V0 flammability class
- Double clearance between open contacts
- Arc chutes with deionisation plates over every contact
- Reversibility - top/bottom cable terminal connection
- Available in single pole and three pole switching
- Voltage test performed through test holes leading to blade contacts
- Suitable for top cable terminal connection
- Width 50mm, 100mm and 200mm
This range conforms to EN 60947-1, EN 60947-3, IEC 60947-1 and IEC 60947-3 standards
Cat No. | DIN Fuse Size | No. of Phases | Amps | Terminals | Operation Type | Bus Centres (mm) | Fixing Materials | Qty | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
