Air Break Switch (ABS) - Load Break (Cat 0)
Description
Designed and manufactured in the United Kingdom, then customised and assembled to your specifications right here in New Zealand, this Air Break Switch revolutionises how we do things.
Features
- For use at 11kV, 22kV and 33kV
- Rated up to 630A
- Fast and easy to install
- Fully customised to your specifications right here in New Zealand
- Handle can be positioned anywhere on the pole - you decide!

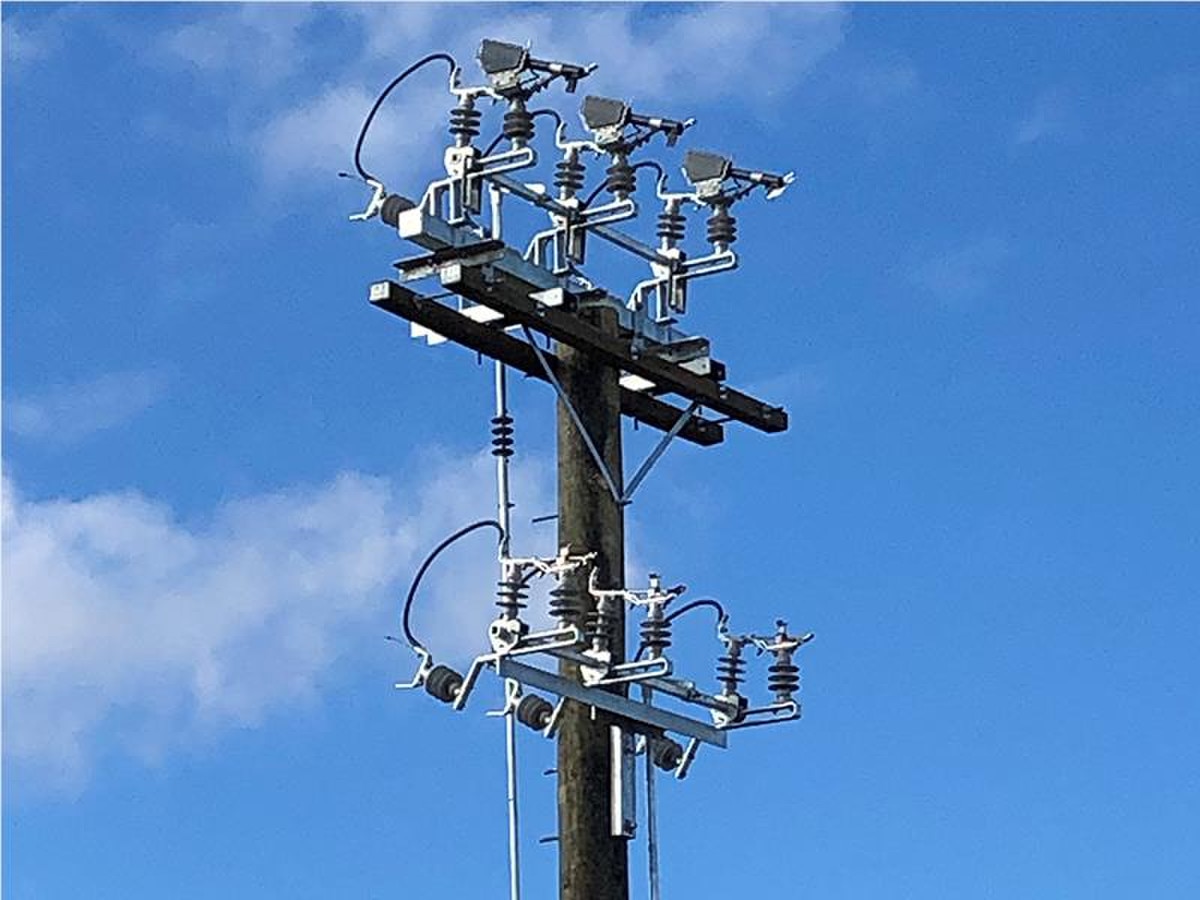

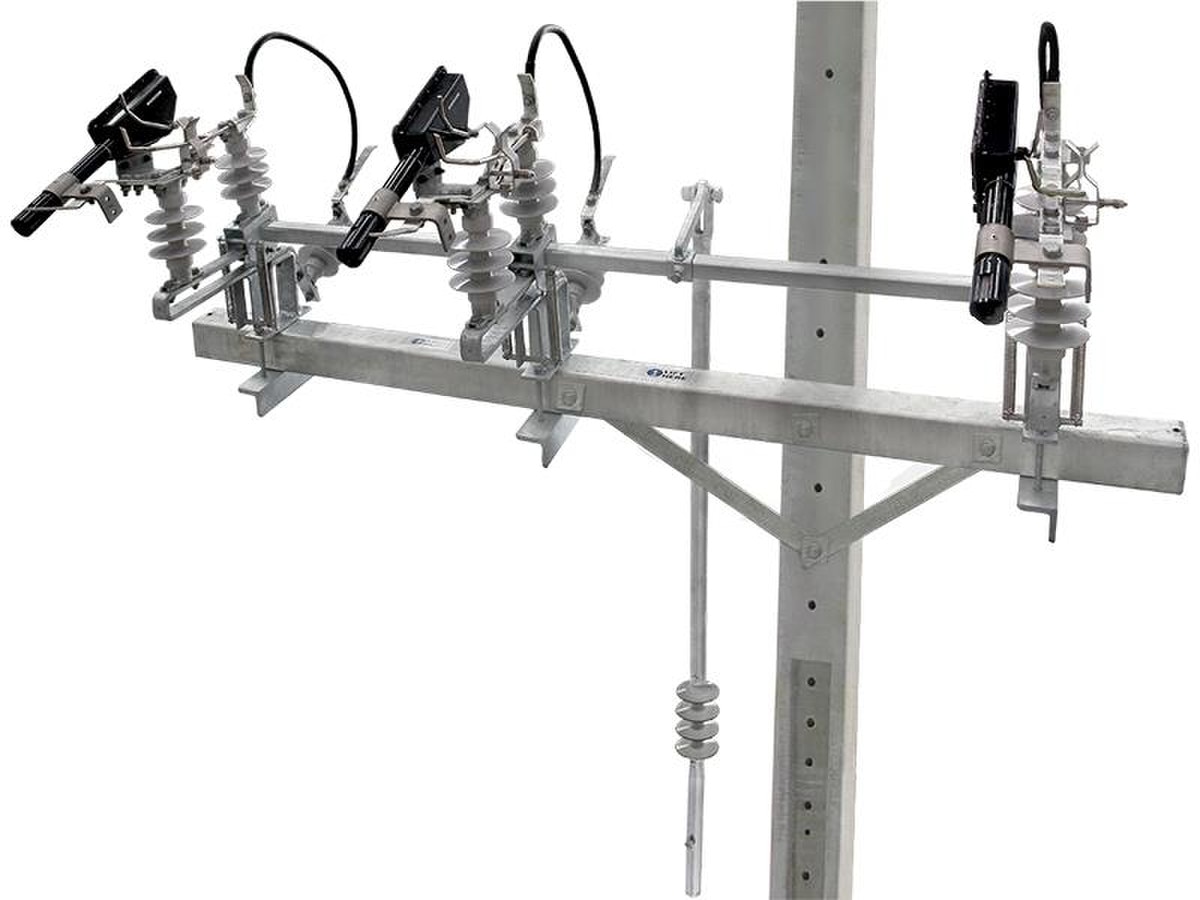

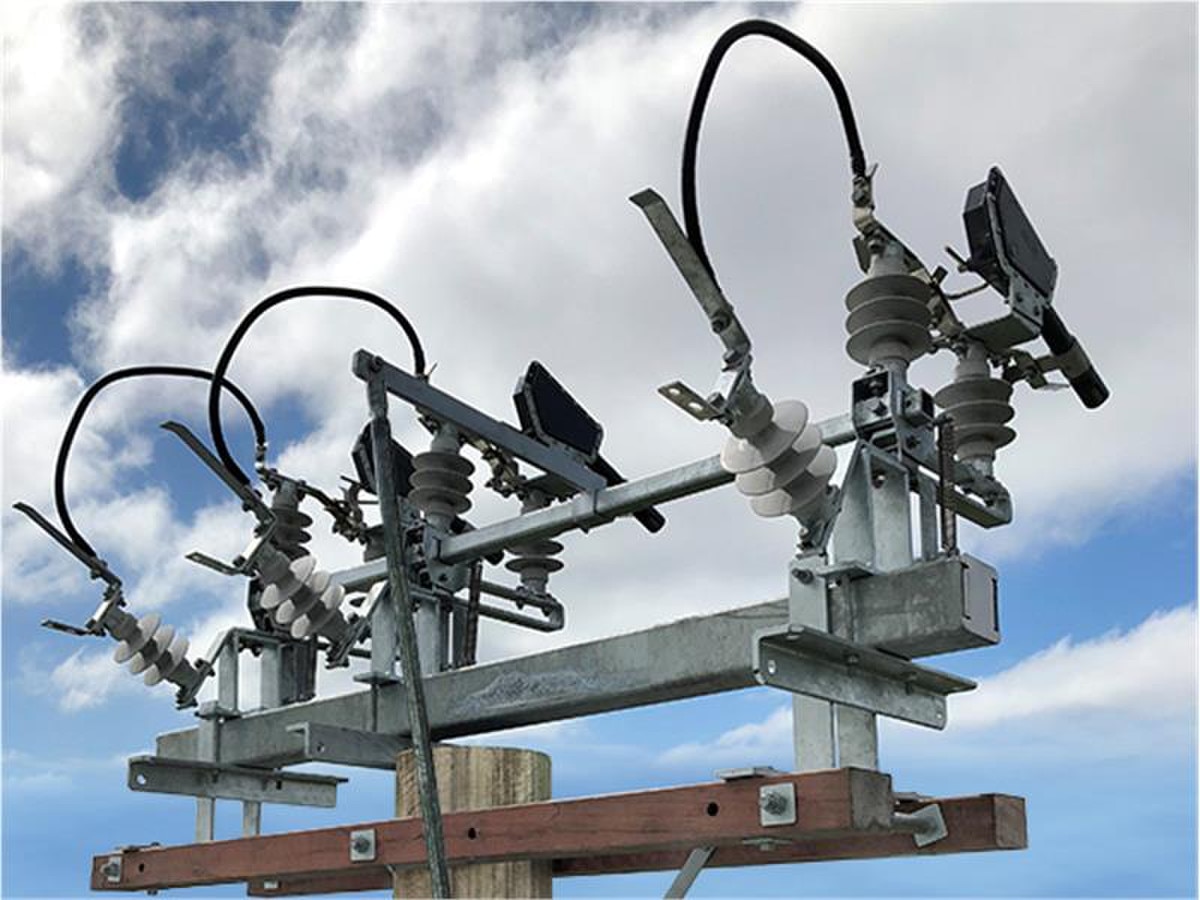

- Suitable for pole top or underhung mounting
- Offered with either porcelain or polymeric insulators

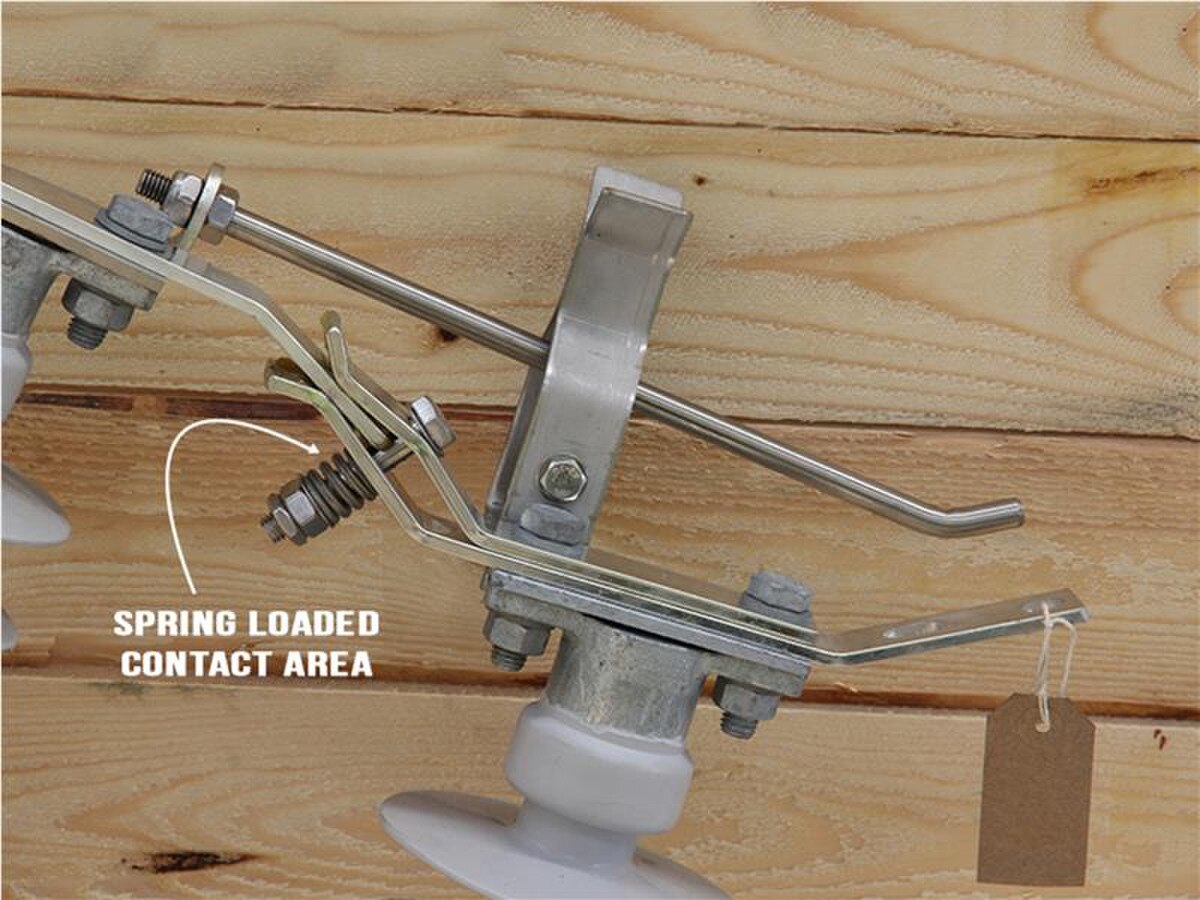

- Open Contact clearance distance of 330mm on 11kV ABS as per MAD clearance outlined in EEA SM-EI Part 3 Rules for work on equipment. Section 7.703

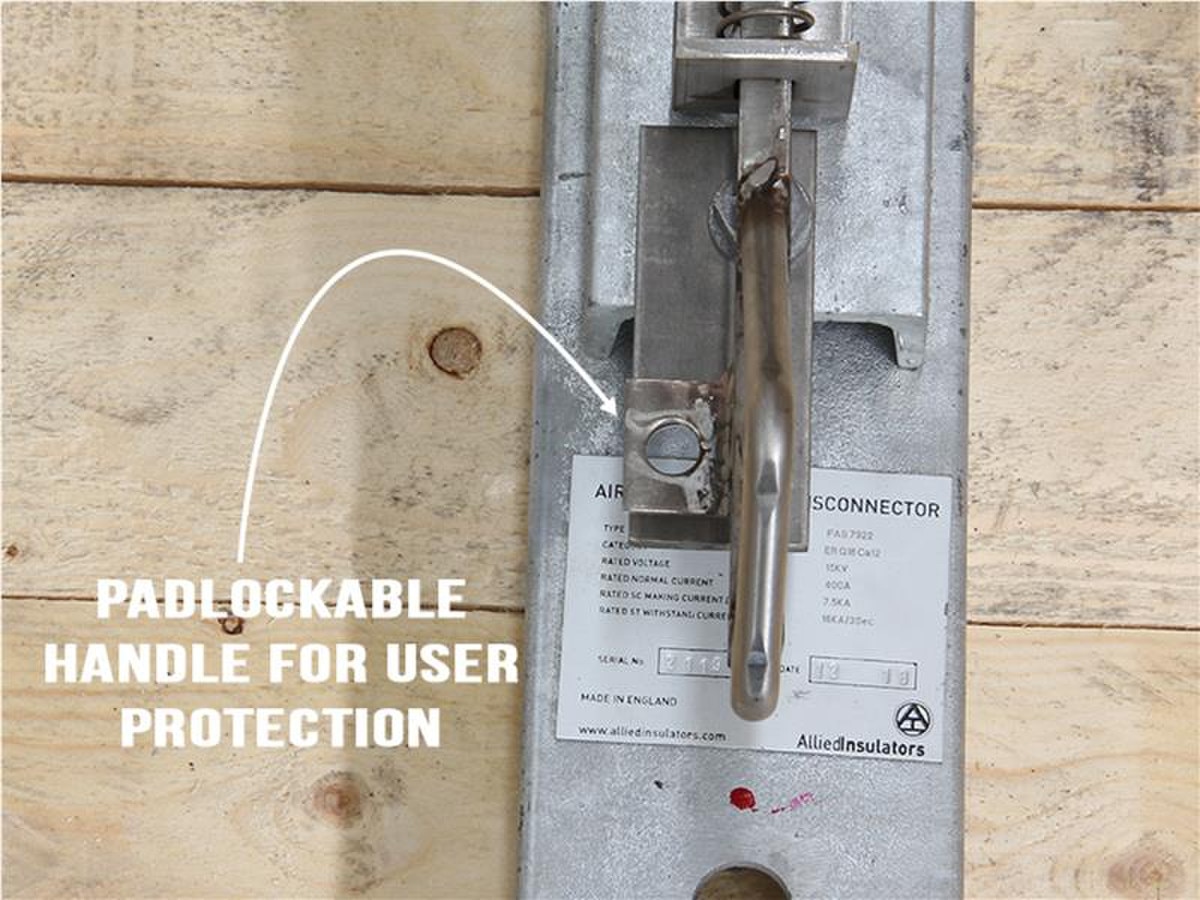

- Can be supplied with either dependent or independent manual closing mechanisms
Available Options
- Silicon rubber insulators as standard or porcelain if preferred
- High Creepage insulators for desert/coastal applications
- Plain break Arcing Horns
- Independent manual closing mechanisms for improved capability
- High level Hook Stick operation as standard, ground operated handle on request
- Two or Three Stage interlock operations are available and can be adopted to meet the customers operational safety rules
Cat No. | Mounting | Voltage Class | Pole Type | Description | Insulator | Handle | Qty | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
