Brass End Termination Heavy Duty Brass Shearbolt Lug

(0)No Reviews yet

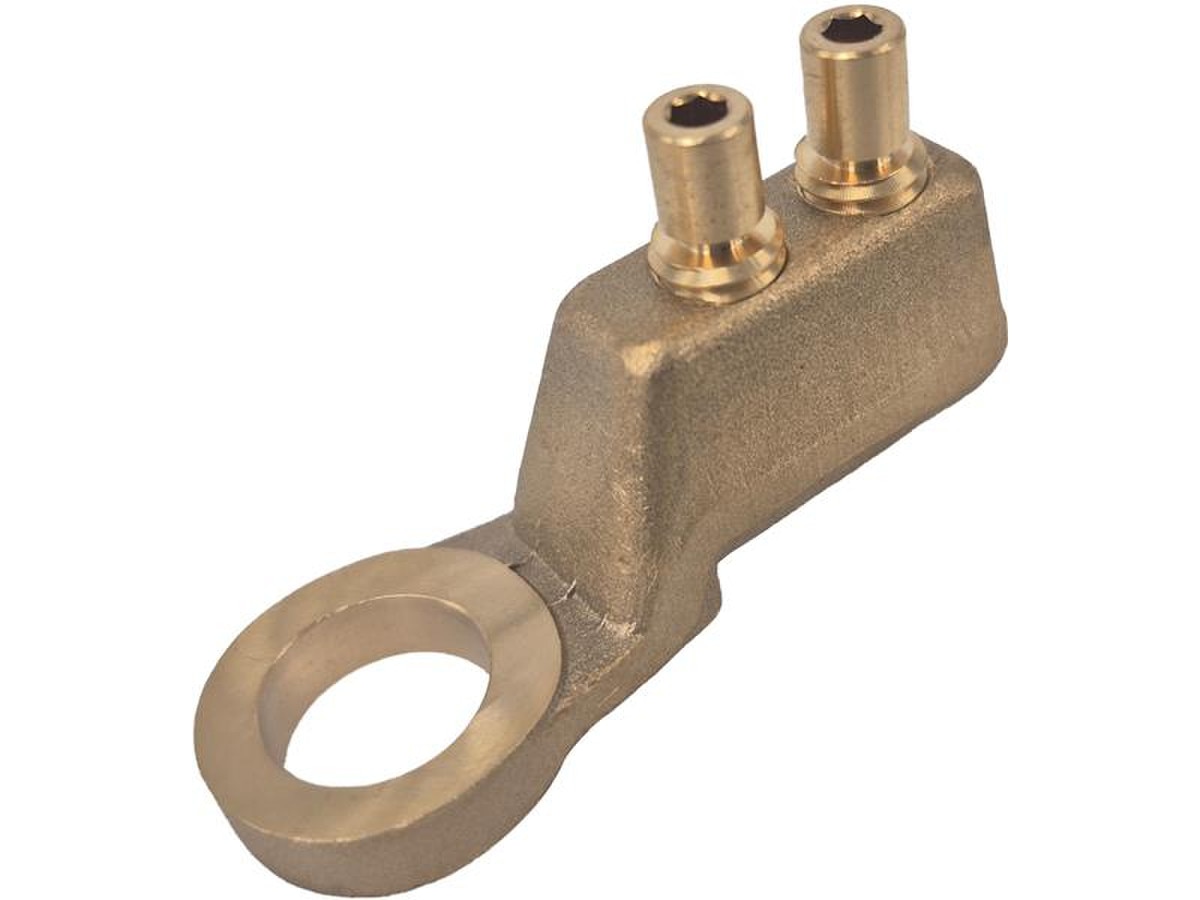

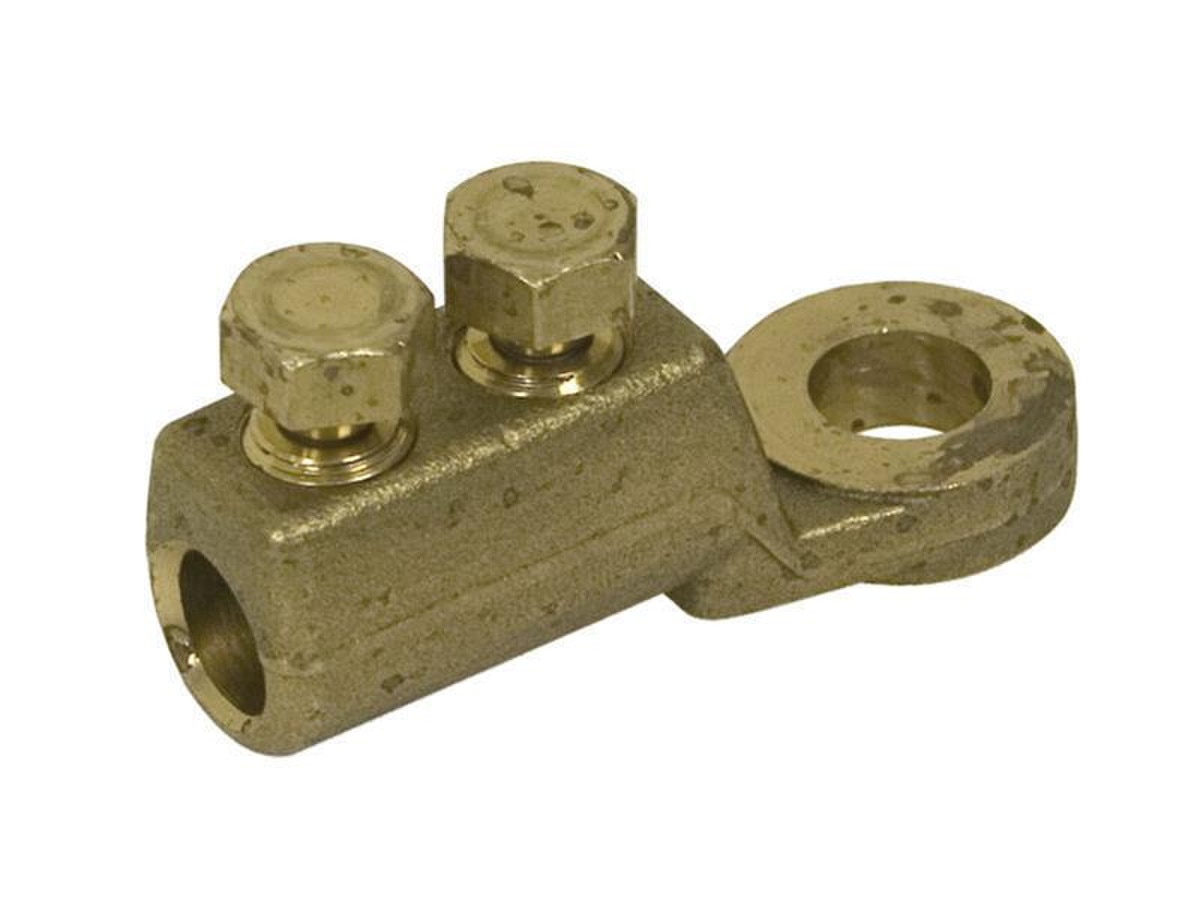

Brass End Termination

These connectors are intended as end terminations for use on Copper conductors (stranded or solid), and they're especially suitable for the Copper neutral or CNE conductors of LV service and mains cables. They can also be used on the earth conductors and Copper screening wires of MV cables.

Dimensions


Dimensions
Dimensions
BET35-12SGB M12 55 20 3MM ALLEN KEY 4-35
BET60-12 M12 70 25 13MM SOCKET 16-60
BET120-12 M12 86 28 16MM SOCKET 50-120

Dimensions (mm)

Cat No.

Hole Size

L

H

Application Type

Size Range (mm²)

Qty

Price
