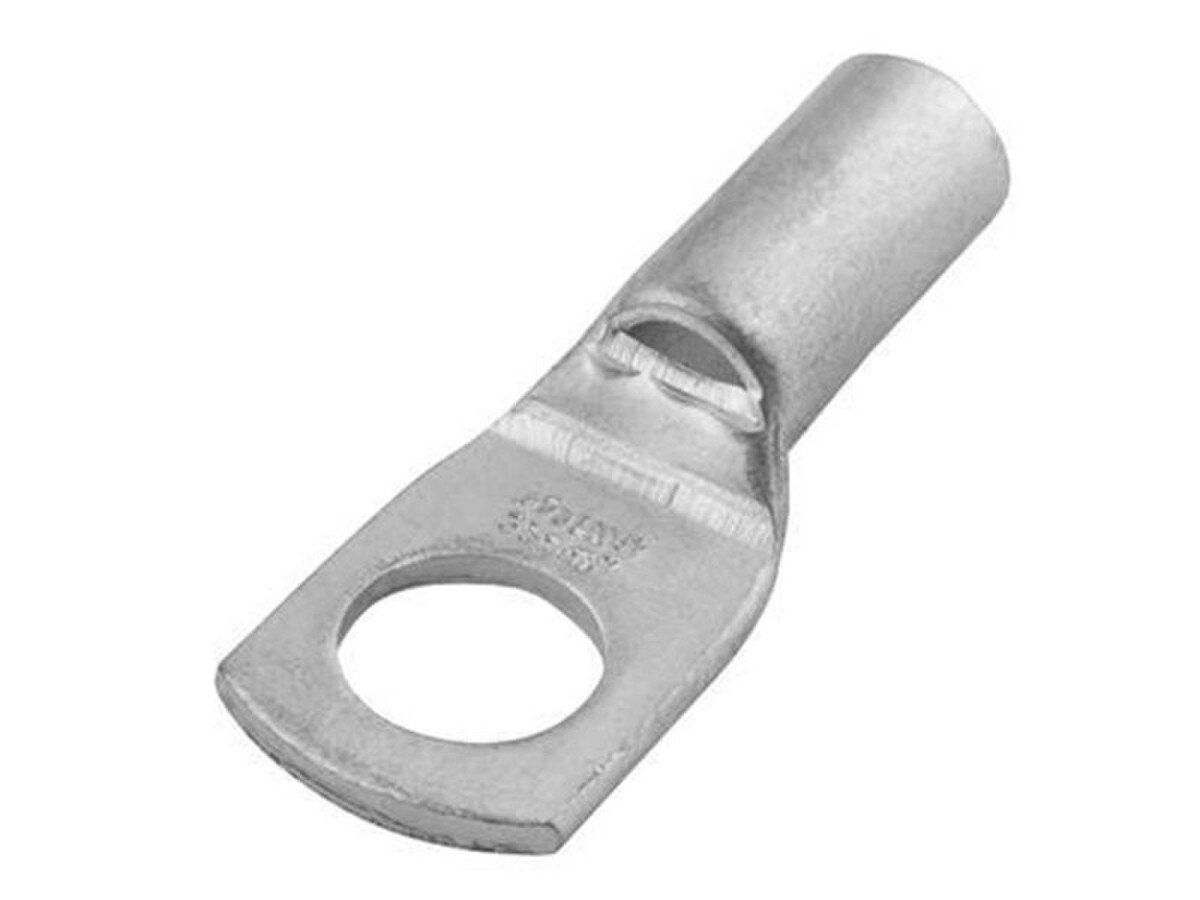

Copper Lugs

(0)No Reviews yet

Copper Lugs

Back
  • Suitable for Copper conductor
  • Range 0.5-1000mm² Seamless Copper tube
  • Electro tinned
  • Cable area clearly identified on the lug
  • Tested to AS/NZS 4325.1:1995
Back

Dimensions


Dimensions
*All sizes of crimp lugs are compatible with imperial size cables except those marked
Back

Datasheet

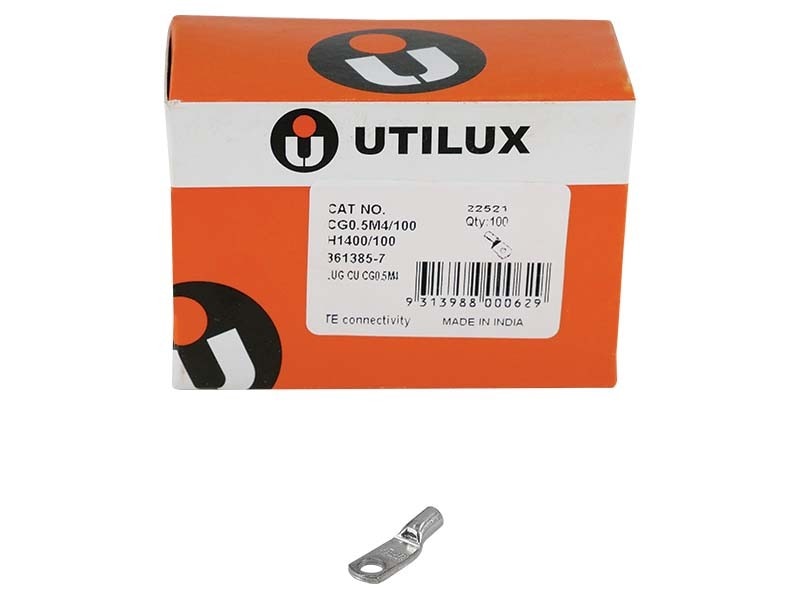

CG05M4/100 0.5-1.5 1/0.80 M4 19.1 6.4 1.4 11.1 6 2.1 - 100
CG05SM5/100 0.5-1.5 1/0.80 M5 19.1 8.7 1 11.1 6 2.1 -
CG05LM5/100 0.5-1.5 1/0.80 M5 26.6 10.3 0.9 15.1 9.5 2.1 - 100

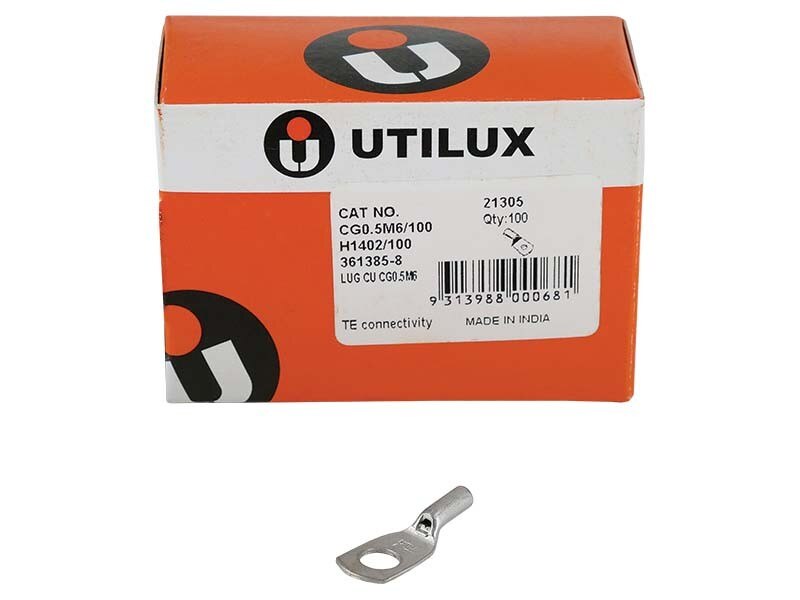

CG05M6/100 0.5-1.5 1/0.80 M6 26.2 10.3 0.9 15.1 9.5 2.1 - 100
CG05M8/100 0.5-1.5 1/0.80 M8 26.2 11.5 0.8 15.1 9.5 2.1 -

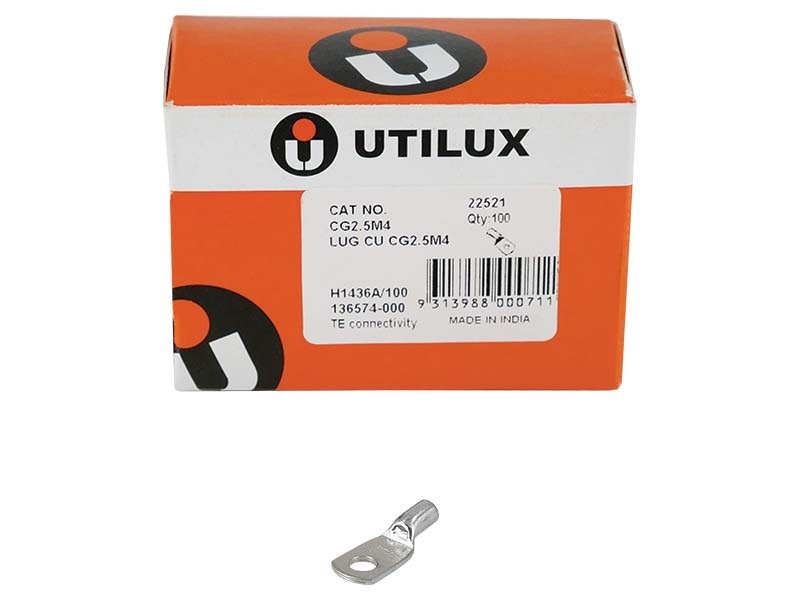

CG2.5M4/100 2.5 7/0.67 M4 21.4 9.1 1.1 11.9 8 2.5 -
CG2.5M5/100 2.5 7/0.67 M5 21.4 9.1 1.1 11.9 8 2.5 -
CG2.5M6/100 2.5 7/0.67 M6 26.2 10.3 0.9 15.1 8.7 2.5 -
CG2.5M8/100 2.5 7/0.67 M8 26.2 11.5 0.9 15.1 8.7 2.5 -
CG4SM5/100 4 7/0.85 M5 21 8.7 1.5 11.1 8 3.3 -
CG4LM5/100 4 7/0.85 M5 27.3 8.7 1.5 14.7 9.2 3.3 -
CG4M6/100 4 7/0.85 M6 27.8 10.3 1.2 15.1 9.5 3.3 -
CG4M8/100 4 7/0.85 M8 28.6 13 1 16.3 9.5 3.3 -
CG4M10/100 4 7/0.85 M10 28.6 14 11 16.3 9.5 3.3 -
CG6M5/100 6 7/1.04 M5 27 10.3 1.2 15 9.5 3.7 38-44CU

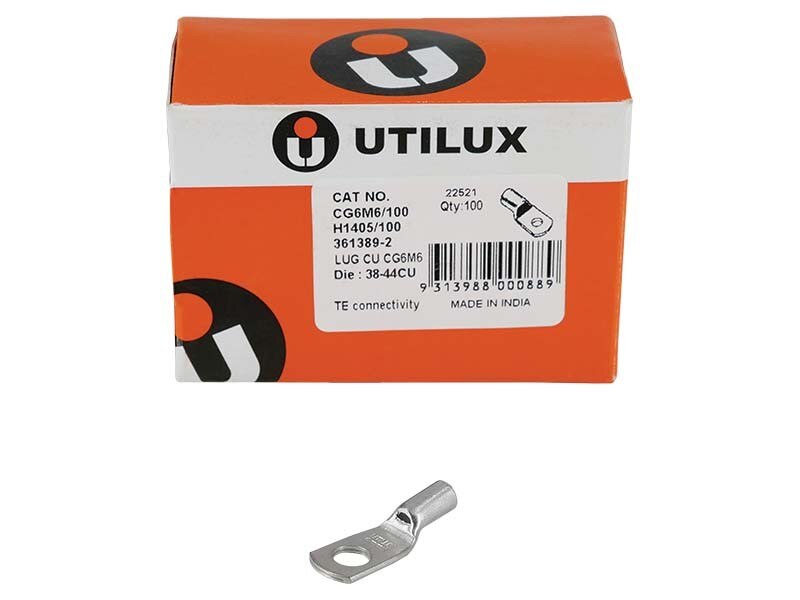

CG6M6/100 6 7/1.04 M6 27 10.3 1.2 15 9.5 3.7 38-44CU
CG6M8/100 6 7/1.04 M8 28.6 13.9 0.9 16.7 9.5 3.7 38-44CU

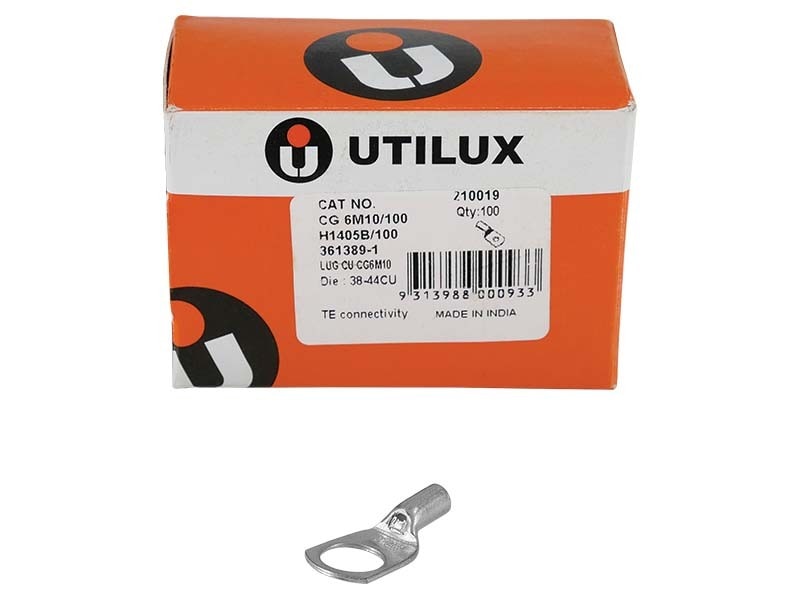

CG6M10/100 6 7/1.04 M10 28.6 13.9 0.9 16.7 9.5 3.7 38-44CU

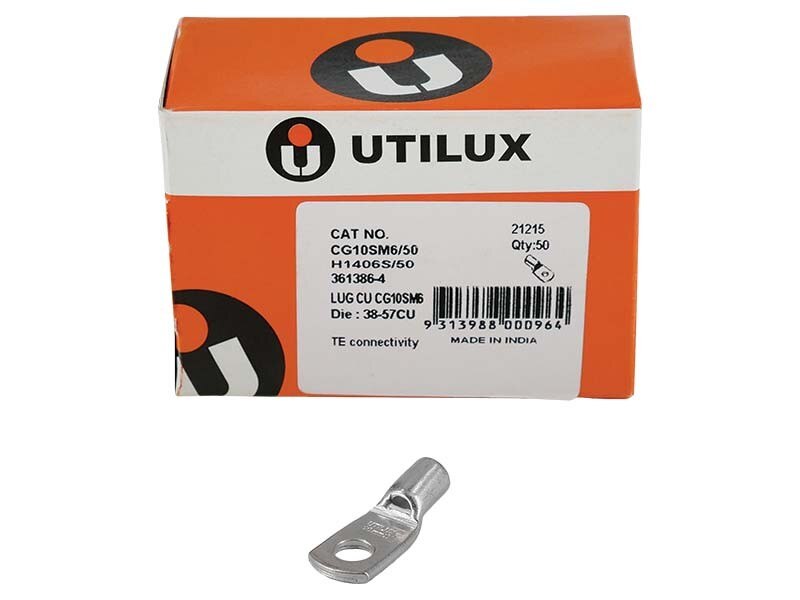

CG10SM6 10 7/1.35 M6 27 11.9 1.8 15.5 9.5 4.7 38-57CU 2
CG10LM6 10 7/1.35 M6 29.4 11.9 1.8 15.5 11.5 4.7 38-57CU 2

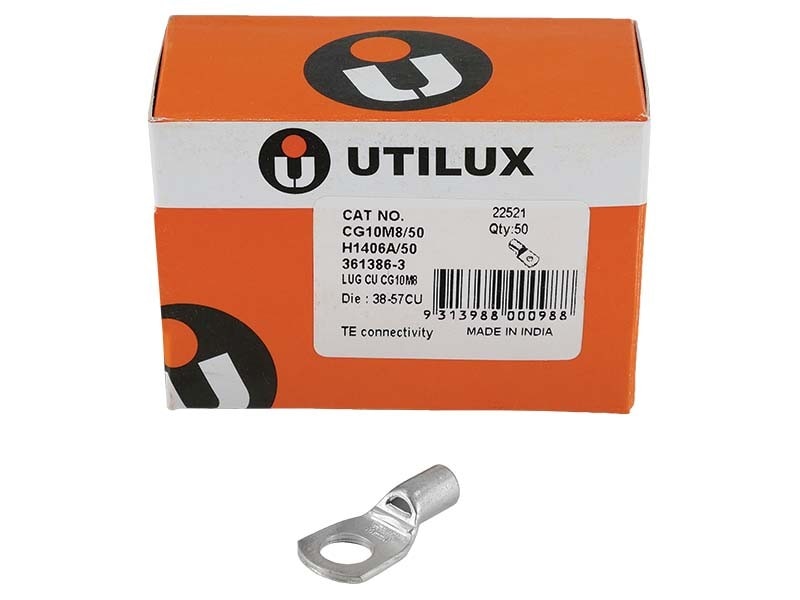

CG10M8 10 7/1.35 M8 28.6 14.3 1.6 16.3 9.5 4.7 38-57CU 2
CG10M10 10 7/1.35 M10 30.6 14.3 1.6 16.3 9.5 4.7 38-57CU 2
CG10M12 10 7/1.35 M12 33 17 1.4 20 11 4.7 38-57CU 2
CG16M5 16 7/1.70 M5 39.7 11.6 2.3 16.3 20.6 5.5 38-63CU -

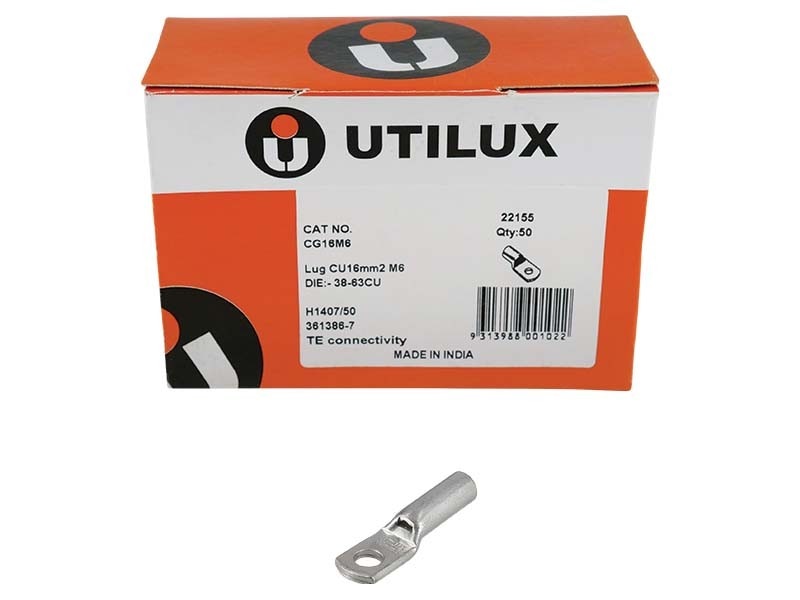

CG16M6 16 7/1.70 M6 39.7 11.6 2.3 16.3 20.6 5.5 38-63CU -
CG16M8 16 7/1.70 M8 39.7 13.5 1.9 16.3 20.6 5.5 38-63CU -

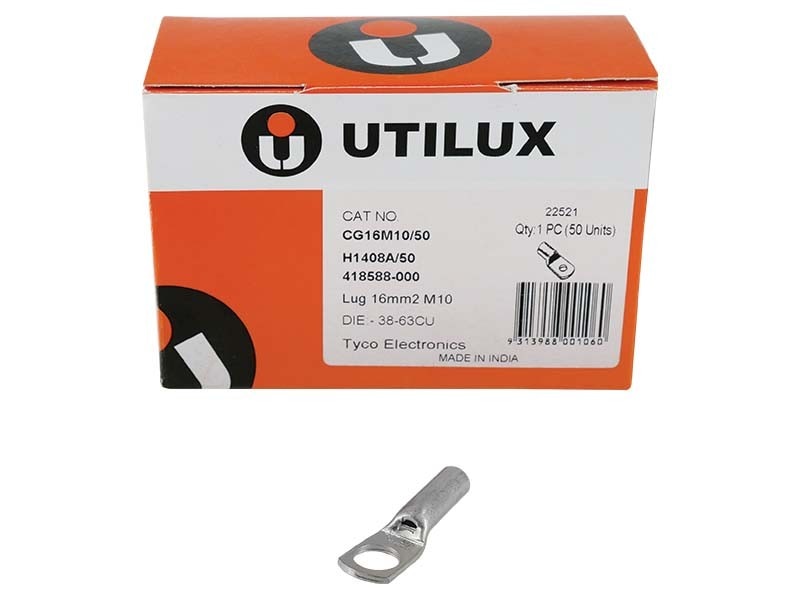

CG16M10 16 7/1.70 M10 41.5 13.5 1.9 18.5 20.6 5.5 38-63CU -
CG16M11 16 7/1.70 M11 43.6 16.7 2.8 19 22.2 5.5 38-77CU -

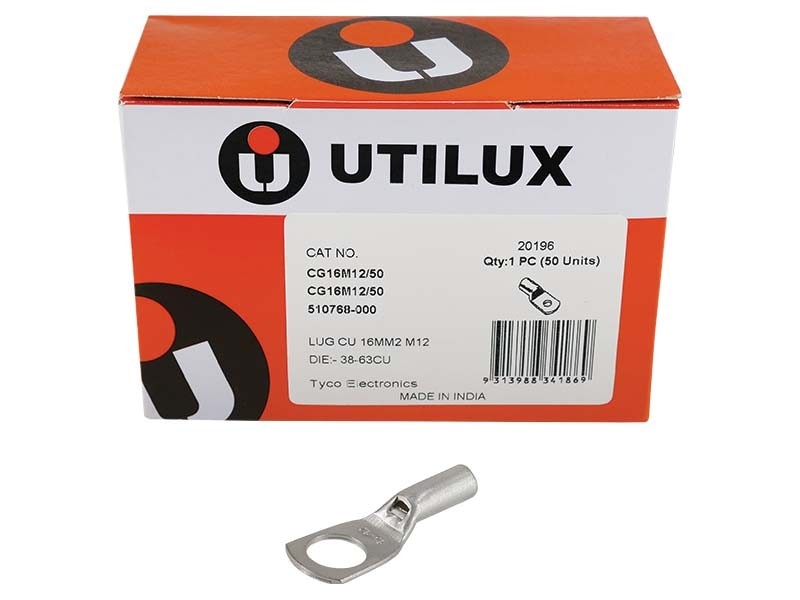

CG16M12 16 7/1.70 M12 46 17.5 1.4 20.5 19 5.5 38-63CU -
CG20M6 20 19/0.44 M6 34.9 12.5 2.3 14.3 19 6.3 38-70CU -
CG20M8 20 19/0.44 M8 42.1 13.5 2.2 19 20.3 6.3 38-70CU -
CG25M6 25 19/1.35 M6 43.6 16.7 1.9 18 22 7.1 38-77CU -

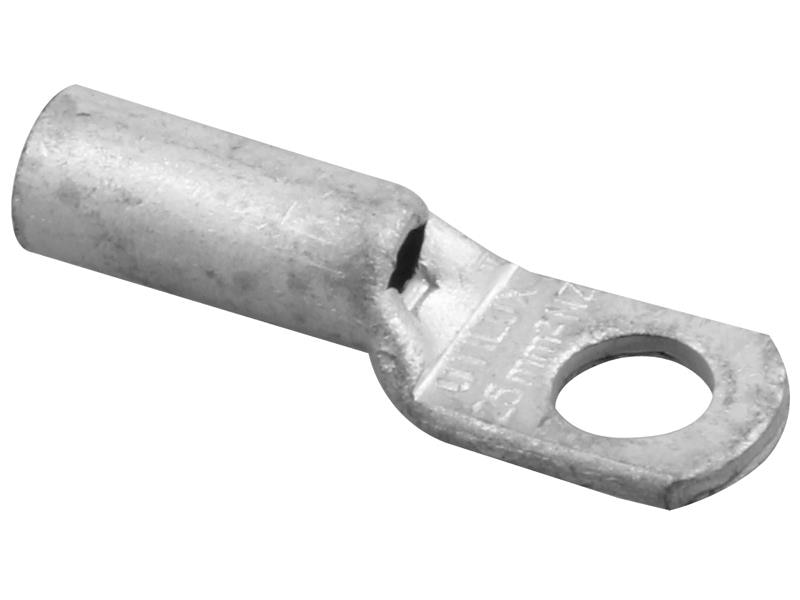

CG25M8 25 19/1.35 M8 43.6 16.7 1.9 18 22 7.1 38-77CU -
CG25M10 25 19/1.35 M10 43.6 16.7 1.9 18 22 7.1 38-77CU -

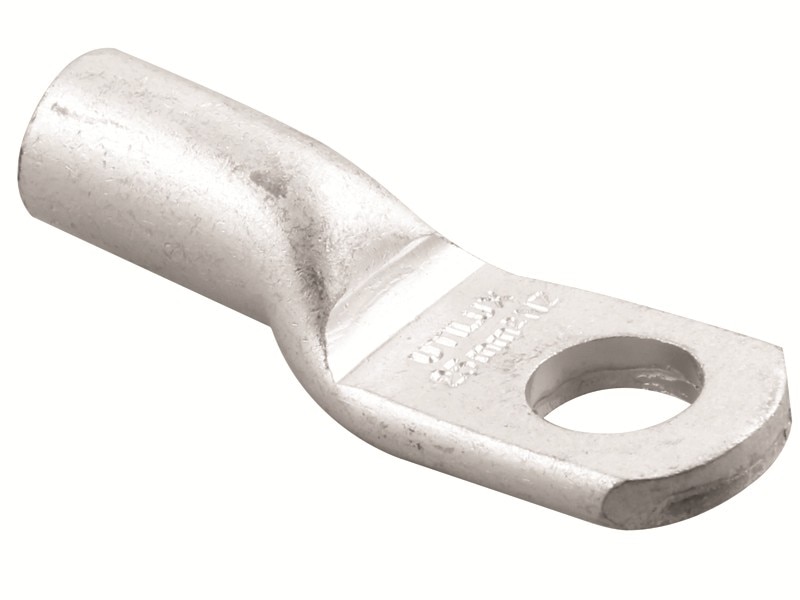

CG25NZM11 25 7/2.14 NZ M11 54 19.8 4.5 27 22.2 7.1 38-77CU
CG25M12 25 19/1.35 M12 51 18.2 1.7 25.4 21 7.1 38-77CU -

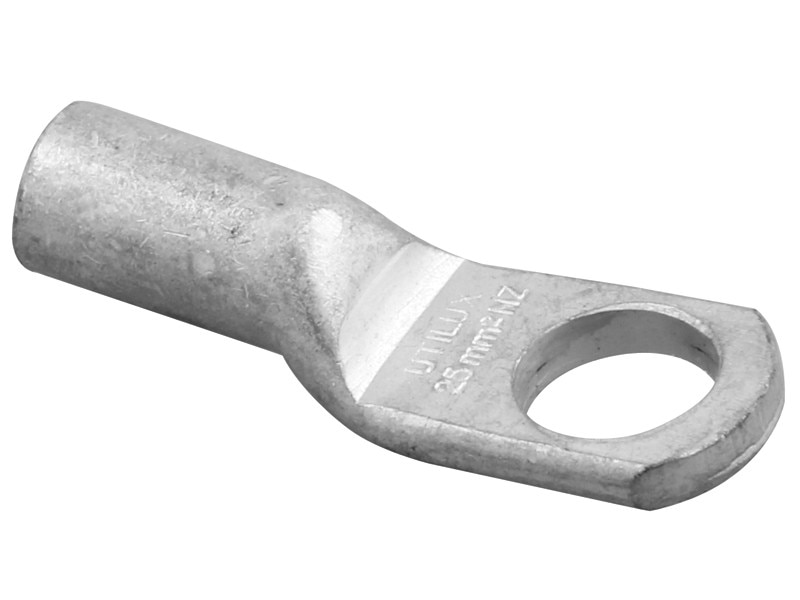

CG25NZM14SP 25 7/2.14 NZ M14 54 19.8 4.5 27 22.2 7.1 38-77CU

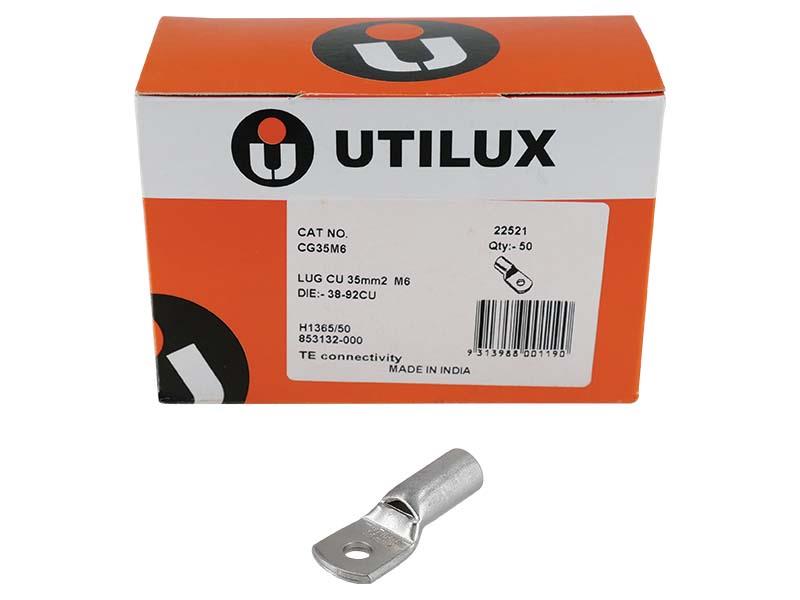

CG35M6 35 19/1.53 M6 44 18.2 2.7 17.8 22.2 8.4 38-92CU -

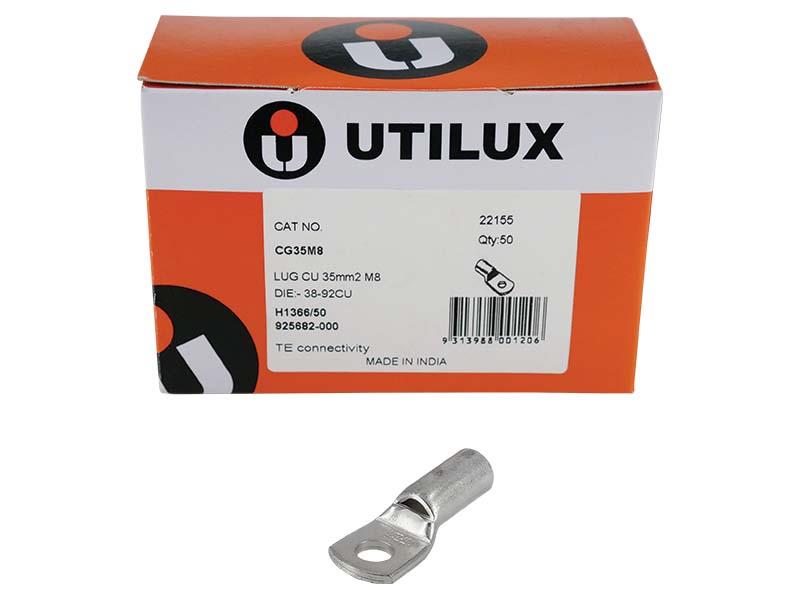

CG35M8 35 19/1.53 M8 44 18.2 2.7 17.8 22.2 8.4 38-92CU -

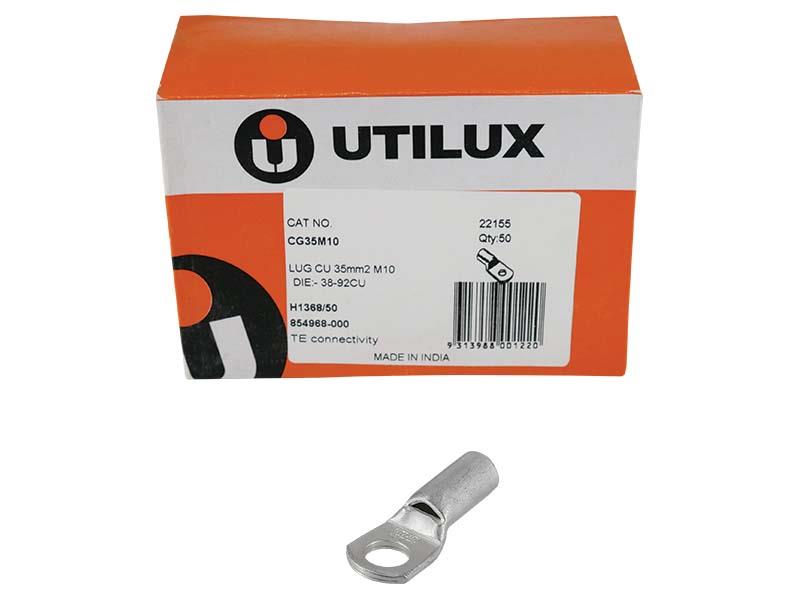

CG35M10 35 19/1.53 M10 44 18.2 2.7 17.8 22.2 8.4 38-92CU -

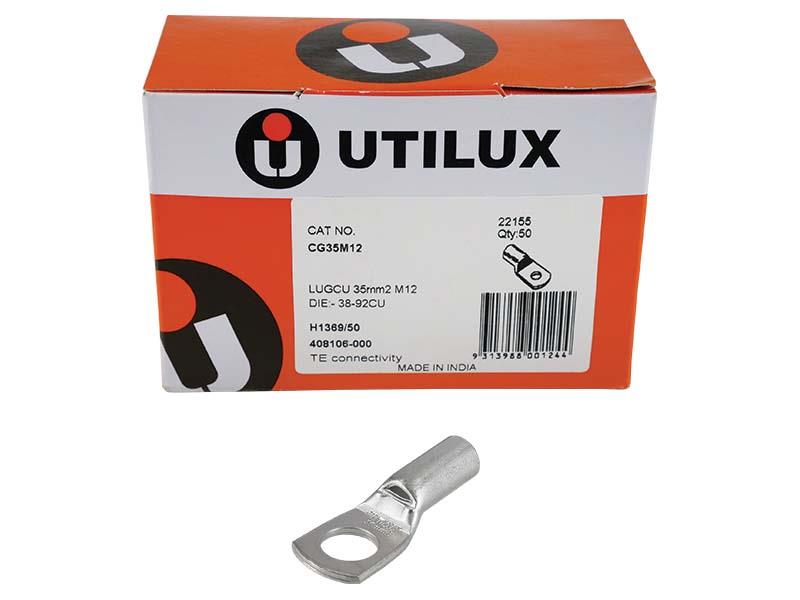

CG35M12 35 19/1.53 M12 51.2 20 2.4 24.5 22 8.4 38-92CU -
CG50M6 50 19/1.78 M6 9.4 38-104CU
CG50M8 50 19/1.78 M8 52 20.6 2.8 24.8 22.2 9.4 38-104CU -
CG50M10 50 19/1.78 M10 52 20.6 2.8 24.8 22.2 9.4 38-104CU -
CG50M12 50 19/1.78 M12 52 20.6 2.8 24.8 22.2 9.4 38-104CU -
CG70M6 70 19/2.14 M6 56 20.6 3.2 26 23 11 38-115CU -

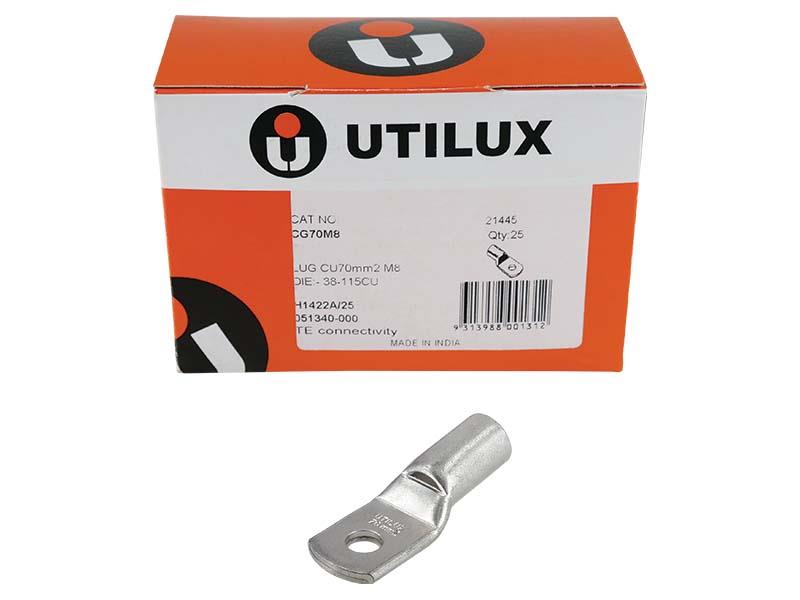

CG70M8 70 19/2.14 M8 56 20.6 3.2 26 23 11 38-115CU -
CG70M10 70 19/2.14 M10 56 20.6 3.2 26 23 11 38-115CU -
CG70M12 70 19/2.14 M12 56 20.6 3.2 26 23 11 38-115CU -
CG70M16 70 19/2.14 M16 56 27.5 2.4 26 22 11 38-115CU -
CG95M6 95 37/1.78 M6 60 25.4 4 26 27 13.4 38-142CU, 40-142CU -
CG95M8 95 37/1.78 M8 60 25.4 4 26 27 13.4 38-142CU, 40-142CU -
CG95M10 95 37/1.78 M10 60 25.4 4 26 27 13.4 38-142CU, 40-142CU -
CG95M12 95 37/1.78 M12 60 25.4 4 26 27 13.4 38-142CU, 40-142CU -
CG95M16 95 37/1.78 M16 75.5 27 3.7 43.1 25.4 13.4 38-142CU, 40-142CU -

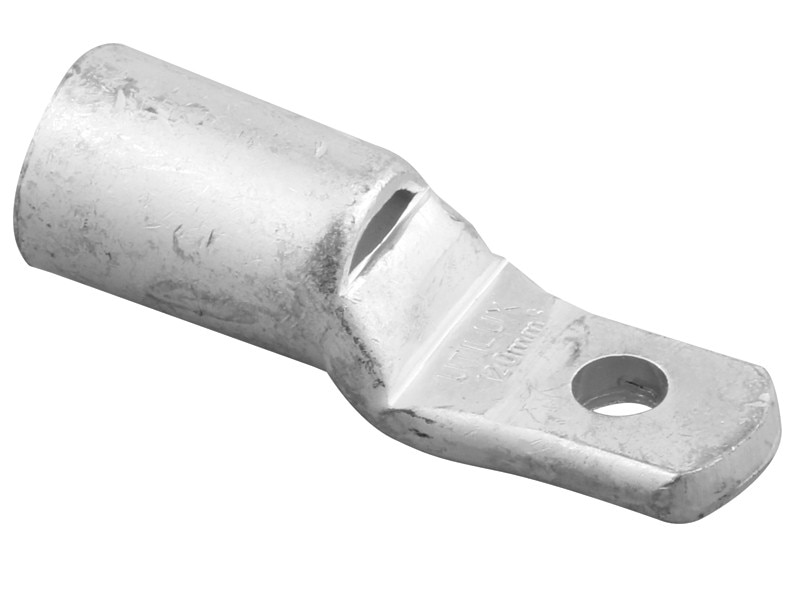

CG120M8 120 37/2.03 M8 69 30 4.8 30 31 15.5 38-165CU, 40-165CU
CG120M10 120 37/2.03 M10 69 30 4.8 30 31 15.5 38-165CU, 40-165CU -
CG120M12 120 37/2.03 M12 69 30 4.8 30 31 15.5 38-165CU, 40-165CU -
CG120M16 120 37/2.03 M16 69 30 4.8 30 31 15.5 38-165CU, 40-165CU -
CG150M10 150 37/2.25 M10 78 33.5 5.4 40 27 16.3 38-183CU, 40-185CU
CG150M12 150 37/2.25 M12 78 33.5 5.4 40 27 16.3 38-183CU, 40-185CU
CG150M16 150 37/2.25 M16 78 33.5 5.4 40 27 16.3 38-183CU, 40-185CU
CG185M10 185 37/2.52 M10 82 36.5 5.2 40 31 18.4 38-200CU, 40-200CU -
CG185M12 185 37/2.52 M12 82 36.5 5.2 40 31 18.4 38-200CU, 40-200CU -
CG185M16 185 37/2.52 M16 82 36.5 5.2 40 31 18.4 38-200CU, 40-200CU -
CG185M20 185 37/2.52 M20 82 36.5 5.2 40 31 18.4 38-200CU, 40-200CU -

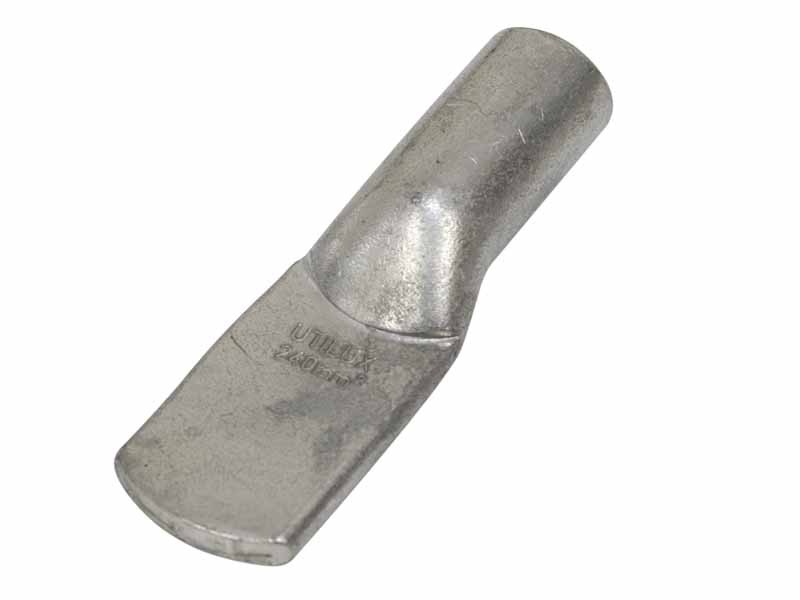

CG240MB 240 61/2.25 BLANK 127 41.6 7.1 54 47.6 21.2 38-231CU, 40-231CU
CG240M12 240 61/2.25 M12 127 41.6 7.1 54 47.6 21.2 38-231CU, 40-231CU
CG300MB 300 61/2.52 BLANK 127 46 7.9 54 47.6 23.8 38-260CU, 40-260CU -
CG300M12 300 61/2.52 M12 127 46 7.9 54 47.6 23.8 38-260CU, 40-260CU
CG400MB 400 61/2.85 BLANK 123 49.6 7.9 54 41.3 26.9 40-281CU, 50-281CU, 66-281CU -
CG500MB 500 61/3.20 BLANK 142.5 54.8 8.2 54 55.5 30 40-310CU, 50-310CU, 66-310CU -
CG630MB 630 127/2.52 BLANK 146 63.5 11.5 54 58 33.5 40-370CU, 50-70CU

Dimensions (mm)

Cat No.

Conductor Area (mm2)

Conductor Stranding

Stud Size

A

B

C

D

F

G

Crimping Die

MOQ

Qty

Price
