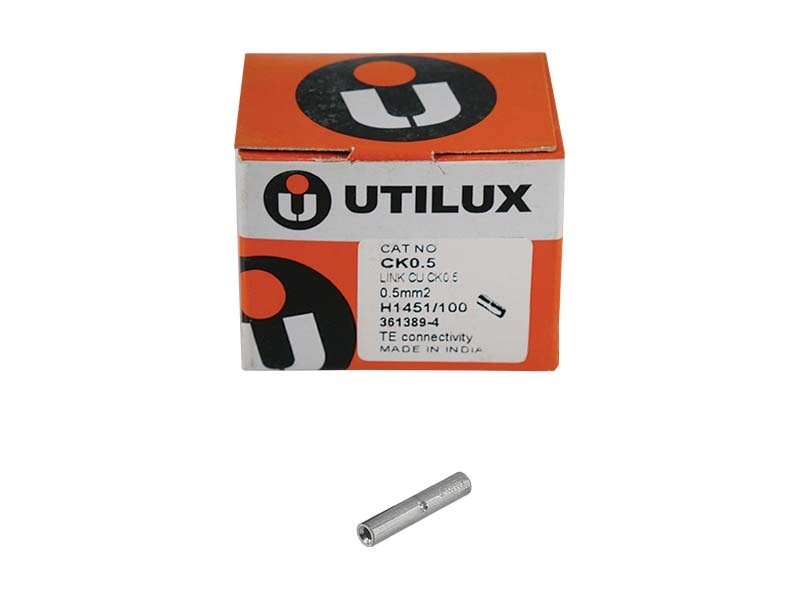

Copper Crimp Links

(0)No Reviews yet

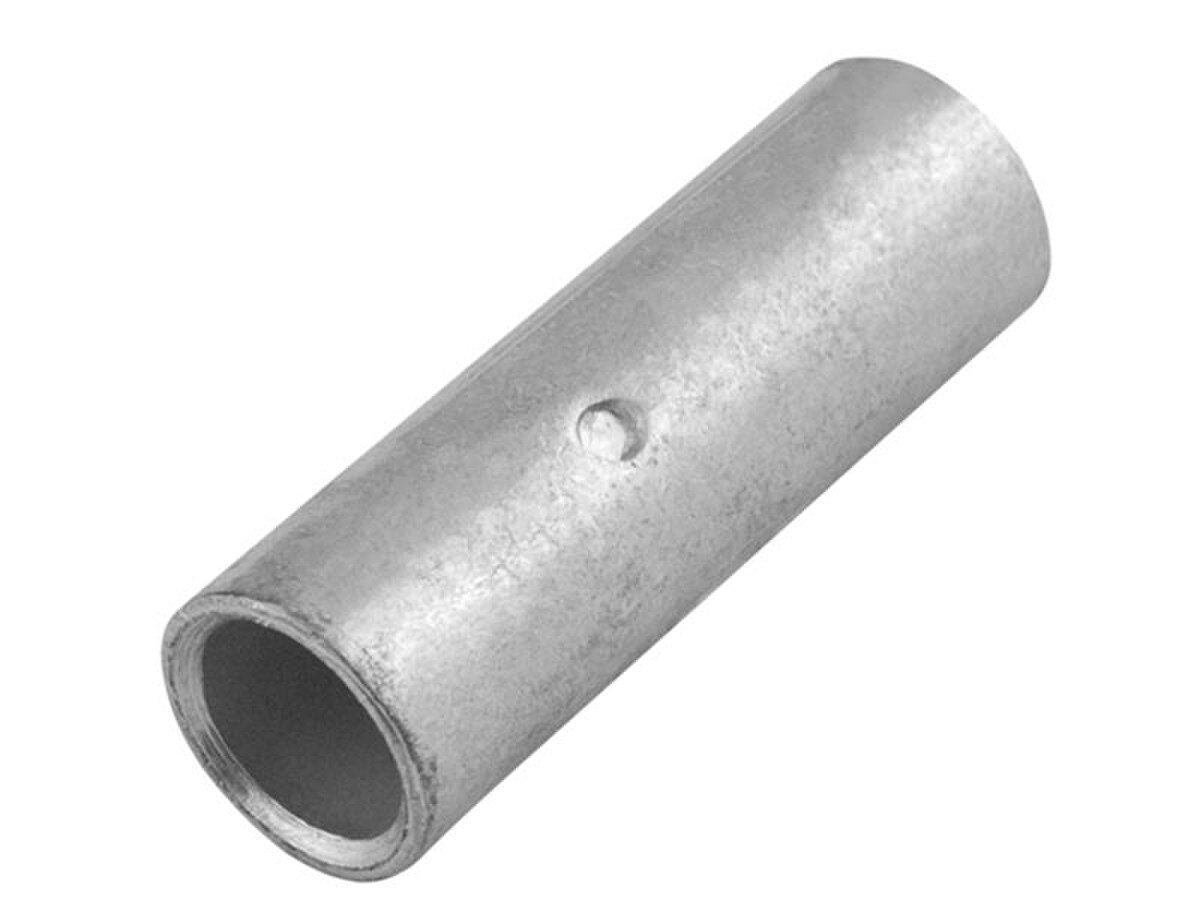

Solid drawn copper tube with centre dimples and reamed ends.

Dimensions

Dimensions

Note: All sizes of crimp links are compatible with imperial size cables.

Copper Crimp Links_Datasheet.pdf

CK0.5 1.5-1.5 1/0.80 22 2.1 #00/1, #103/1, #16B/1

Quantity

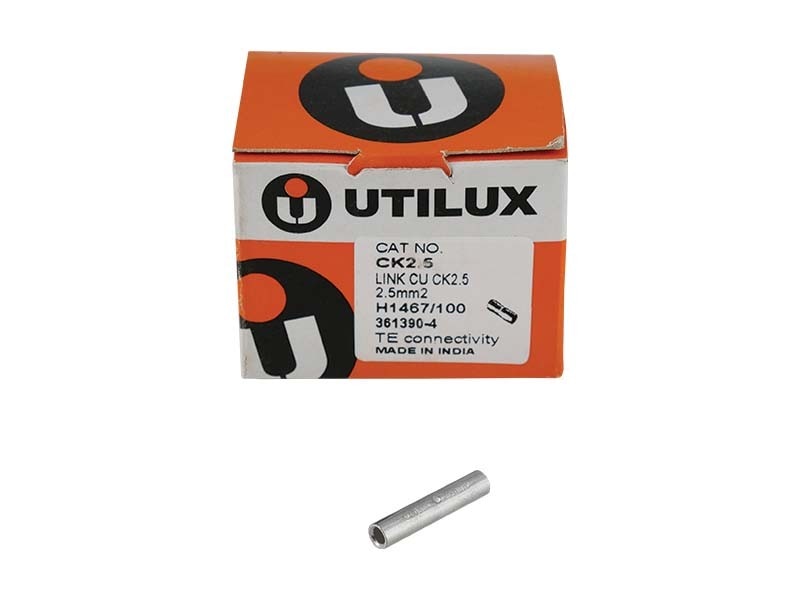

CK2.5 2.5 7/0.67 22 2.5 #00/1, #103/1, #16B/1

Quantity

CK4 4 7/0.85 22 3.3 #00/1, #103/1, #16B/1

Quantity

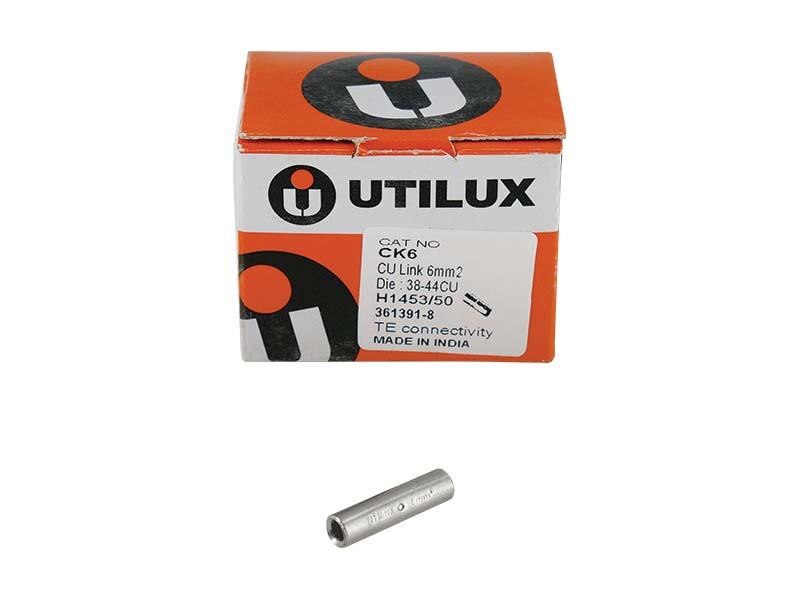

CK6 6 7/1.04 22 3.7 #00/1, #103/1, #16B/1, #24/1, #22/1, #21/1

Quantity

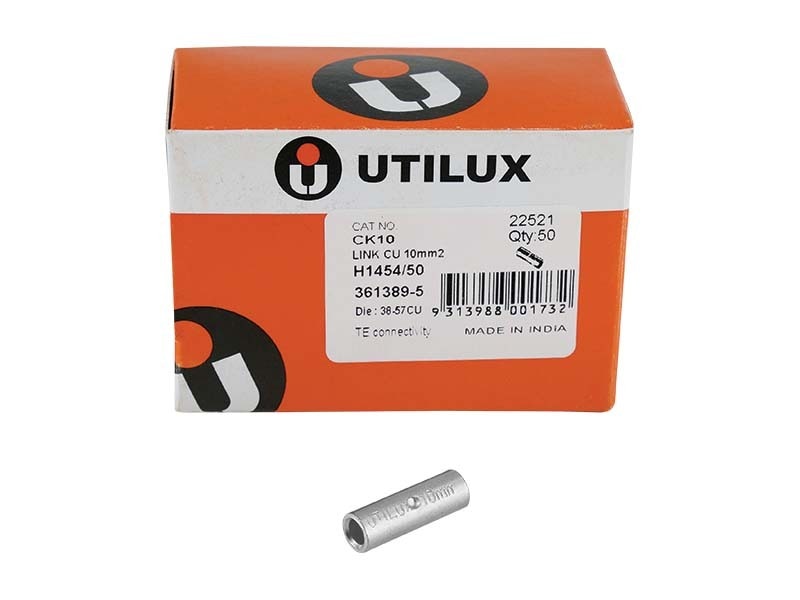

CK10 10 7/1.35 22 4.7 #00/1, #103/1, #16B/1 #24/1, #22/1, #21/1

Quantity

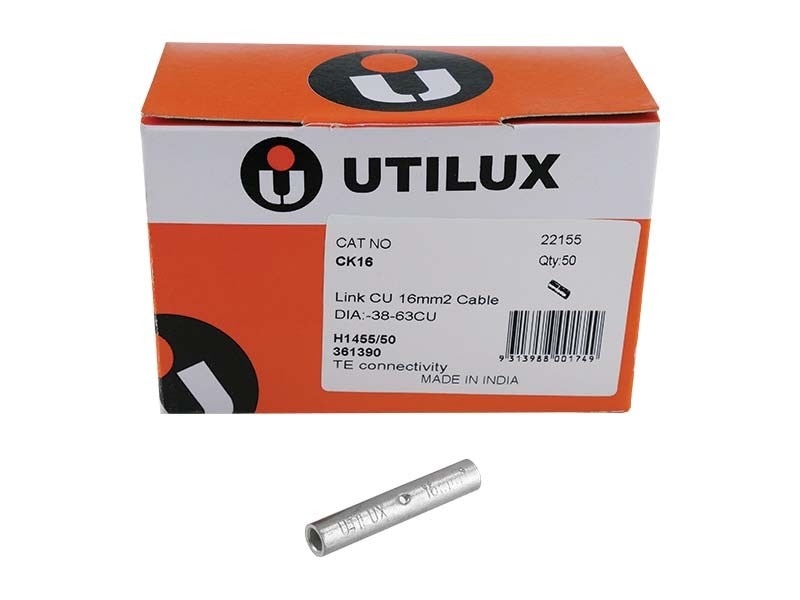

CK16 16 7/1.70 44 5.5 38-63CU, #103/1, #24/1, #22/1, #21/1

Quantity

CK20 20 19/.044 44 6.3 38-70CU, #24/1, #22/1, #21/1

Quantity

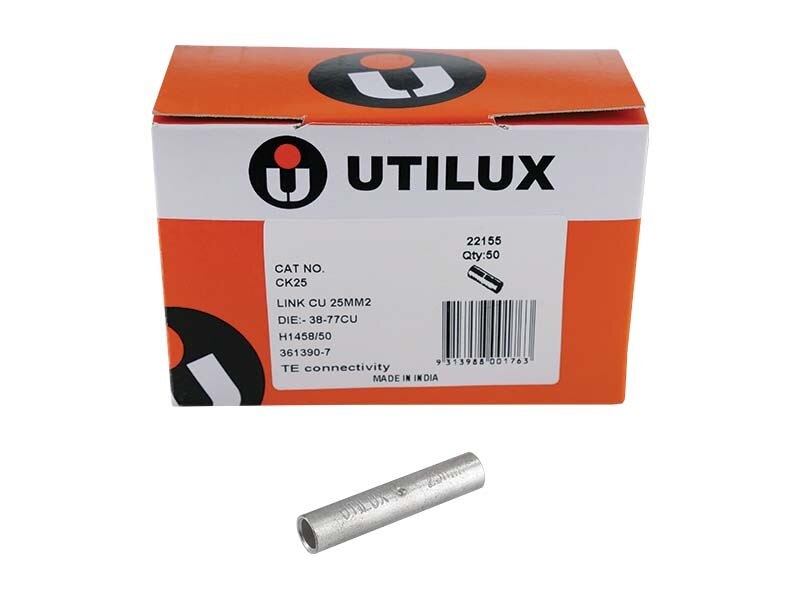

CK25 25 19/1.35 48 7.1 38-77CU, #22/1, #21/1

Quantity

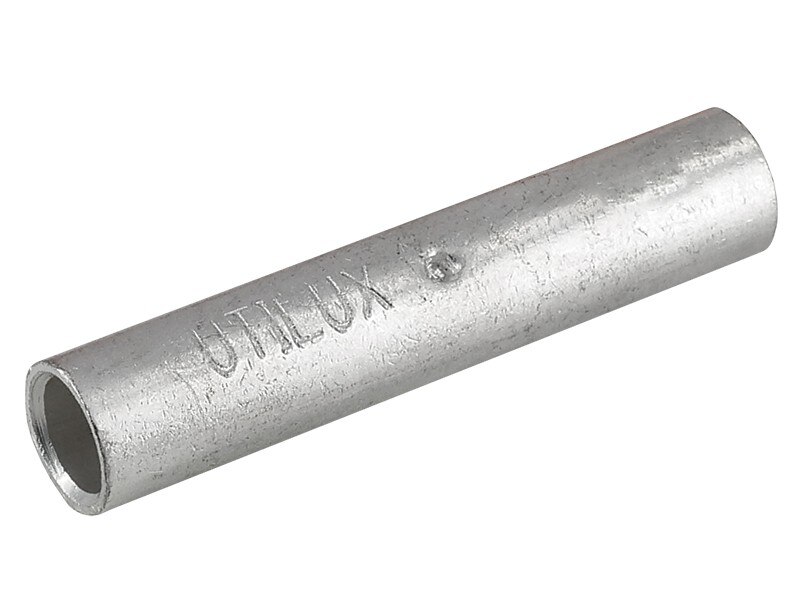

CK35 35 19/1.53 48 8.4 38-92CU, #22/1, #21/1

Quantity

CK50 50 19/1.78 48 9.5 38-104CU, #22/1, #21/1

Quantity

CK70 70 19/2.14 51 11 38-115CU, #22/1

Quantity

CK95 95 37/1.78 54 13.4 38-142CU, #22/1

Quantity

CK120 120 37/2.03 65 15.5 38-165CU, #22/1

Quantity

CK150 150 37/2.25 65 16.3 38-183CU

Quantity

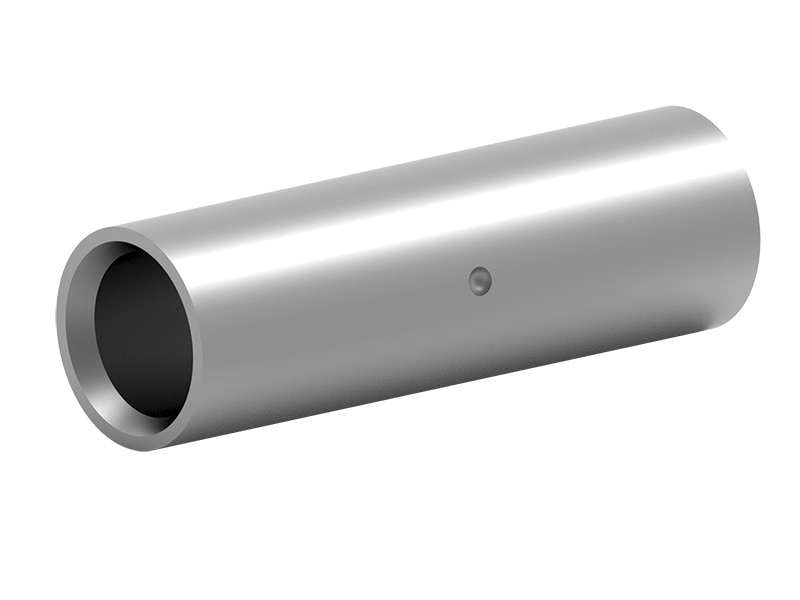

CK185 185 37/2.52 65 18.4 38-200CU

Quantity

CK240 240 61/2.25 89 21.2 38-231CU

Quantity

CK300 300 61/2.52 89 23.8 38-260CU

Quantity

				Dimensions (mm)
	Cat No.	Conductor Area (mm²)	Stranding Metric	A	G	Crimping Tool / Die	Qty	Price
