Cable Stripping Tools

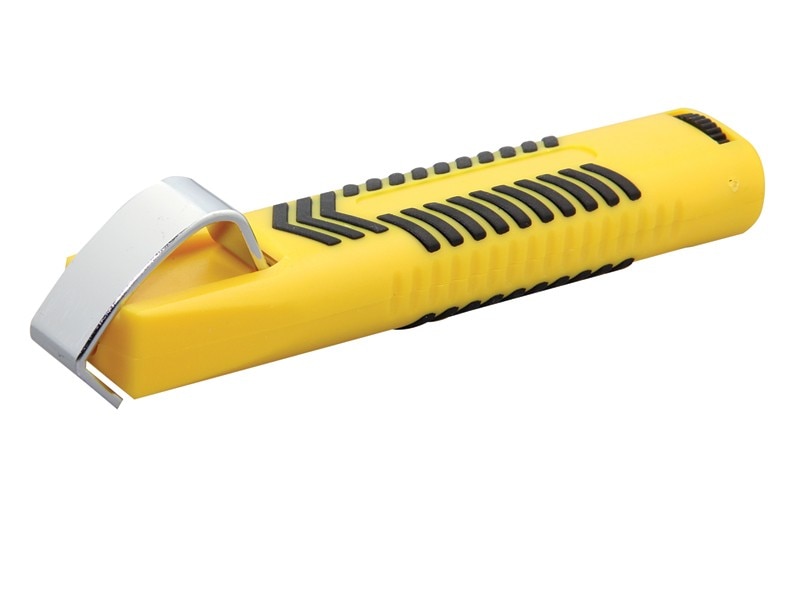

#161/1

Safe and easy to use, this innovative cable stripping tool is an economical choice.

Range: 8-25mm OD

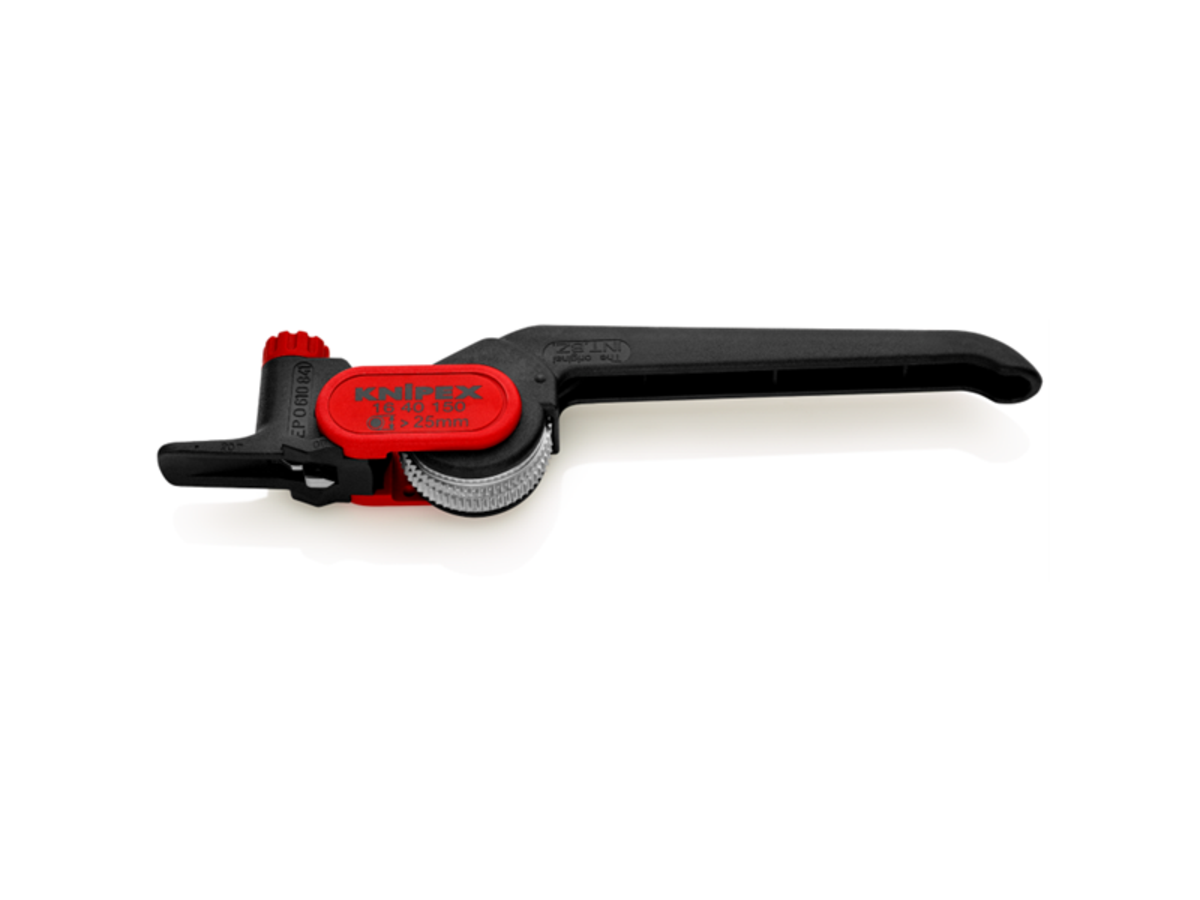

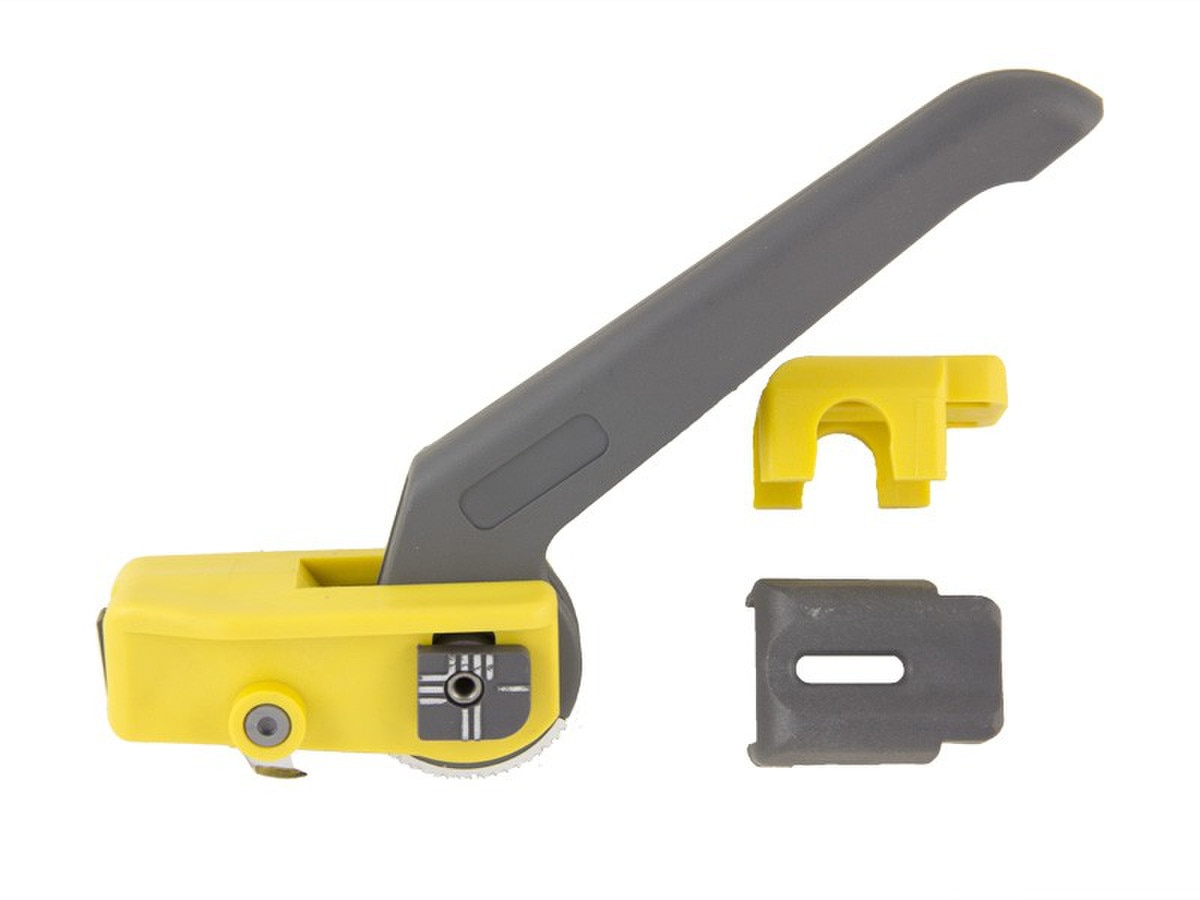

KP1640150

For removing the insulation of round cables exceeding 25.0 mm dia. Suitable for longitudinal and circular cutting. Cutting depth can be adjusted up to 5.0 mm

Replaceable blade (both sides can be used)

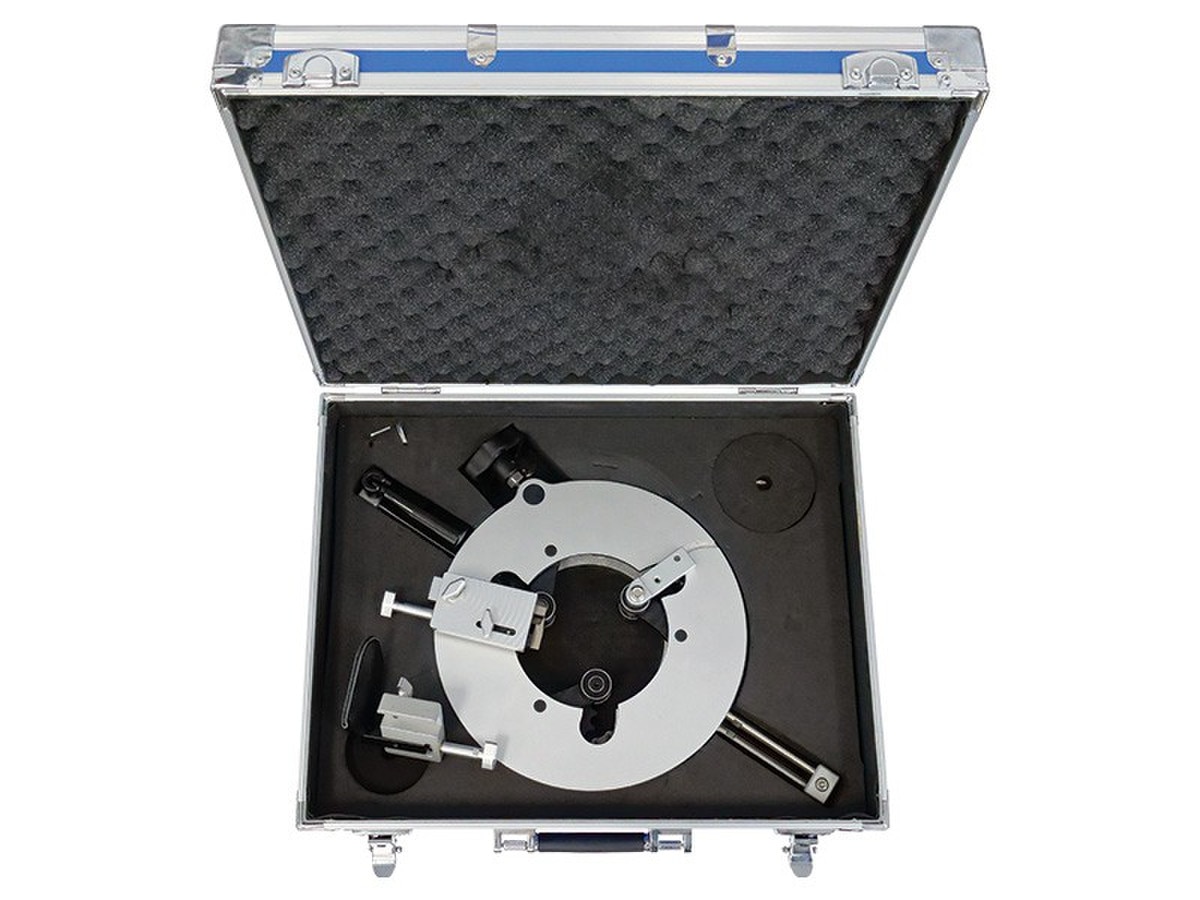

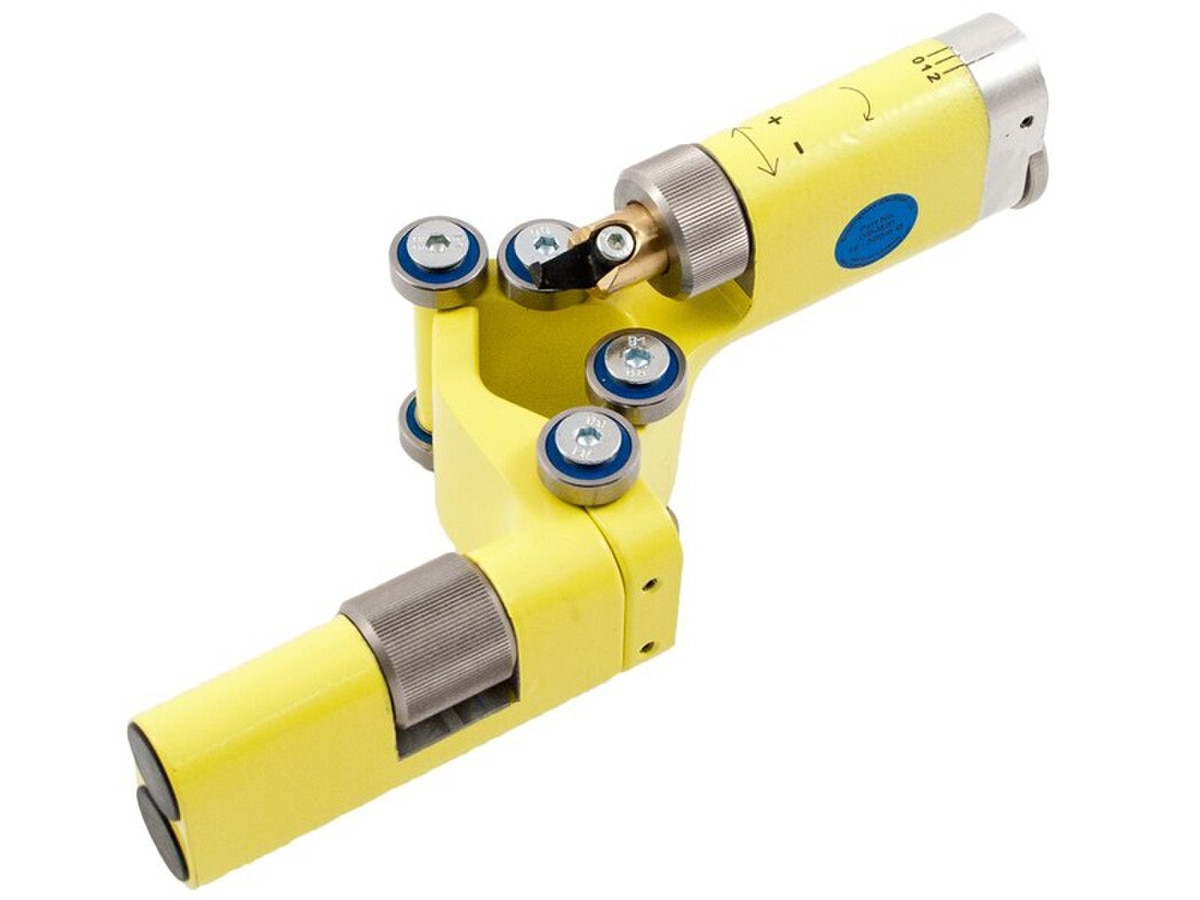

IT-1000-024

This tool cuts outer jackets of 15-55 mm OD (an additional plastic insert GB-M20-S9 is required for diameter smaller than 220mm) and the XLPE insulation up to a thickness of 8-10 mm. The automatic feed (step “1” and “2”) and the “O” position, for a radial cutting, guarantees a quick, safe and exact cutting of the cable jacket and insulation.

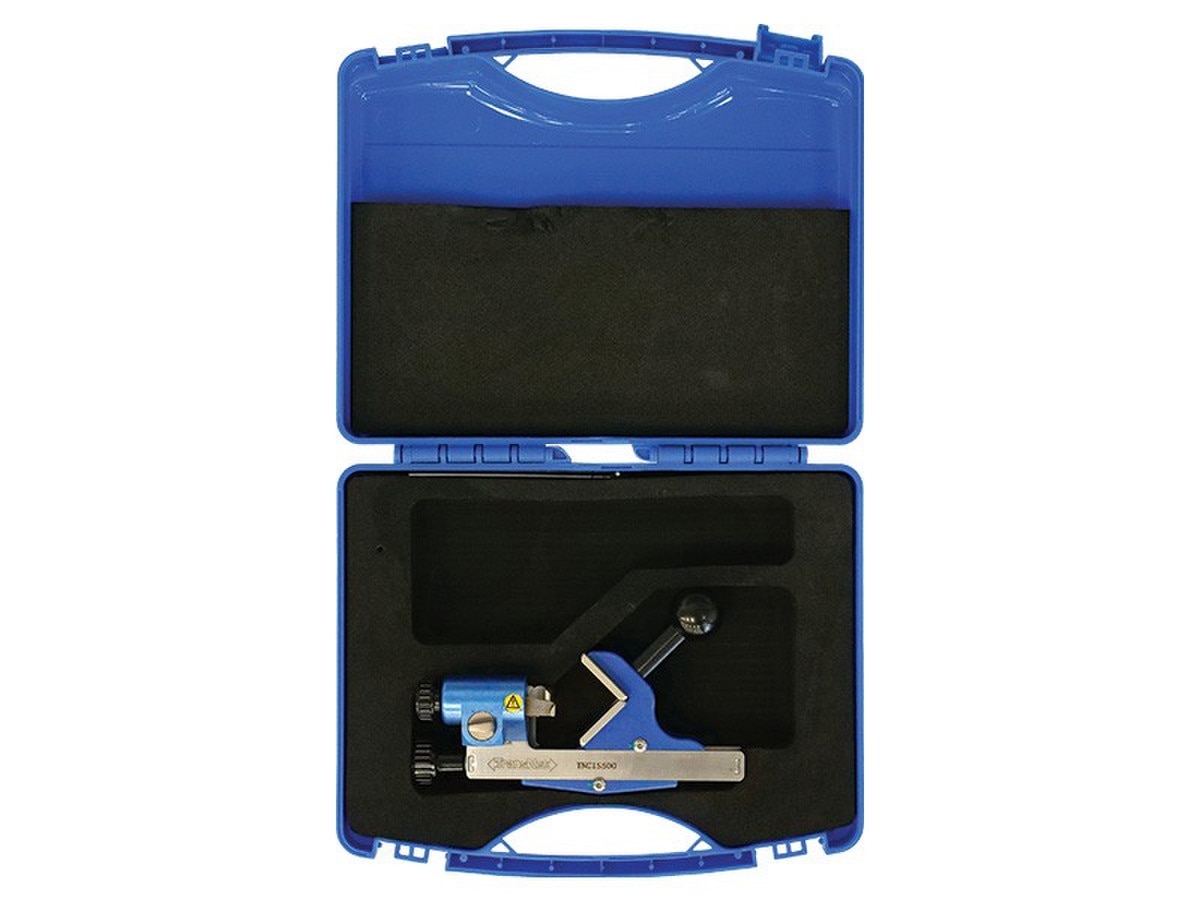

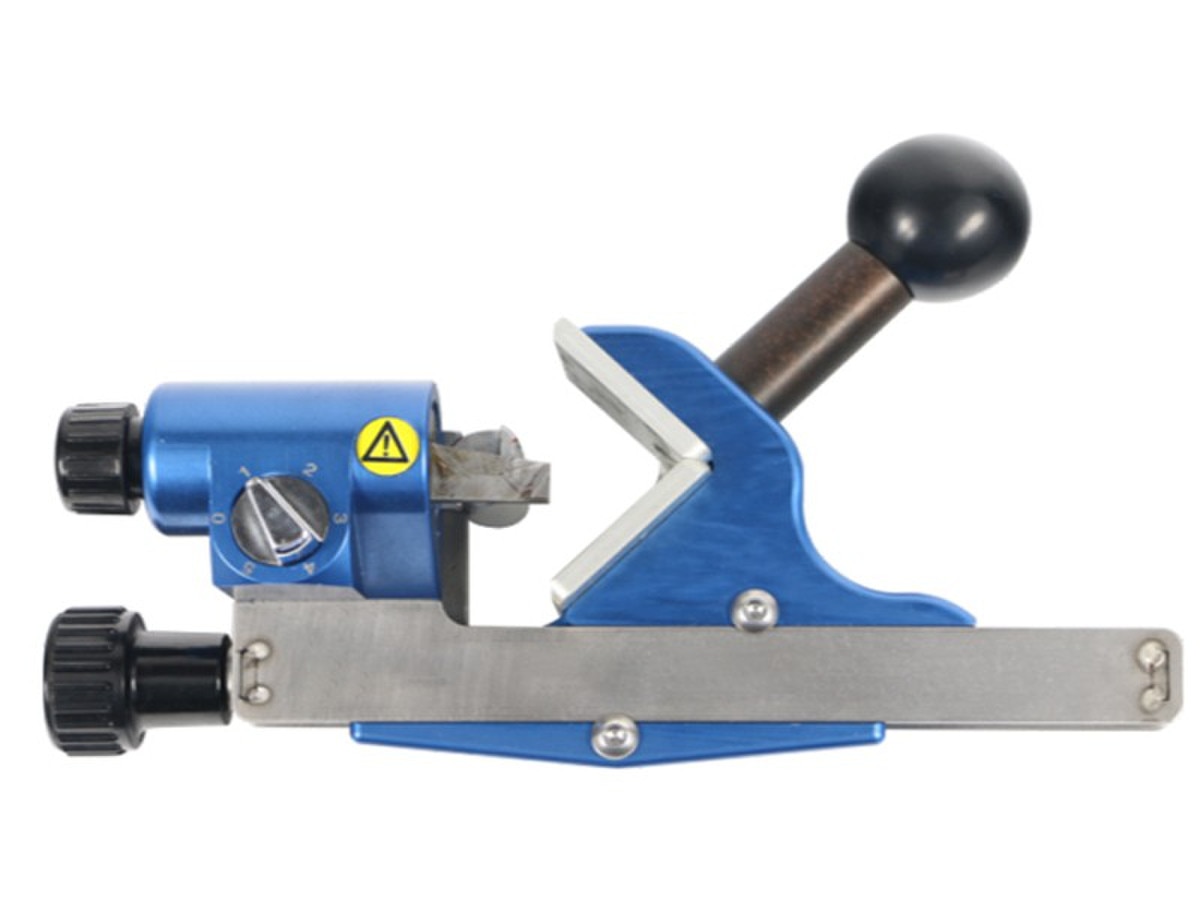

TNCIS1552

Used for stripping main insulation layer of cross-linked round cables below 10kV/800mm2 & 35kV/240mm2 (including inner and outer semi-conductor layer).

Kit includes TNCIS1552 insulation stripping tool, grease, 2.5mm inner hexagon spanner, instruction manual and robust plastic storage case.

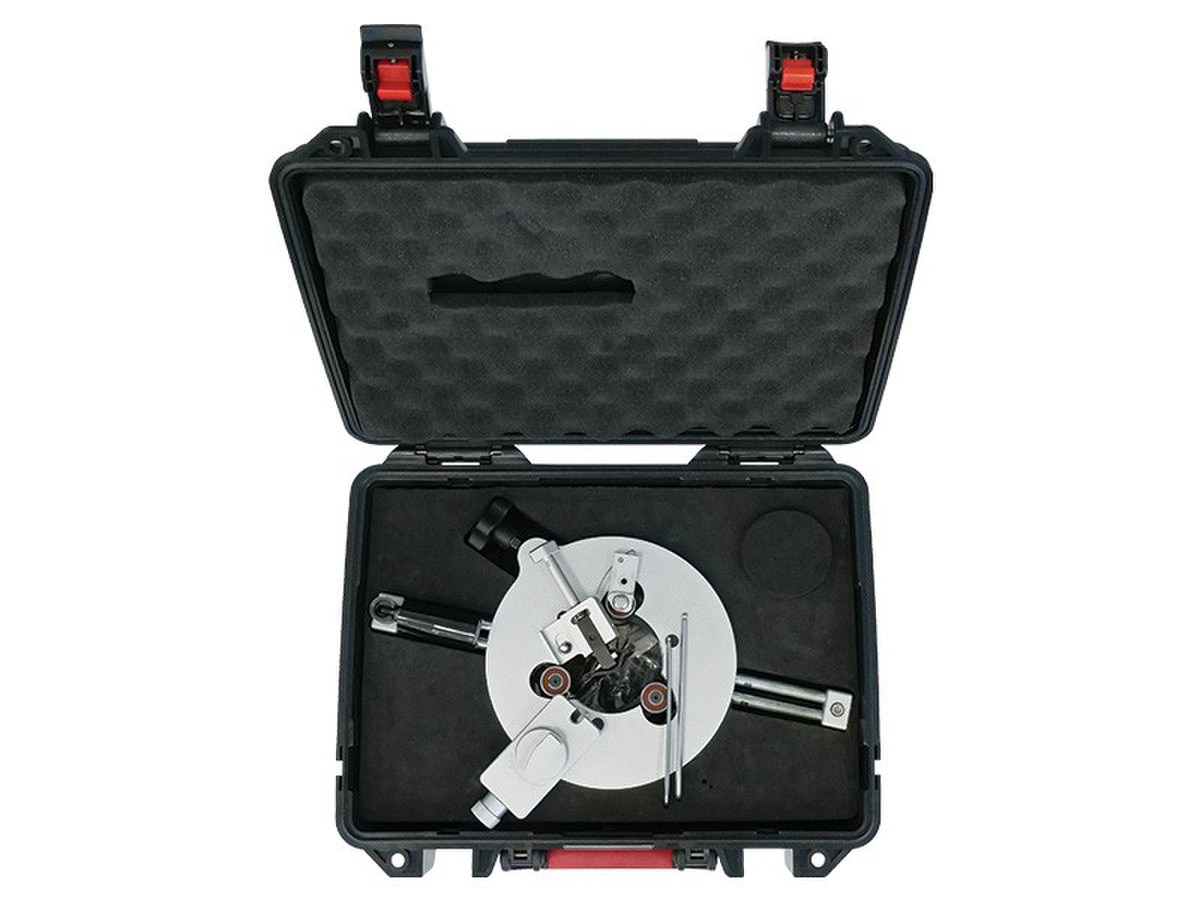

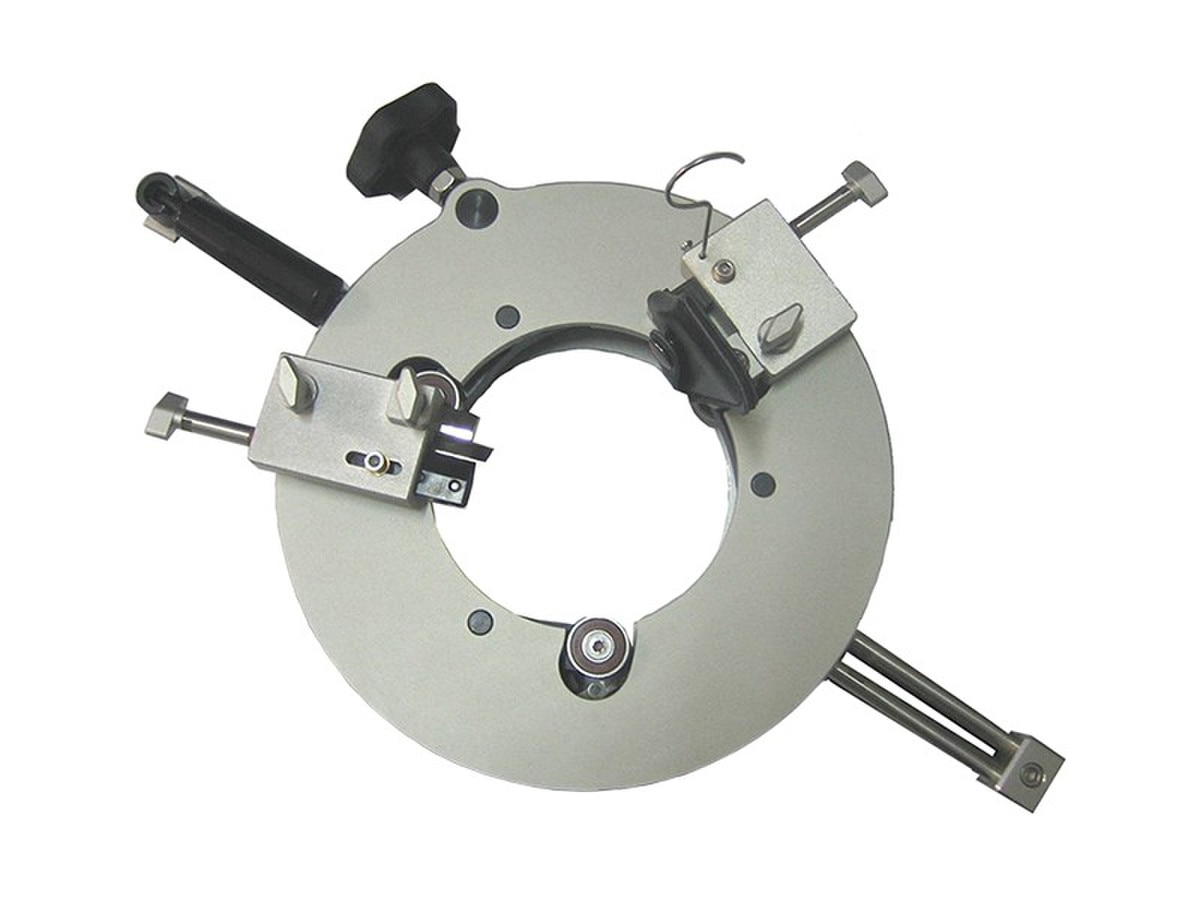

TNSHxx

With three sizes in the range the TNSHxx range of stripping tools are used for stripping the outer semiconducting layer and main insulation layer of 10-220kV high voltage cable and chamfering and tapering the main insulation layer.

One machine used for four separate jobs means time, money and space savings. Range includes:

• TNSH50 - 10-50mm OD
• TNSH80 - 40-80mm OD
• TNSH130 - 70-130mm OD

Kit includes TNSHxx tool, stripping cutter, peeling knife, hex wrench, robust plastic storage case and instruction manual

KMS-K

A simple and handy tool designed for safe opening of cable sheaths. Makes smooth longitudinal cuts at any point on any cable sheath diameter. The depth slit can be easily adjusted to ensure no damage to the conductor underneath.

Comes in a plastic case. Easily replace blunt blades.

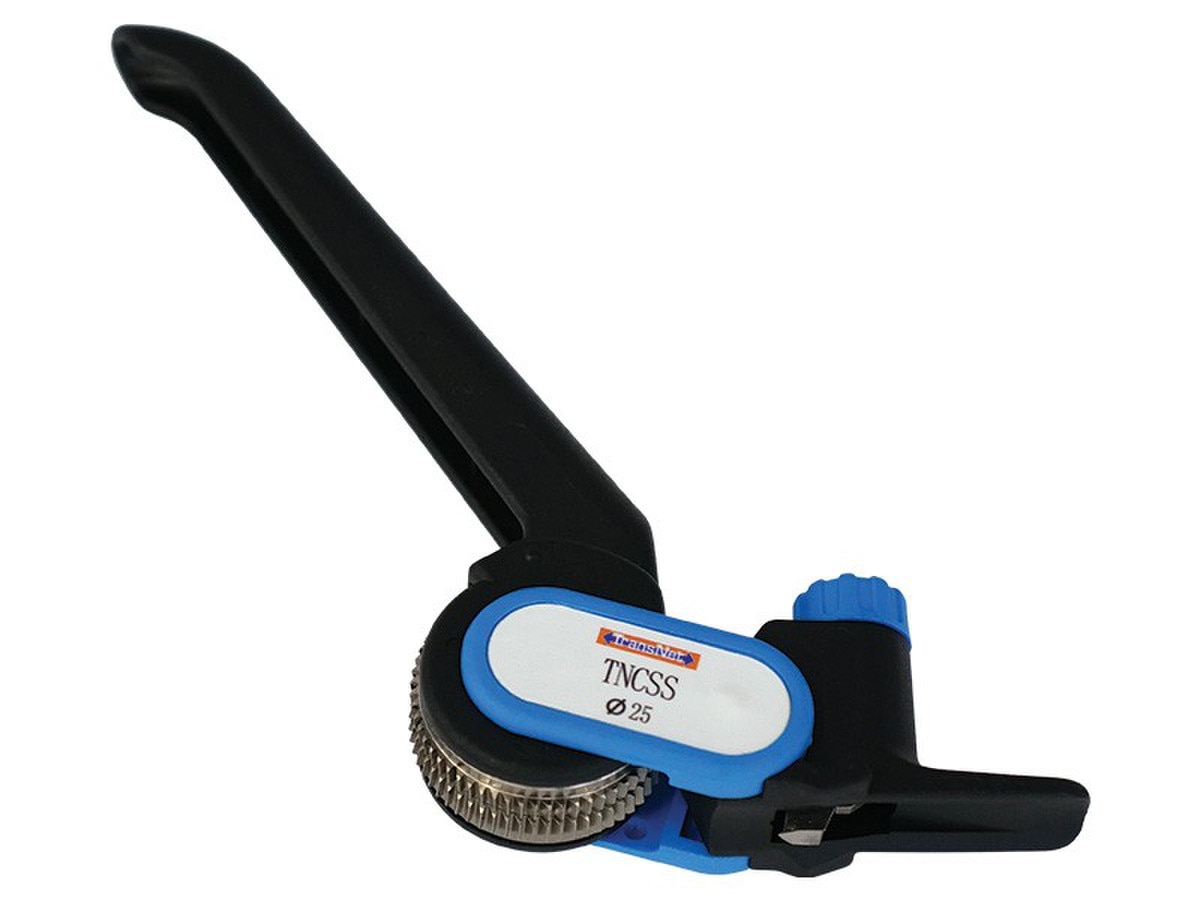

TNCSS

Universal cable sheath stripping tool for LV & MV cables with diameter greater than 25mm.

• Application range: Ø > 25 mm
• Insulation thickness: 0 - 5 mm
• Suggested application: PVC / Rubber
• Designed to strip outer sheath from MV and LV cables
• Longitudinal and circumferential circular cuts
• Designed to strip ends and or middle parts
• Stripping without hurting the lower layers
• Double sided replaceable blade
• Snap closure mechanism

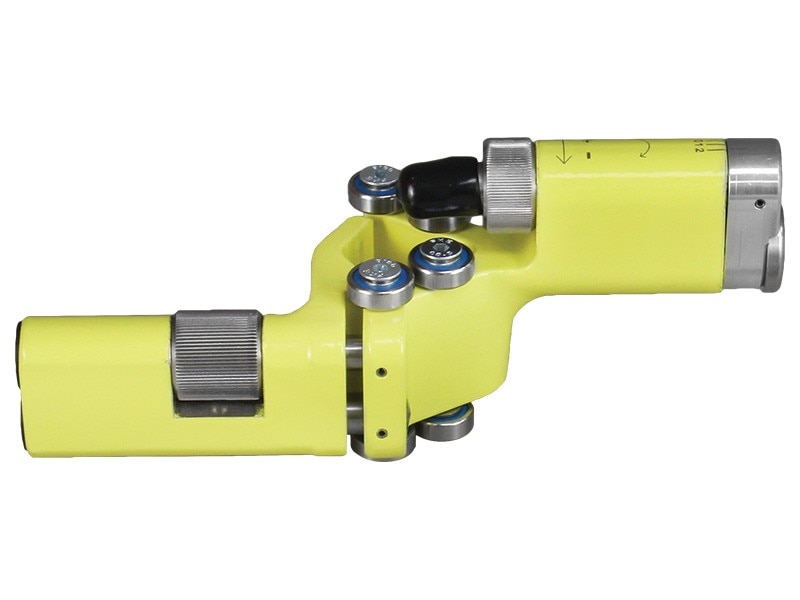

CS/GB-M30

Cable sheath cutter and insulation removal tool with a range of 15-50mm OD. Removes outer sheath and XLPE insulation.

• One tool – two functions
• Removes outer sheath and also XLPE insulation
• 2 Types GB-M20 – ø15 to ø50mm and GB-M30 – ø32 to ø70mm
• Both tools give quick, safe and precise cutting

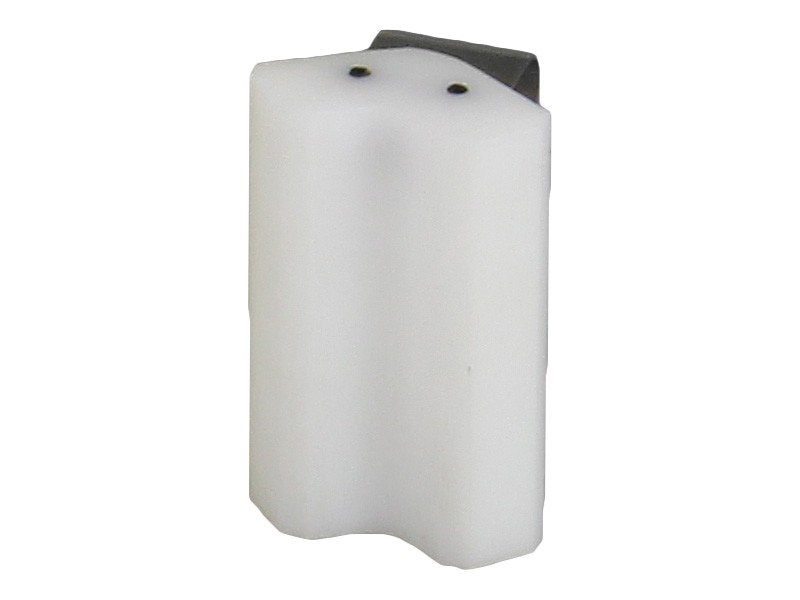

• Replacement blades (5pk) can be ordered using code CS/GB-M31
