DC EVSE Testing Kits

The first affordable tester for DC EV Chargers is now available

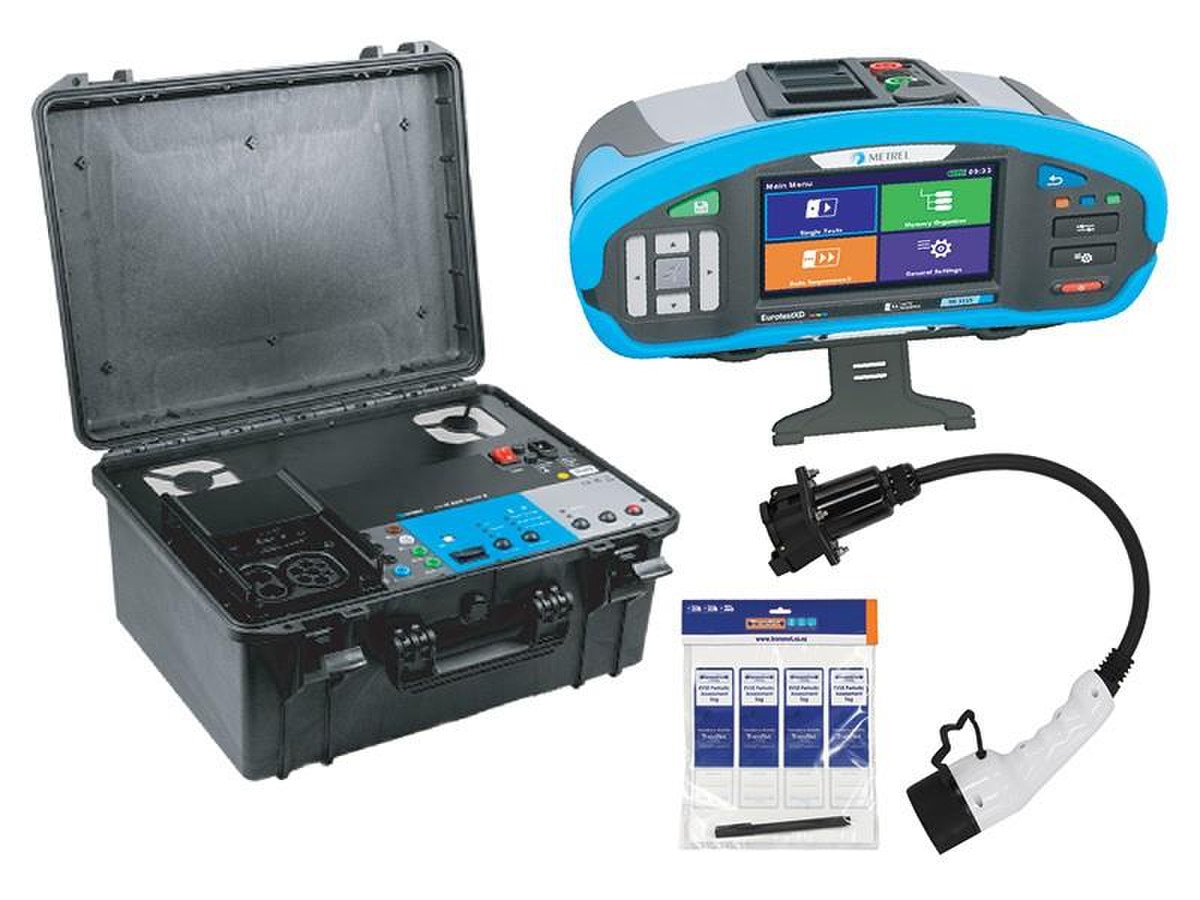

The A1732 DC EVSE Adapter is a specialised tool designed for electrical safety and functional testing of Electric Vehicle Supply Equipment in both Mode 4 (DC EVSE) and Mode 3 (AC EVSE) configurations. It supports a range of connector types, including CCS2, CHAdeMO, and Type 2 AC plugs, making it highly versatile. The A1732 adapter enables initiation when paired with MI3155 of communication protocols, such as ISO 15118, DIN 70121, CHAdeMO, and Low-level PWM, and it can also simulate errors on the Control Pilot (CP) signal and Protective Earth (PE) connections to assess EVSE response.

KEY FEATURES

• Support for CCS2, CHAdeMO and AC EVSE
• Fault simulation on CCS2 and Type 2 for CP open, PE open and CP short
• Fault simulation on CHAdeMO for CP3 open, PE open and CAN stop

USED TOGETHER WITH MI3155

• Communication with A1732 DC EVSE Adapter via Bluetooth
• Predefined test protocol for DC EVSE in the memory structure
• Insulation resistance with DC voltage up to 2500 V
• Remote faults triggering and reaction time measuring
• DC impedance measurement
• Discharge time measurement
• Programmable AUTO SEQUENCES* for customising the test protocol
