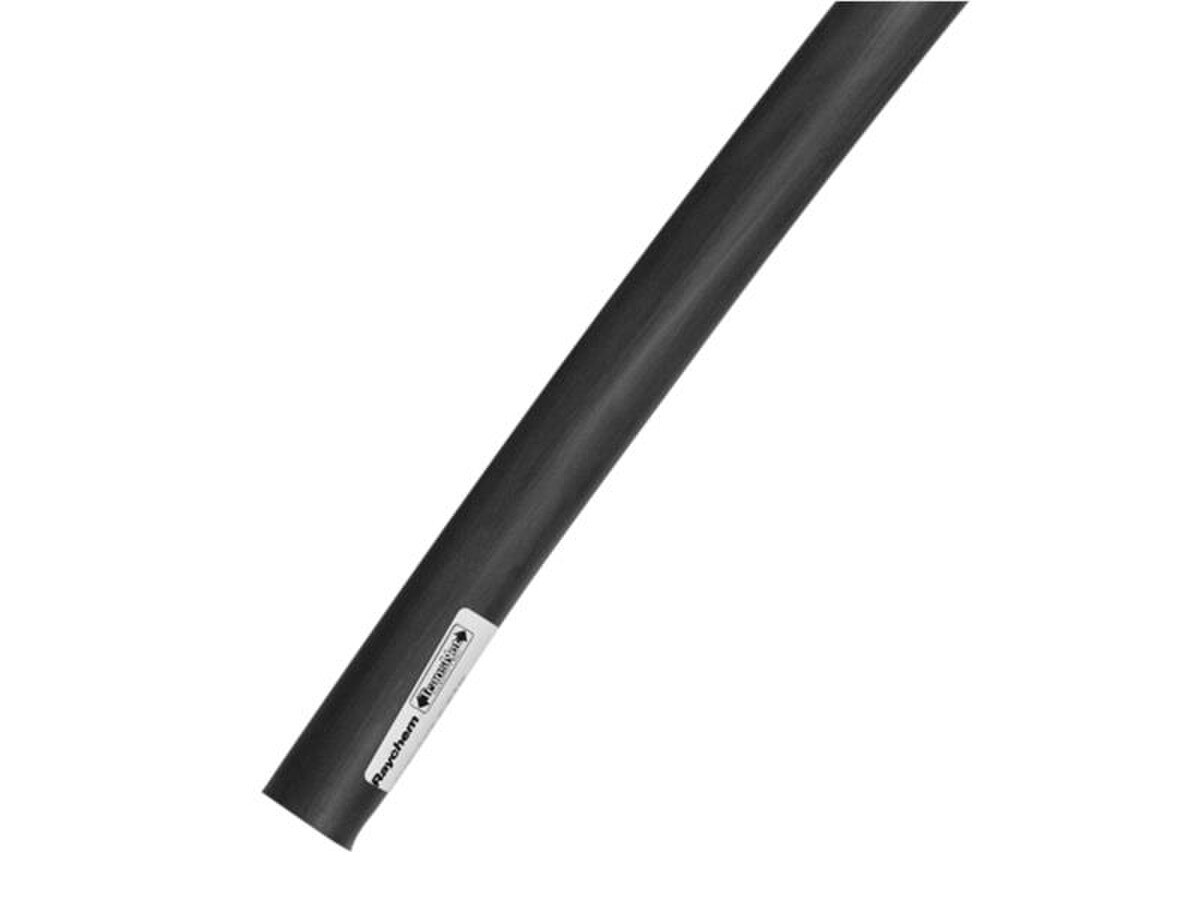

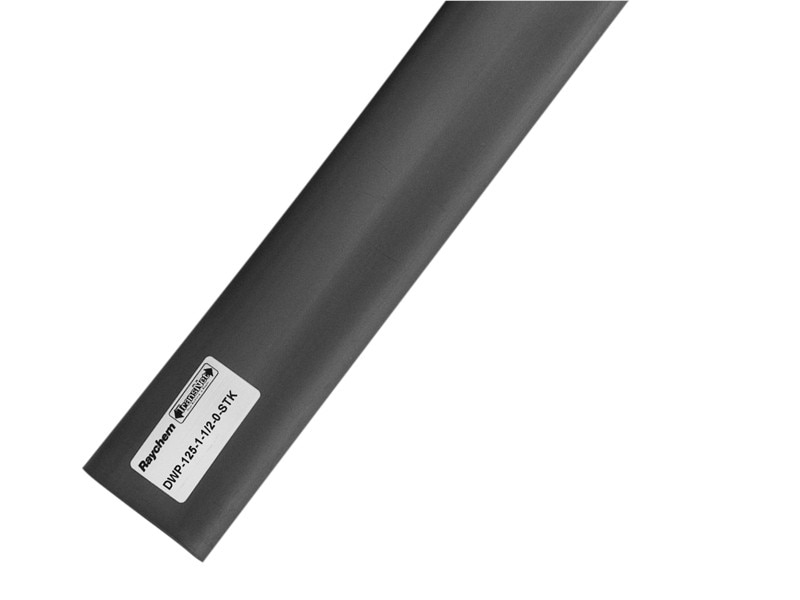

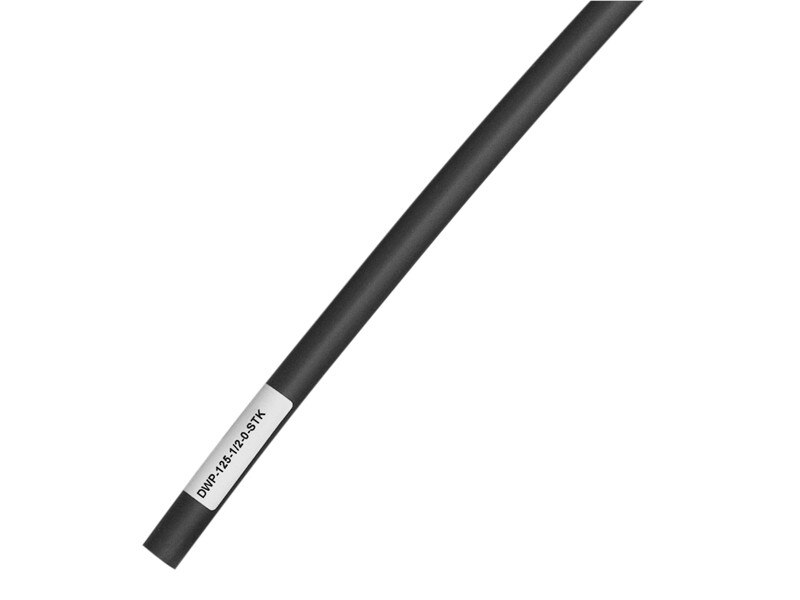

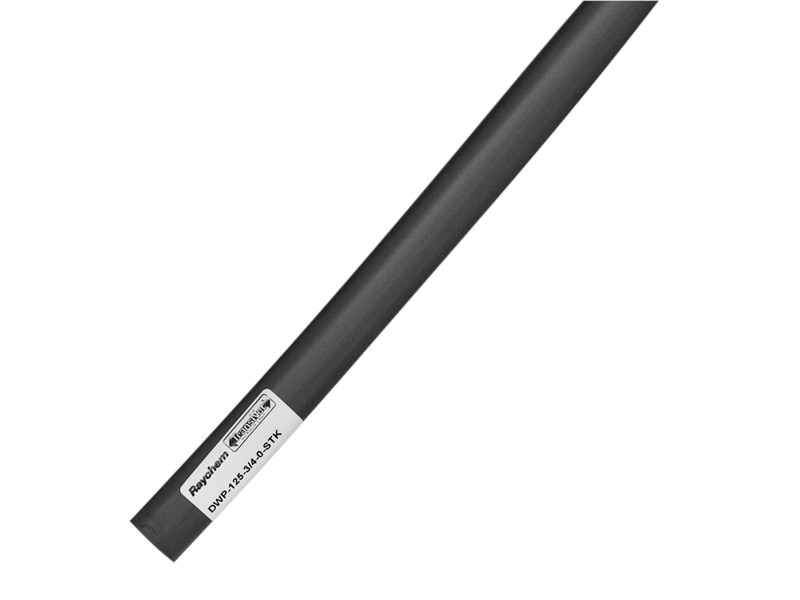

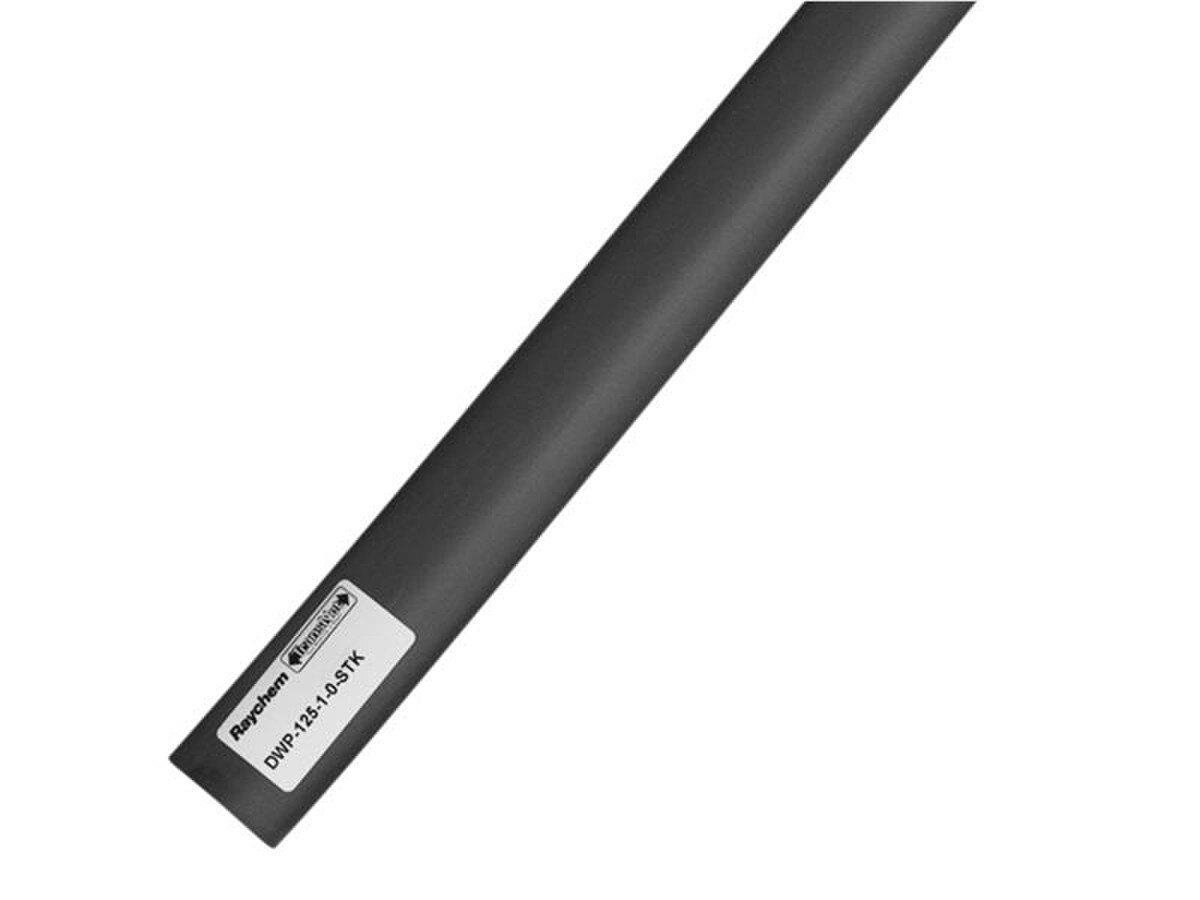

DWP Dual Wall Heatshrink
Semi-flexible, general purpose adhesive-lined, moisture proof heatshrinkable tubing, with high shrink ratio. Designed to provide moisture proof sealing to a wide range of substrates such as electrical wire splices, cable jackets, wire breakouts and electrical components.
Applications
- Environmental sealing
- Cable insulation
- Connector insulation for control wiring
Technical Data
- Operating Temperature -55°C to 110°C
- Minimum shrink temperature 80°C
- Minimum full recovery temperature 110°C
- Shrink ratio 3:1
- Black (clear ATUM 40/13 only)
- Adhesive lined
Approvals
- UL E85381 (Black only)
- MIL-DTL-23053/4 Class 3 (Black only)
- 3:1 Shrink ratio only (excludes sizes 9/3, 19/6)
- VG 95343 (clear 3:1 only)
- VDE 0341/Pt 9012 (clear 3:1 only)
Dimensions
Inside Diameter D (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Cat No. | Min A | Max B | Wall Thickness W Recovered (Nom) (mm) | Colour | Standard Length (mm) | Shrink Ratio | Qty | Price | ||
