EZISHRINK Thin Wall Heatshrink

(0)No Reviews yet

EZISHRINK Thin Wall H

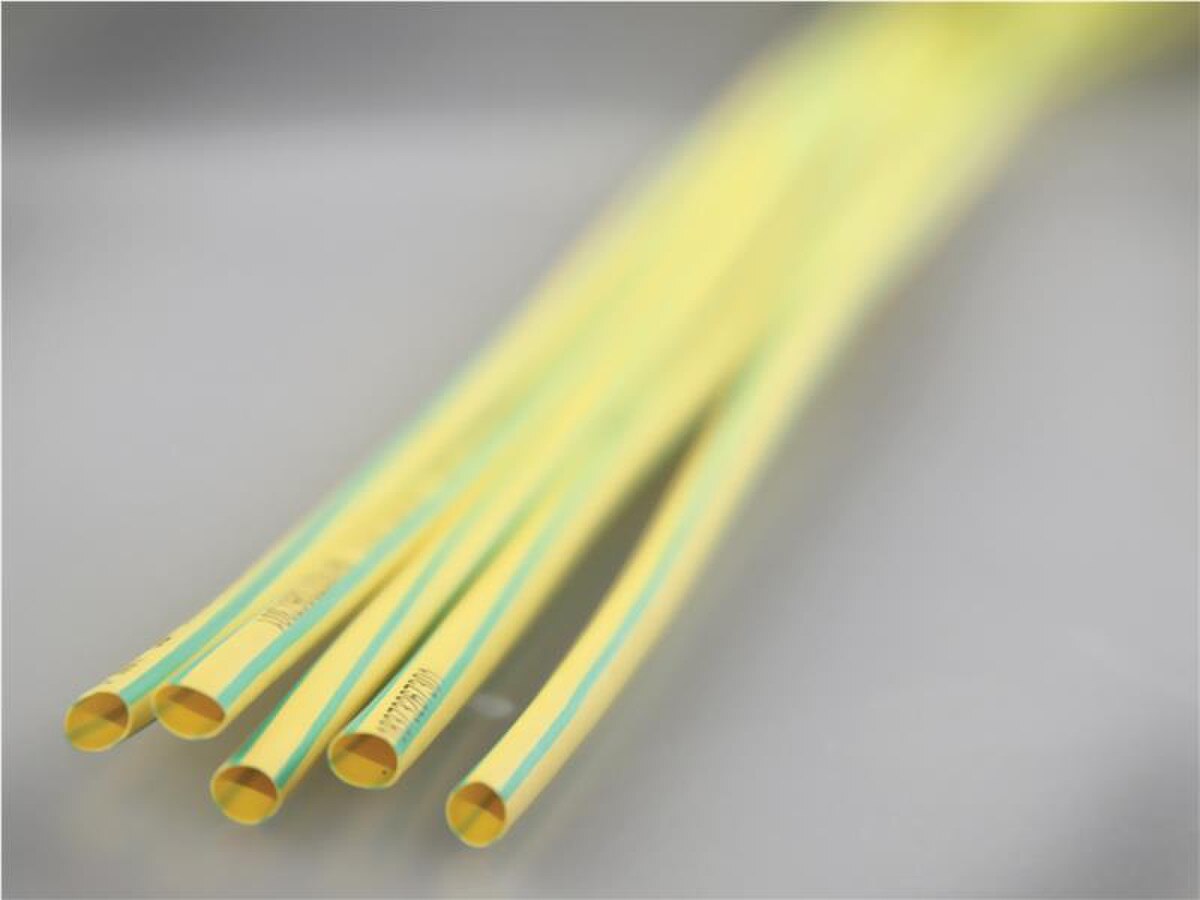

EziShrink Thin Wall Tubing is a high quality, heatshrinkable product for a variety of uses. Made from Flame Retardant Polyolefin Material, EziShrink has excellent physical, chemical and electrical properties.

All colours in this range are UV stable apart from the clear colour Ezishrink selection.

Back

Technical Information

  • Rated Voltage: 600 Volts
  • Dielectric Strength: 15kV/mm
  • Tensile Strength: 10.4Mpa
  • Available in 1200mm stick lengths
  • Shrink Ratio: 2:1

Operational Parameters

  • Operating Temperatures: -55°C up to 125°C
  • Shrink Start Temperature: 70°C
  • Longitudinal Shrinkage: Less than 8%
  • UL recognised to standard 224

Dimensions


Dimensions

Colour Codes


Dimensions
Back
EZISHRINK Datasheet.pdf
Back

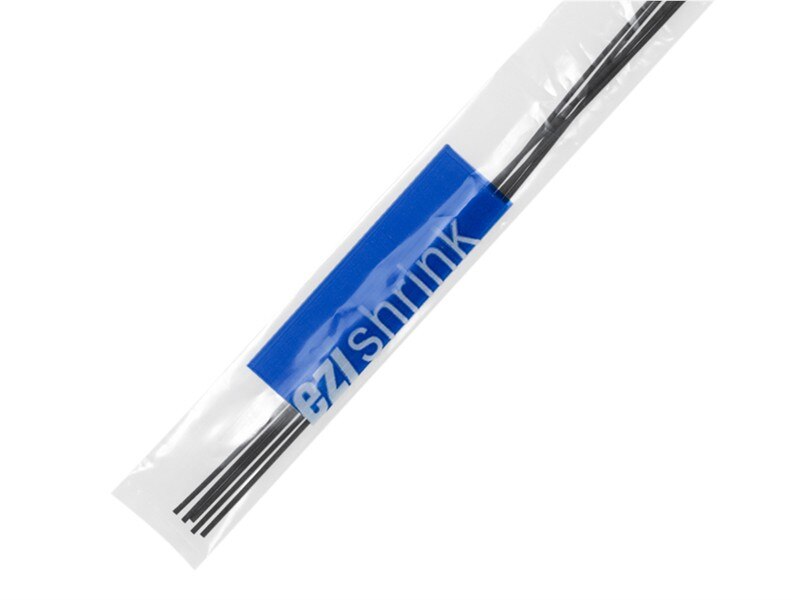

EZHSBK1.5/0.8 1.5 0.15 0.8 0.28 0.9-1.4 1200 Black

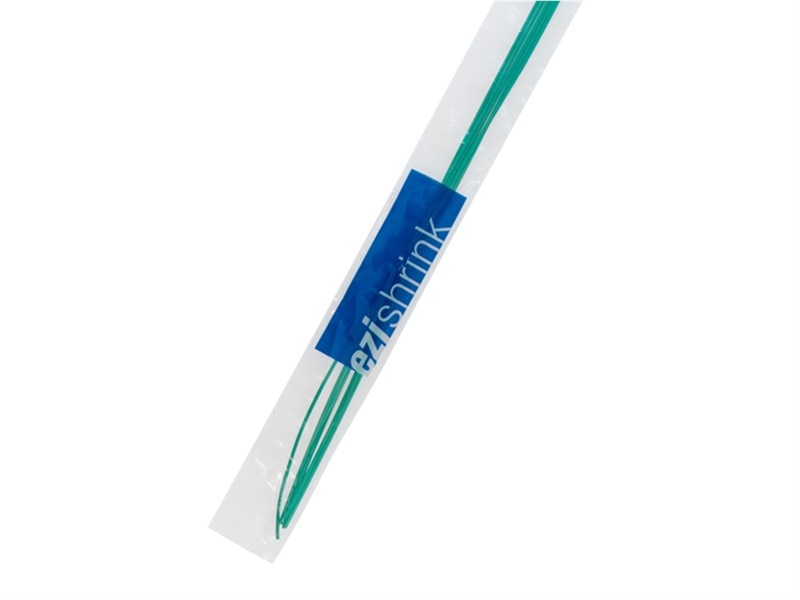

EZHSGN1.5/0.8 1.5 0.15 0.8 0.28 0.9-1.4 1200 Green

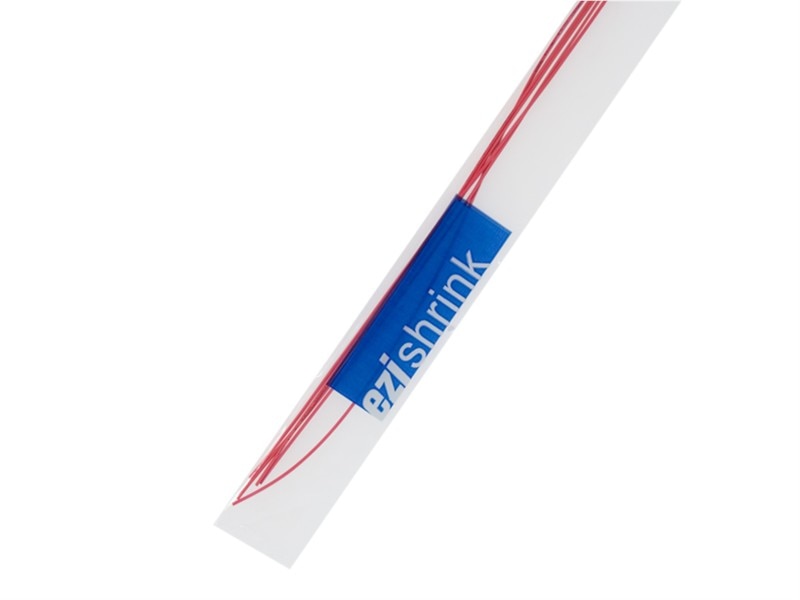

EZHSRD1.5/0.8 1.5 0.15 0.8 0.28 0.9-1.4 1200 Red

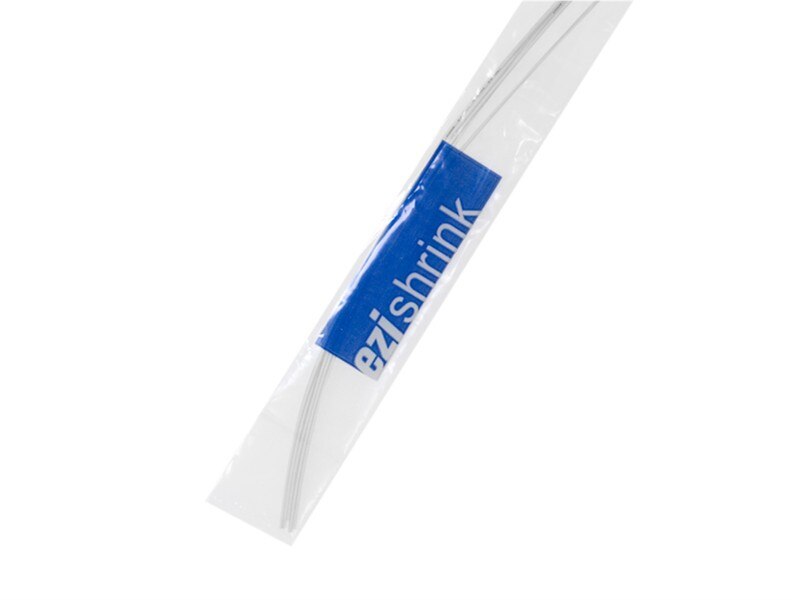

EZHSWH1.5/0.8 1.5 0.15 0.8 0.28 0.9-1.4 1200 White

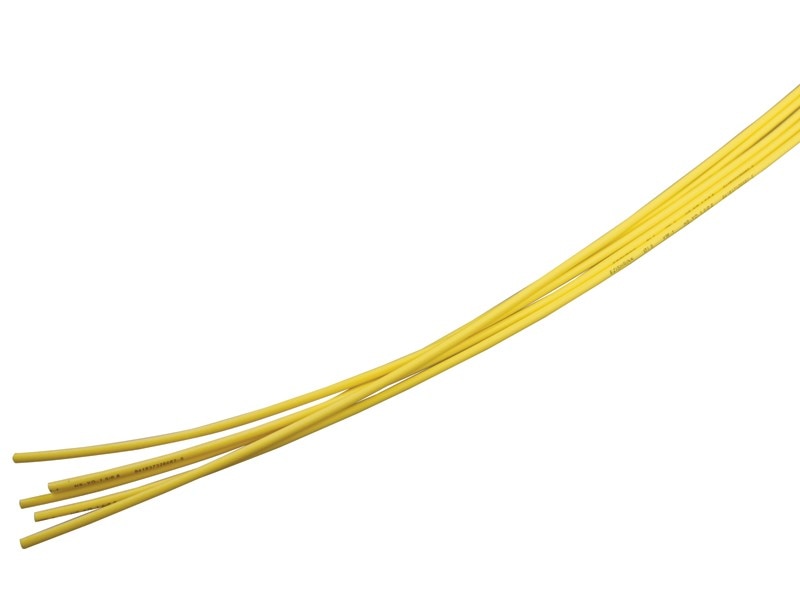

EZHSYO1.5/0.8 1.5 0.15 0.8 0.28 0.9-1.4 1200 Yellow
EZHSCL1.5/0.8 1.5 0.15 0.8 0.28 0.9-1.4 1200 Clear

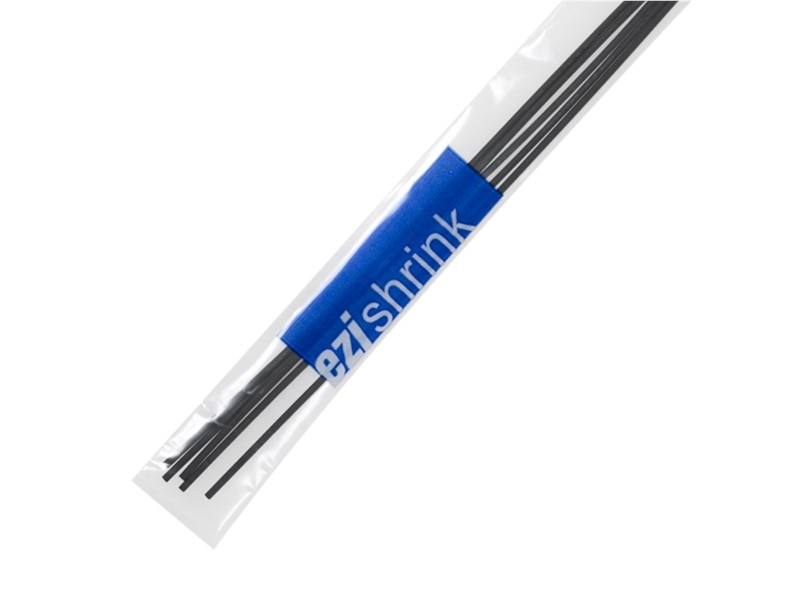

EZHSBK2/1 2 0.18 1 0.35 1.1-1.8 1200 Black

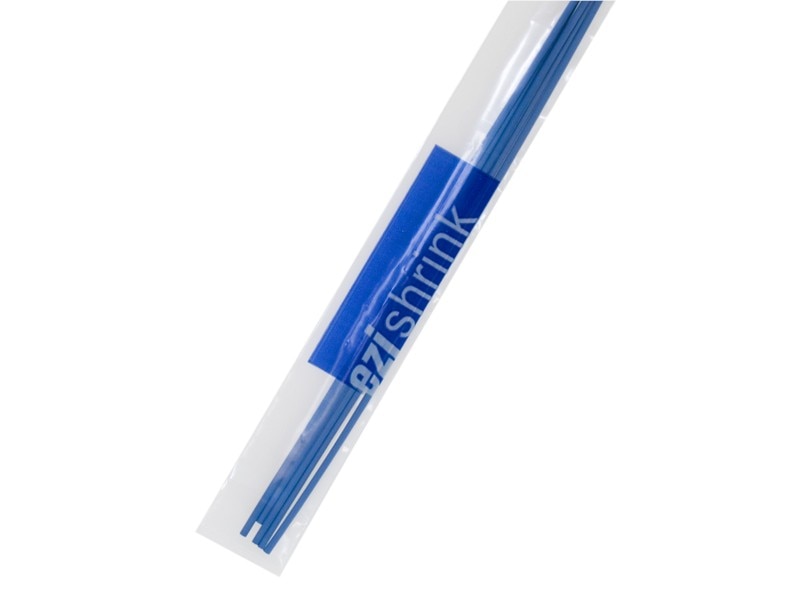

EZHSBU2/1 2 0.18 1 0.35 1.1-1.8 1200 Blue

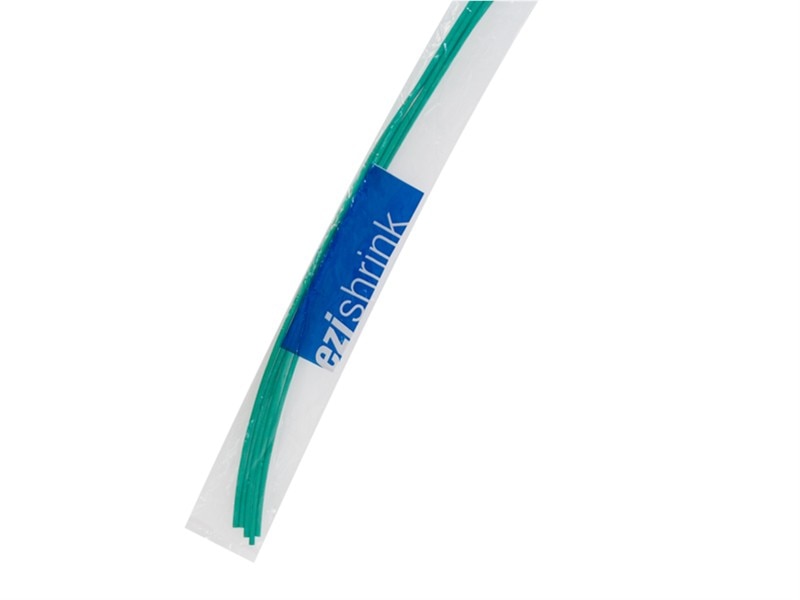

EZHSGN2/1 2 0.18 1 0.35 1.1-1.8 1200 Green

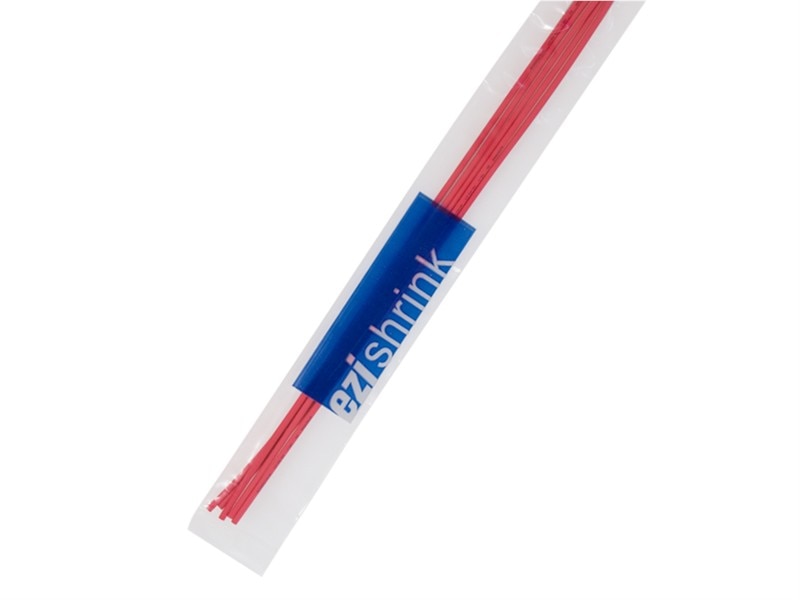

EZHSRD2/1 2 0.18 1 0.35 1.1-1.8 1200 Red

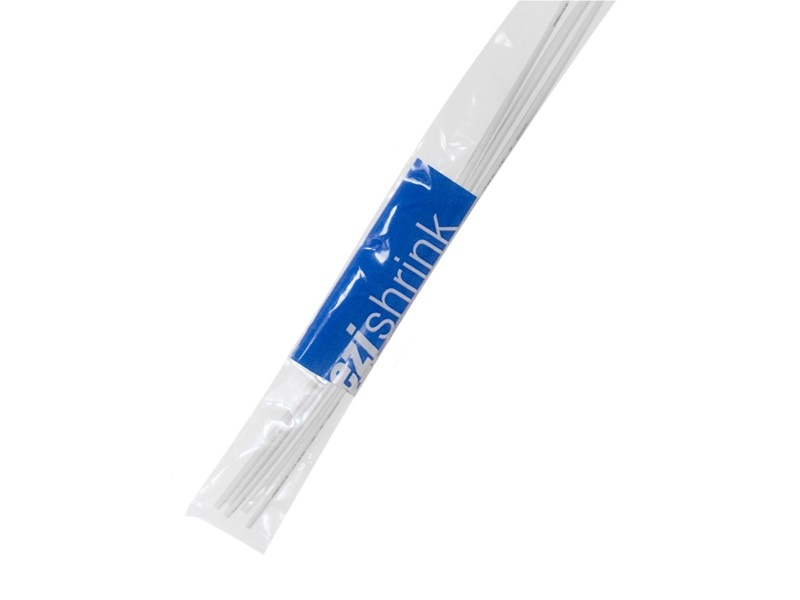

EZHSWH2/1 2 0.18 1 0.35 1.1-1.8 1200 White

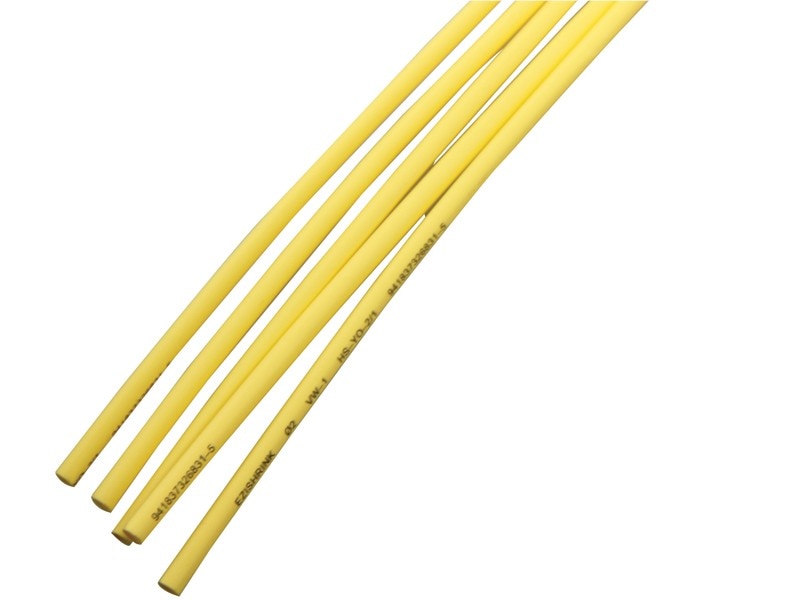

EZHSYO2/1 2 0.18 1 0.35 1.1-1.8 1200 Yellow
EZHSCL2/1 2 0.18 1 0.35 1.1-1.8 1200 Clear

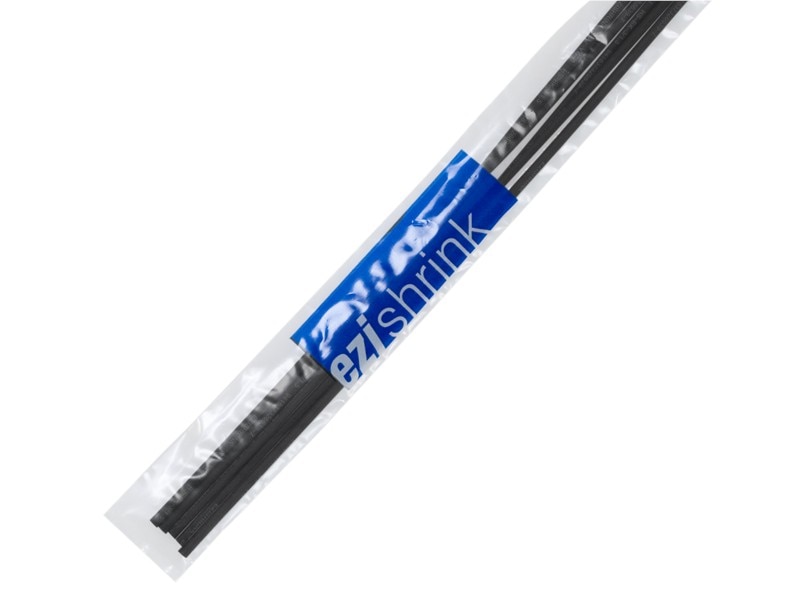

EZHSBK3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 Black

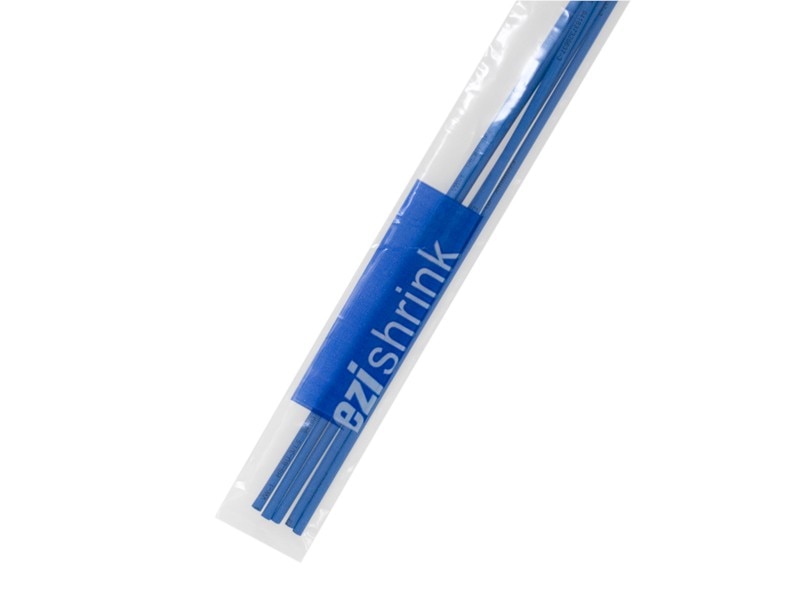

EZHSBU3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 Blue

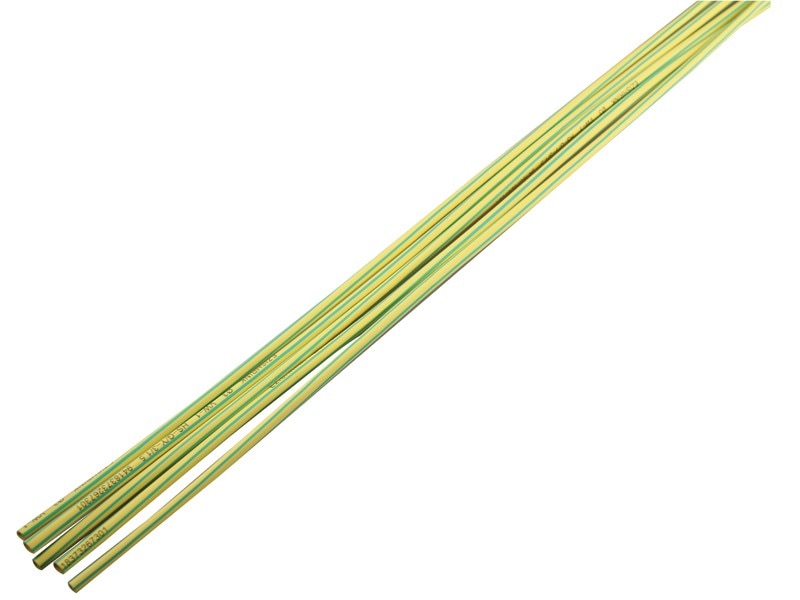

EZHSG+Y3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 Green / Yellow

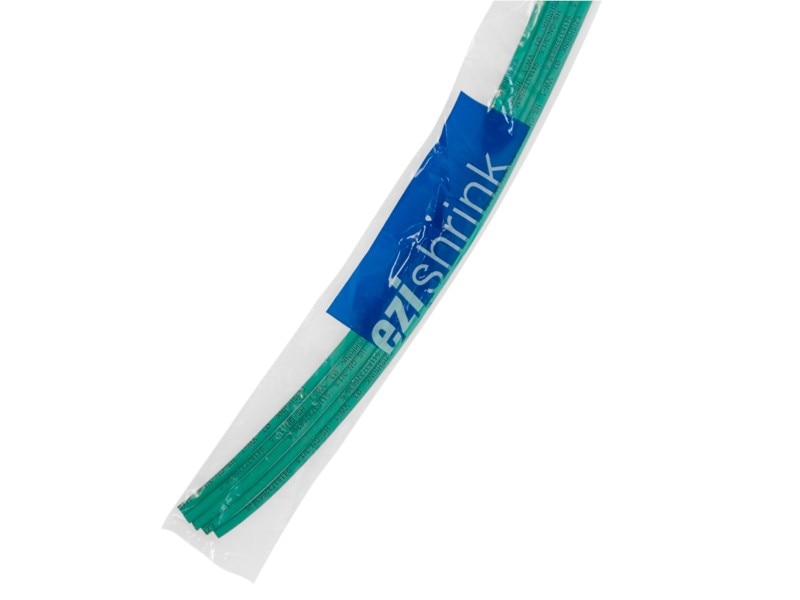

EZHSGN3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 Green

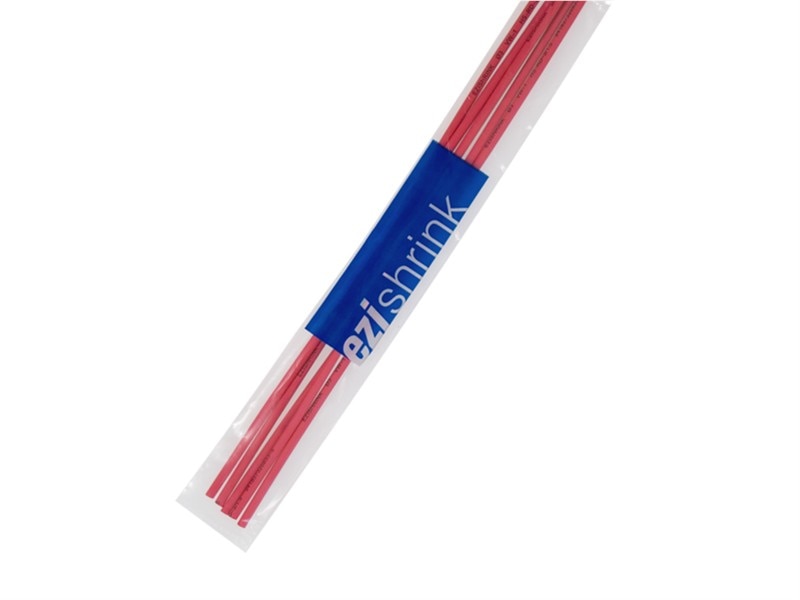

EZHSRD3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 Red

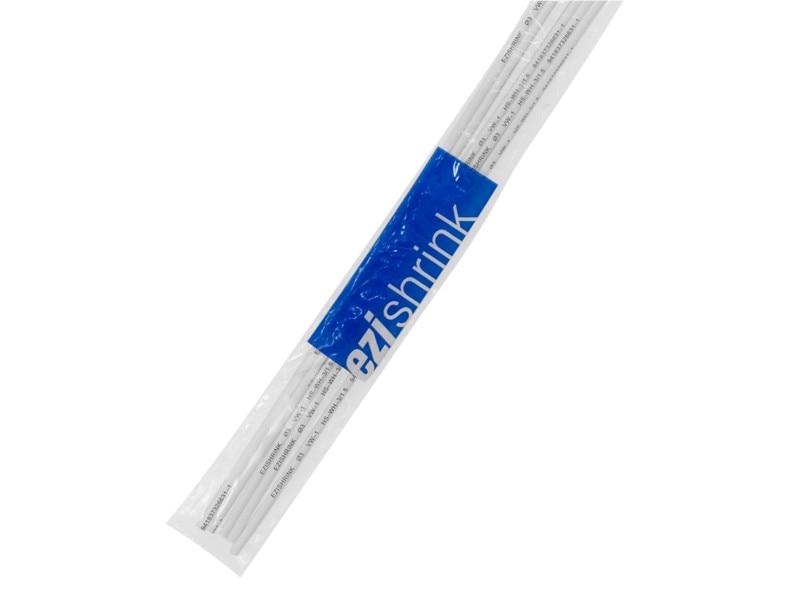

EZHSWH3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 White

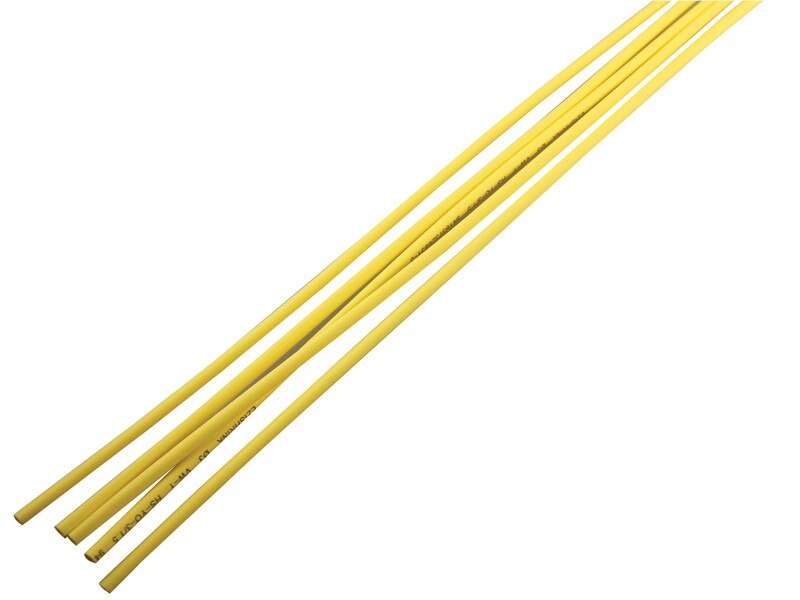

EZHSYO3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 Yellow
EZHSCL3/1.5 3 0.18 1.5 0.40 1.7-2.8 1200 Clear

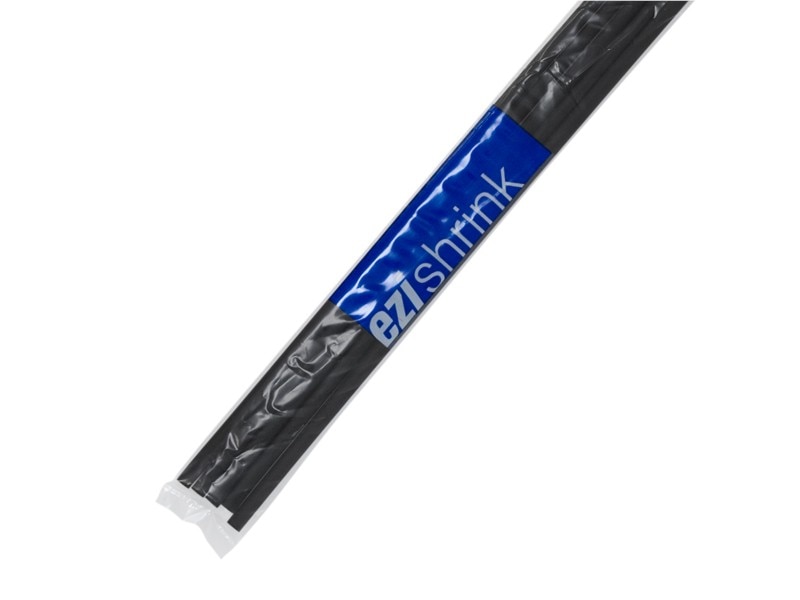

EZHSBK5/3 5 0.26 3 0.68 2.3-4.5 1200 Black
EZHSBU5/3 5 0.26 3 0.68 2.3-4.5 1200 Blue

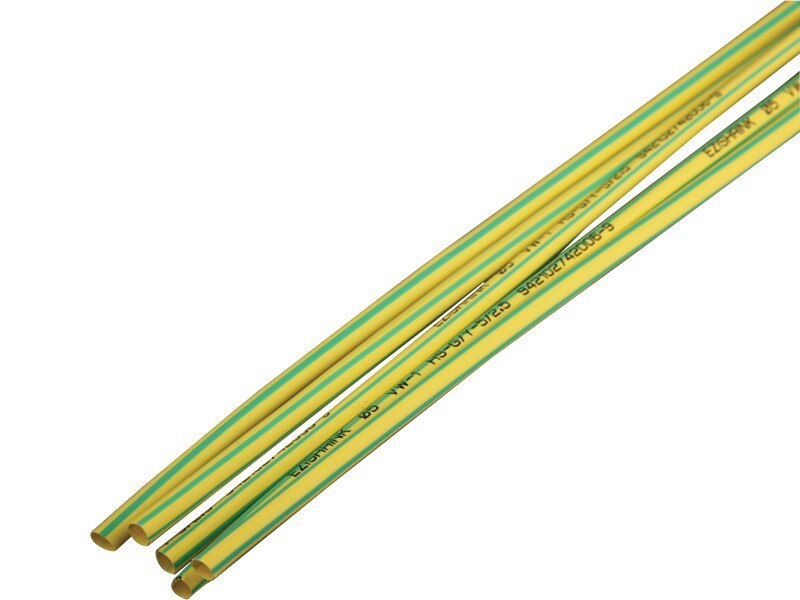

EZHSG+Y5/2.5 5 0.26 3 0.68 2.3-4.5 1200 Green / Yellow

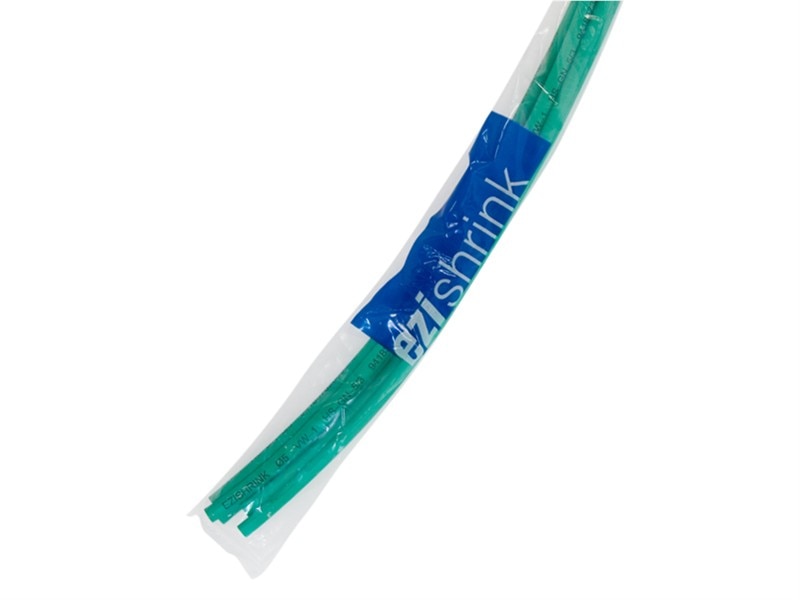

EZHSGN5/3 5 0.26 3 0.68 2.3-4.5 1200 Green

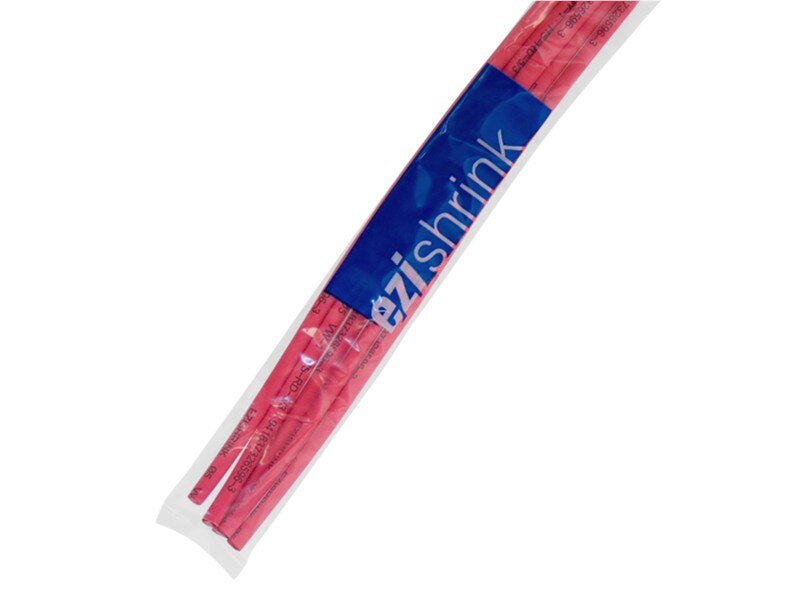

EZHSRD5/3 5 0.26 3 0.68 2.3-4.5 1200 Red

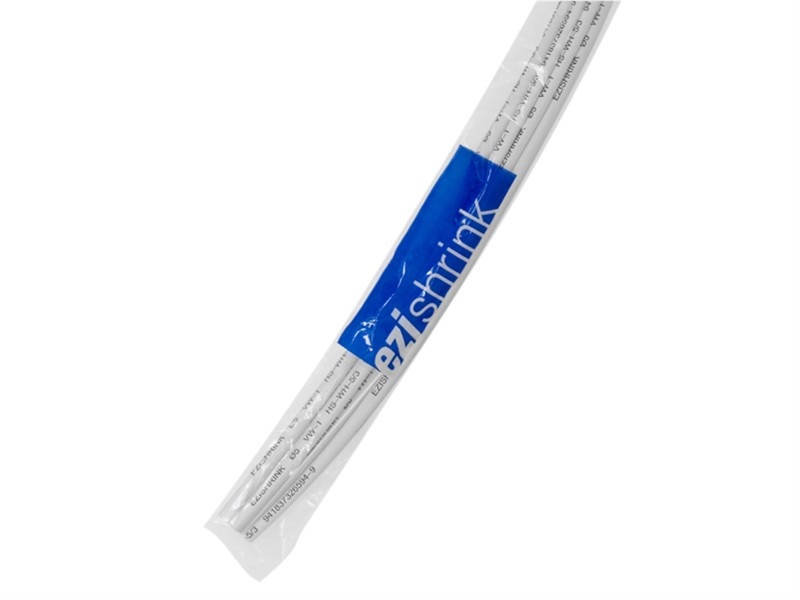

EZHSWH5/3 5 0.26 3 0.68 2.3.4.5 1200 White

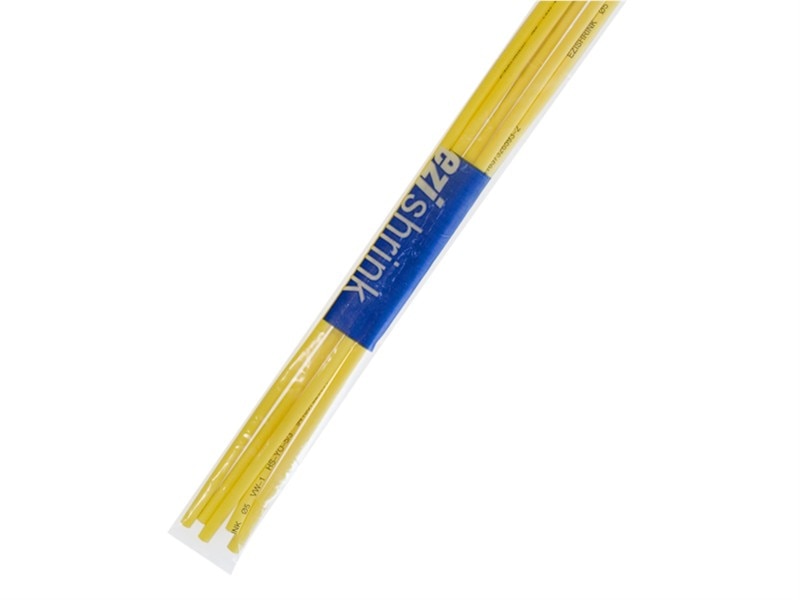

EZHSYO5/3 5 0.26 3 0.68 2.3-4.5 1200 Yellow
EZHSCL5/3 5 0.26 3 0.68 2.3-4.5 1200 Clear

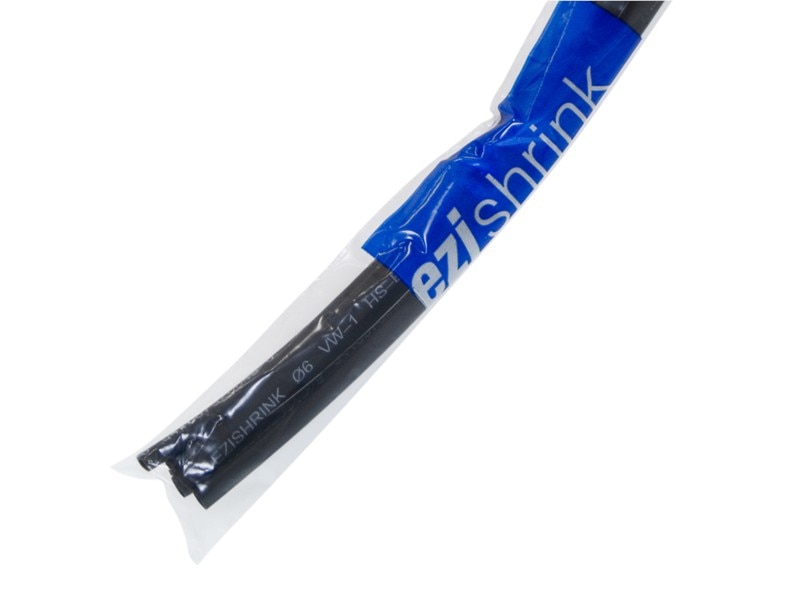

EZHSBK6/3 6 0.28 3 0.55 3.2-5.5 1200 Black

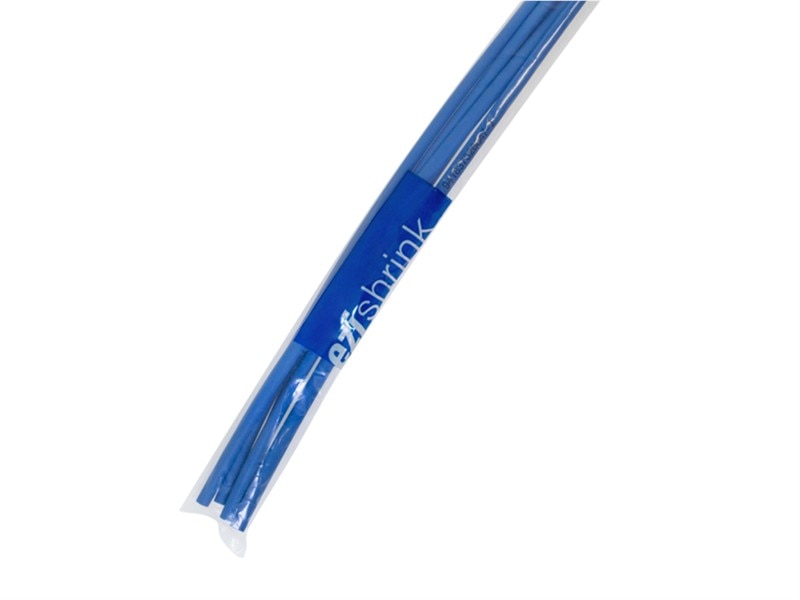

EZHSBU6/3 6 0.28 3 0.55 3.2-5.5 1200 Blue
EZHSG+Y6/3 6 0.28 3 0.55 3.2-5.5 1200 Green / Yellow

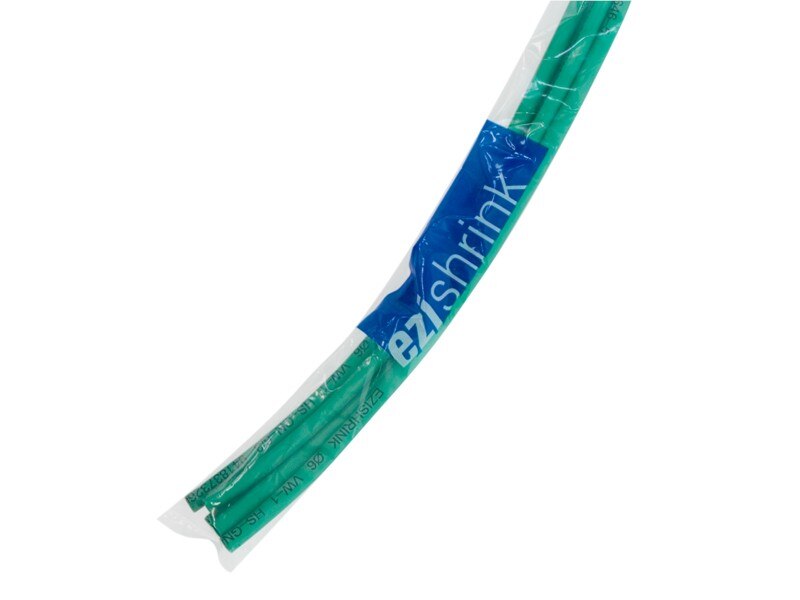

EZHSGN6/3 6 0.28 3 0.55 3.2-5.5 1200 Green

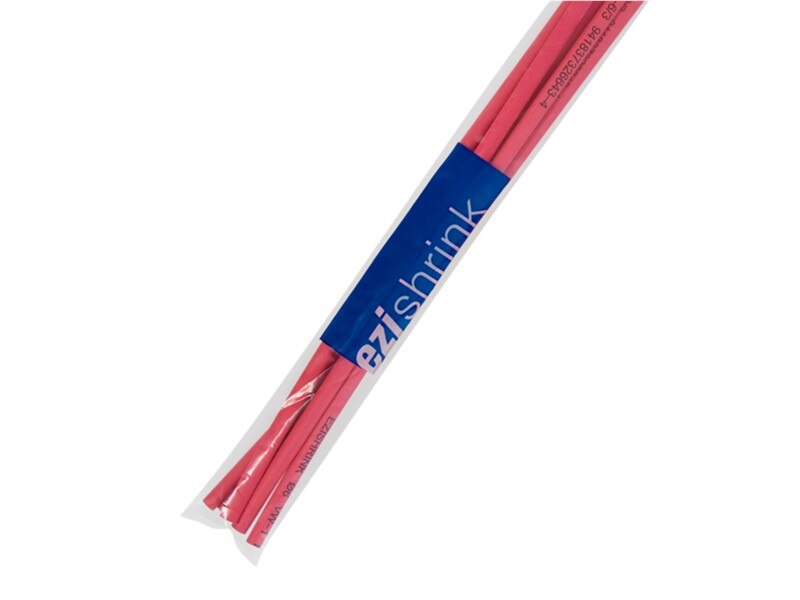

EZHSRD6/3 6 0.28 3 0.55 3.2-5.5 1200 Red

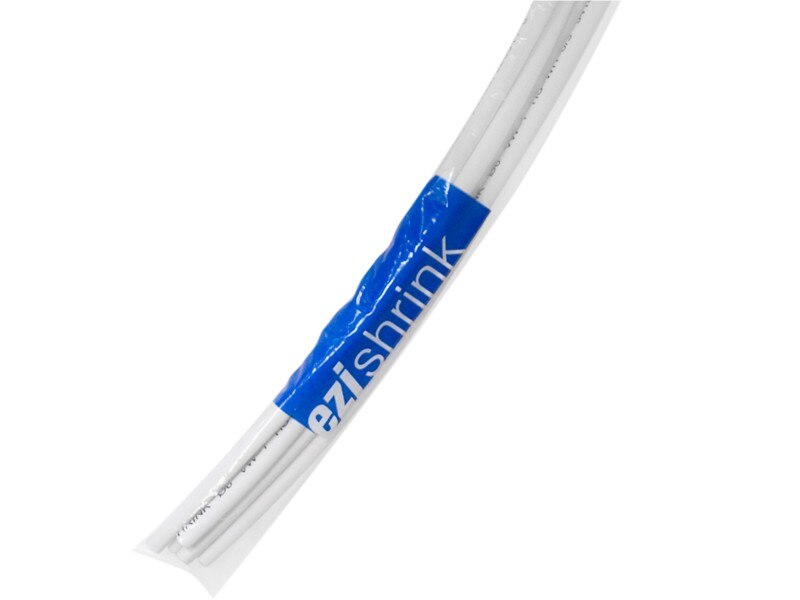

EZHSWH6/3 6 0.28 3 0.55 3.2-5.5 1200 White

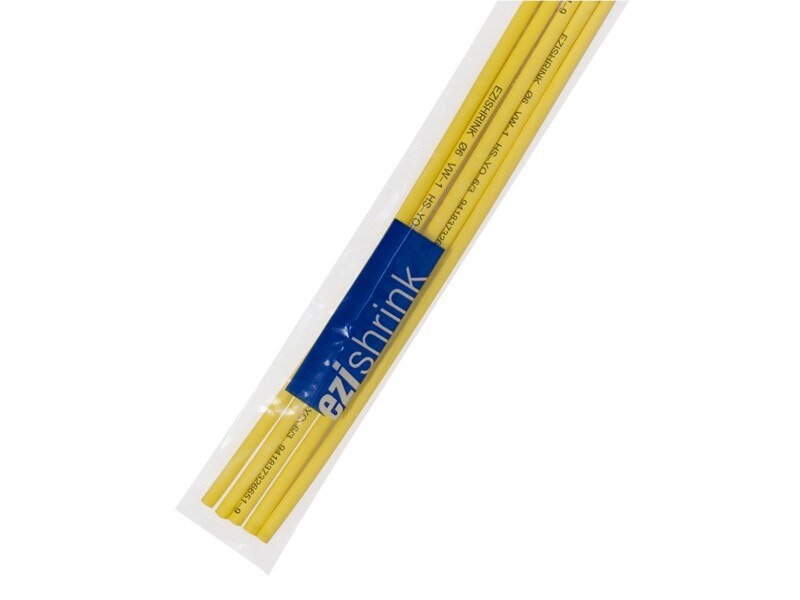

EZHSYO6/3 6 0.28 3 0.55 3.2-5.5 1200 Yellow
EZHSCL6/3 6 0.28 3 0.55 3.2-5.5 1200 Clear

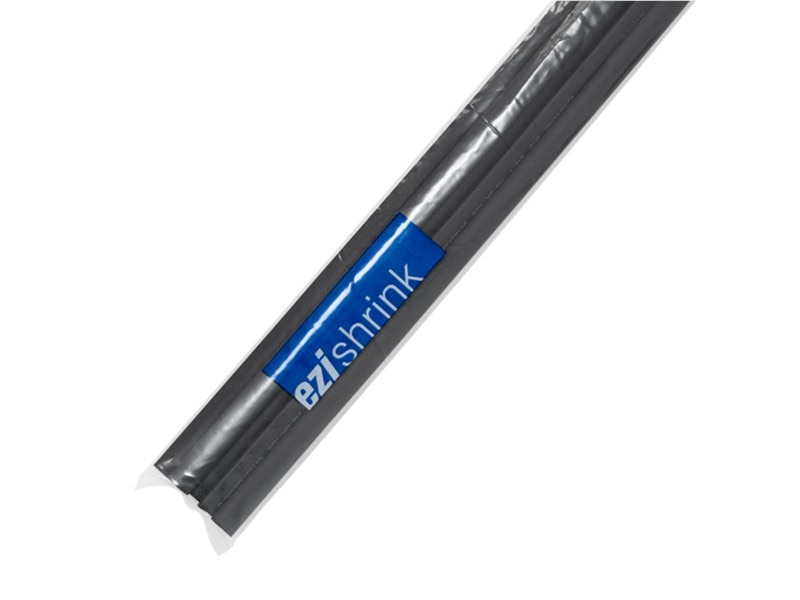

EZHSBK10/5 10 0.30 5 0.60 5.5-9 1200 Black

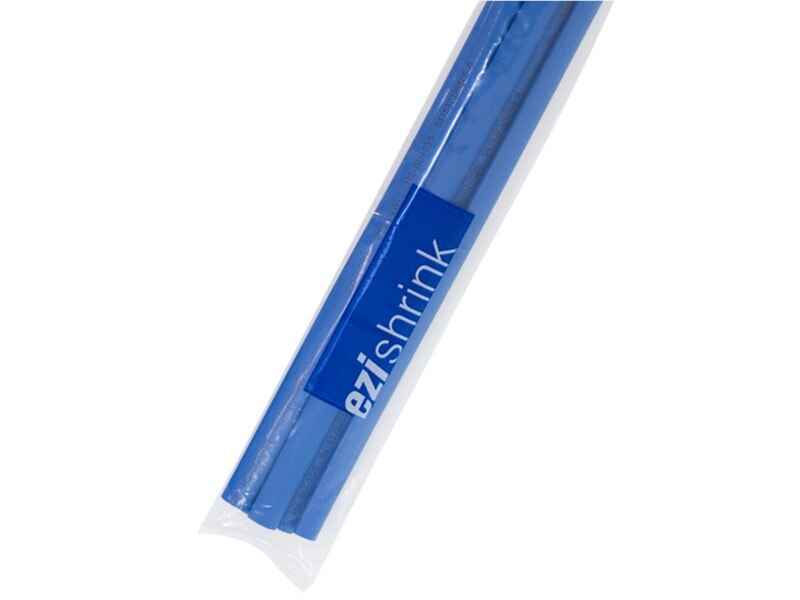

EZHSBU10/5 10 0.30 5 0.60 5.5-9 1200 Blue

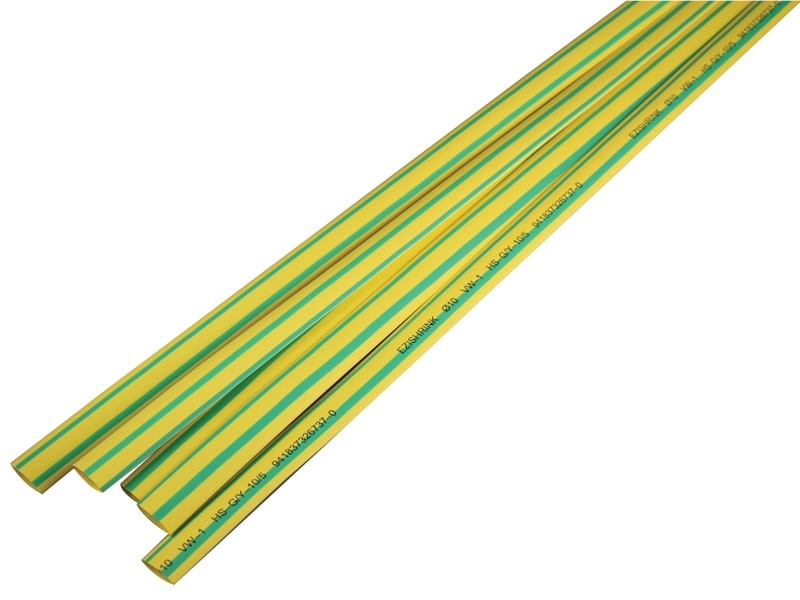

EZHSG+Y10/5 10 0.30 5 0.60 5.5-9 1200 Green / Yellow

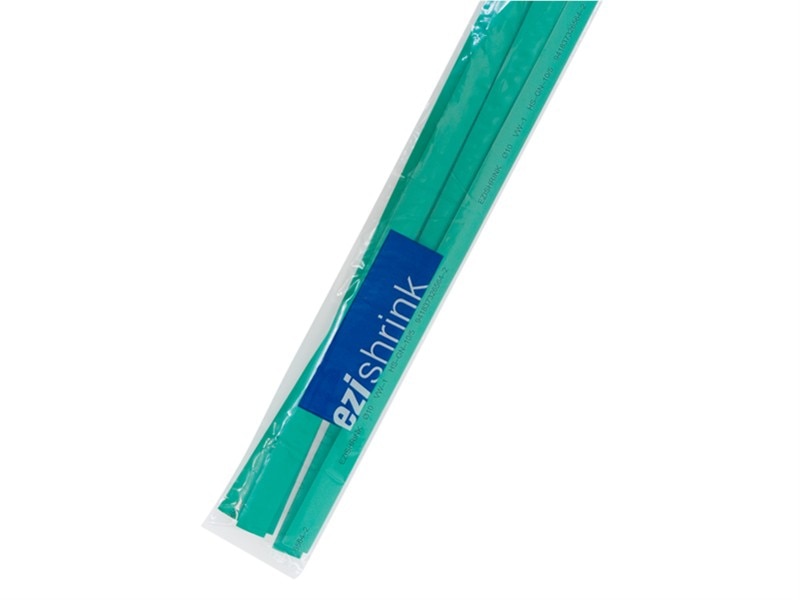

EZHSGN10/5 10 0.30 5 0.60 5.5-9 1200 Green

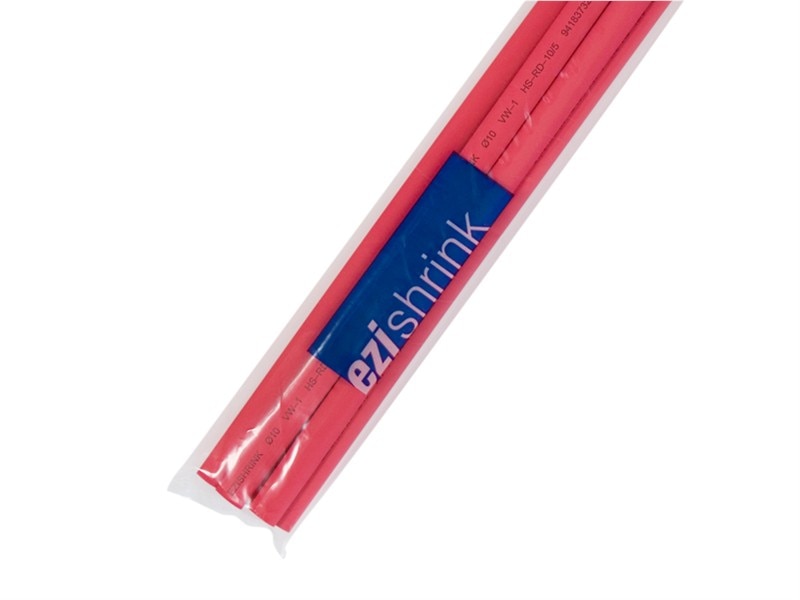

EZHSRD10/5 10 0.30 5 0.60 5.5-9 1200 Red
EZHSWH10/5 10 0.30 5 0.60 5.5-9 1200 White

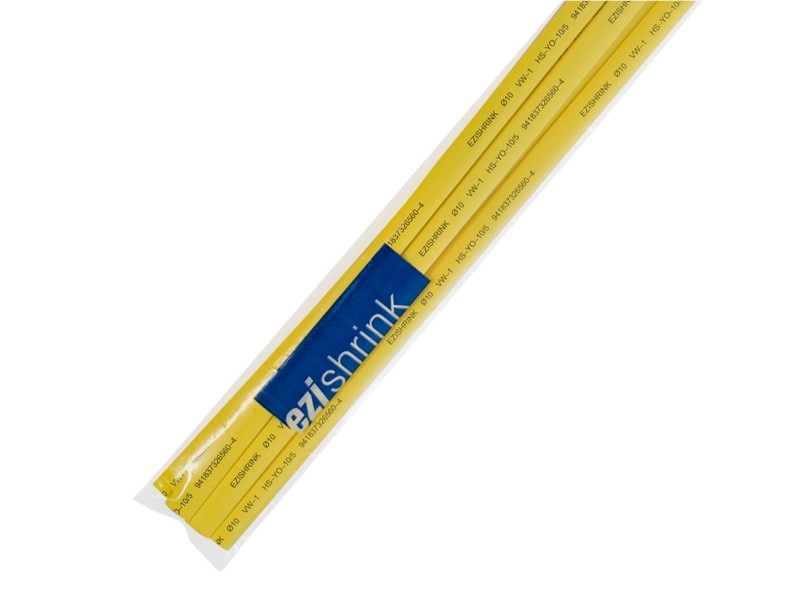

EZHSYO10/5 10 0.30 5 0.60 5.5-9 1200 Yellow
EZHSCL10/5 10 0.30 5 0.60 5.5-9 1200 Clear

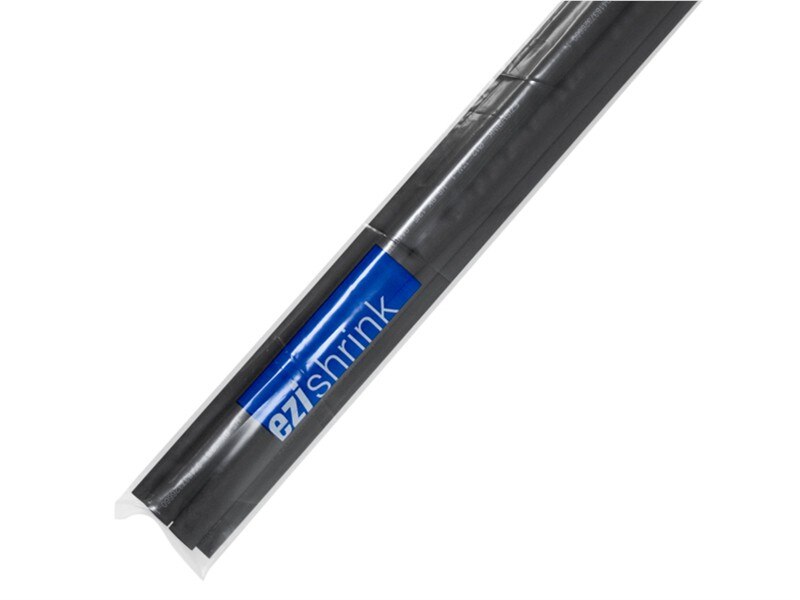

EZHSBK12/6 12 0.30 6 0.60 6.4-11 1200 Black

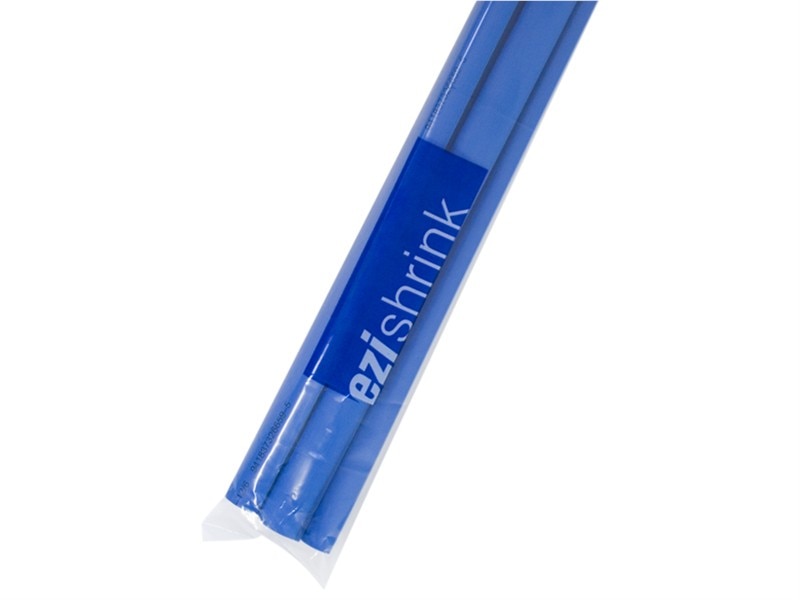

EZHSBU12/6 12 0.30 6 0.60 6.4-11 1200 Blue

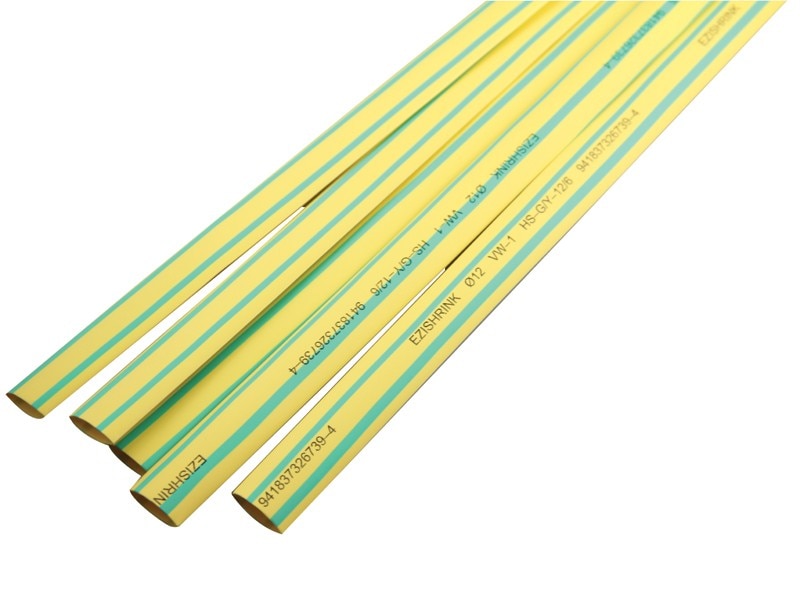

EZHSG+Y12/6 12 0.30 6 0.60 6.4-11 1200 Green / Yellow

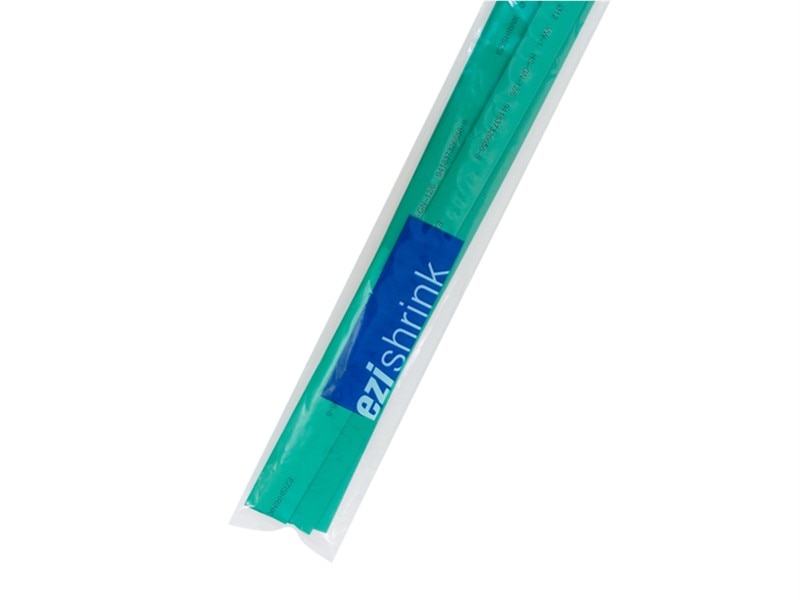

EZHSGN12/6 12 0.30 6 0.60 6.4-11 1200 Green

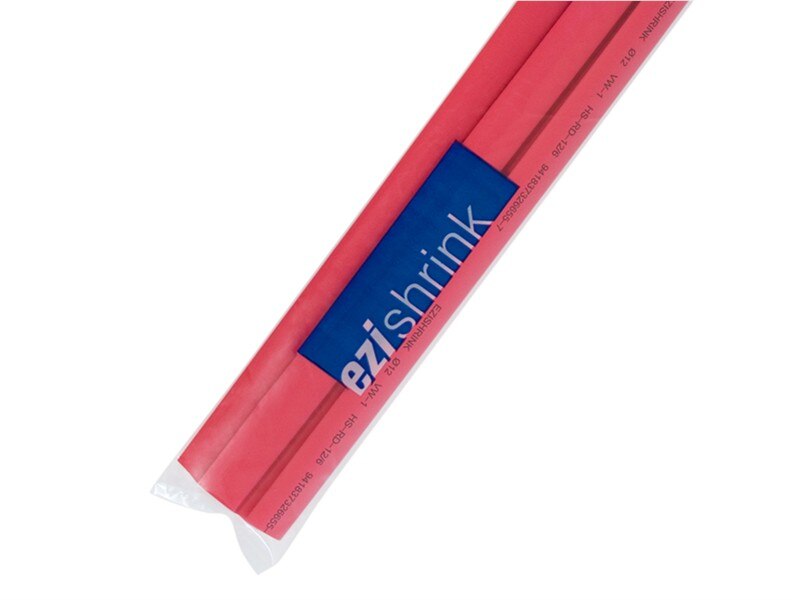

EZHSRD12/6 12 0.30 6 0.60 6.4-11 1200 Red

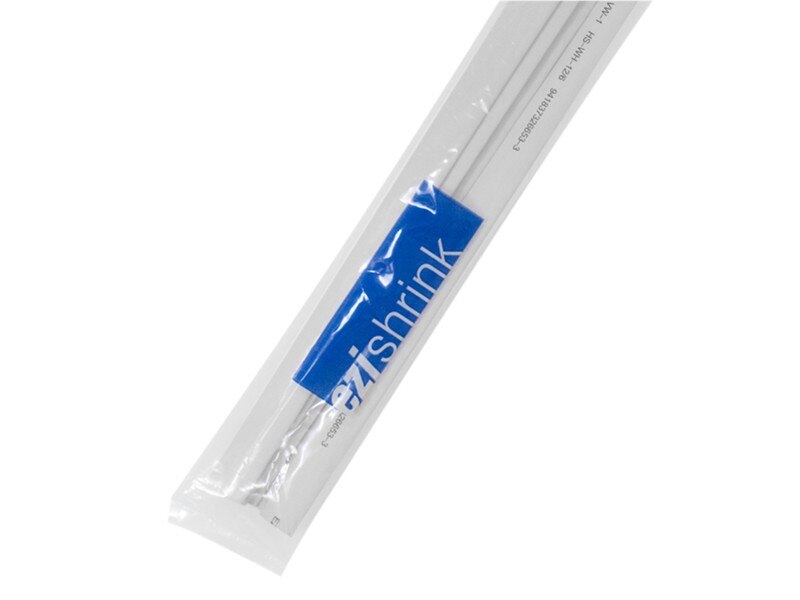

EZHSWH12/6 12 0.30 6 0.60 6.4-11 1200 White

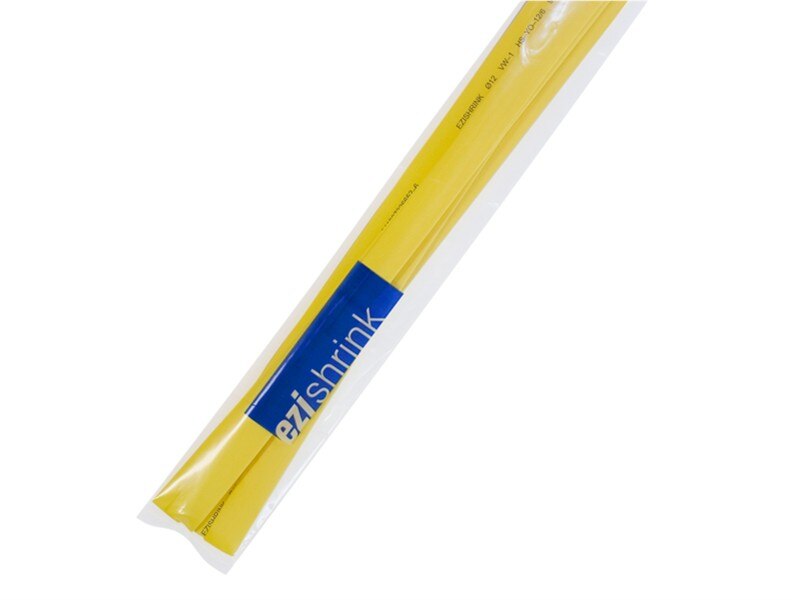

EZHSYO12/6 12 0.30 6 0.60 6.4-11 1200 Yellow
EZHSCL12/6 12 0.30 6 0.60 6.4-11 1200 Clear

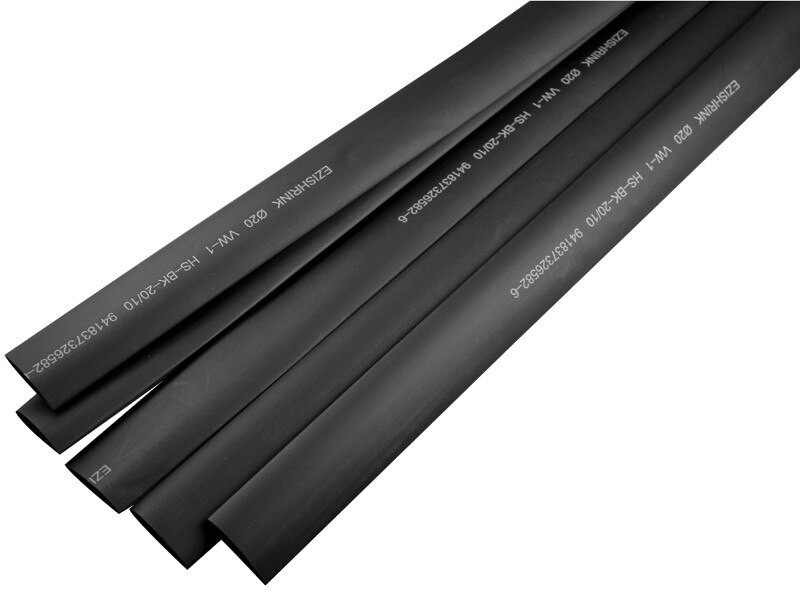

EZHSBK20/10 20 0.40 10 0.80 11-18 1200 Black

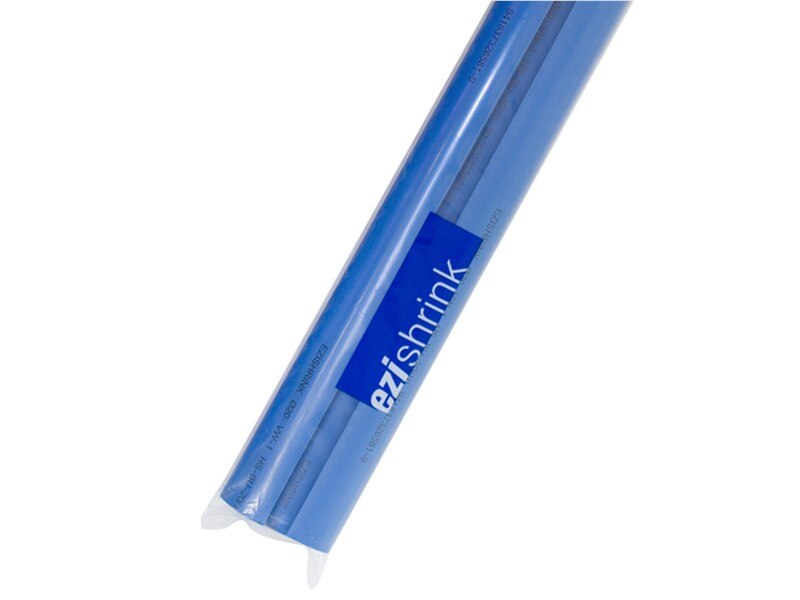

EZHSBU20/10 20 0.40 10 0.80 11-18 1200 Blue
EZHSG+Y20/10 20 0.40 10 0.80 11-18 1200 Green / Yellow

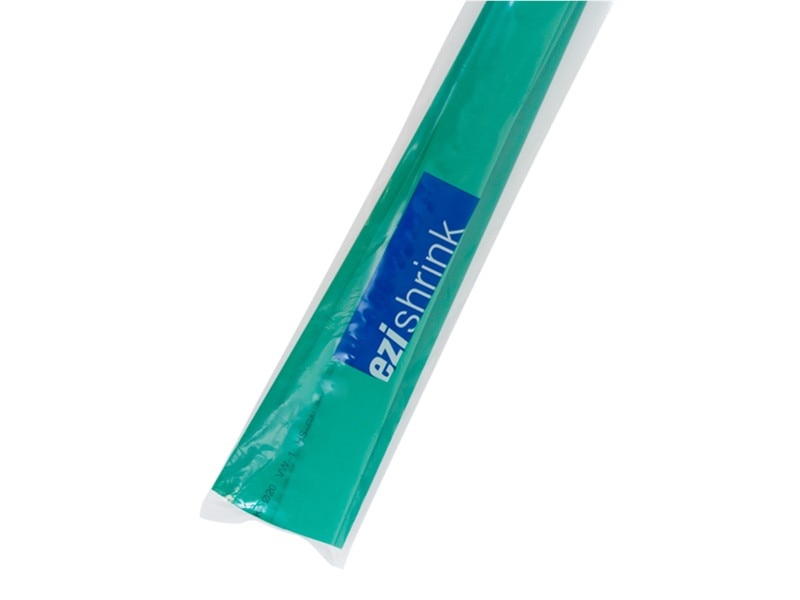

EZHSGN20/10 20 0.40 10 0.80 11-18 1200 Green

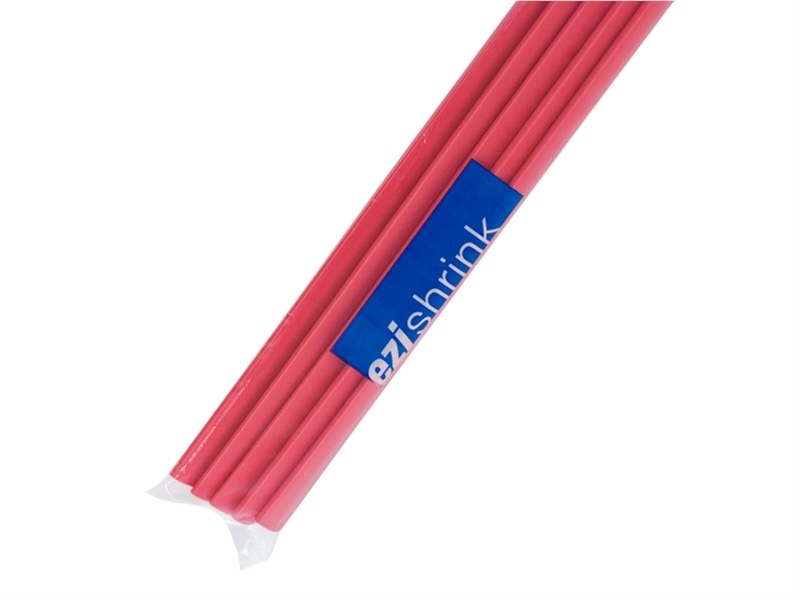

EZHSRD20/10 20 0.40 10 0.80 11-18 1200 Red

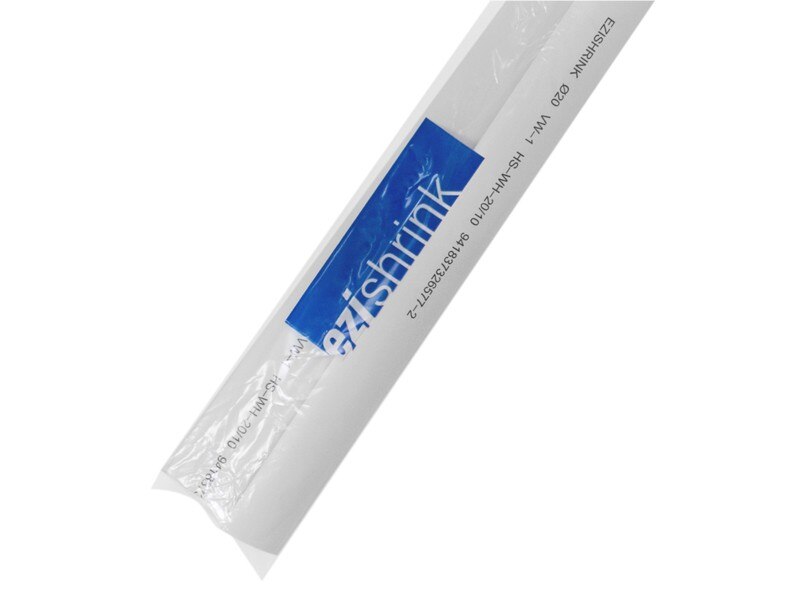

EZHSWH20/10 20 0.40 10 0.80 11-18 1200 White

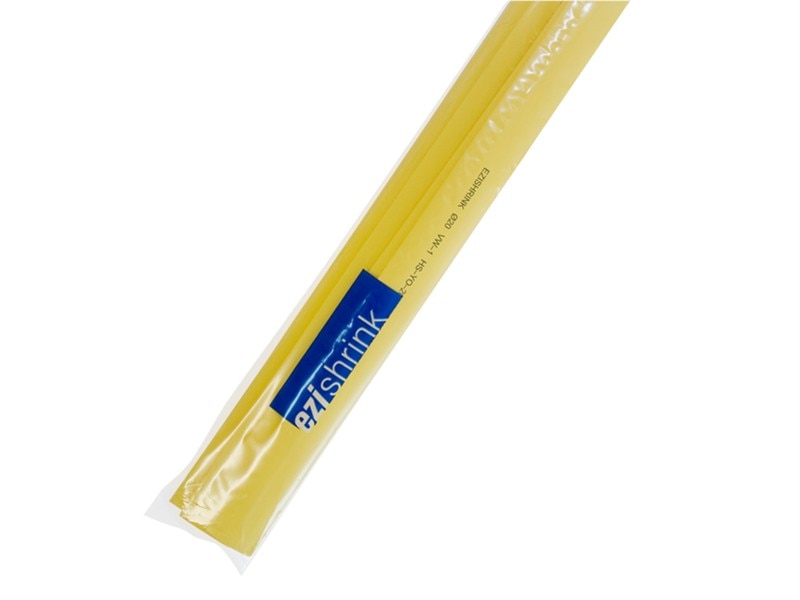

EZHSYO20/10 20 0.40 10 0.80 11-18 1200 Yellow
EZHSCL20/10 20 0.40 10 0.80 11-18 1200 Clear

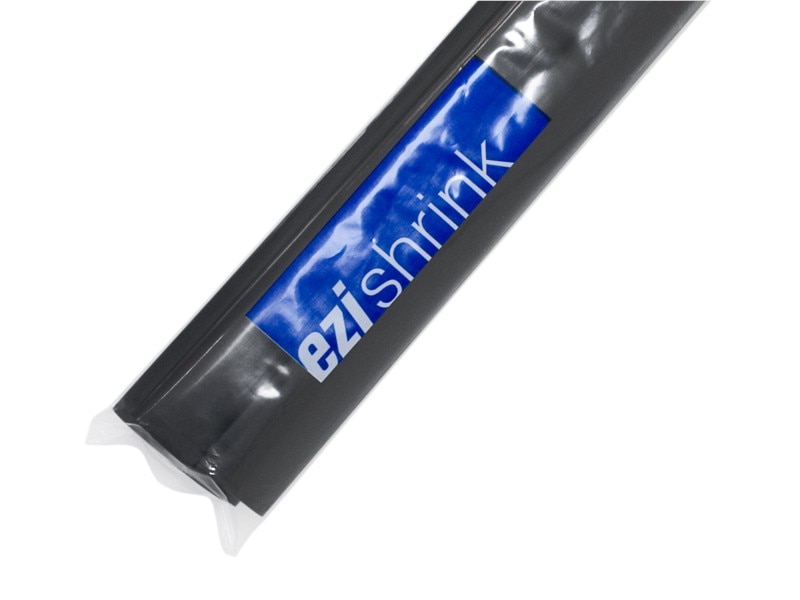

EZHSBK25/12 25 0.55 12 0.90 13-23 1200 Black

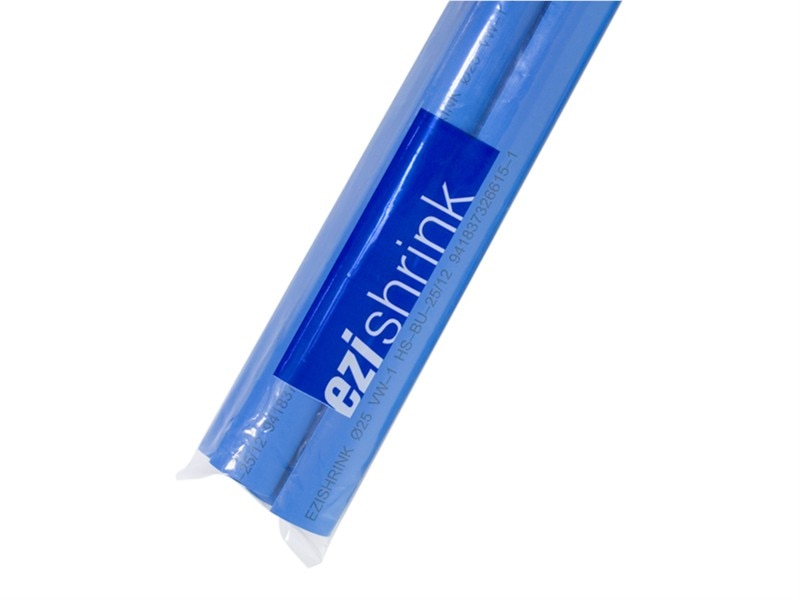

EZHSBU25/12 25 0.55 12 0.90 13-23 1200 Blue

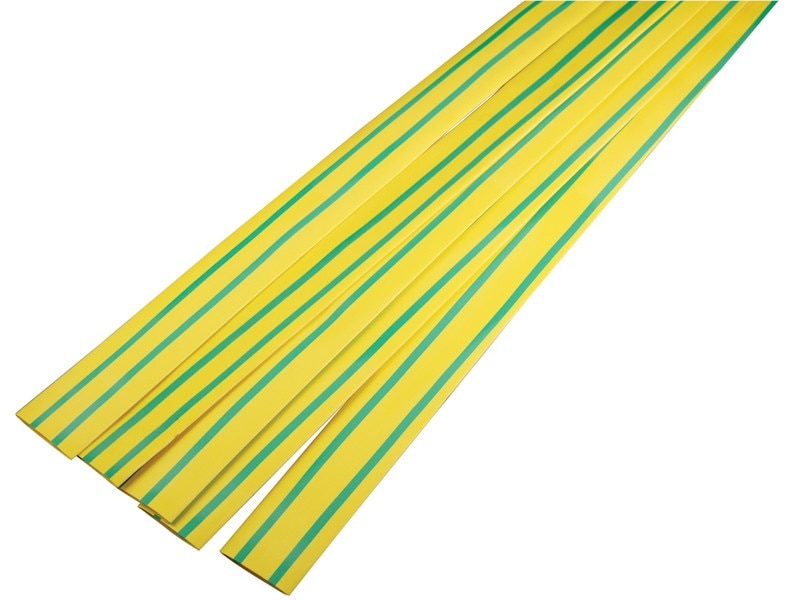

EZHSG+Y25/12 25 0.55 12 0.90 13-23 1200 Green / Yellow

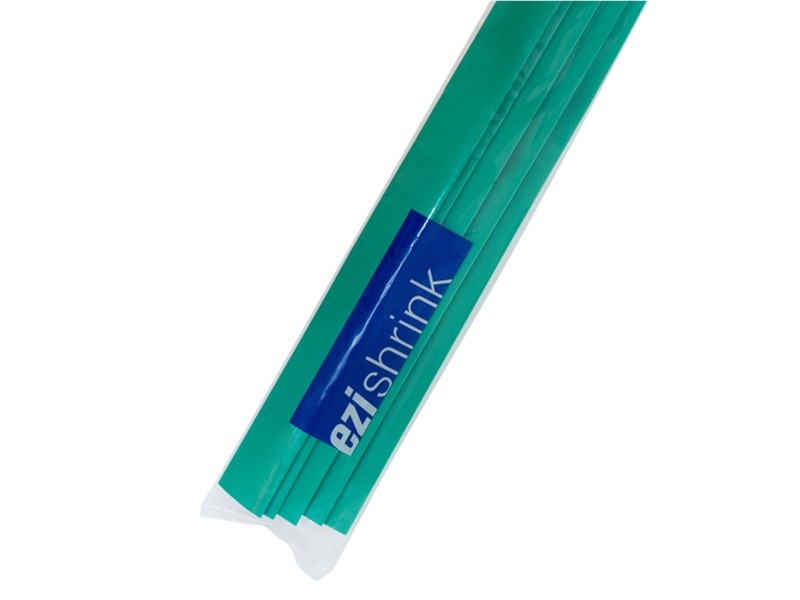

EZHSGN25/12 25 0.55 12 0.90 13-23 1200 Green

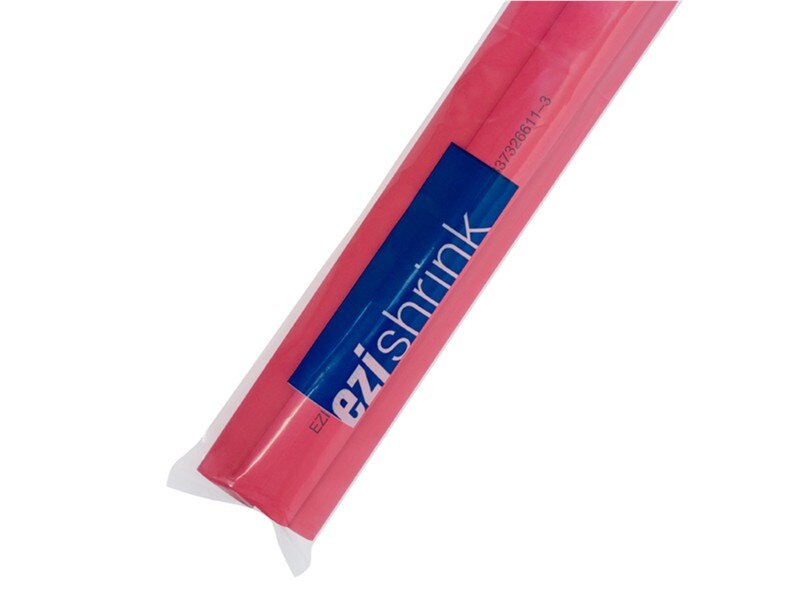

EZHSRD25/12 25 0.55 12 0.90 13-23 1200 Red

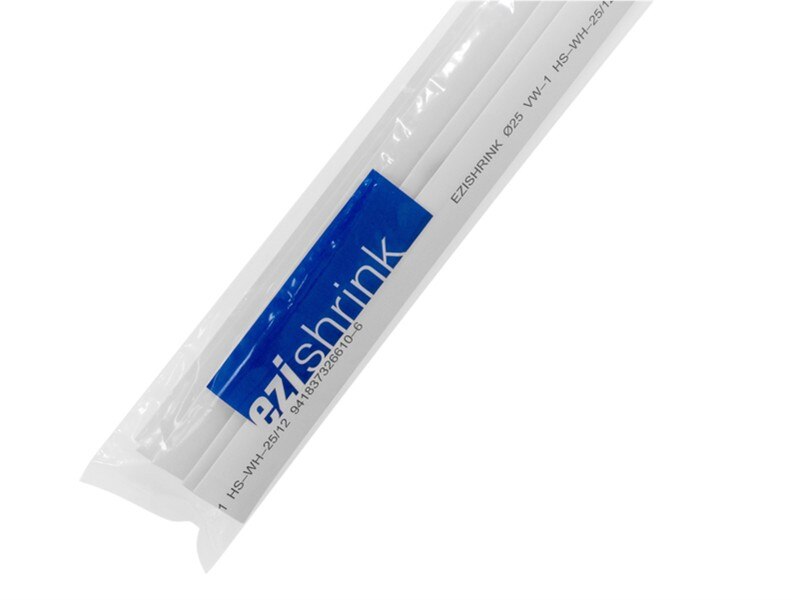

EZHSWH25/12 25 0.55 12 0.90 13-23 1200 White

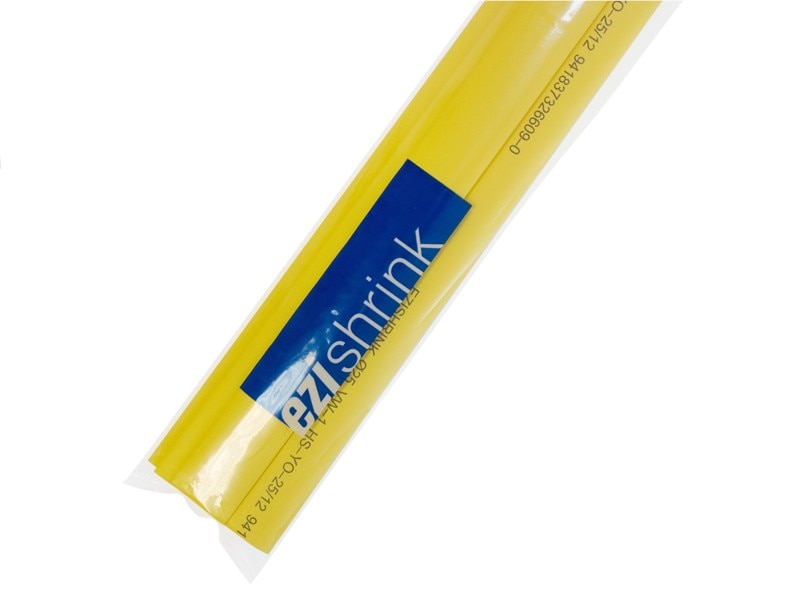

EZHSYO25/12 25 0.55 12 0.90 13-23 1200 Yellow
EZHSCL25/12 25 0.55 12 0.90 13-23 1200 Clear

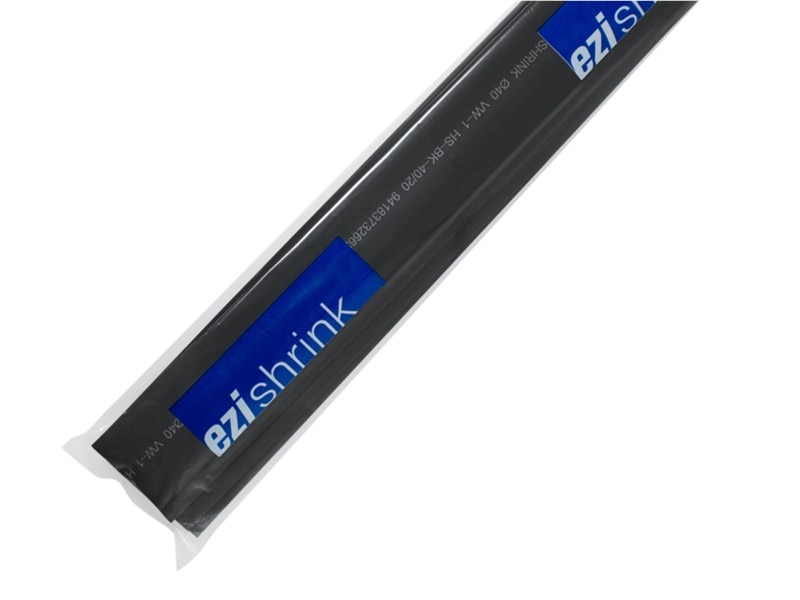

EZHSBK40/20 40 0.55 20 1.00 22-36 1200 Black

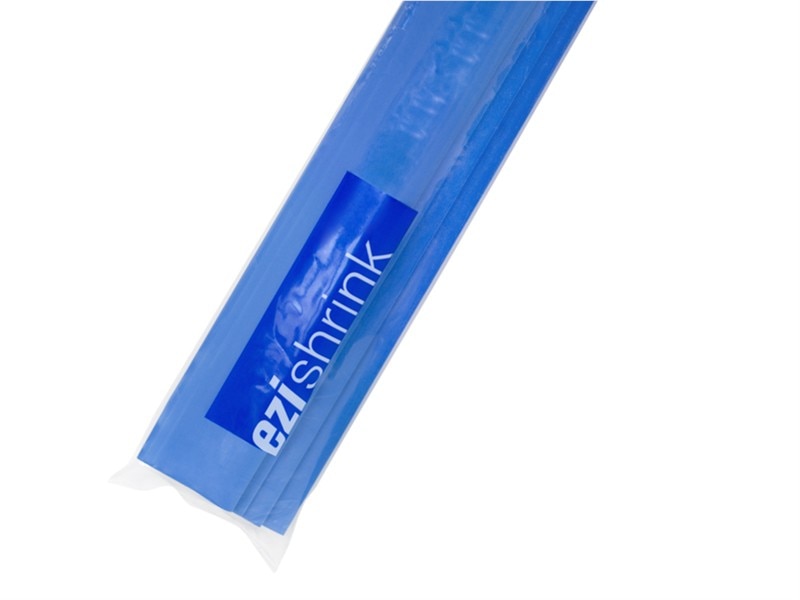

EZHSBU40/20 40 0.55 20 1.00 22-36 1200 Blue

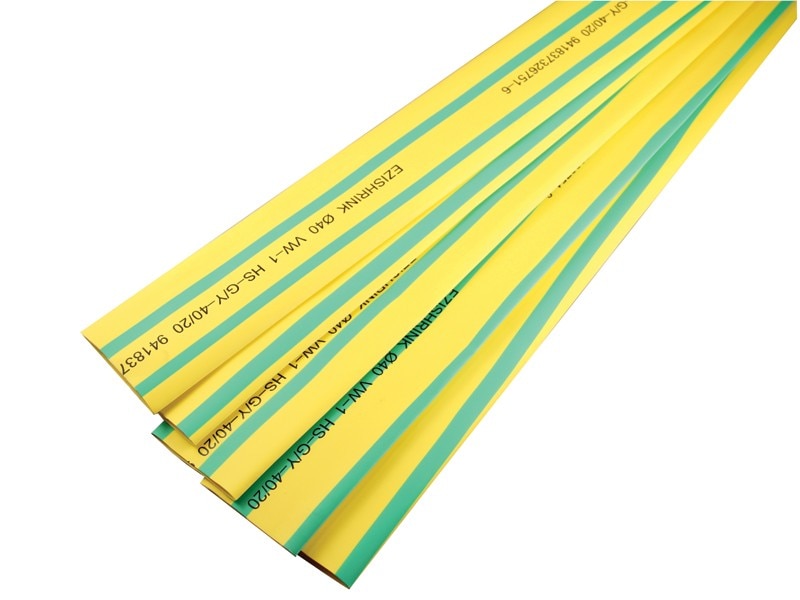

EZHSG+Y40/20 40 0.55 20 1.00 22-36 1200 Yellow

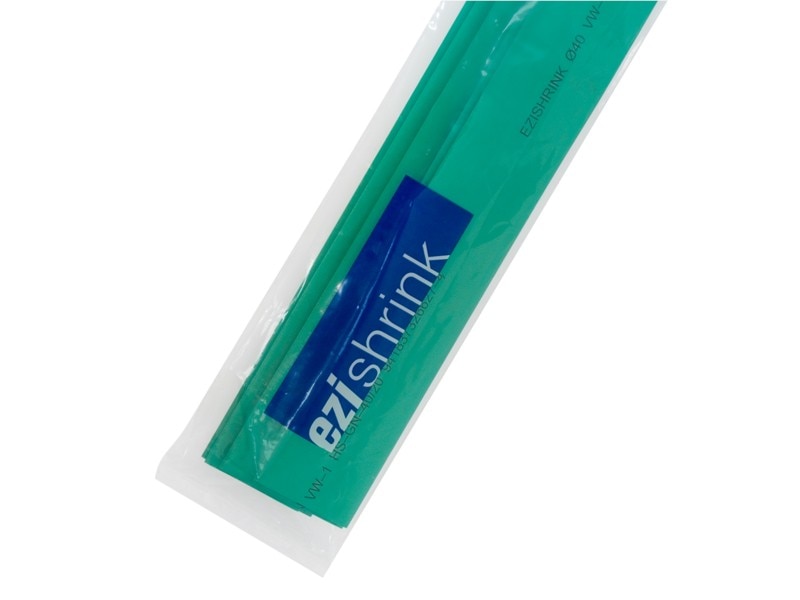

EZHSGN40/20 40 0.55 20 1.00 22-36 1200 Green

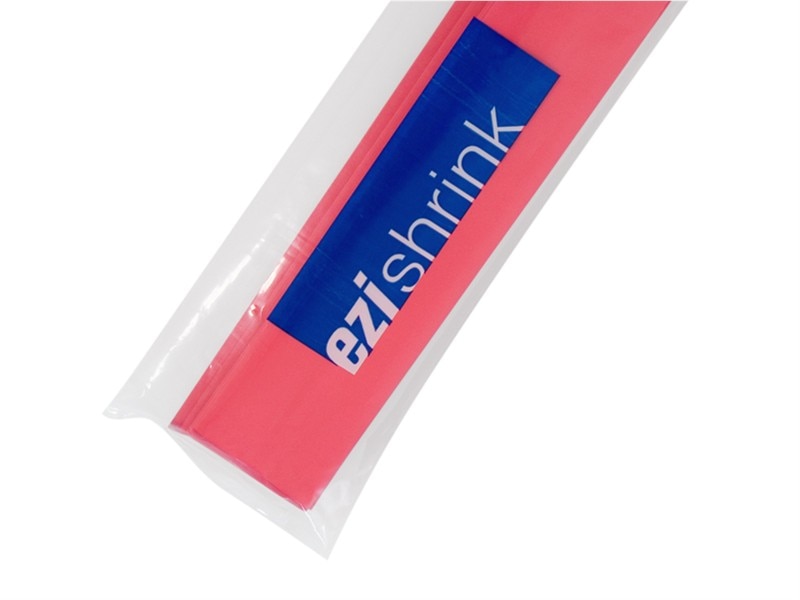

EZHSRD40/20 40 0.55 20 1.00 22-36 1200 Red

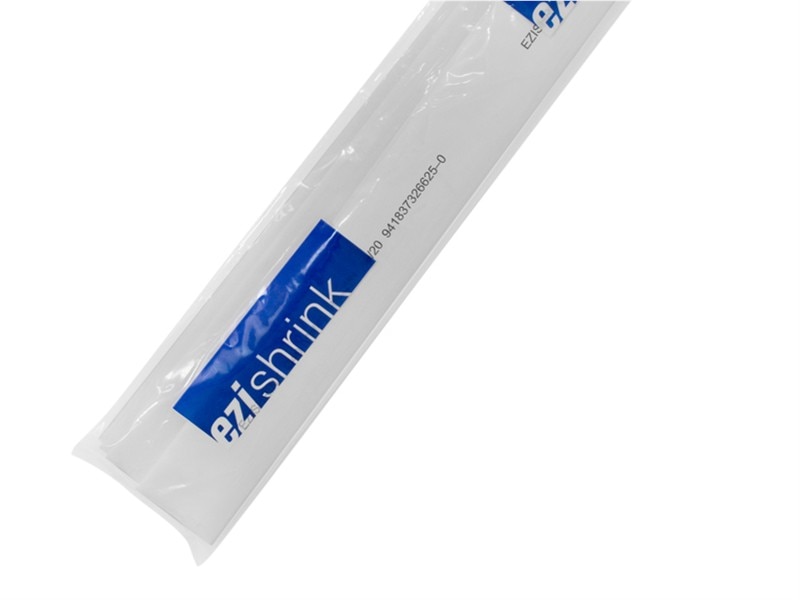

EZHSWH40/20 40 0.55 20 1.00 22-36 1200 White
EZHSYO40/20 40 0.55 20 1.00 22-36 1200 Yellow
EZHSCL40/20 40 0.55 20 1.00 22-36 1200 Clear

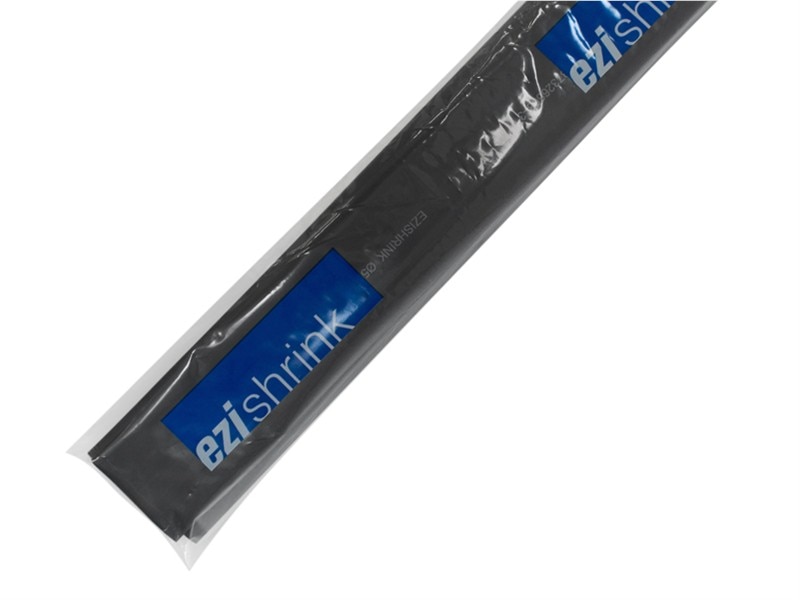

EZHSBK50/25 50 0.55 25 1.00 28-45 1200 Black

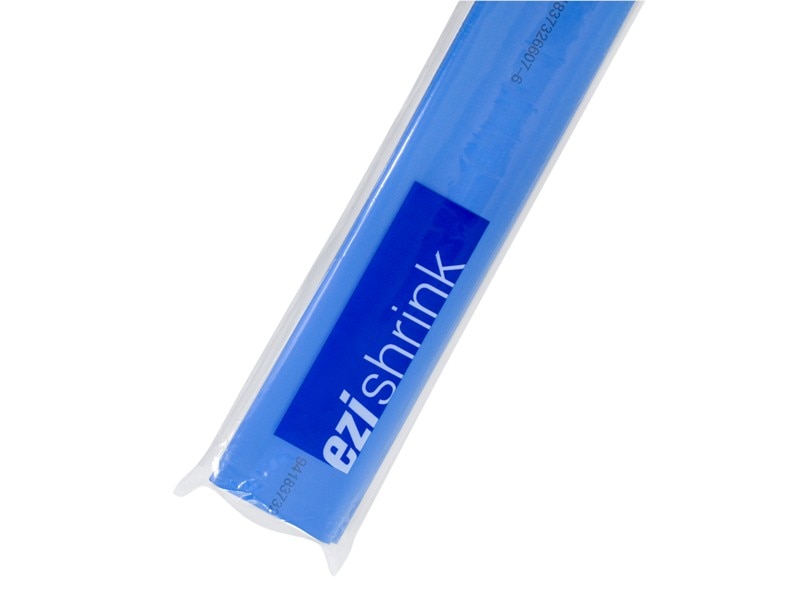

EZHSBU50/25 50 0.55 25 1.00 28-45 1200 Blue

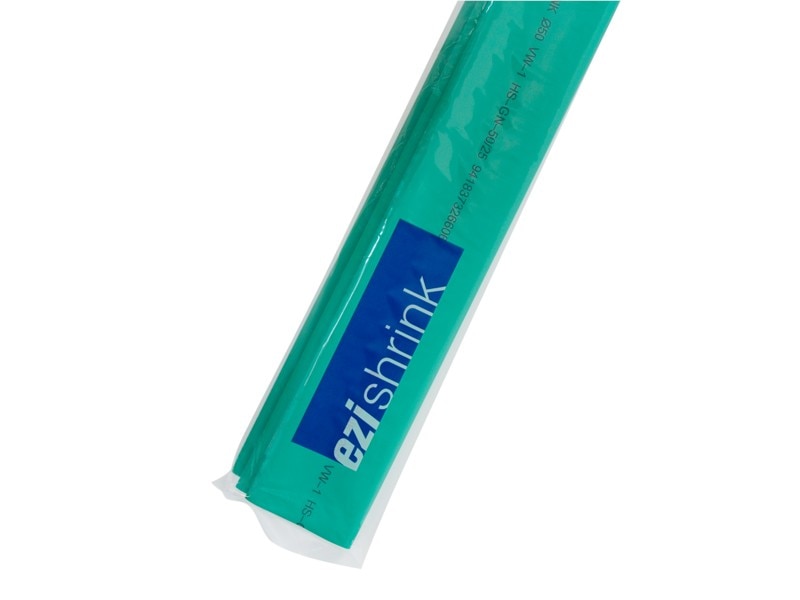

EZHSGN50/25 50 0.55 25 1.00 28-45 1200 Green

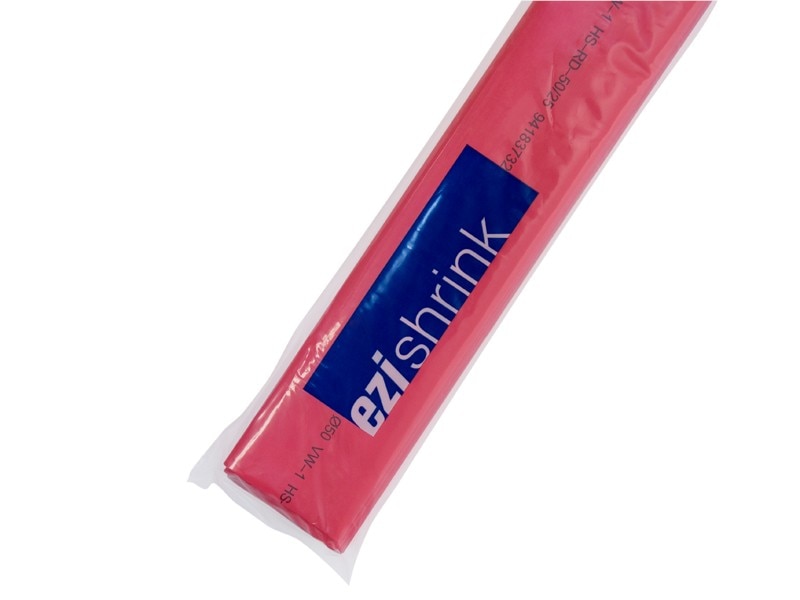

EZHSRD50/25 50 0.55 25 1.00 28-45 1200 Red
EZHSWH50/25 50 0.55 25 1.00 28-45 1200 White

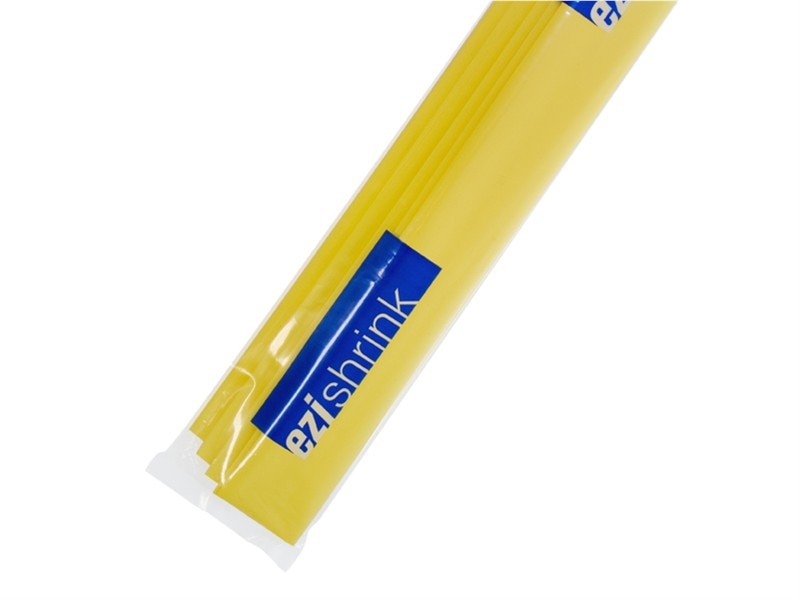

EZHSYO50/25 50 0.55 25 1.00 28-45 1200 Yellow
EZHSCL50/25 50 0.55 25 1.00 28-45 1200 Clear

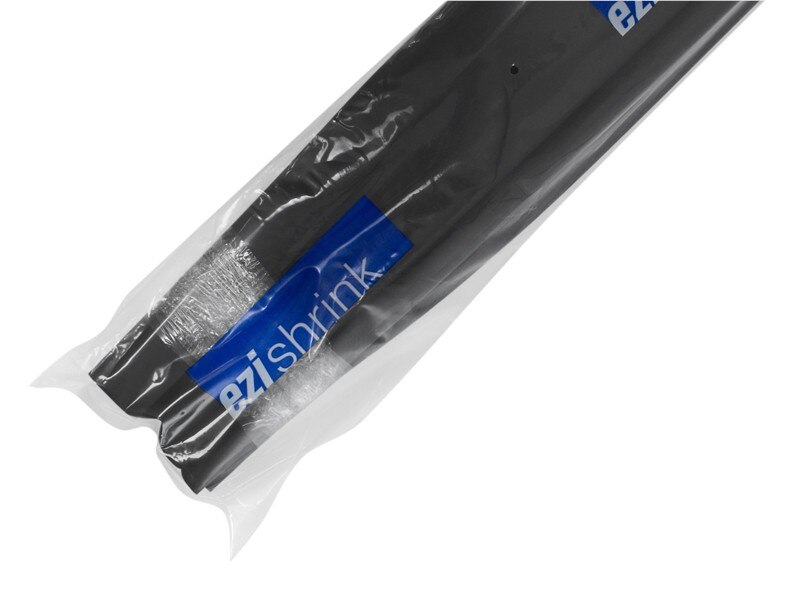

EZHSBK80/40 80 0.70 40 1.46 44-70 1200 Black

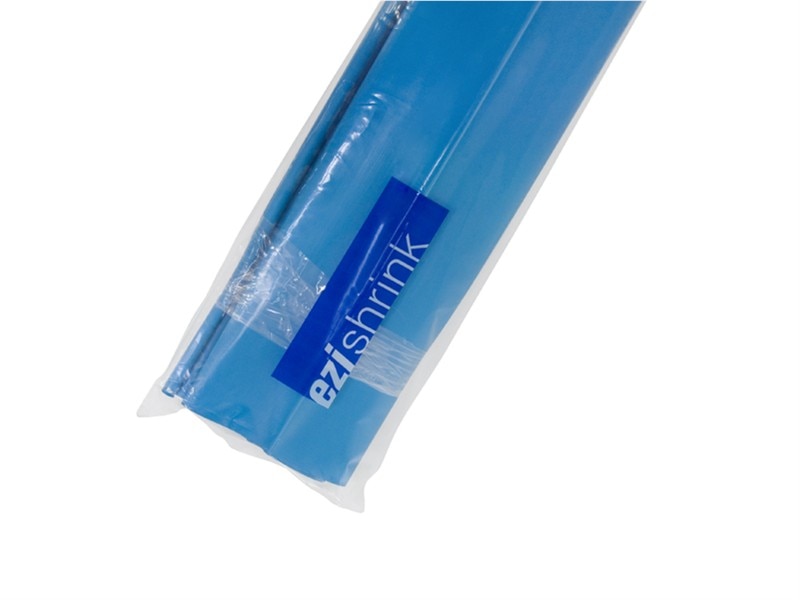

EZHSBU80/40 80 0.70 40 1.46 44-70 1200 Blue

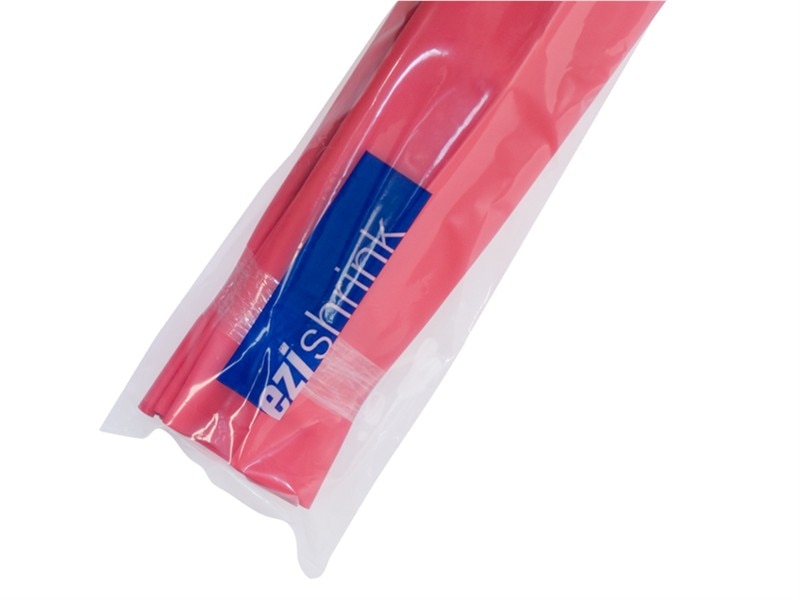

EZHSRD80/40 80 0.70 40 1.46 44-70 1200 Red

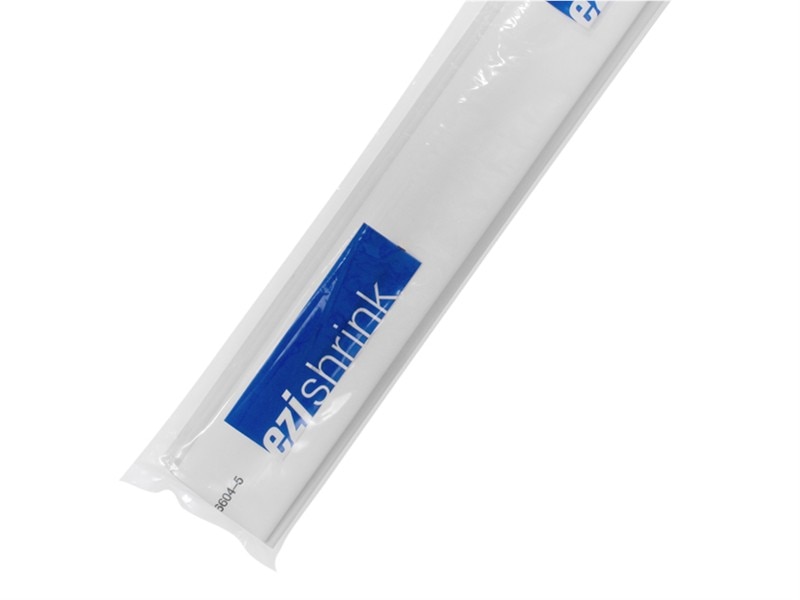

EZHSWH80/40 80 0.70 40 1.46 44-70 1200 White
EZHSYO80/40 80 0.70 40 1.46 44-70 1200 Yellow
EZHSBU100/50 100 - 50 - 55-95 1200 Blue
EZHSBK10/5-SP 10 0.30 5 0.60 5.5-9 100M SPOOL Black

Cat No.

Expanded Diameter X (mm)

Expanded Wall Thickness XW (mm)

Recovered Diameter R (mm)

Recovered Wall Thickness RW (mm)

Application Range Diameter (mm)

Standard Length (mm)

Colour

Qty

Price
