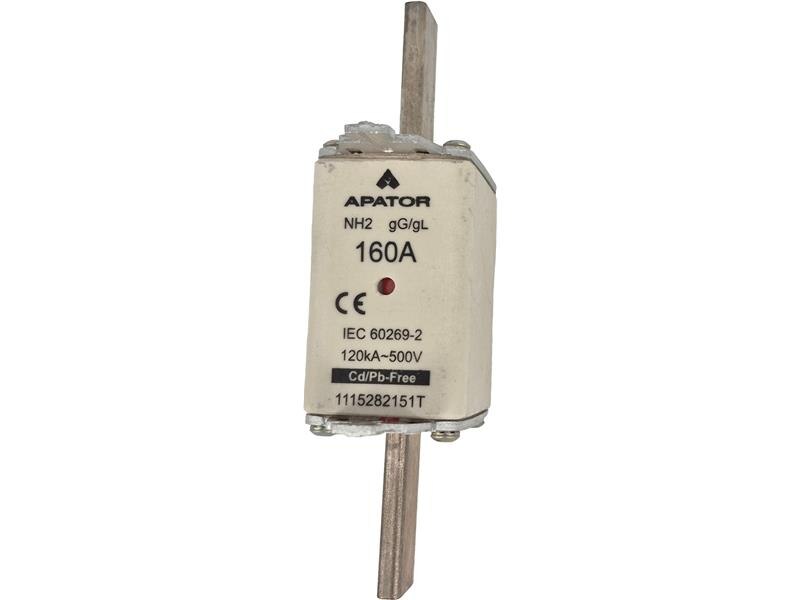

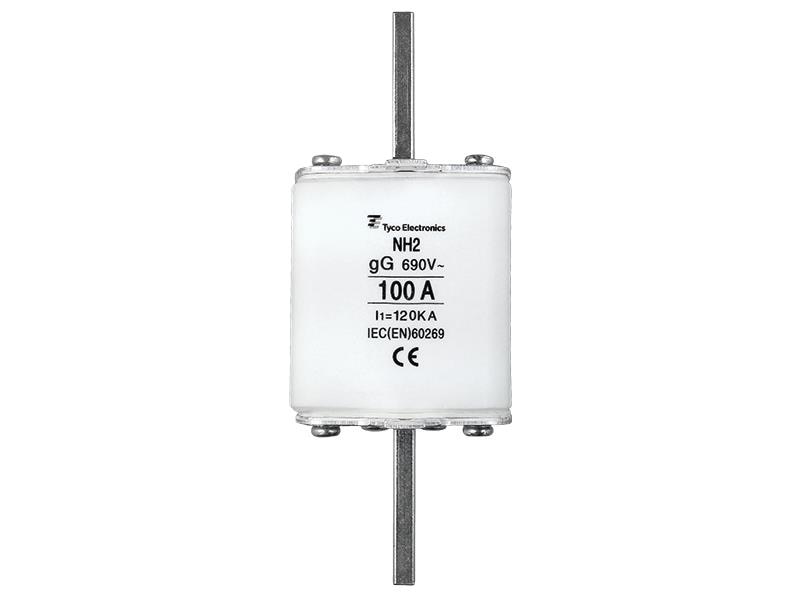

Fuse Link DIN Type Size 2 (NH2)

(0)No Reviews yet

Fuse Link DIN Type Si

Back

The device has a rated voltage of 500V/690V AC and a rated breaking capacity of 120kA. It complies with the standard specifications of IEC EN 60269-2-1 and is classified under gG/gL.

Back

DIMENSIONS


Fuse link DIN
Back

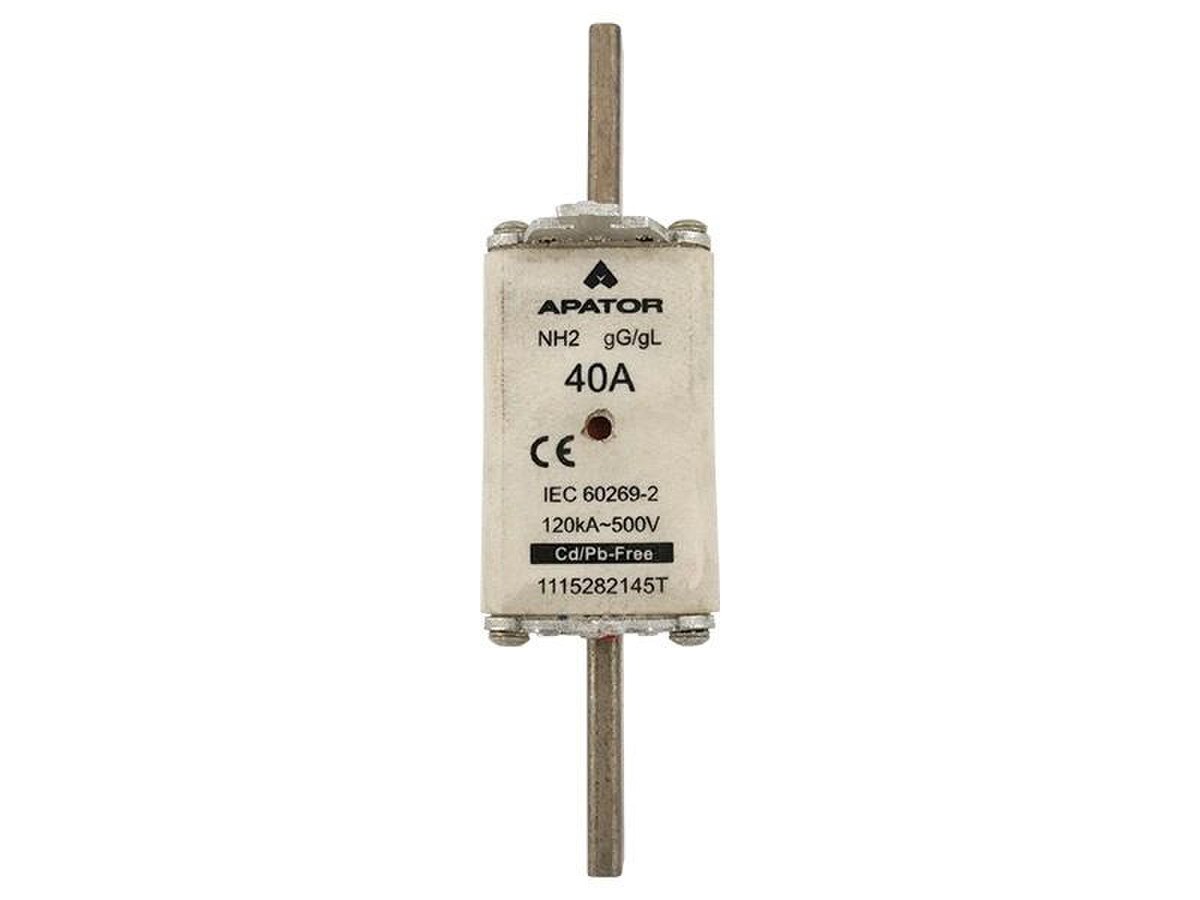

TN1115282145T 40 150 48 27 52 39 68 13 10 6 2.5

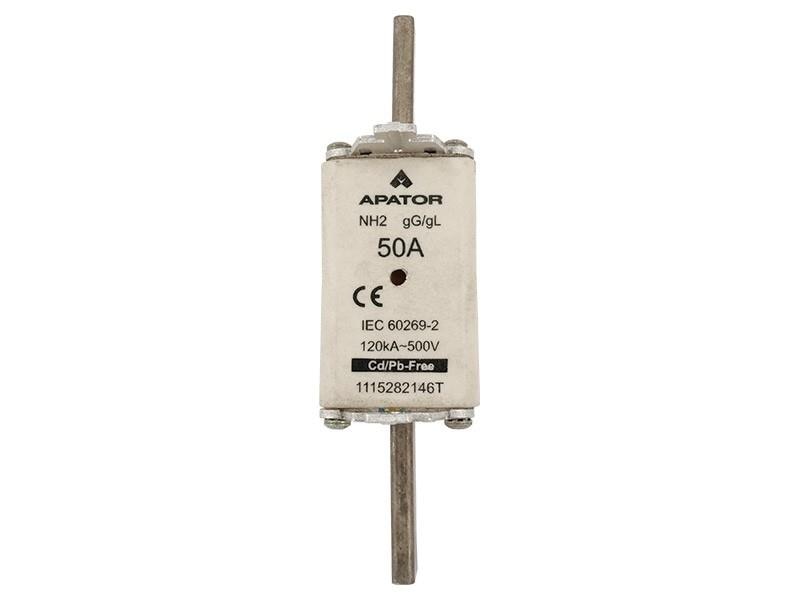

TN1115282146T 50 150 48 27 52 39 68 13 10 6 2.5
TNNH263 63 150 48 27 52 39 68 13 10 6 2.5

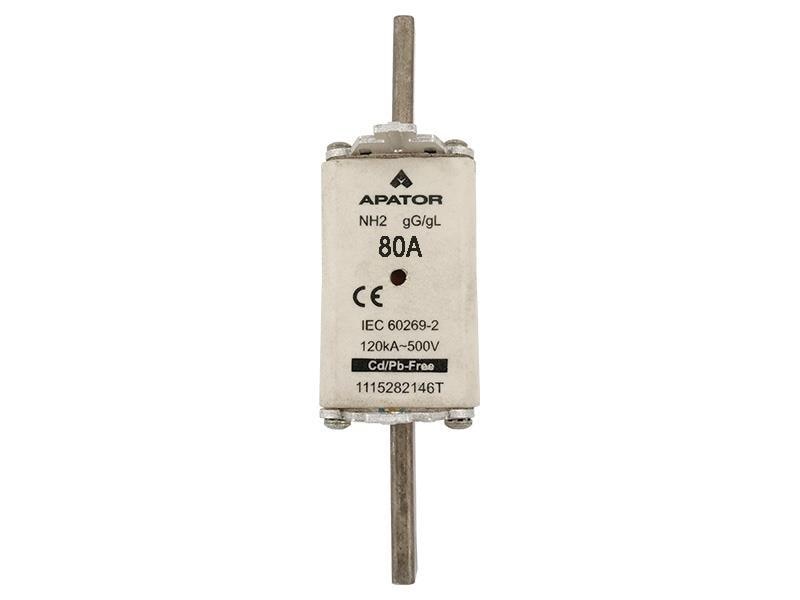

TNNH280 80 150 48 27 52 39 68 13 10 6 2.5

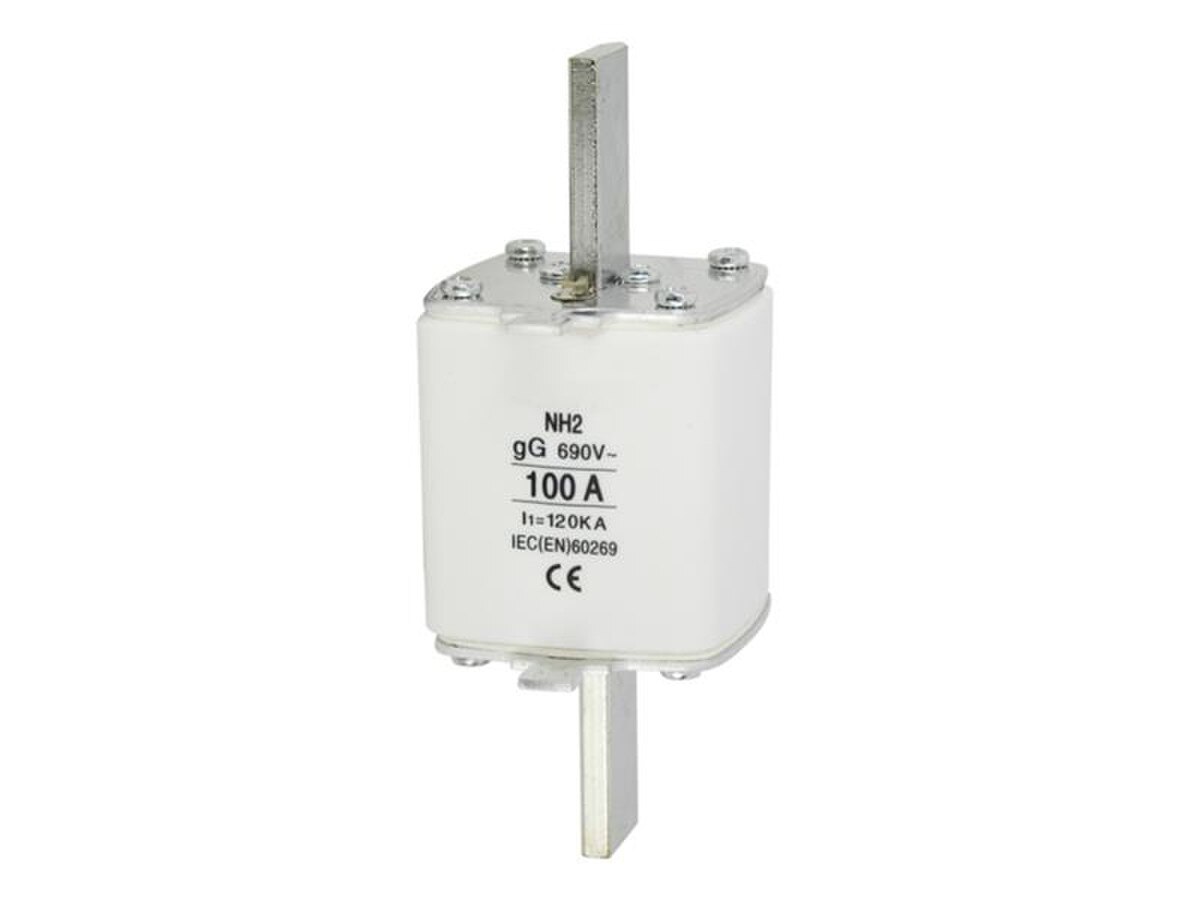

TNNH2100 100 150 48 27 52 39 68 13 10 6 2.5
TNNH2125 125 150 48 27 52 39 68 13 10 6 2.5
TNNH2160 160 150 48 27 52 39 68 13 10 6 2.5

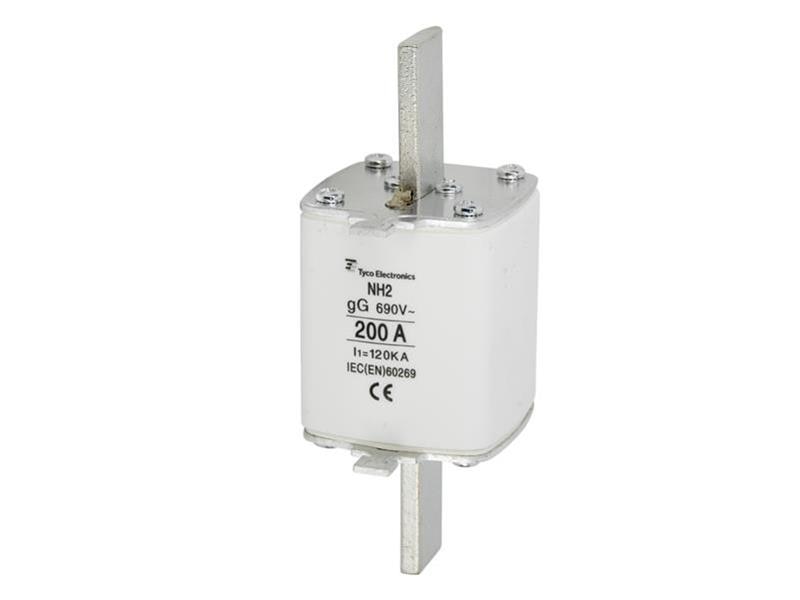

TNNH2200 200 150 48 27 52 39 68 13 10 6 2.5

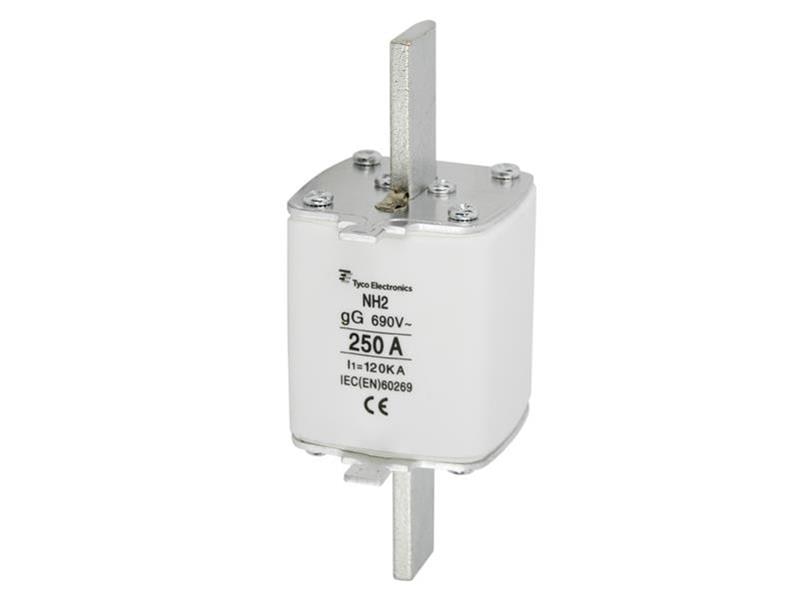

TNNH2250 250 150 48 27 52 39 68 13 10 6 2.5

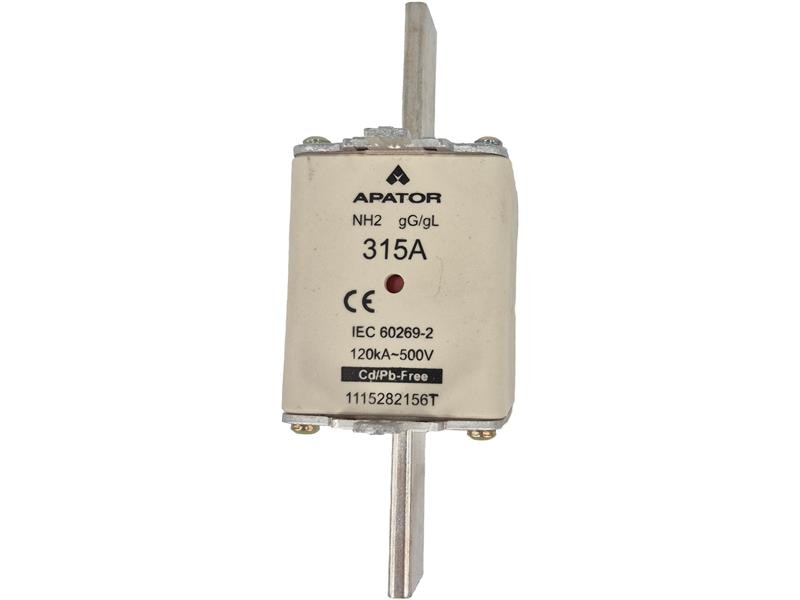

TNNH2315 315 150 48 27 58 58 68 13 10 6 2.5
TNNH2400 400 150 48 27 58 58 68 13 10 6 2.5
TNDIN2400A 400 150 48 27 SOLID<br>LINK SOLID<br>LINK 68 SOLID<br>LINK 10 6 2.5
TNDIN2630A 630 150 48 27 SOLID<br>LINK SOLID<br>LINK 68 SOLID<br>LINK 10 6 2.5

Dimensions (mm)

Cat No.

Amps

A

B

C

D

E

F

G

H

I

J

Qty

Price
