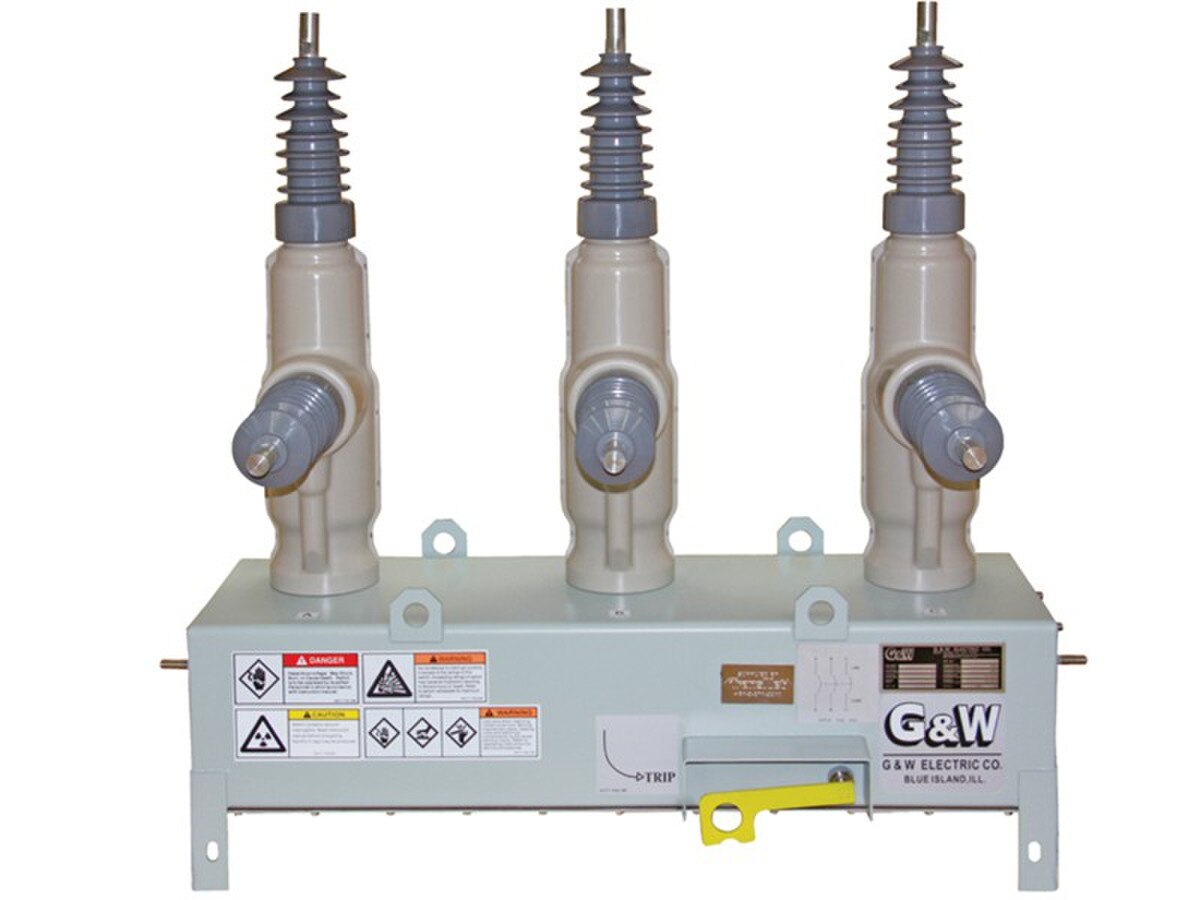

G&W Viper S 3 Phase Recloser Switchgear
Providing electronic three phase over-current protection for systems rated through 38kV, 800A continuous current, 12.5kA symmetrical interrupting.
Features
- Reliable performance, vacuum fault interrupters (for -S, -ST, -SP & LT models)
- Control flexibility including SEL-351 series, SEL-651R, GE controls and more
- Operator safety with mechanical block on trip and lockout handle
- Maintenance free operation

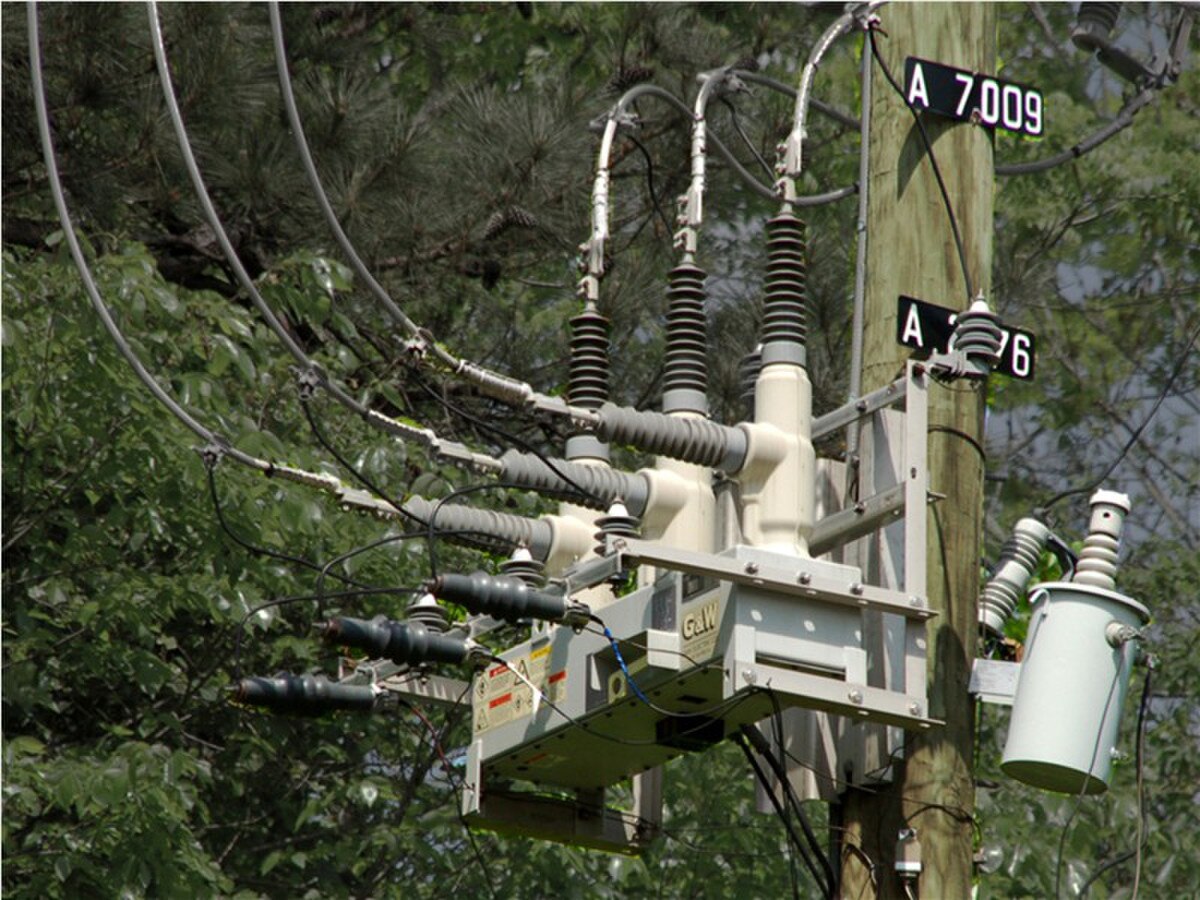

- Overhead, substation and dead-front pad-mount designs
- "L", "C" and "Z" style options available
- Ease of installation
- Three internal current transformers
- Up to six internal voltage sensors
- Smart Grid solutions
- RUS accepted
- Painted Stainless Steel tank
- Designed, built and tested to IEEE C37.60 and IEC 62271-111 standards latest version
Operation Options
- DEAD LINE – Permits using batteries located in the control for operation when main control power is lost
- CUSTOM RELAY SOLUTIONS (CRS) – Permits using 48V DC or 125V DC control logic voltage as an alternative to traditional 14-pin SEL, Cooper & GE controls. Recloser power is not affected
- INTERNAL VOLTAGE SENSING – Permits voltage reading for network reconfiguration applications and provides secondary analogue 120V AC output
- MANUAL OPERATION – Hookstick operable manual trip handle trips and locks out the recloser
For build options and site-ready designs, please contact us.
Viper S Options
- Solid Dielectric voltage transformers – Single or Three Phase
- External current transformers
- Seismic rated substation stand available includes 45° mounting
- Stainless Steel mounting frames
- Enclosures for Pad-mount models
- Auxiliary contacts
- Side mount "Alley" Pole mount
- Models with 6 Integral Capacitive Voltage Sensors are now available (suffix -6VS)
- SEL-651R2 relay can be packaged with the -6VS models if required
Technical Specifications
| Parameter | 15 kV | 25 kV | 35 kV |
|---|---|---|---|
| MAX SYSTEM VOLTAGE (kV) | 15.5 | 27 | 38 |
| BIL (kV) | 110 | 125 | 150 |
| CONTINUOUS CURRENT (A) | 800 | ||
| 8HR. OVERLOAD AT 20°C | 960 | ||
| 60Hz WITHSTAND, kV RMS DRY, 1 MIN | 50 | 60 | 70 |
| 60Hz WITHSTAND, kV RMS WET, 10 SEC | 45 | 50 | 60 |
| INTERRUPTING RATING RMS (kA) | 12.5 | ||
| MAKING CURRENT, RMS, ASYM, kA | 20 | ||
| PEAK, ASYM (kA) | 32 | ||
| SHORT CIRCUIT CURRENT, kA SYM, 3 SEC | 12.5 | ||
| MECHANICAL OPERATIONS | 10K | ||
| TEMPERATURE RANGE | -40°C TO 65°C | ||
