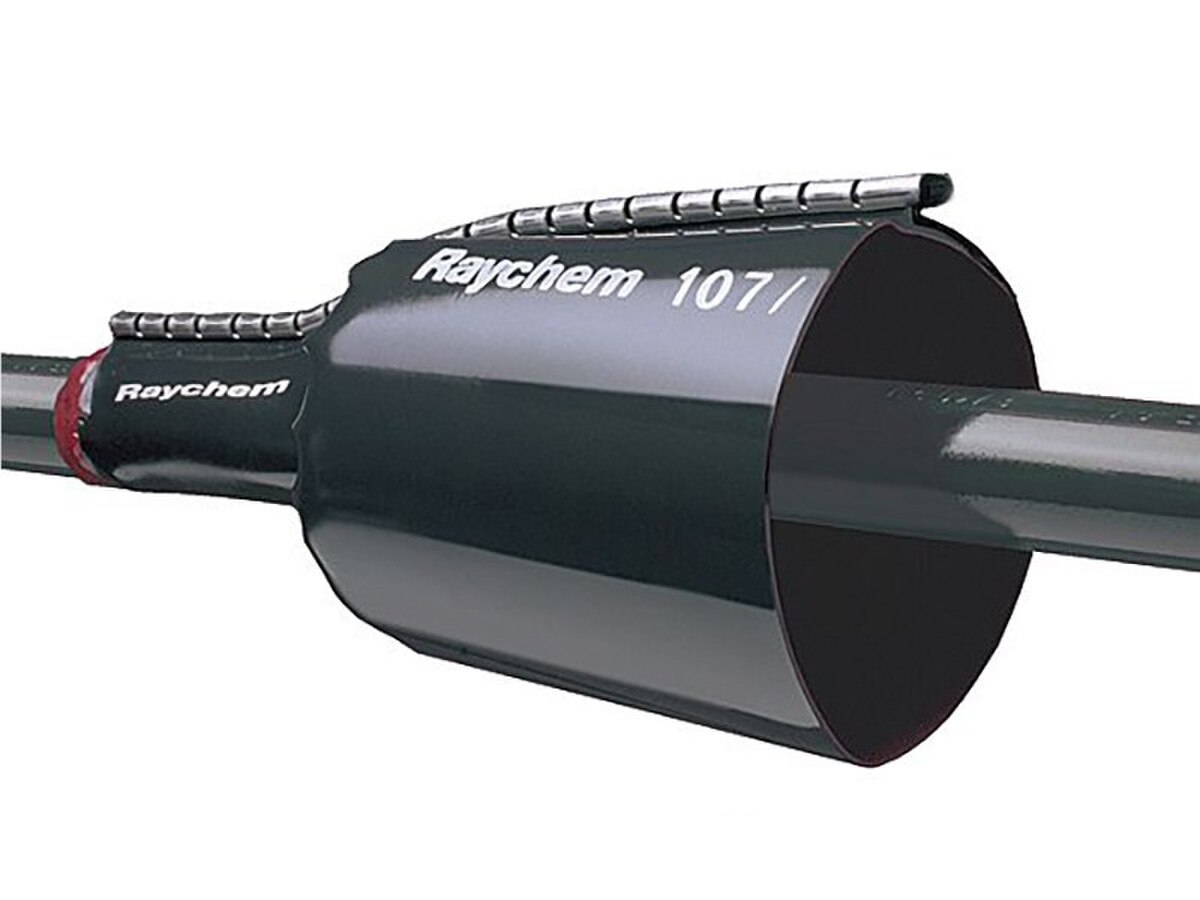

Heatshrinkable Wrap-Around Repair Sleeve
CRSM wrap-arounds are a fast and permanent cable repair and sealing system. The repair sleeve is quickly fitted in place by means of its rail and channel closure. This labour-saving installation fits and seals all in one step. CRSM wrap-arounds are abrasion and corrosion resistant, and each size covers a range of cable sizes.
Raychem’s distinctive closure system, which incorporates a stainless steel channel slid over rails on the sleeve, keeps the wrap-around in place during installation but can be easily removed when the adhesive has set. The closure system has been improved and no longer requires a specialised tool to install it.
Applications
- Repair cable sheath damage without cutting cable
- Underground jointing (and in tight areas)
- Sealing cable glands
- Abrasion corrosion and decay resistant
- IP68
- 100% waterproof
- Inner adhesive wall
- UV resistant
- Voltage class 1kV
- Operating temperature range -40°C to 120°C
- Shrink ratio 3:1
- Sealant lined
- Halogen free
Inside Diameter D (mm) | Wall Thickness W (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Cat No. | Application Range Diameter (mm) | Min A | Max B | Min A | Max B | Length L (mm) | Qty | Price | ||
