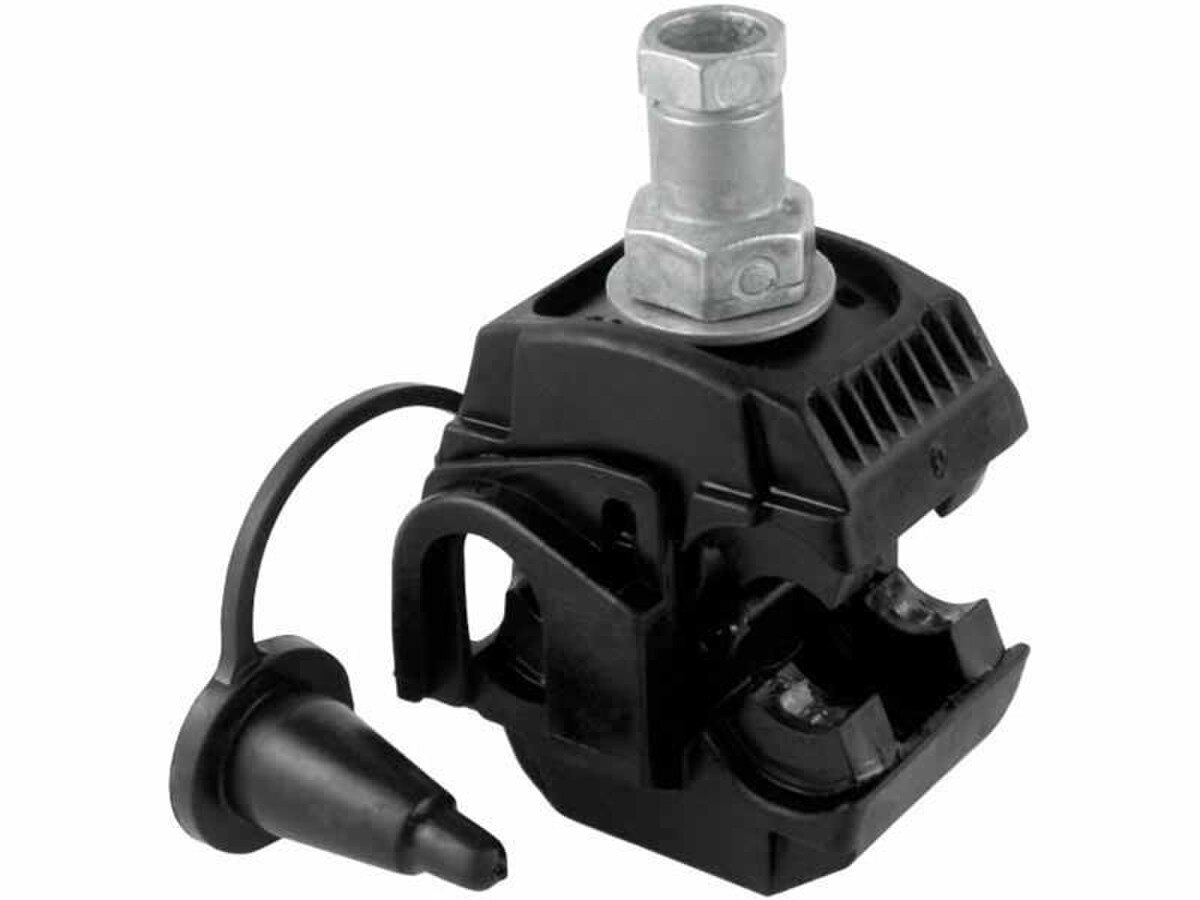

Insulation Piercing Connectors

(0)No Reviews yet

Insulation Piercing C

Back

Description

These connectors are intended for ‘live’ jointing of service conductors onto LV mains cables of various types. They are designed for use with copper and aluminium conductors. The range-taking connectors help reduce inventory, and the shear head bolt ensures the correct torque is reached every time.

Back

Downloads


Installation Instruction

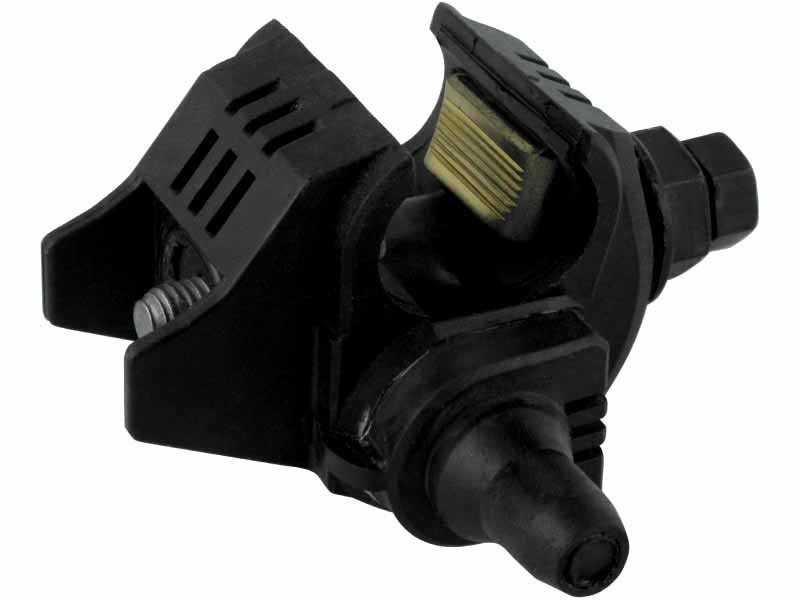

K258
- Bare Copper 7-95 6-35 Insulated Bare Copper Main
K259
- Bare Aluminium 7-95 6-35 Insulated Bare Aluminium Main

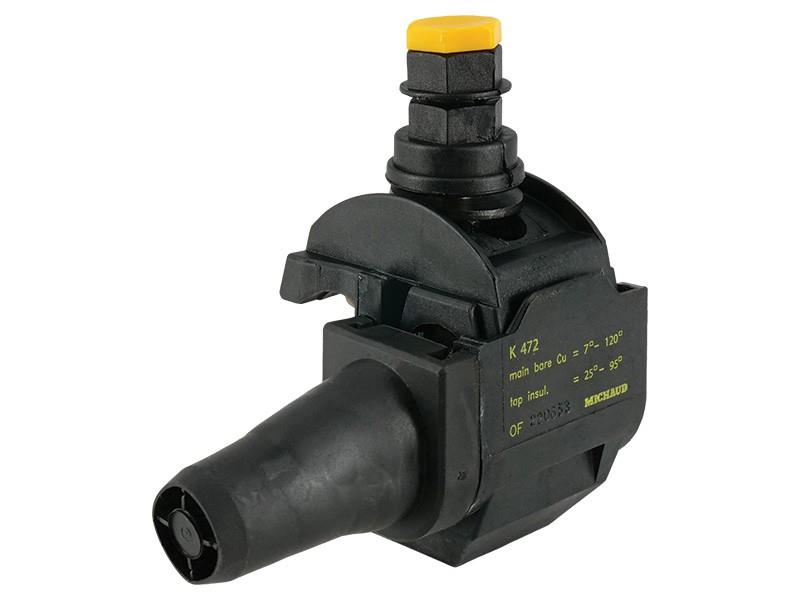

K472
- Bare Copper 7-120 25-95 Insulated Bare Copper Main

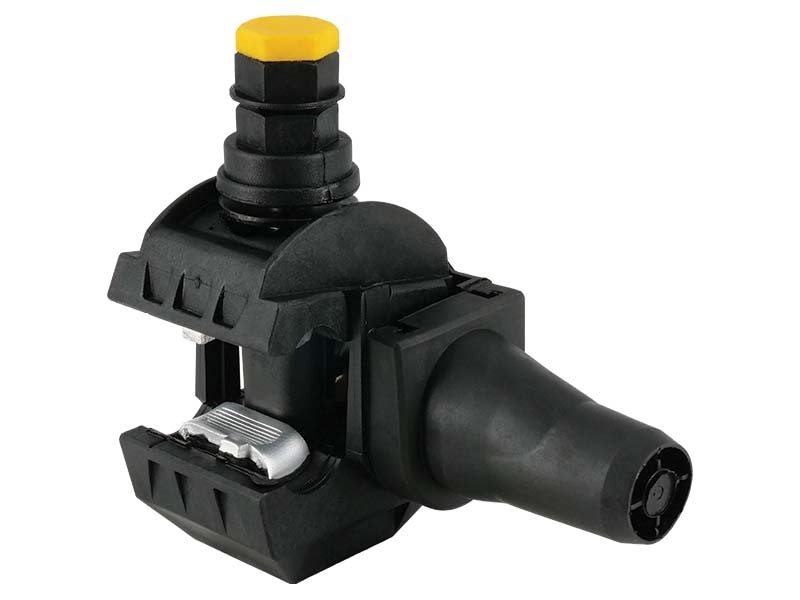

K473
- Bare Aluminium 7-120 25-95 Insulated Bare Aluminium Main

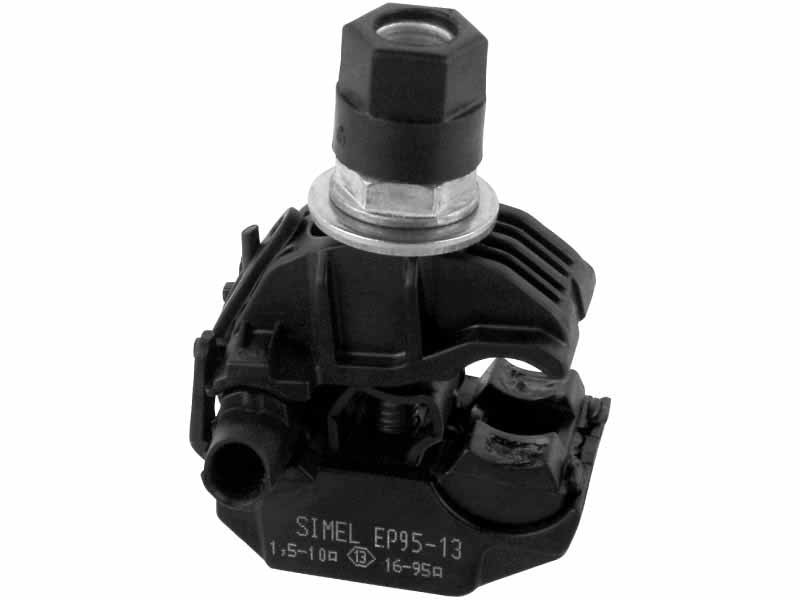

0-1727912-3
KZEP13 Insulated 16-95 1.5-10 Insulated Aluminium & Copper

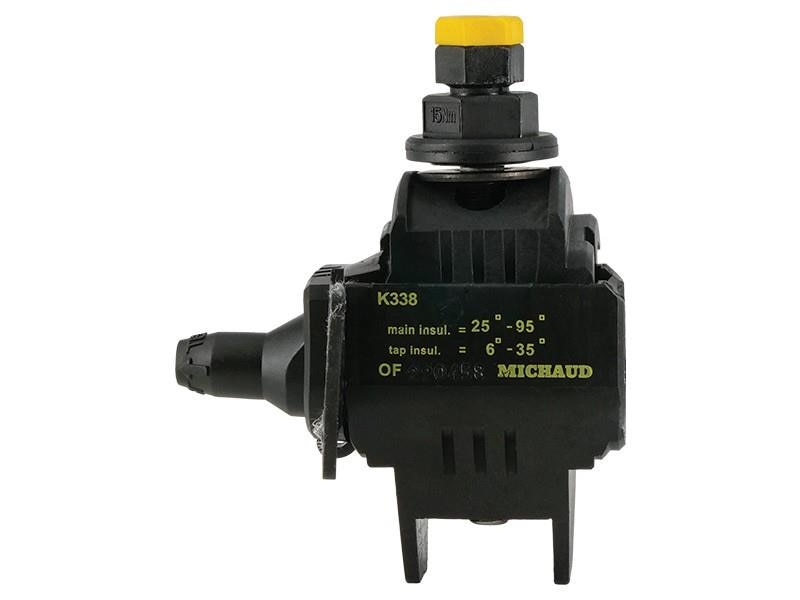

K338
- Insulated 16-95 4-35 Insulated Aluminium & Copper
0-1510619-3
P2X95US Insulated 16-95 4-50 Insulated Aluminium & Copper

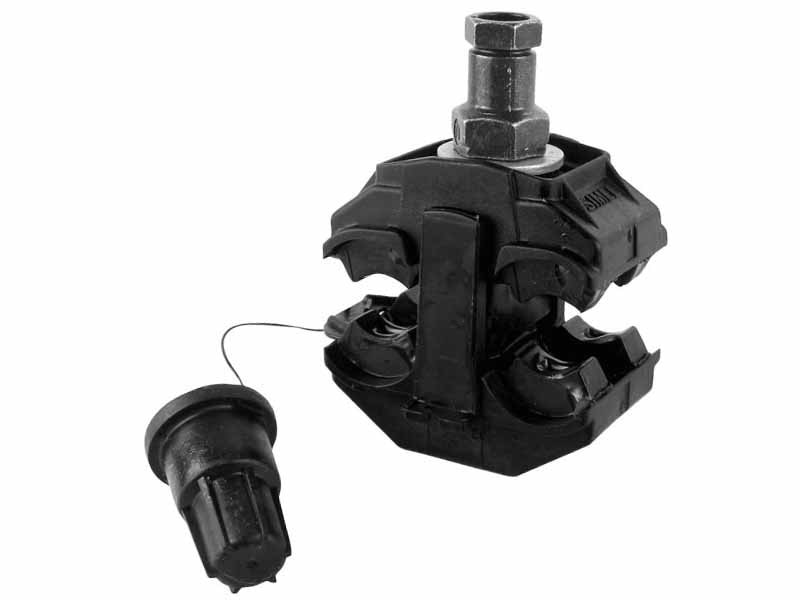

0-1574150-1
P3X95 Insulated 25-95 25-95 Insulated Aluminium & Copper

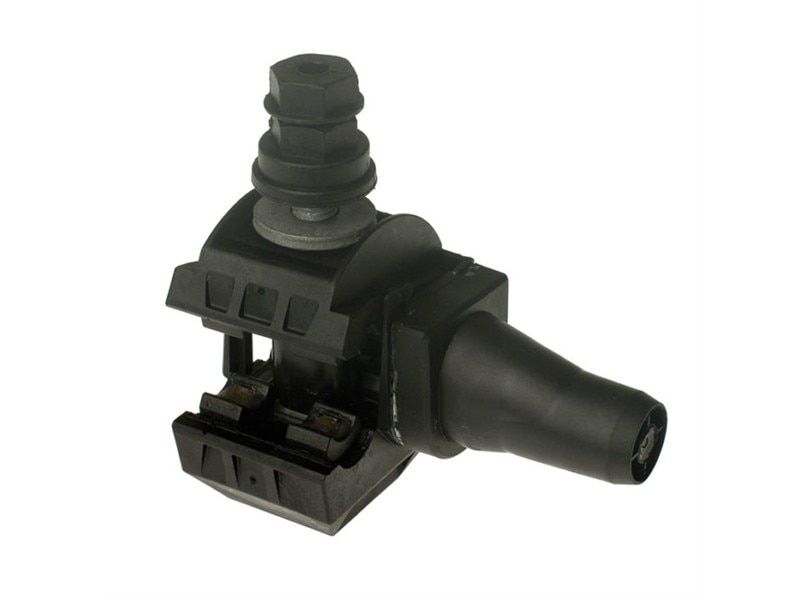

K365
- Insulated 25-95 25-95 Insulated -

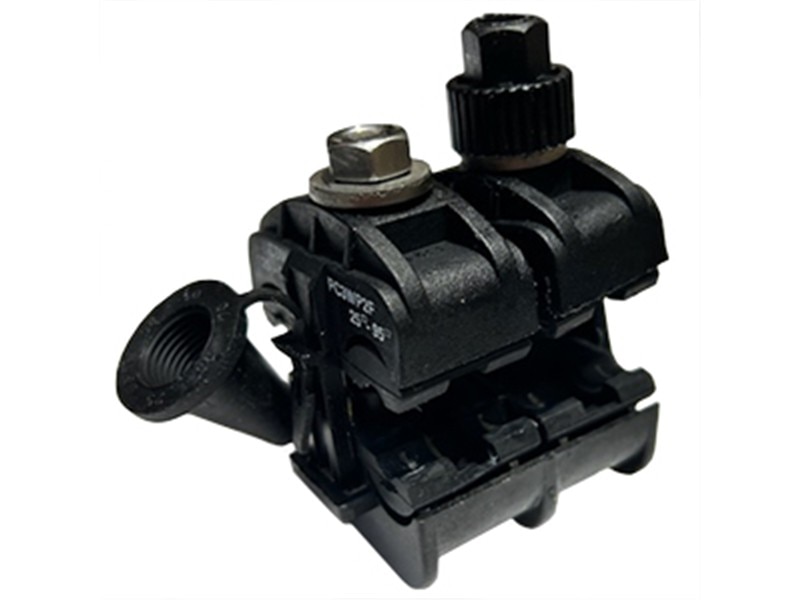

TNPC3WP2F
- Insulated 25-95 25-95 Insulated Double Bolt

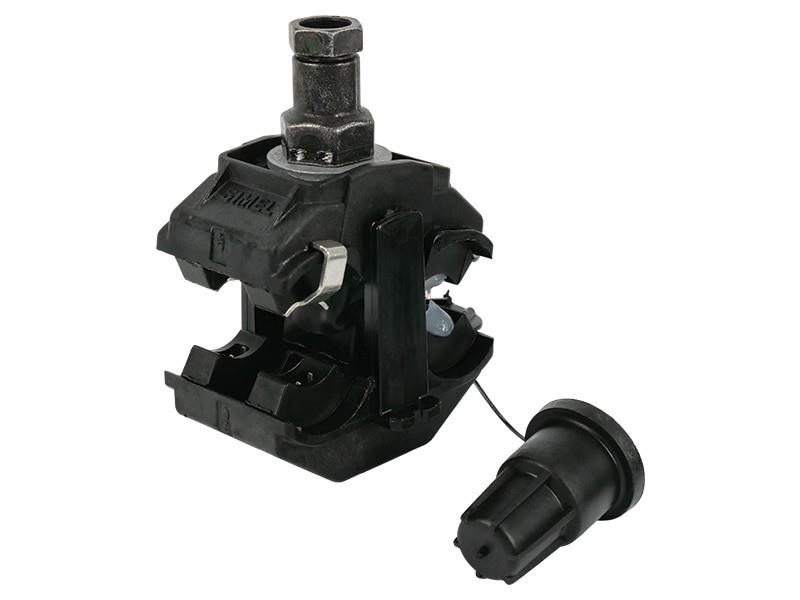

0-0708030-1
P3B120 Bare Aluminium or Copper 70-120 25-95 Insulated Bare Main Aluminium & Copper

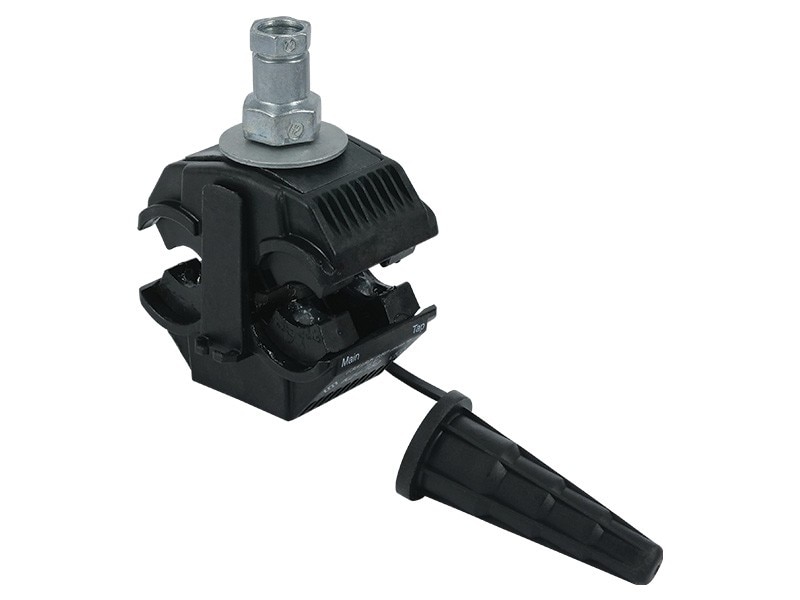

1351230-2
KZ4-150 Insulated 35-150 35-150 Insulated Aluminium & Copper

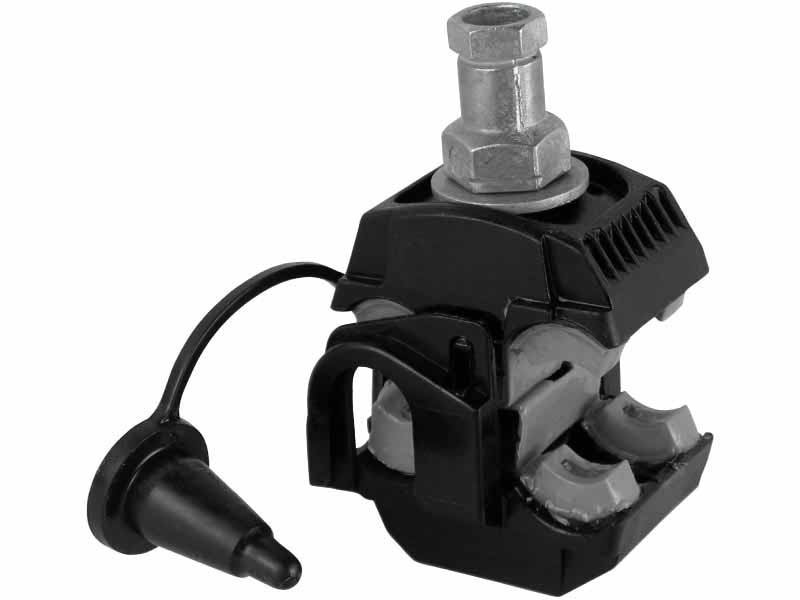

0-1229731-2
KZ2-150 Insulated 50-150 6-35 Insulated Aluminium & Copper

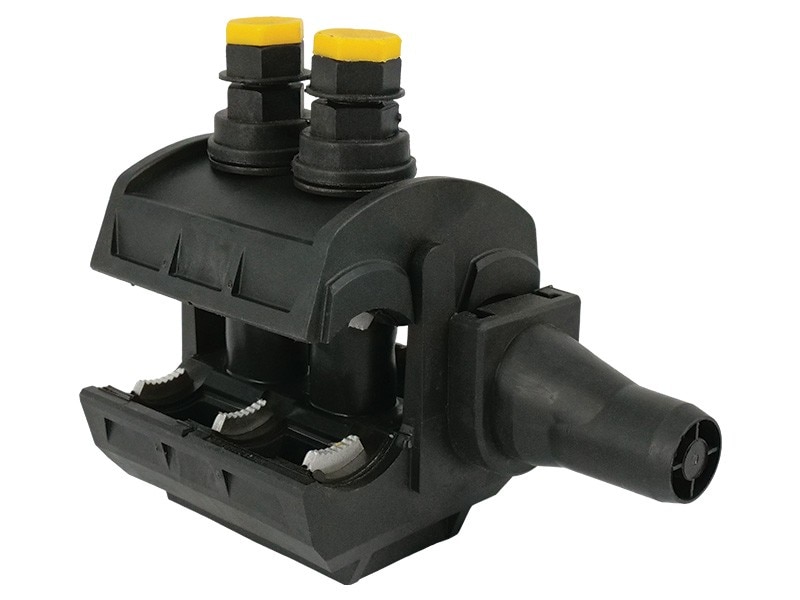

K475
- Bare Aluminium 50-240 35-150 Insulated Bare Aluminium Main

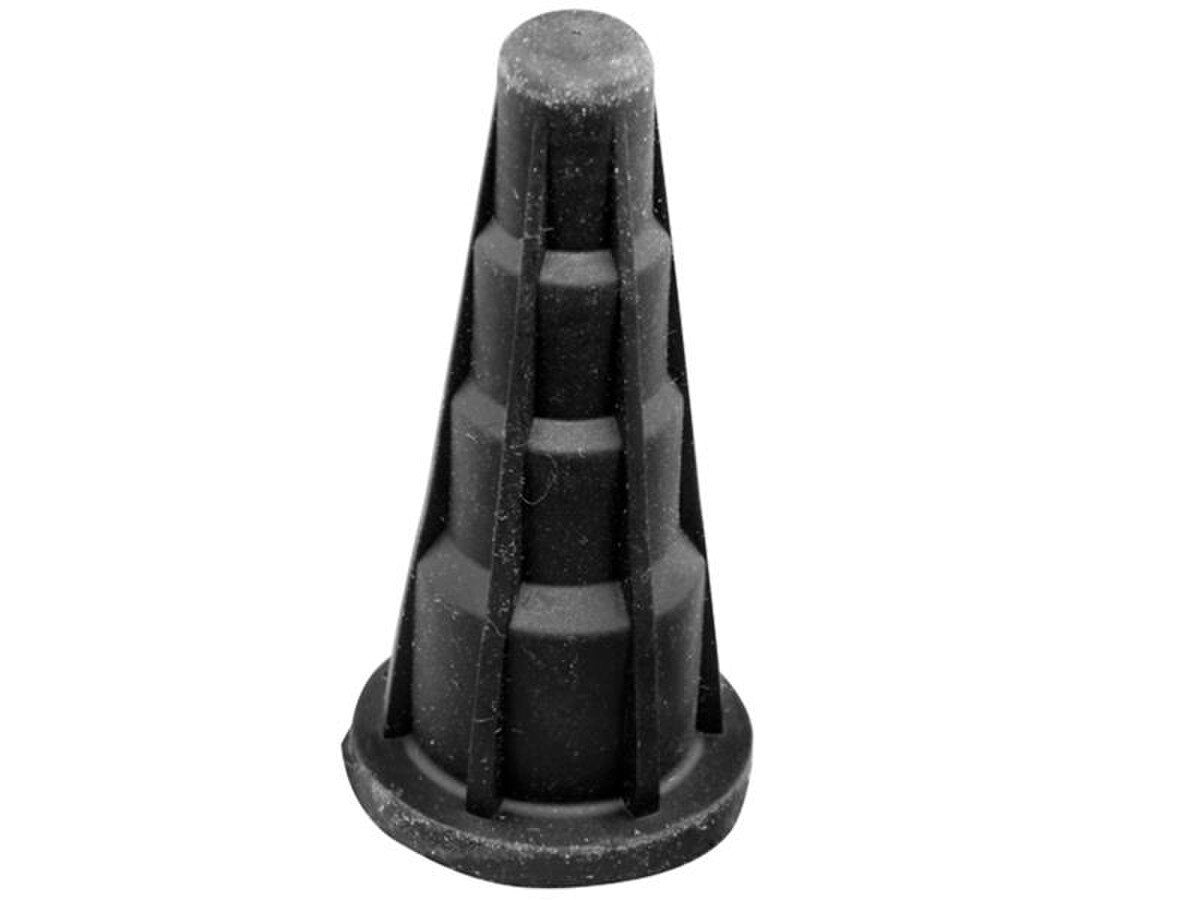

0-0739523-3
Push On Cable End Cap - 16-150 - - End cap only
P445
Push On End Cap - 6-35 - - End cap only - Red

Cat No.

Name

Main Conductor Insulation

Main Conductor
(mm²)

Take Off Conductor
(mm²)

Take Off Conductor
Insulation

Notes

Qty

Price
