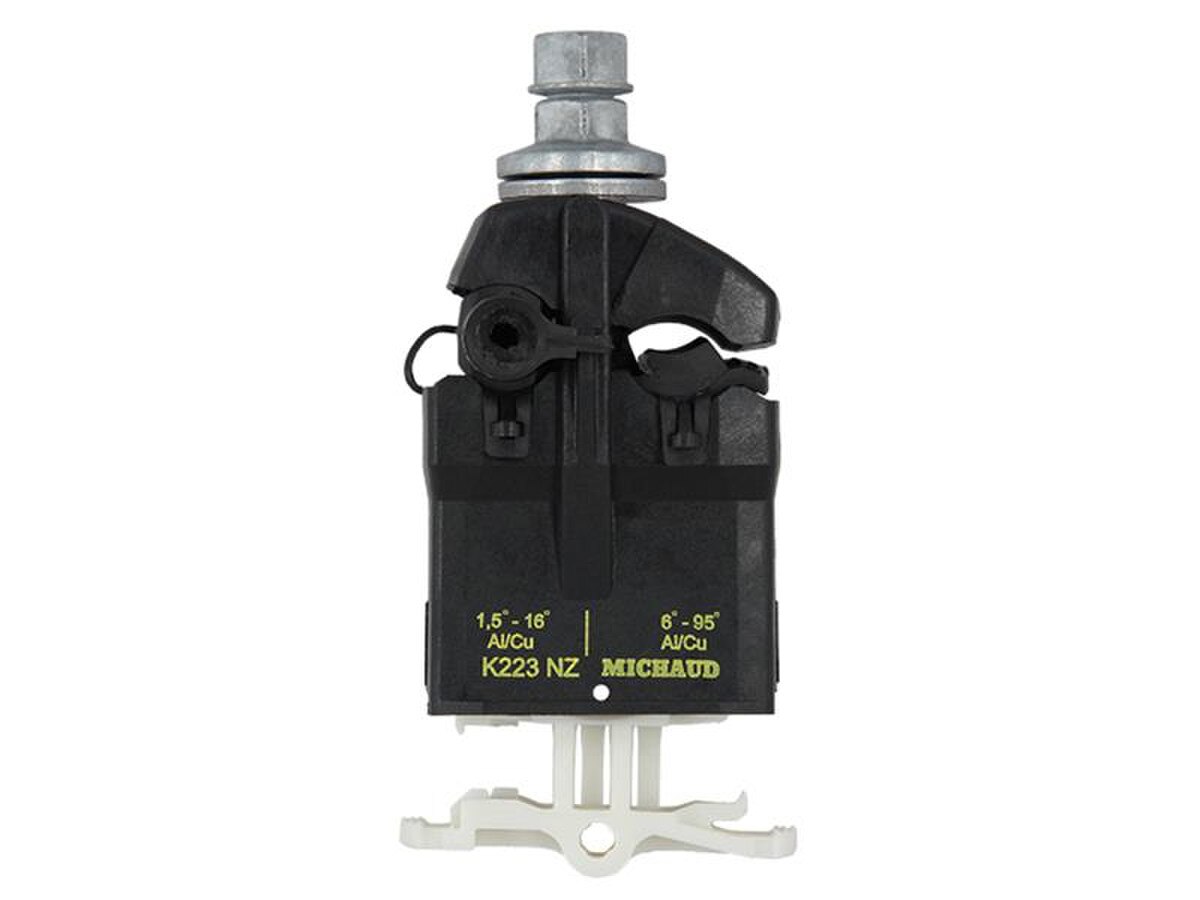

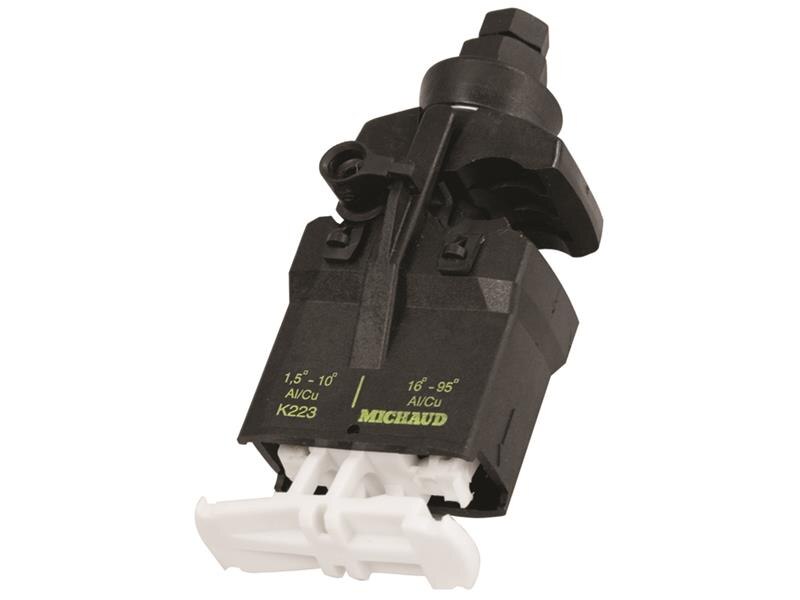

K223 IPC Fuse Carrier, Up to 20A

This fuse carrier is designed to use a 10.3x38mm fuse cartridge or neutral tube making it perfect for street light connections to an LV circuit. Maximum rating is 20A. With the added simplicity of being an insulation piercing connector (IPC), installation is fast and simple. The special shear head bolt breaks off at the correct torque ensuring an accurate and consistent connection pressure is reached.

Features

• Wide range-taking ability on both main and tap
• Specially designed for the New Zealand market
• UV Stabilised black body
• Built-in end cap for tap conductor
• Double circlip for retention of fuse
• Captured fuse base, will stay in place even without fuse link
• Watertight cable entry points
• IPC connection
• 13mm shear head bolt for exact installation every time
