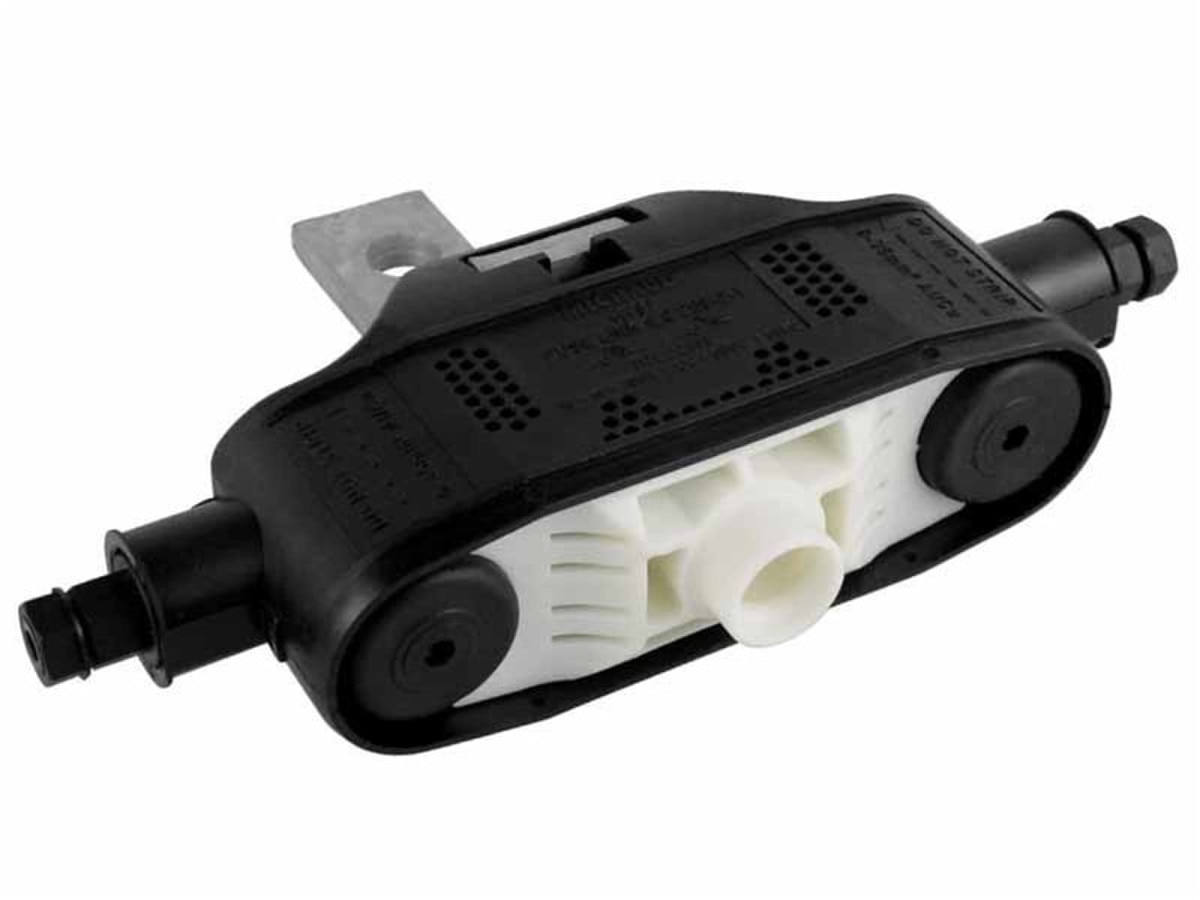

K491 IPC Fuse Carrier, Up to 100A
Description
This fuse switch disconnector is a single phase device that is normally used as a house service fuse or isolation point. It provides electrical protection to an individual customer. It is designed to accommodate up to 100A 22x58 size barrel fuse cartridge (according to IEC 269-2.1). It suits aluminium or copper insulated cables from 6 up to 35mm².
Michaud fuse carriers offer the added simplicity of being an insulation piercing connector (IPC) meaning the insulation on the conductor does not need to be removed. The special shear head bolt breaks off at the correct torque ensuring an accurate and consistent connection pressure is reached.
Features
- Continuous one piece electrical connection from cable to fuse
- Bottom entry for cable ports means natural drip loop is created

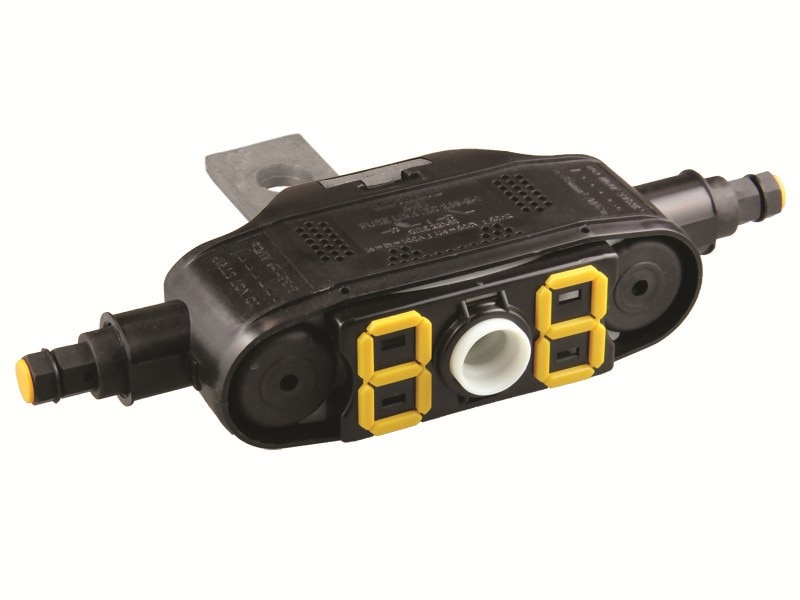

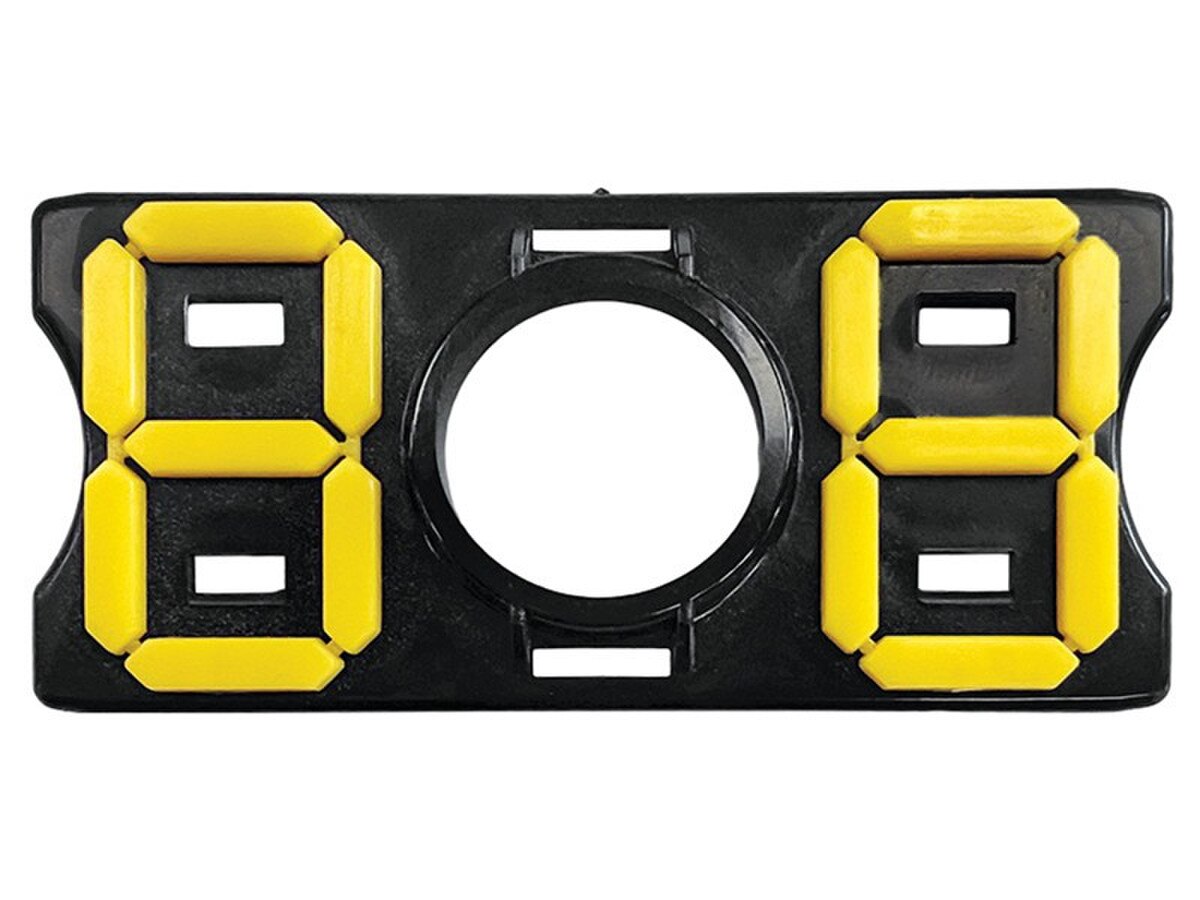

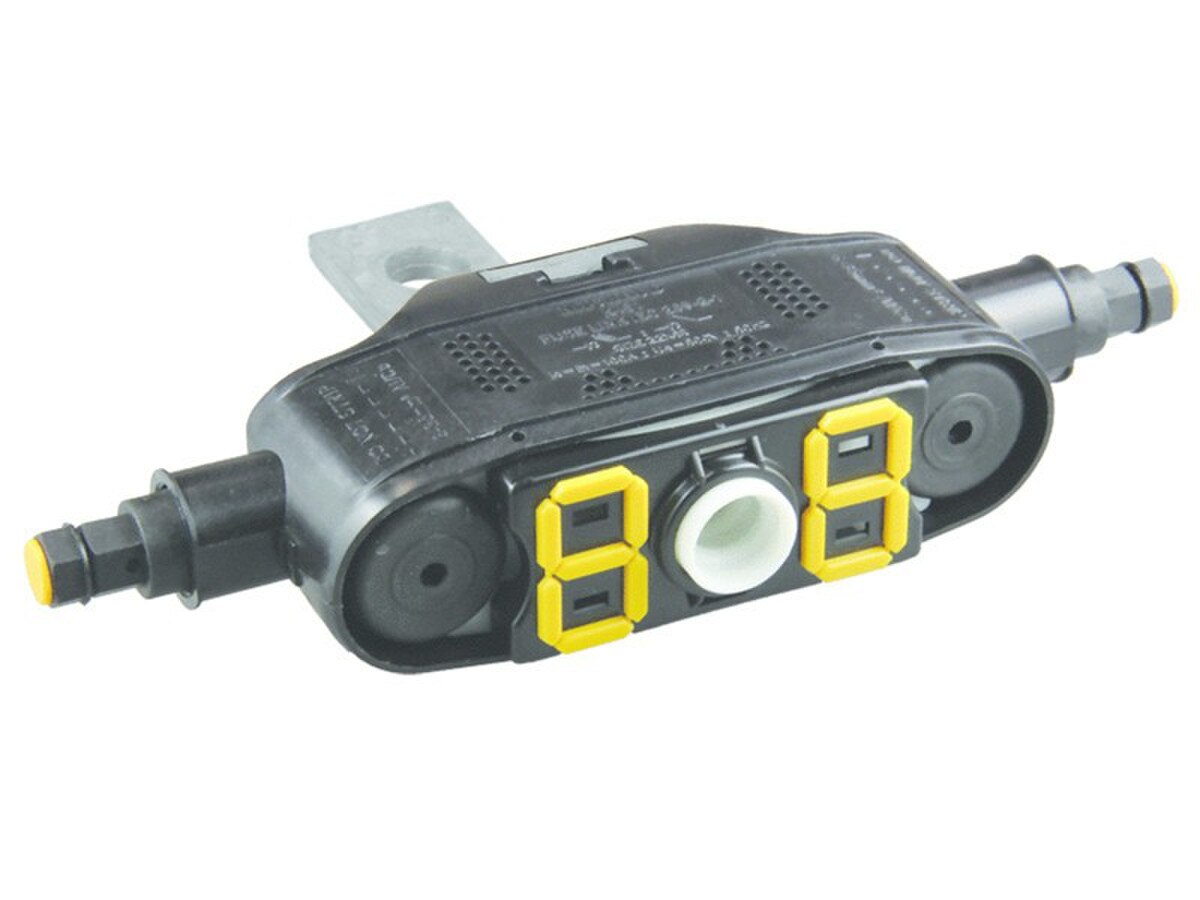

- Optional high visibility numbering plate available (K492)

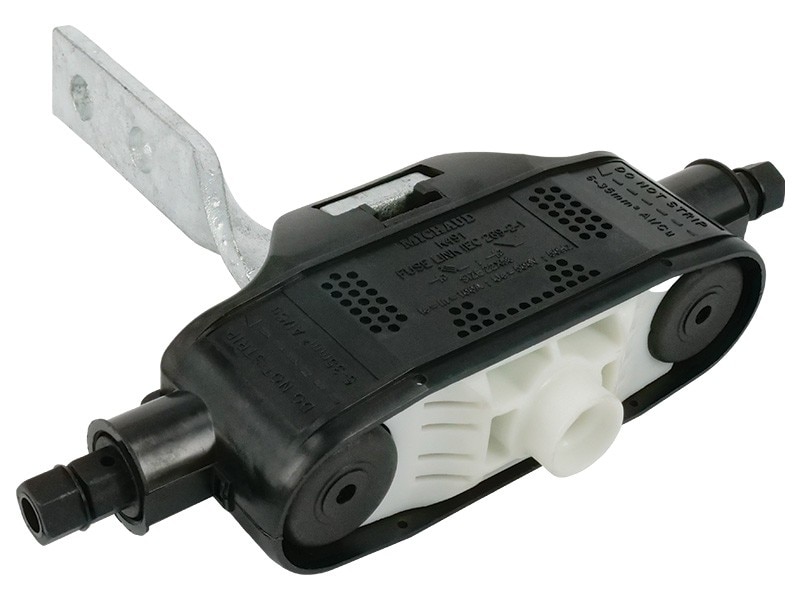

- Self-supported whilst being mounted onto bracket - no need to hold while tightening
- UV Stabilised black body
- Shear head bolts with visual indicator for correct connection every time
- Double circlip for retention of fuse
- Captured fuse base, will stay in place even without fuselink
- Watertight cable entry points
- IPC connection
- Fully tested to IEC269-2-1
- Proven service reliability in harsh New Zealand environment
Cat No. | Description | Fuse Link Style | Cable Range (mm2) | Max Amps | Qty | Price | ||
|---|---|---|---|---|---|---|---|---|
