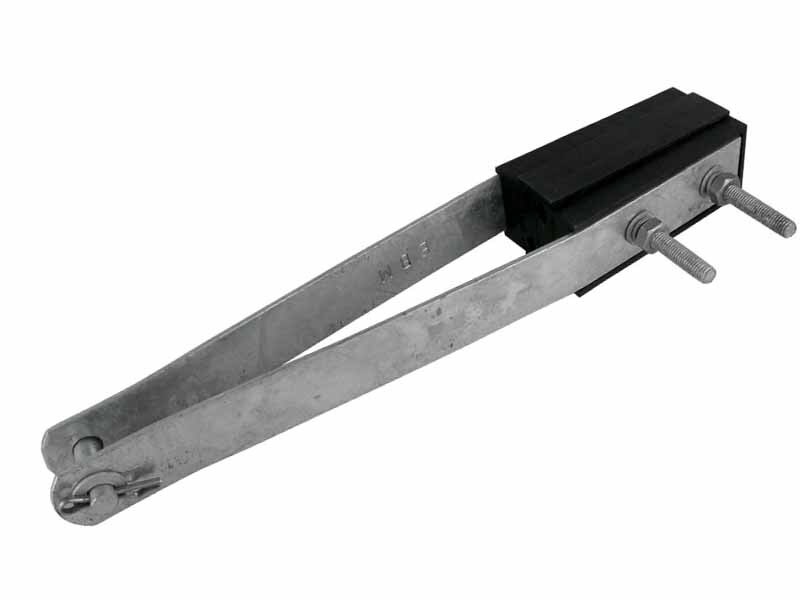

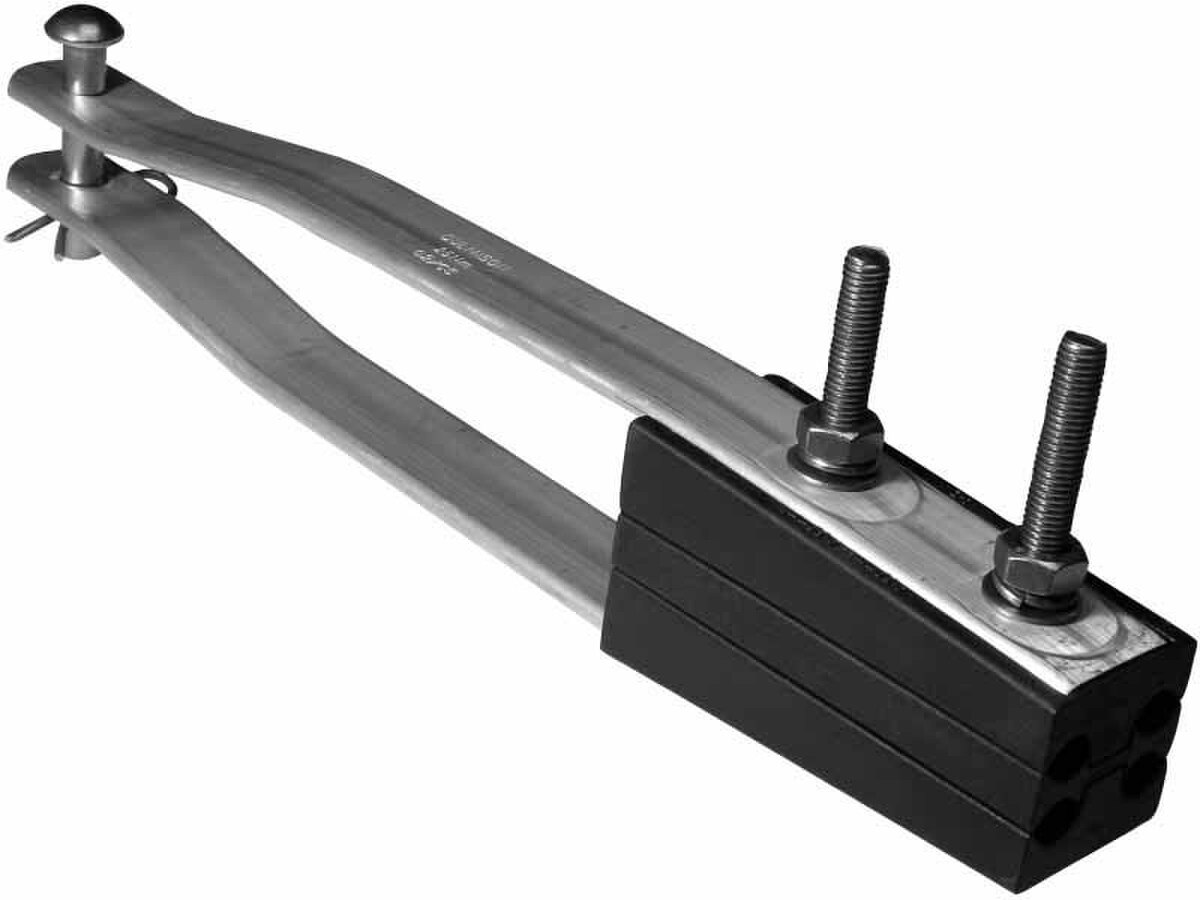

LV ABC Strain Clamps
LV Termination clamps for ABC cable are available with a range of cable size capabilities. All clamps accommodate 2 core or 4 core cable making them the versatile choice. Use for the termination of LVABC 2 core* x 25mm² to 4 core 150mm².
Features
- Tested to AS3766
- Removable clevis pin
- Bolted full tension clamp for LV ABC
Materials
- Wedges: Glass Filled Nylon
- Hardware: Galvanised Steel
- Straps: Aluminium or Galvanised Steel (depending on model)
Cat No. | Strap Material | Cable Size (mm2) | Rated Voltage | Rated Tension | Qty | Price | ||
|---|---|---|---|---|---|---|---|---|
