LV Bi-Metal Mechanical Lugs

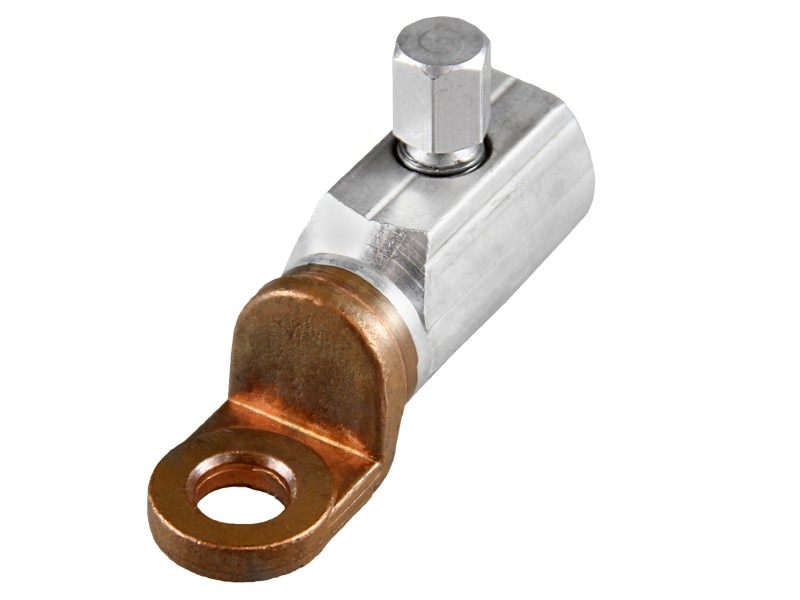

Made of an aluminium barrel linked to an copper palm by friction welding technology. The aluminium barrel is provided with a shear head bolt controlling the tightening torque.
Applications
- Used for connection of aluminium or copper industrial conductor
- For indoor application only
- LV connection on busbar inside electrical panel and on compact type circuit breaker (new generation)
Features
- Accepts aluminium and copper cables
- Copper palm compatible with the palms of the apparatus to be connected
- Only 5 types of lugs to connect from 25 to 500mm²
- Can be fitted into the new generation of compact type circuit breakers
- Inner surface of aluminium part is grooved at the manufacturing stage and greased to ensure a good electrical contact with wires to be joined
- Tightening torque controlled by shear head system
- No specific tool needed
- Only one bolt to tighten
DIMENSIONS
Cross Section Range (mm²) | Dimensions (mm) | Contact Bolts | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cat No. | Aluminium | Copper | Stud Size | L1 | B | Ø D2 | Max Current | Quantity | Head Size AF (mm) | Qty | Price | ||
