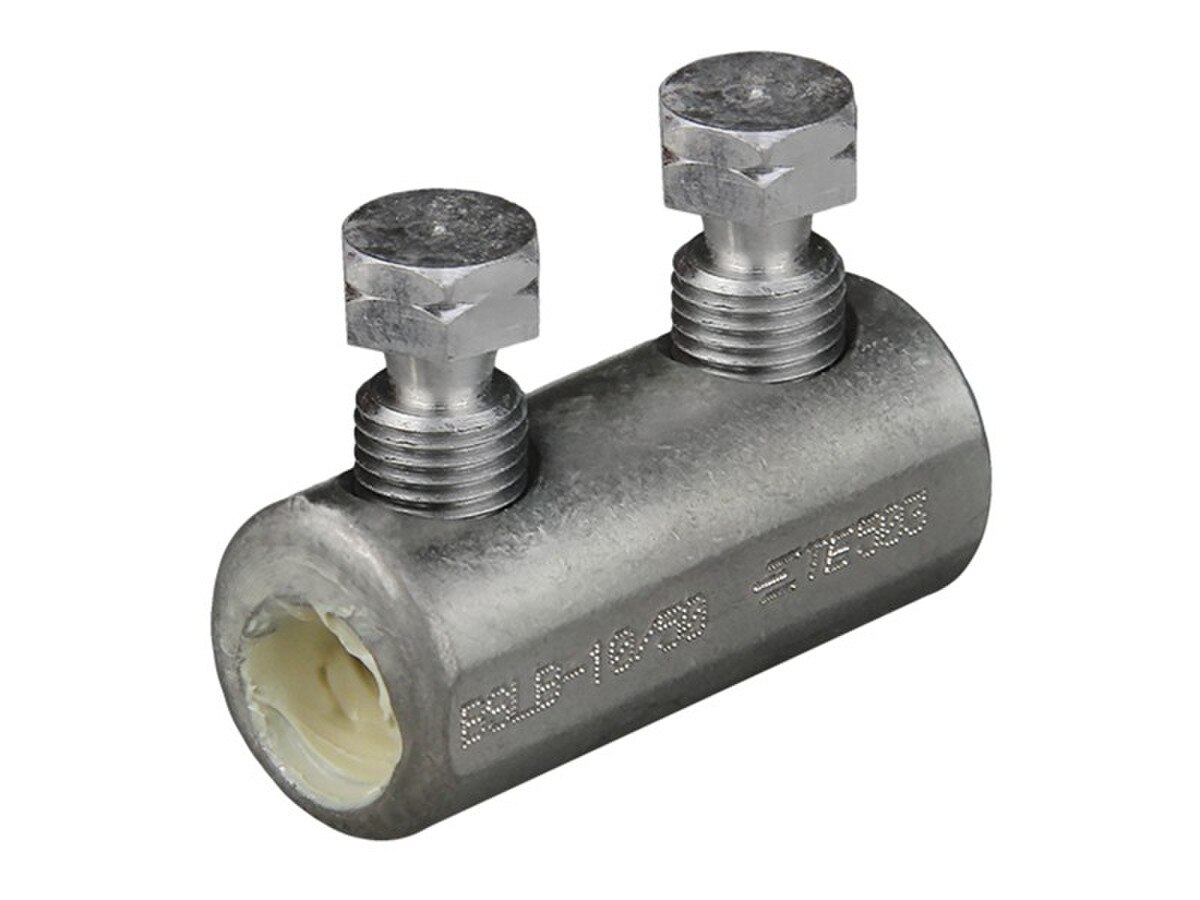

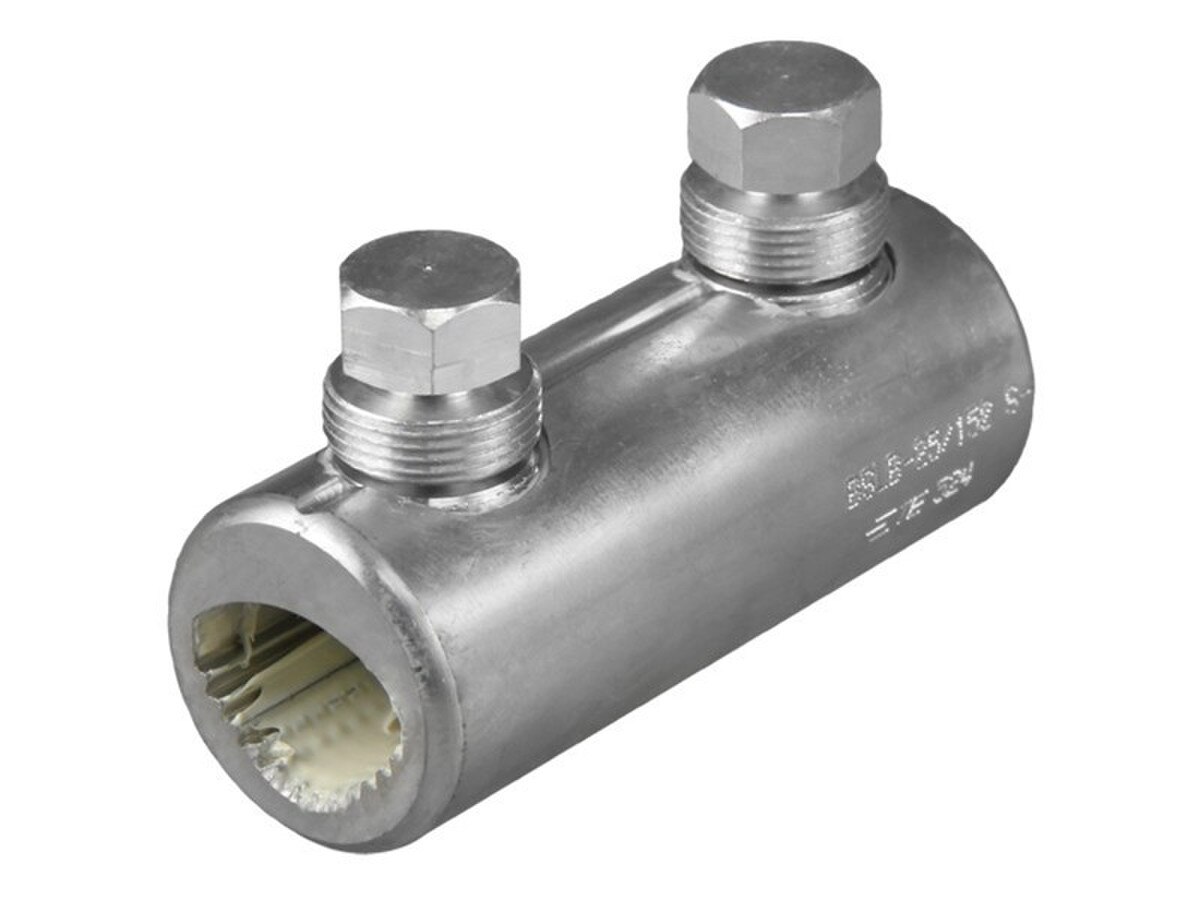

LV Mechanical Connectors for Round & Sector Cable - Blocked
The BSLB LV mechanical connectors are perfect for use with a range of conductors including round and sector, solid/stranded, 3 core and 4 core. These connectors are also range taking which helps to once again minimise the inventory listing required to cover all the possibilities out there.
Made from High Strength, Tin Plated Aluminium Alloy, these connectors are made to the highest international standards and offer excellent reliable connections for LV installations up to 1kV.
Standardised range of four sizes of LV mechanical connectors, fully compliant to the new specification DIN 47640
Features
- Bodies and shear off bolts made of high strength Aluminium alloy
- Cross-grooved conductor channels for improved long term contact performance
- Bodies, with rounded edges, completely electro-tinned
- Bolts with outer hexagonal head, waxed for better installation, not removable
- Unique design with round bores and milled notches to allow installation of sector-shaped conductors without rounding
DIMENSIONS

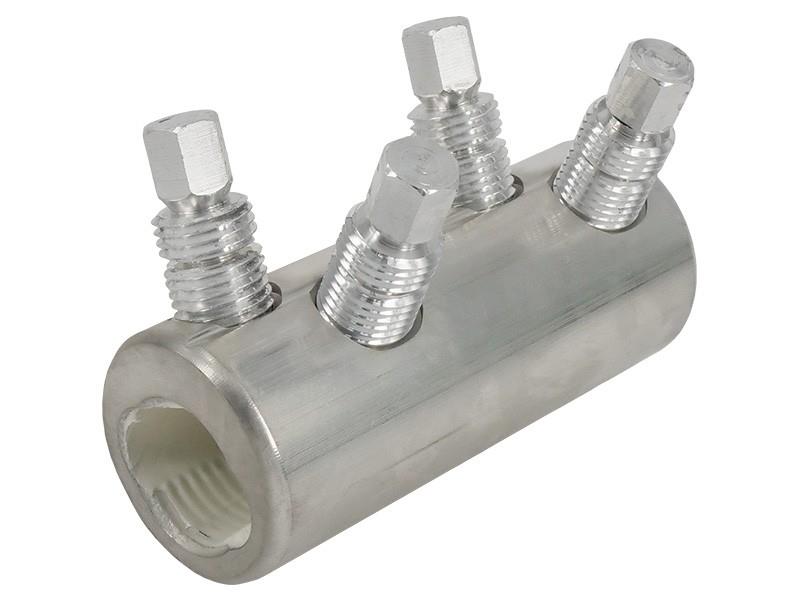

| BSLB-25/150 | BSLB-95/240 | ||||||
 |  | ||||||
| DIMENSIONS (mm) | DIMENSIONS (mm) | ||||||
| L1 | L2 | D1 | D2 | L1 | L2 | D1 | D2 |
| 70 | 35 | 28 | 20.5 | 90 | 40 | 37 | 27 |
Application Range (mm2) / Conductor Type | Contact Bolts | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cat No. | Qty | Head Size | AL | AL | AL | AL | CU | CU | Qty | Price | ||
