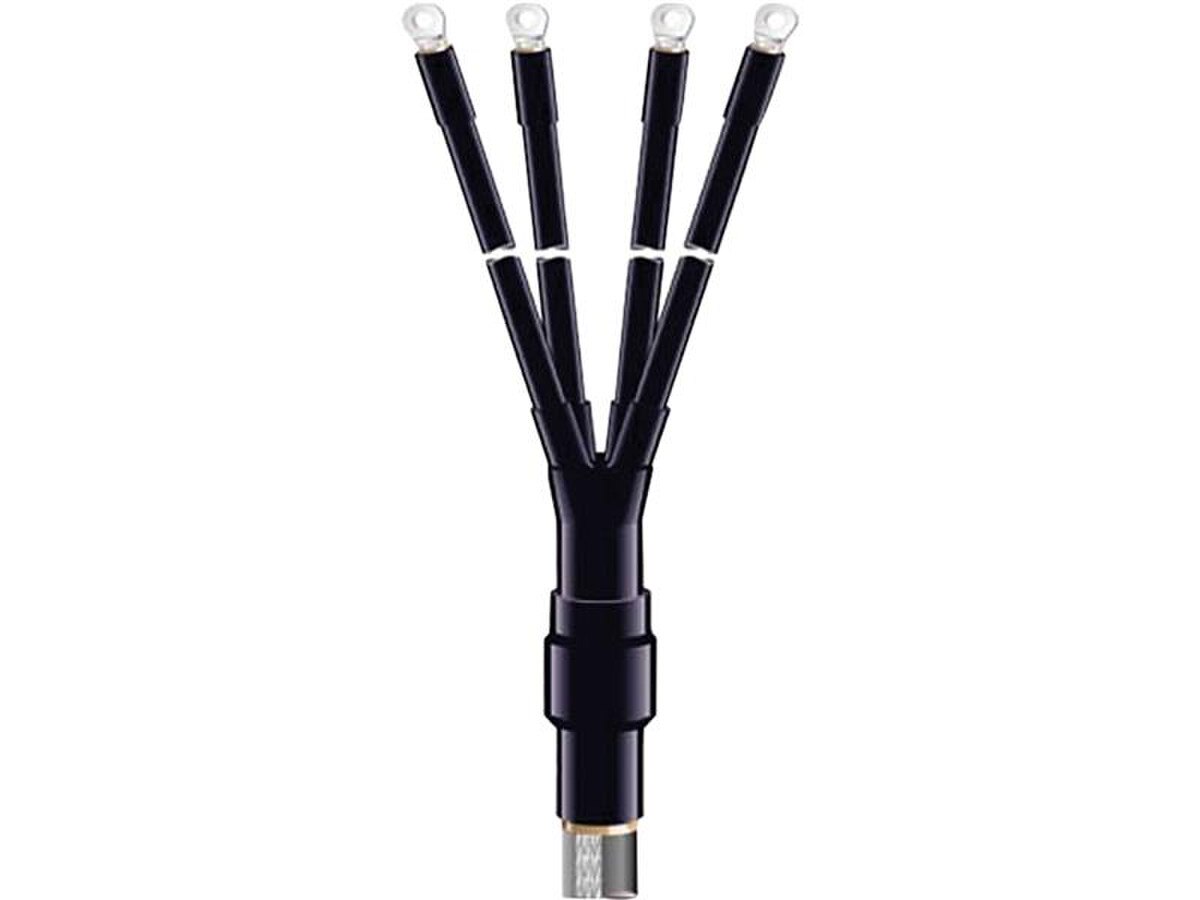

LV Termination Kits for XLPE Cables

(0)No Reviews yet

LV Termination Kits f

Description

Indoor or Outdoor termination for LV cables, including mechanical lugs.


  • UV Resistant (includes covering for phase and neutral conductors)
  • Voltage class 1kV
  • Temperature range -40°C to 120°C
  • Indoor or outdoor use
  • Full range of terminations available
  • Complete with mechanical lugs suitable for Al, Cu and Bi-Metal terminations
Back

Downloads

Back
SPEC-TN-2501 1 CORE N/S LV TERMINATION 16 16
SPEC-TN-2507 3 CORE N/S LV TERMINATION 16 16
SPEC-2026 2 CORE, 3.3kV XLPE SWA LV TERMINATION 16 16
SPEC-2059 3 CORE, 3.3kV XLPE SWA LV TERMINATION 16 16
LVTM-16/70-4 4 CORE LV TERMINATION KIT 16-70* 25-70*
LVTM-35/120-4 4C XLPE UNARMOURED, 500mm TAILS 35-120 35-120
LVTM-95/185-4-DOW1 4C XLPE UNARMOURED, 500mm TAIL 95-185 95-185
LVTM-95/185-4-DOW2 4C XLPE UNARMOURED, 500mm TAIL 95-185 95-185
LVTM-185/300-4 4C XLPE INDOOR TERMINATION KIT, 185-300 120-240
LVTM-185/300-4-N/S-OR 3C N/S + PILOT LV INDOOR TERMINATION KIT, 500mm TAIL 35-120* 35-120*
NST-4/16 1 CORE N/S HOT WATER PILOT TERMINATION 4 & 16 4 & 16

Cat No.

Description

Size Range
Cu Conductors (mm2)

Size Range
Al Conductors (mm2)

Qty

Price
