LVSB - Low Voltage Service Branch Joints

(0)No Reviews yet

LVSB - Low Voltage Se

Description

Faster and Safer for Live Working, the LVSB range have been designed with worker safety as the priority.

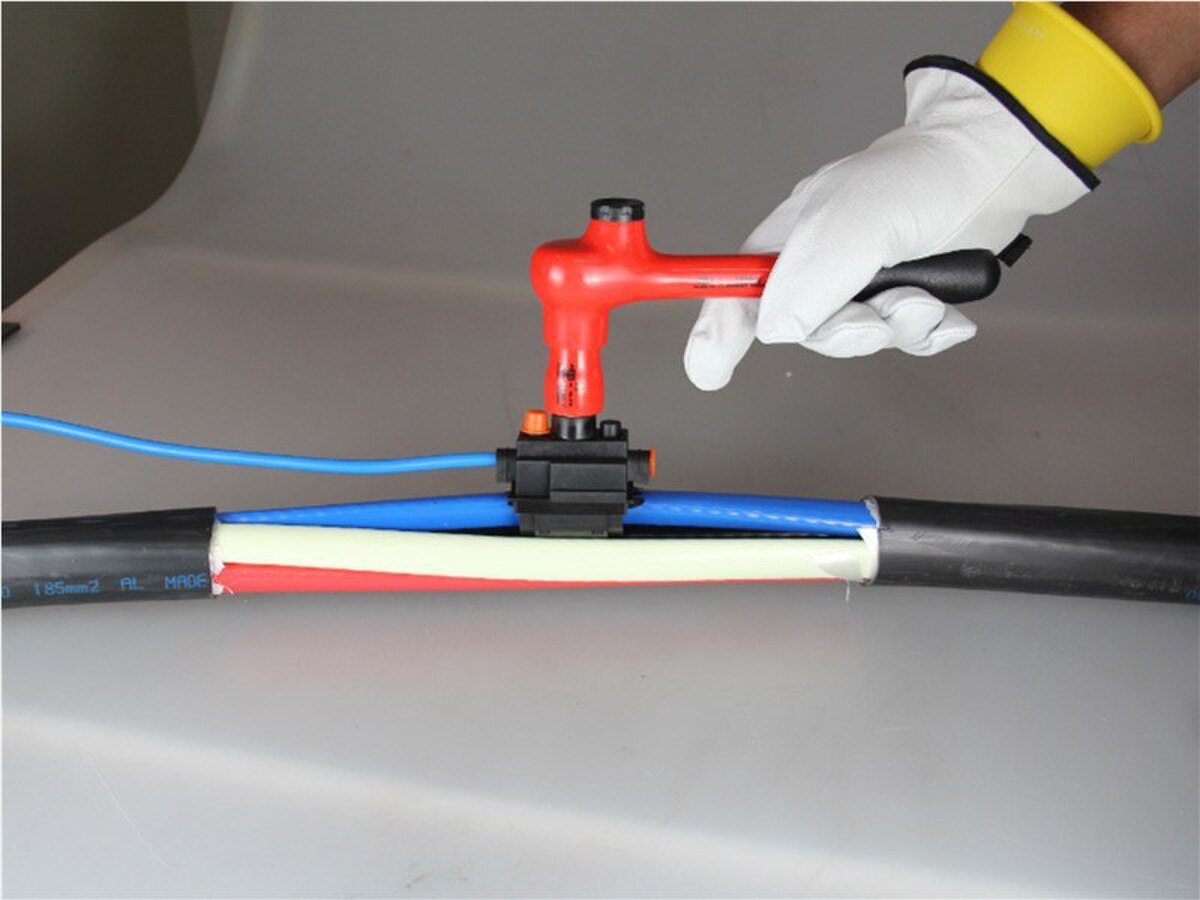

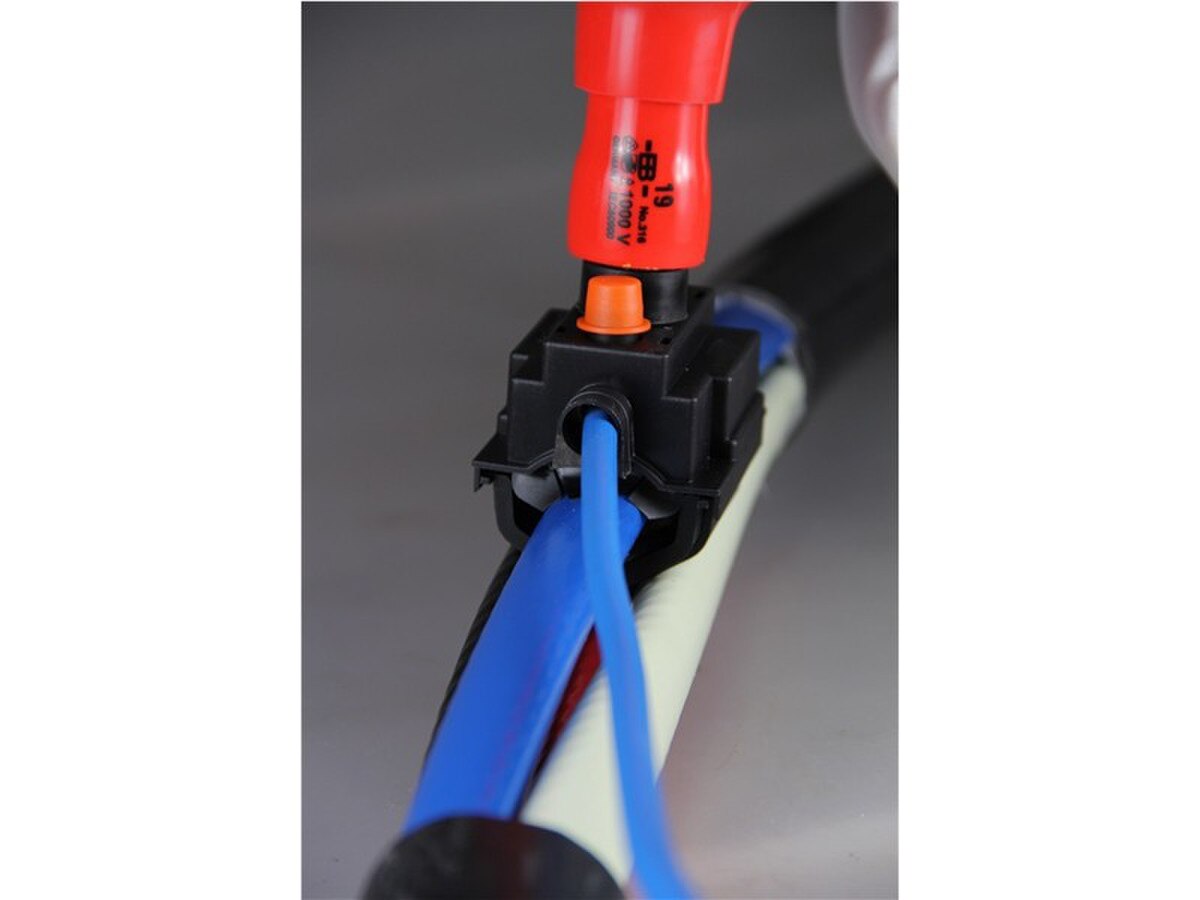

No need to strip live cables with these connectors. They are fast, safe, and simple to apply. The connection is made, and the head shears off once the correct torque is reached, ensuring a secure and reliable installation every time.

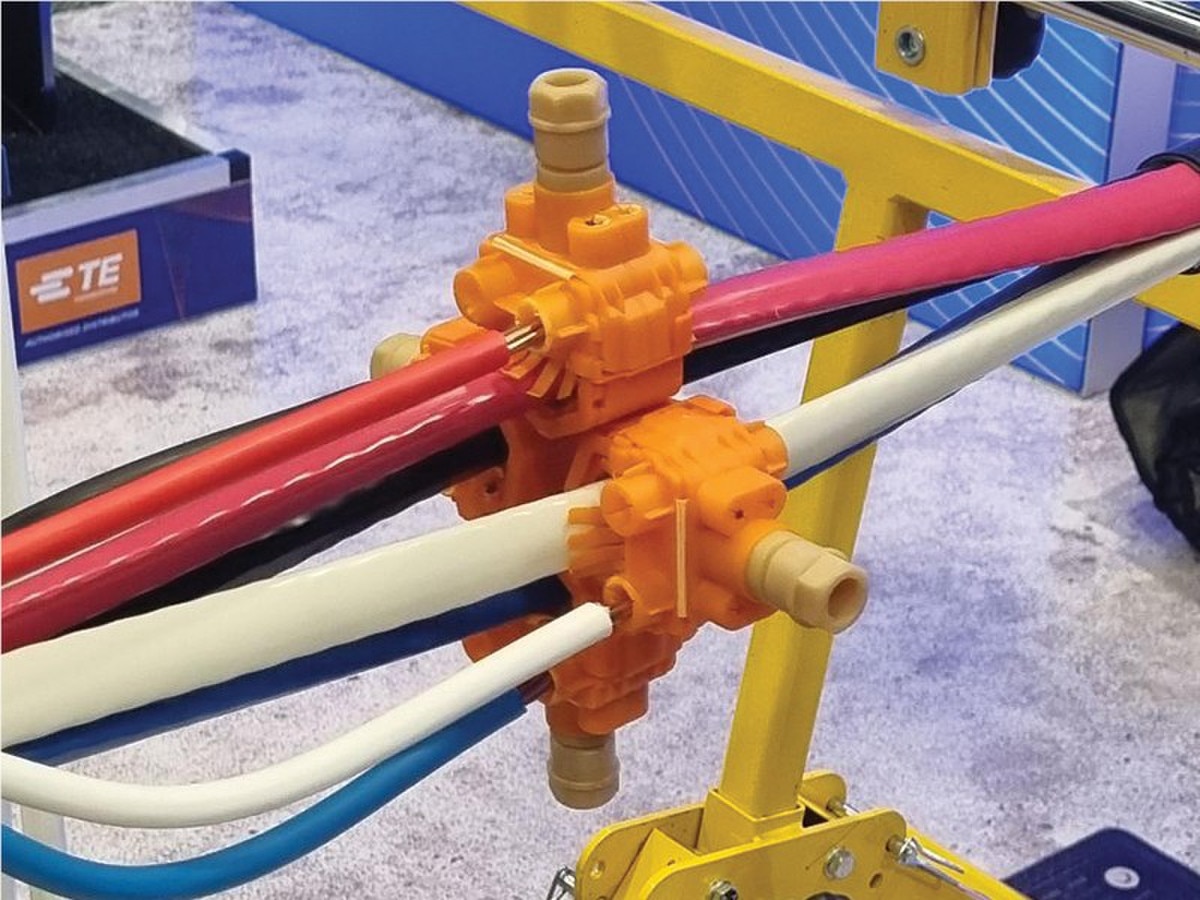

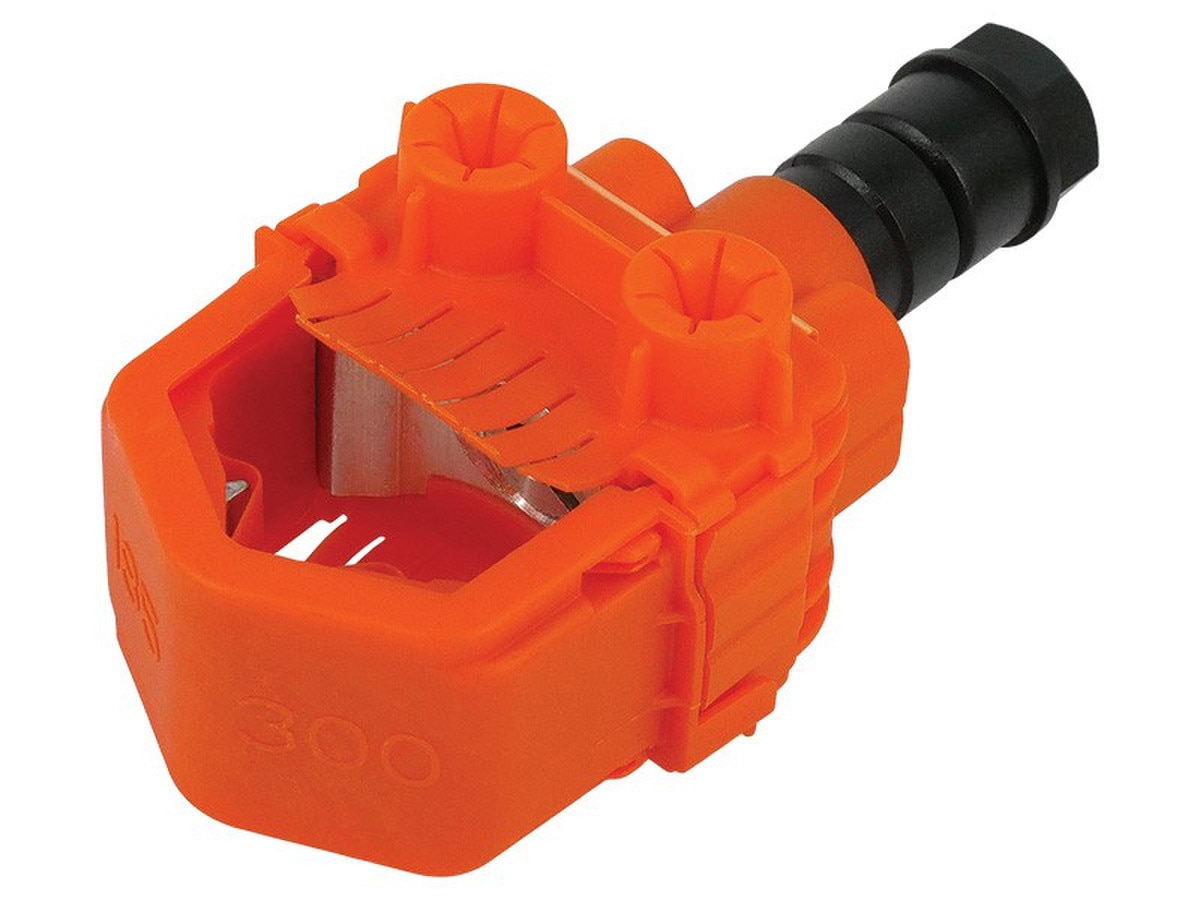

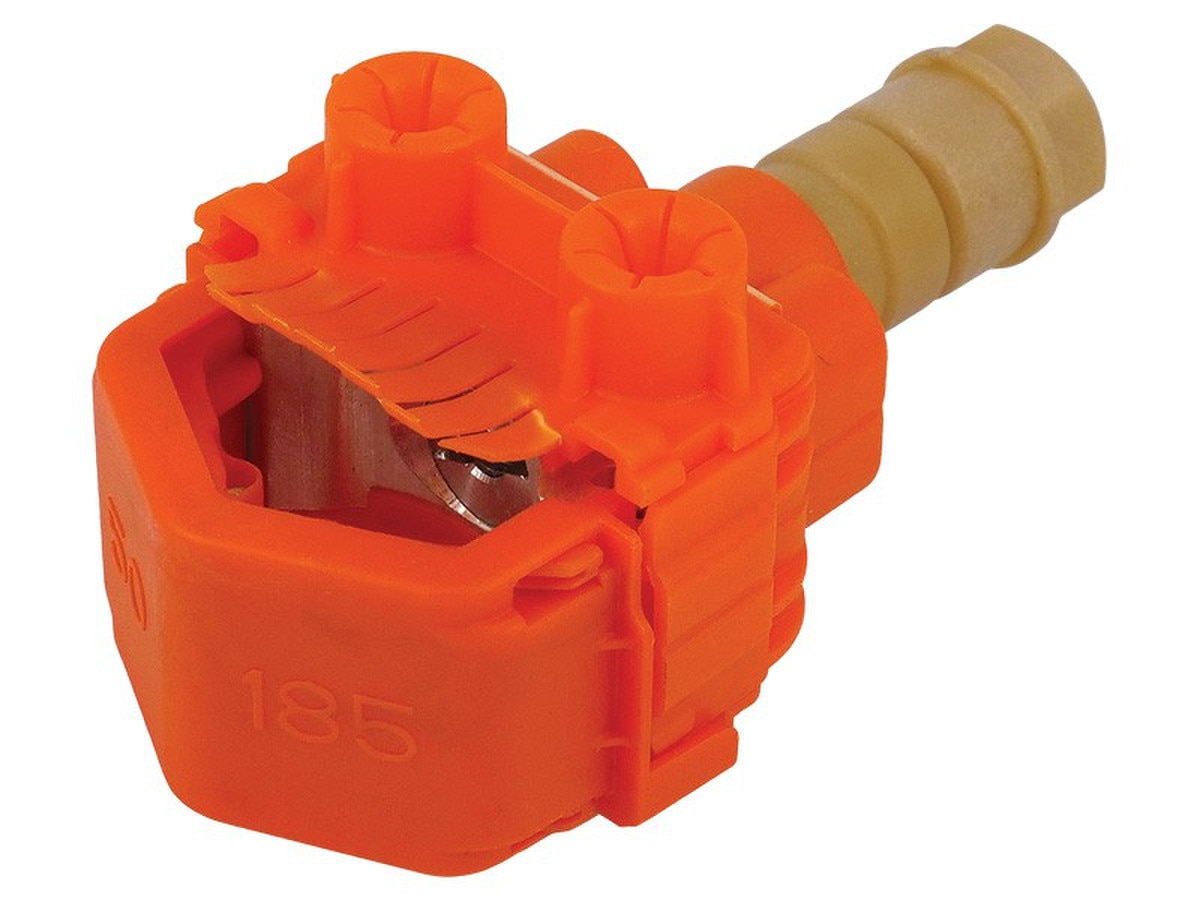

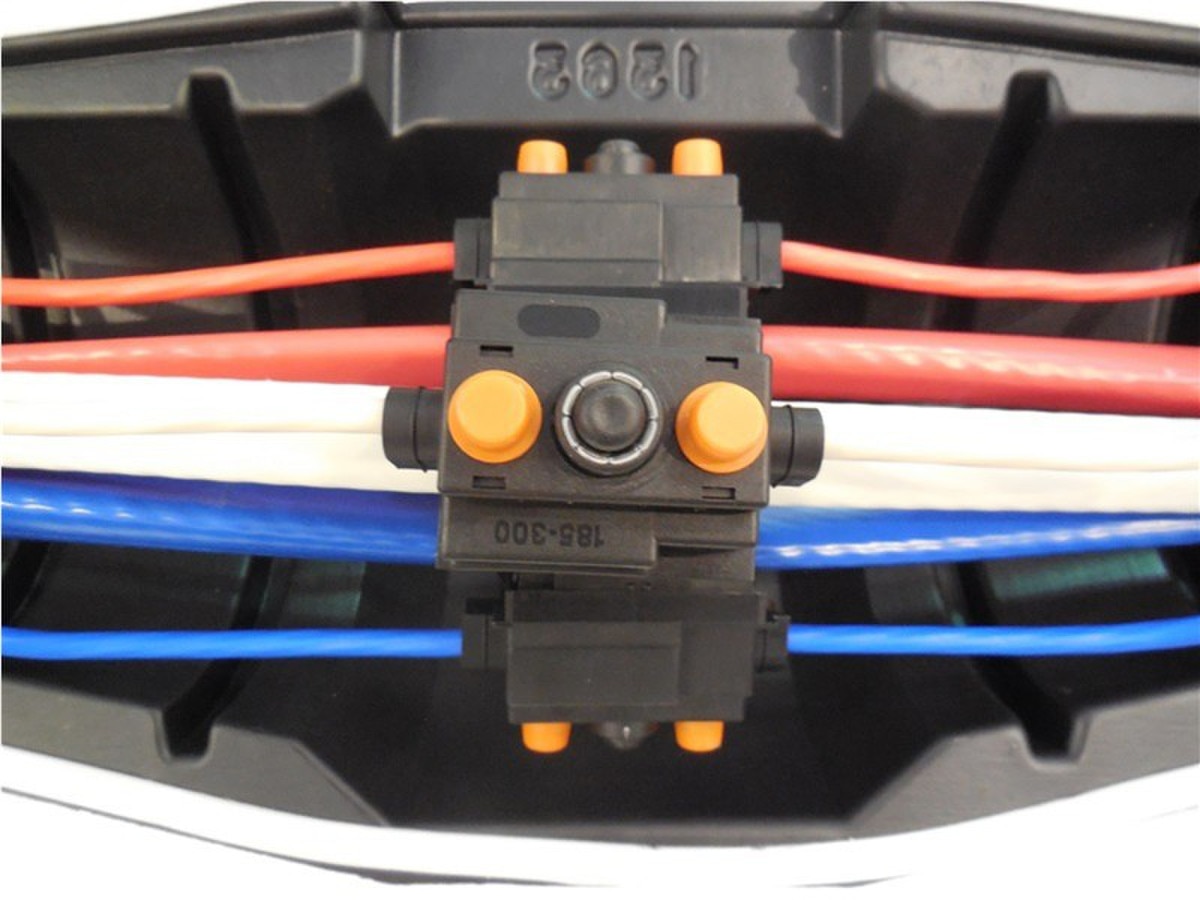

Each phase is connected independently of the others to ensure worker safety. The connectors allow for up to two tails from each phase and feature a fully shrouded connector body to remove the risk of accidental contact. Shear head bolts eliminate the need for torque tools, while IPC guarantees connection integrity when installed according to the manufacturer's instructions. With no exposed live metal parts, these connectors provide safer live working situations.

Back

Downloads


SDS

LVSB Datasheet
Back
LVSB-M1 4 Core XLPE 70-185 10-35
LVSB-M2 4 Core XLPE 185-300 10-35
LVSB-N/S-3 3 Core Neutral Screen 95-300 10-35
LVSB-NS-ANC 4 Core Neutral Screen 10-35 10-35
LVSB-2-CP 4 Core XLPE 70-300 10-70
LVRSB-1C 1 Core XLPE 35-95 4-35
LVRSB-1C-2 1 Core XLPE 70-185 4-50
LVRSB-1C-3 1 Core XLPE 185-300 4-35
LVR/BJ-XL-USB 4 Core XLPE 70-300 4-35
LVRSB-1C-4 1 Core XLPE 400 4-35
LVRSB-1C-IPC 1 Core XLPE 50-95 4-35

Cable Size Range (mm2)

Cat No.

Number of Cores

Cable Type

Main

Tail

Qty

Price
