Low Voltage Switches

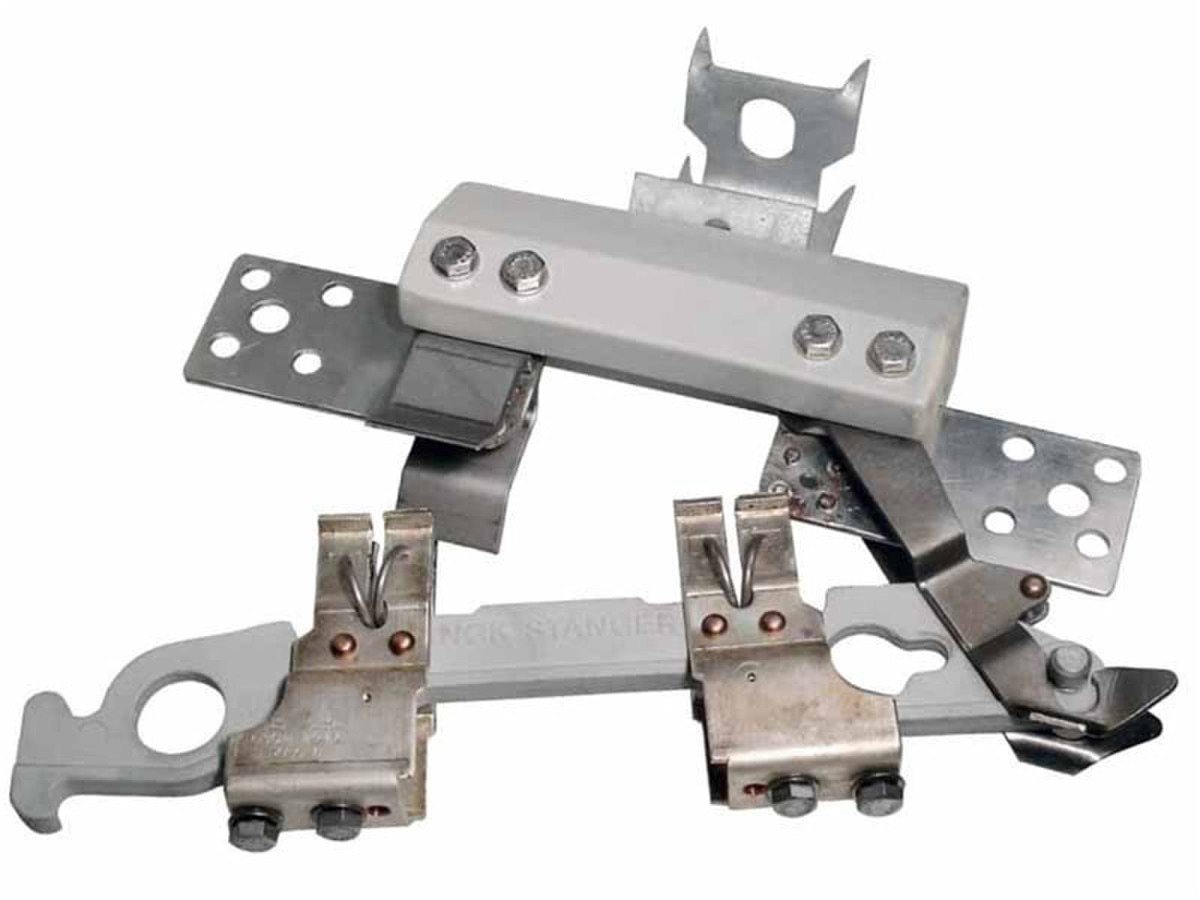

Features - LVI Type
- Non-Porous Porcelain Insulator
- Silver to silver front contacts
- Front contact pressure assured via stainless steel spring
- Hinge Joint – Silver washers with constant pressure 'Belleville' washer
- Multi-purpose terminal palm with various connector kits are available

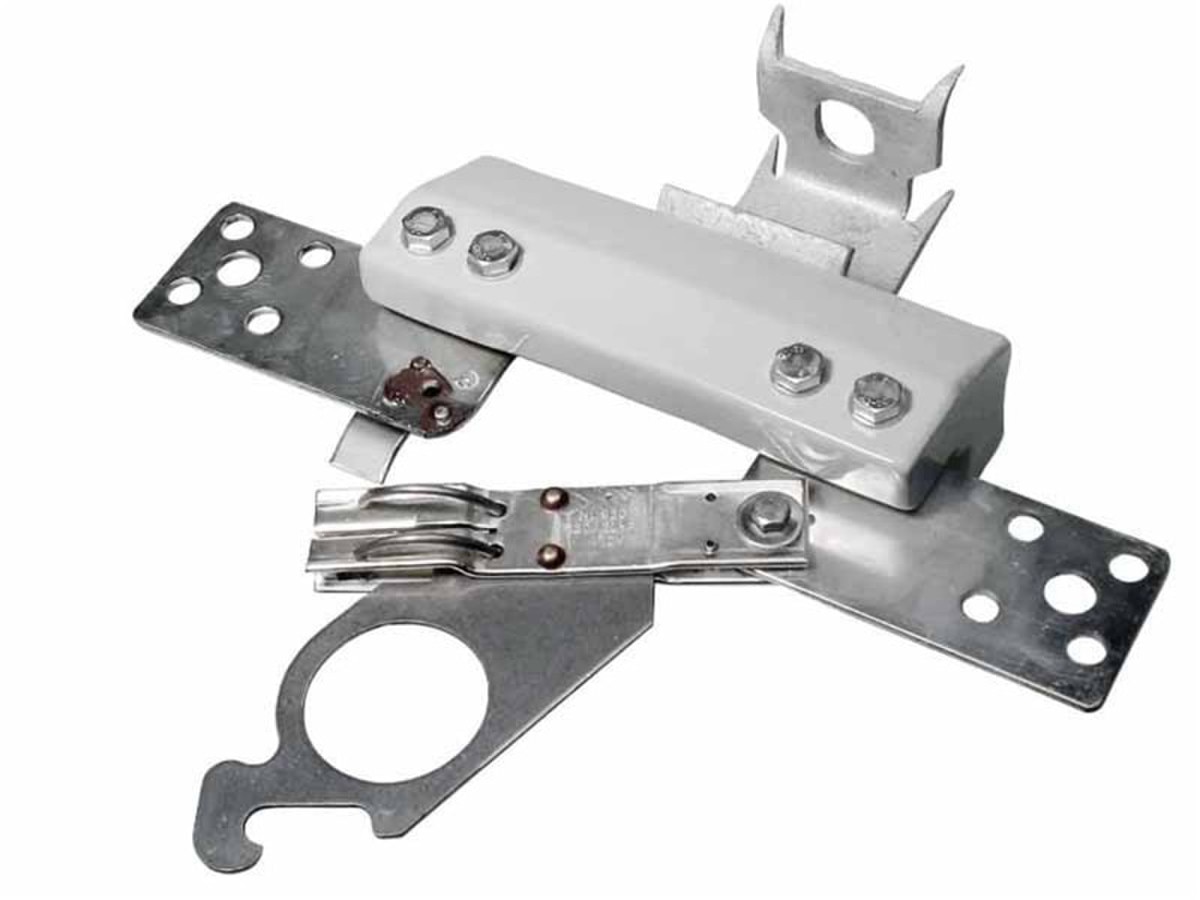

Features - LVFI Type
- Non-Porous Porcelain Insulator
- Silver to silver front contacts
- Front contact pressure assured via stainless steel spring
- Hinge Joint – Silver washers with constant pressure 'Belleville' washer
- Multi-purpose terminal palm with various connector kits are available
Specifications - LVI Type
- Rated Voltage: 480V
- Rated Current: 630A / 800A / 1600A
- Rated Short-Time Current: 20kA
Specifications - LVFI Type
- Rated Voltage: 480V
- Rated Current: 400A / 630A / 800A
- Rated Short-Time Current: 36kA

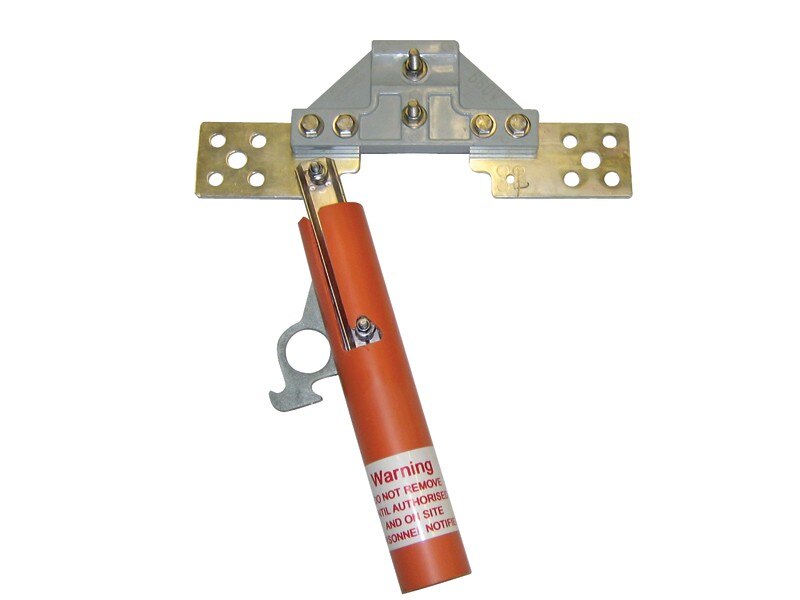

Note: Suitable for use with BS88 in-line tag fuse link cartridges with mounting centre.
Cat No. | Type | Rated Short-time | Rated Voltage | Rated Current | Rated Making | Rated Breaking | Clearance To | Qty | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
