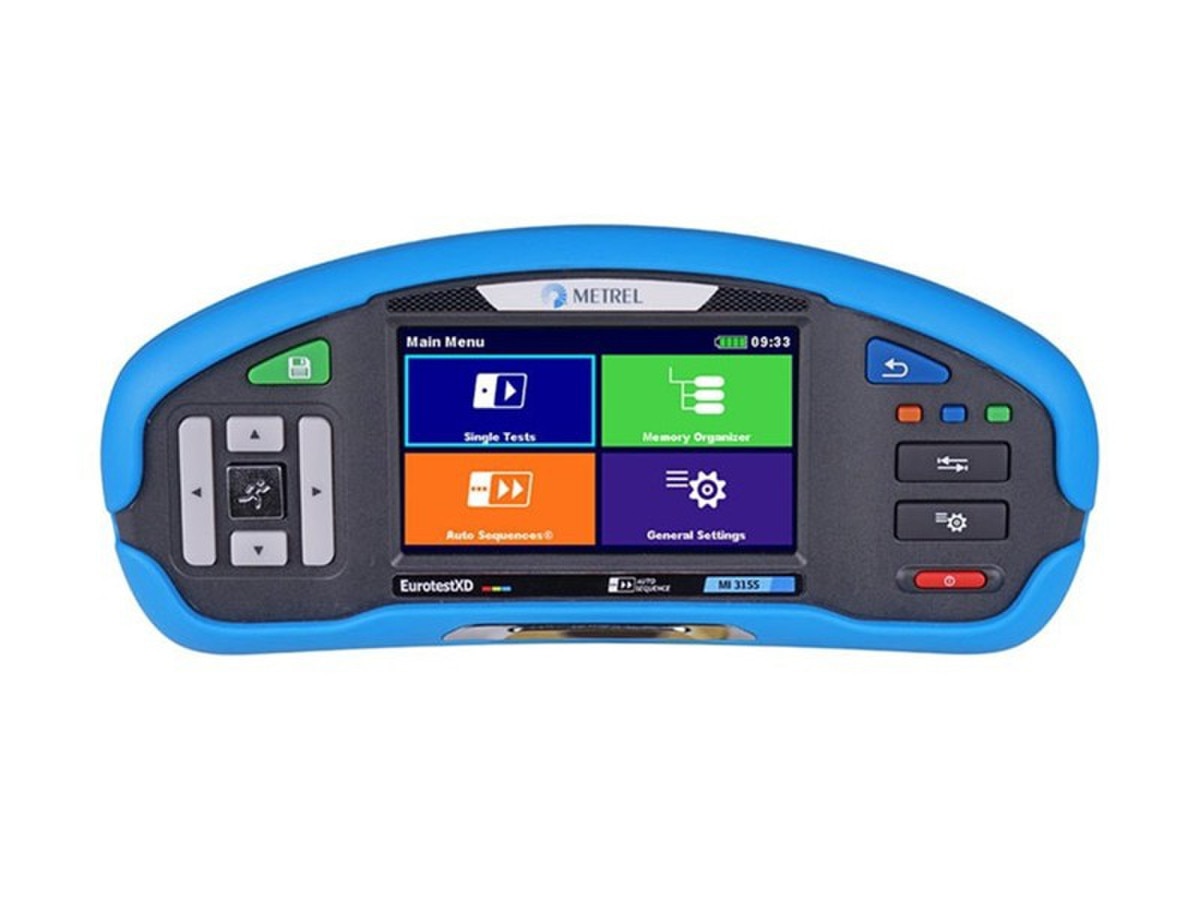

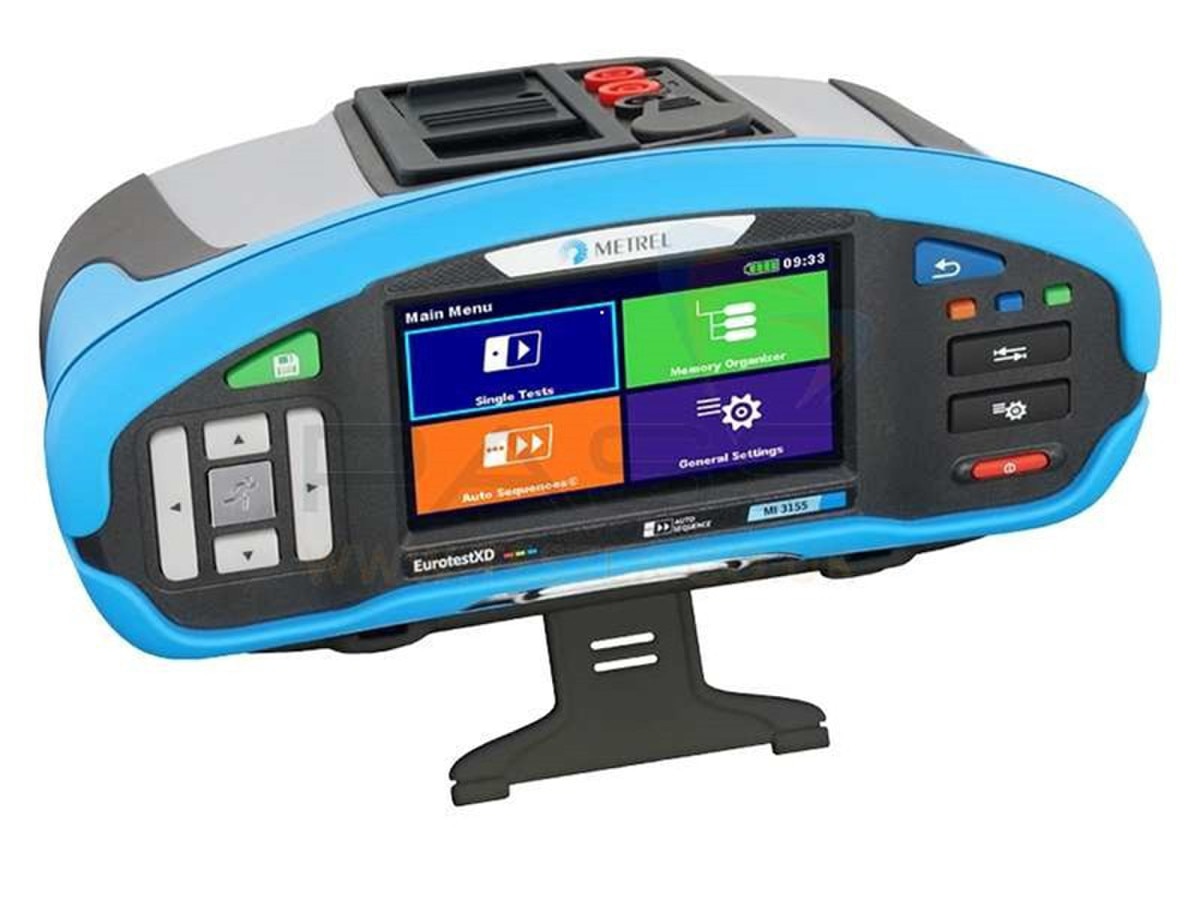

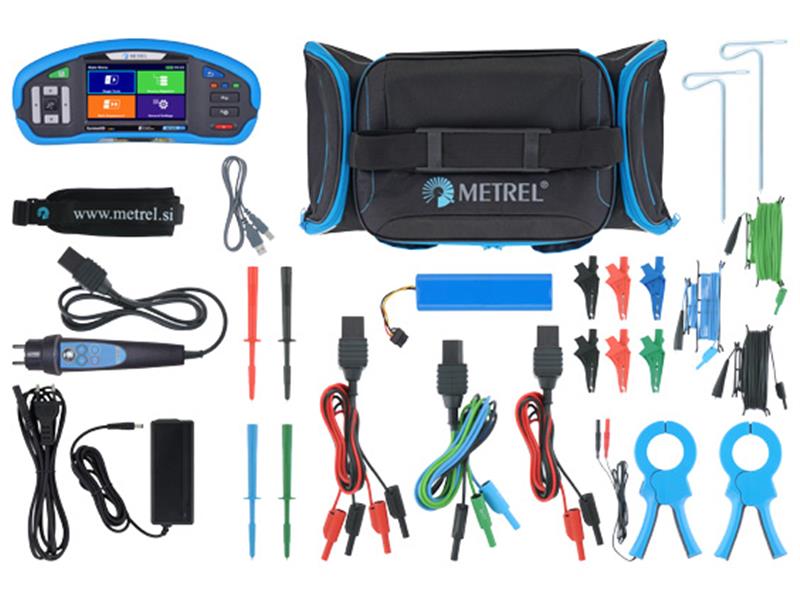

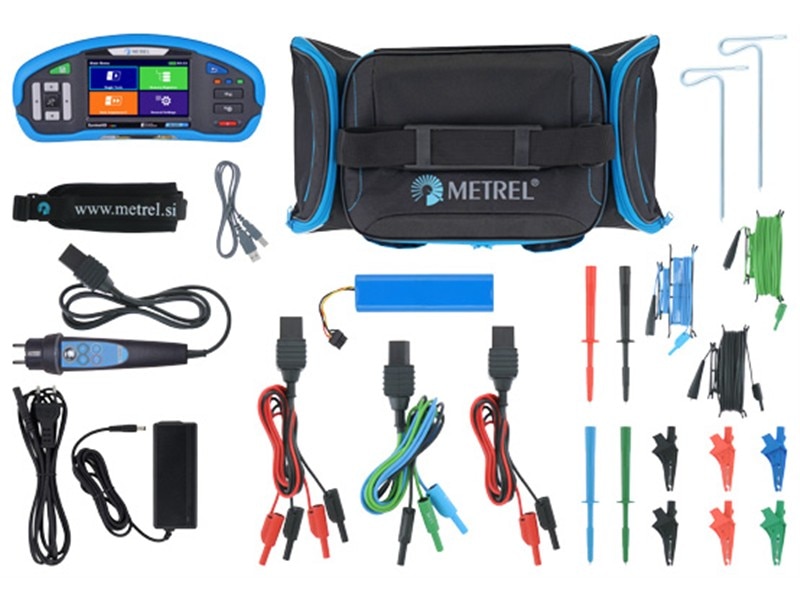

MI3155 Advanced Multifunctional Installation Tester
MI 3155 EurotestXD is the newest flagship of Metrel’s most advanced line of multi-functional measuring instruments and is designed specifically for testing in industry. What differentiates this instrument from the rest is its ergonomic design and an intuitive user interface, encompassing a memory organizer and fully programmable AUTO SEQUENCEs, managed through a large colour touch screen display. It is fully compliant with functionality standards (e.g. IEC/EN 61557) and other reference standards for testing (e.g. IEC/EN/HD 60364-4-41,...) as is required for any instrument that performs TRMS current measurements, RCD tests, line and loop impedance tests with 3 (and 4) wires and earth resistance measurements. Besides those, the instrument supports a wide range of tests and measuring functions, including on-line voltage monitoring, phase sequence testing, varistor testing, PI/DAR calculation, luminance measurement, discharge time testing, ISFL measurements, IMD tests as well as functional and visual inspections.
Features
- Programmable AUTO SEQUENCEs
- Predefined profile dependent AUTO SEQUENCEs
- Predefined Automatic tests:
- Auto TT (U, Zln, Zs, Uc)
- Auto TN/RCD (U, Zln, Zs, Rpe)
- Auto TN (U, Zln, Zlpe, Rpe)
- Auto IT (U, Zln, Isc, Isfl, IMD)
- Functional inspections
- Visual inspections
- Custom inspections (visual and functional) which may be incorporated into AUTO SEQUENCEs
- EVSE AUTO SEQUENCEs and function inspections
- Machine functional and visual inspections
- Built-in help screens for referencing on site
- Built-in fuse tables for automatic evaluation of the line / loop impedance result
- Monitoring of all 3 voltages in real-time
- Automatic polarity reversal on continuity test
- Automated RCD testing procedure (RCD AUTO)
- Automated Impedance testing procedure (Z AUTO)
- Measurement filtering according to the selected area group

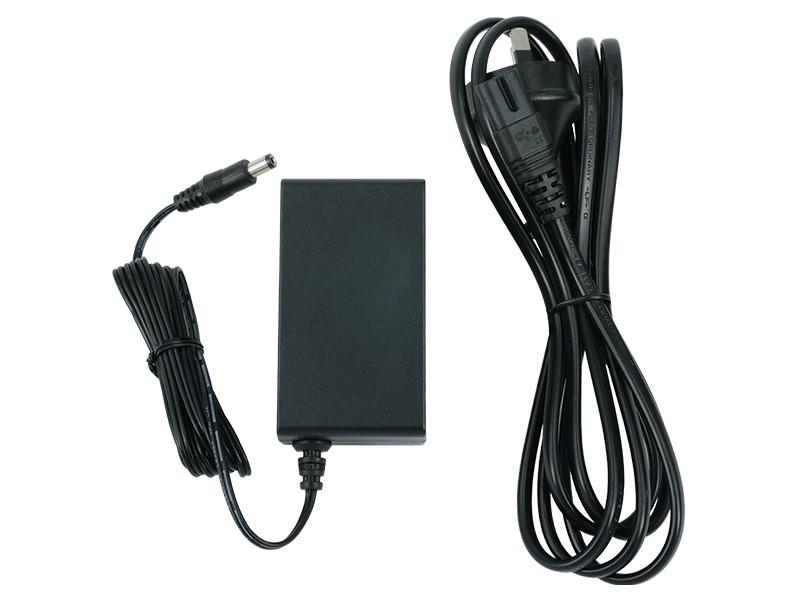

- Built-in charger and rechargeable batteries as standard accessory
- BT communication with PC, Android tablets and smart phones via built-in BT
- PC SW Metrel ES Manager (structure and report creation, data upload/download) *
- Optional aMESM Android APP (structure and report creation, data upload/download) **
* Available with MESM PRO licence
** Available with EU Set
Measuring Functions
- Live Transformer’s Impedance Measurement with Four Wire Test
- Hi-precision Short Circuit Current evaluation with Calculated Hot factor
- 3-wire test of PE (RPE function) without extension lead conductor
- Autotest insulation function between L-N, N-PE and L-PE (R ISO ALL function)
- 4 wire continuity test
- Insulation resistance with DC voltage from 50 V to 2500 V and PI, DAR calculation
- Varistor test
- Continuity of PE conductors with 200 mA DC test current with polarity change
- Continuity of PE conductors with 7 mA test current without RCD tripping
- 2-wire and 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function
- Earth Loop Impedance testing without tripping 6 mA RDC-DD in EV charger
- Touch voltage / Contact voltage measurement with external P/S probe
- 2-wire and 3-wire line impedance (L-L, L-N) measurement
- 1-phase / 3-phase TRMS voltage and frequency measurements
- Line, loop and RCD measurements at frequency range 16 ... 400 Hz
- Phase sequence
- Power and THD measurement (up to the 12th harmonic)
- RCD testing (general and selective, type AC, A, F, B, B+, MI RCD, 6mA DC EV RCD, PRCD, PRCD-K, PRCD-S)
- Earth resistance (3-wire and 2-clamps method)
- Specific earth resistance with Ro-adapter (option)
- TRMS leakage and load currents (option)
- First fault leakage current (ISFL)
- Testing of Insulation Monitoring Devices (IMDs)
- Machine mode support with time discharge
- Illumination (option)
- High resolution Loop impedance (mΩ) (option)
- EVSE (Electrical Vehicle Supply Equipment) support (option)
- Determining location of cables (option)
- QR and/or barcode scanner support (option)
Software
- PC SW Metrel ES Manager (structure and report creation, data upload/download)
- Optional aMESM Android APP (structure and report creation, data upload/download)
