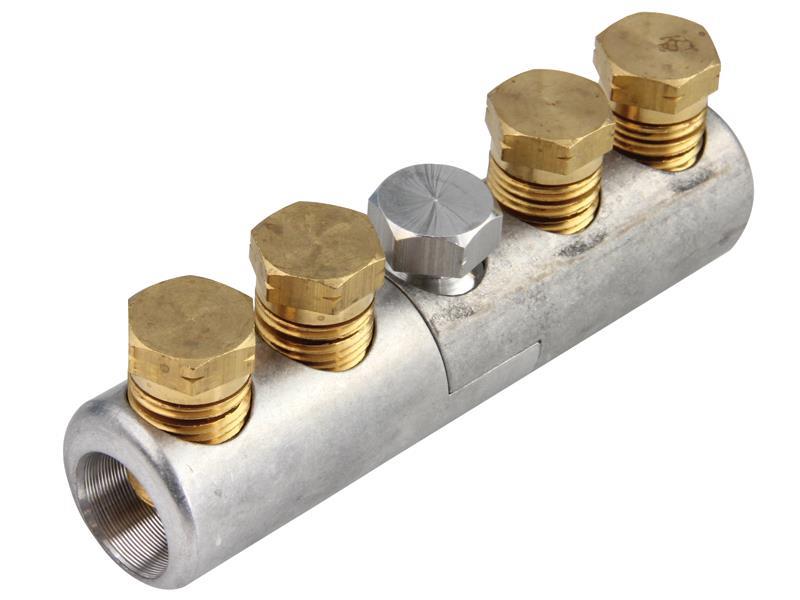

MSFE - LV Straight Joint Connector, 2pce

These connectors have an aluminium alloy body with brass range taking bolts. Intended primarily for use on stranded aluminium conductors, but may also be used to joint solid aluminium or stranded copper conductors. The bolts require 18mm A/F socket or spanner.

These connectors are designed for joints where overall diameter or connector profile are critical considerations. They are designed to meet BS4579 Part 1 & 3 and engineering recommendation C79.

Features

• Split design: Connectors can be assembled without bending the conductors.
• V interface: Ensures alignment and reduces connector resistance.
• Range taking bolt: Eliminates the need for various bolt lengths to suit conductor sizes.
• Solid moisture: Avoids moisture migration.
• Smooth profile: Prevents damage to insulation or sealing sleeves.
• Versatile: Accommodates transitions between conductor types and sizes.
