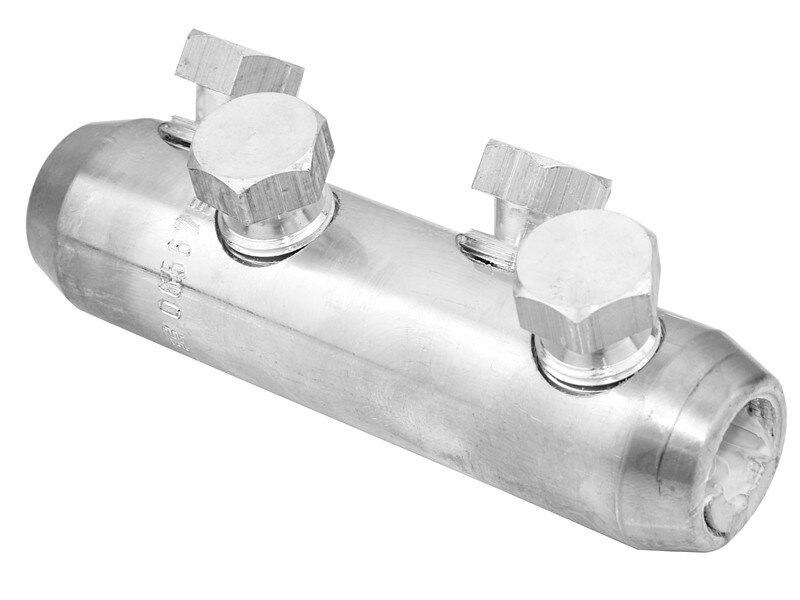

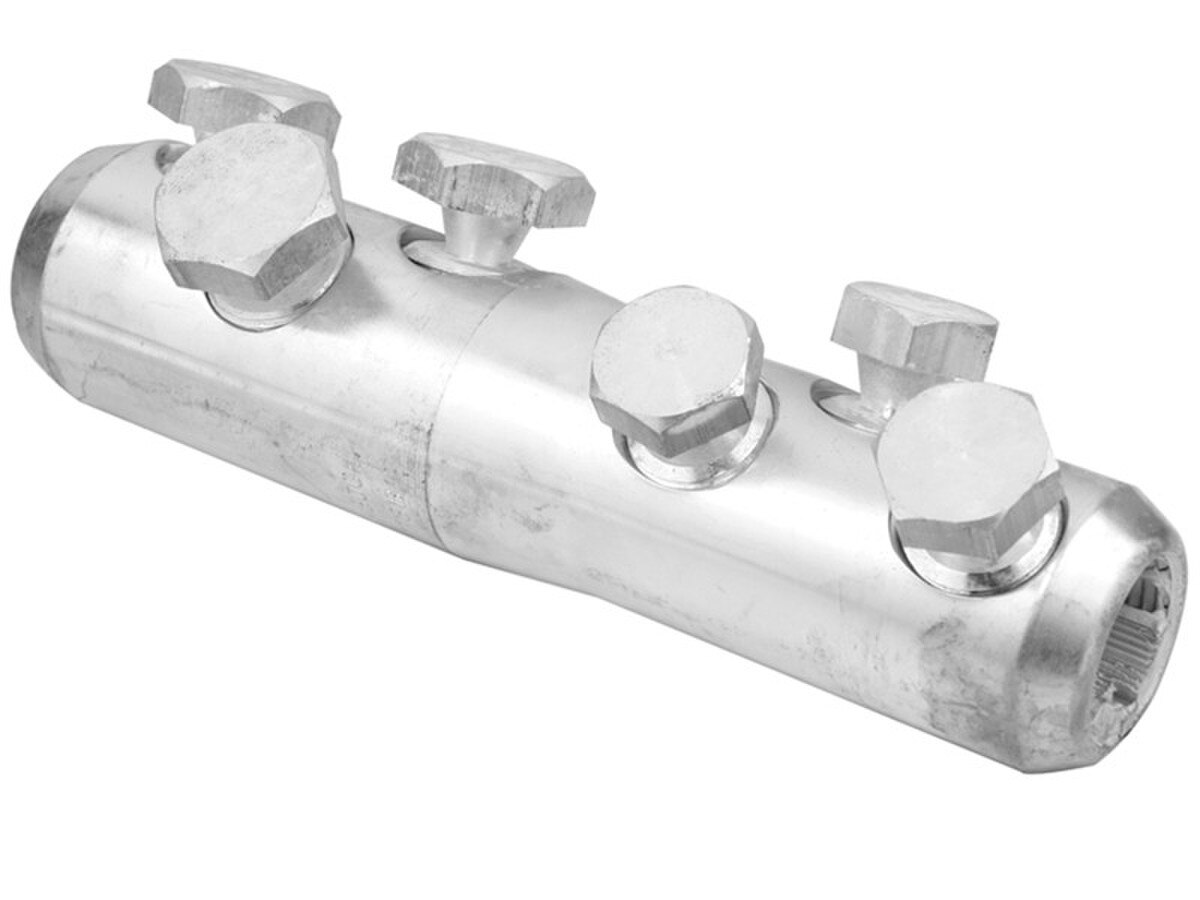

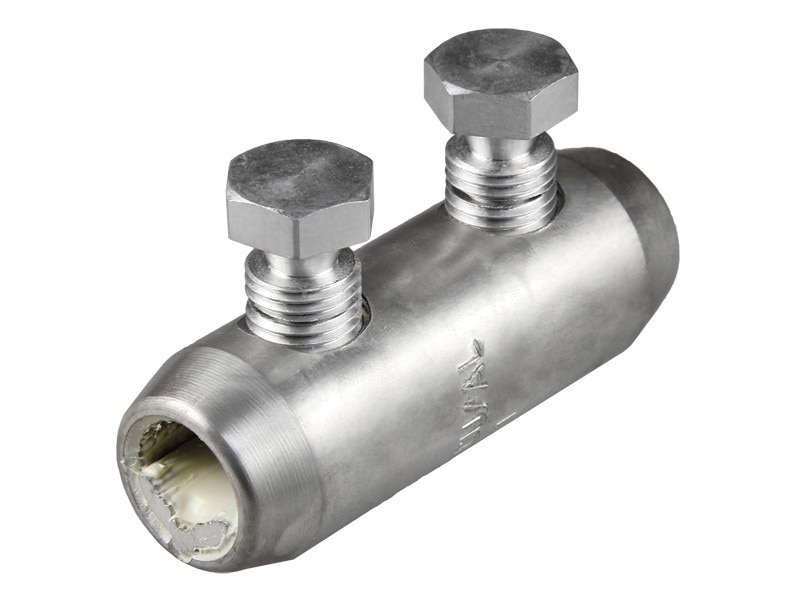

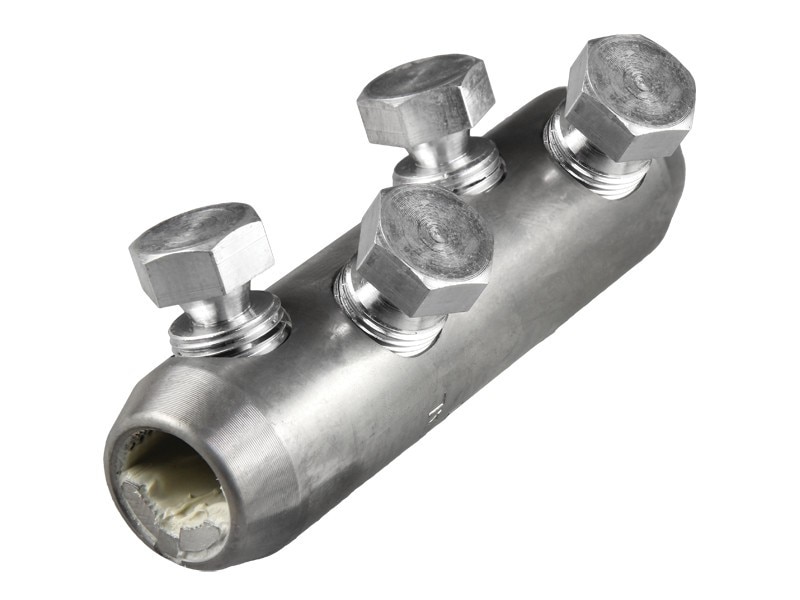

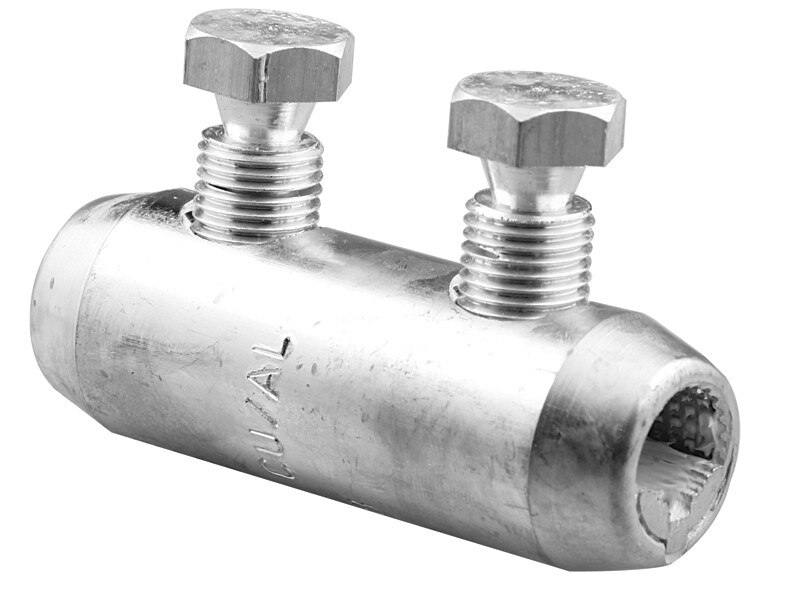

Mechanical Connectors for Applications up to 36kV

(0)No Reviews yet

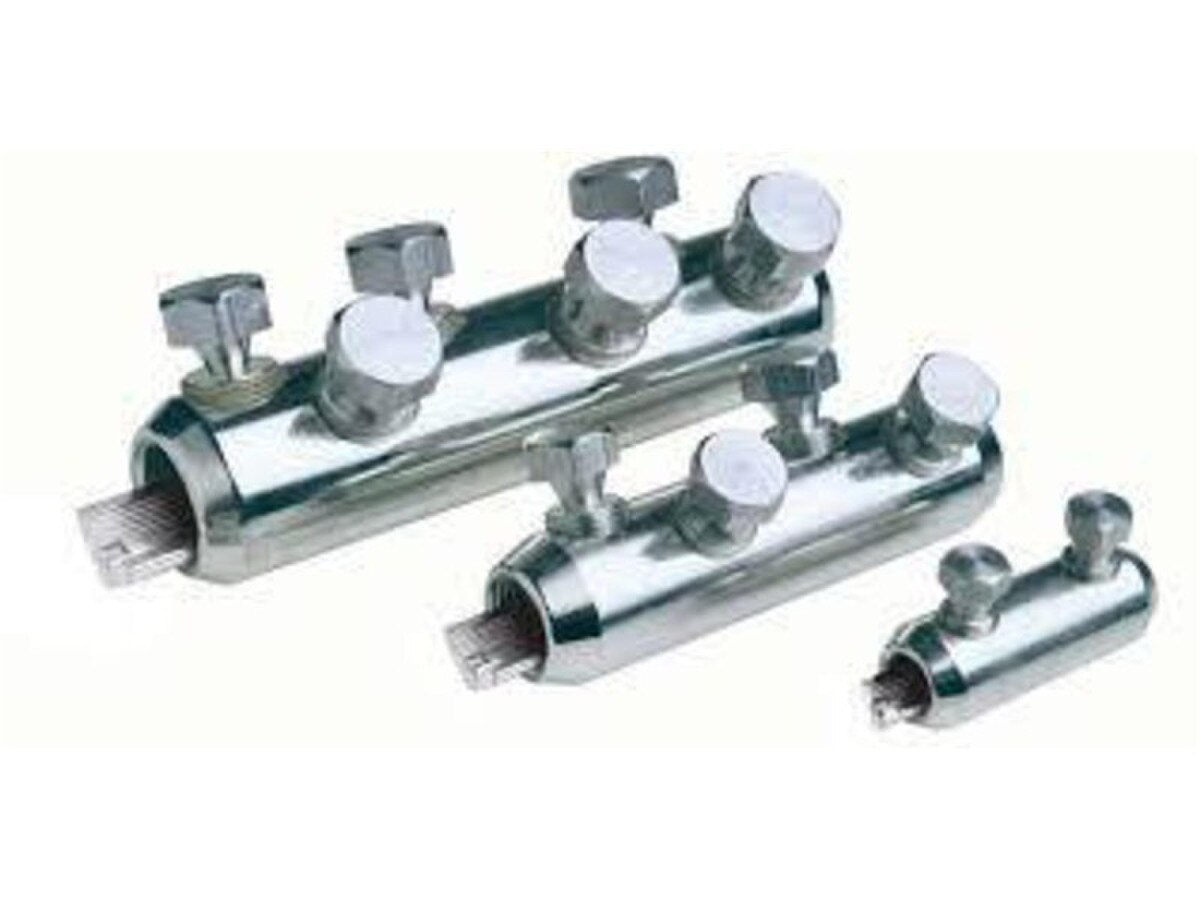

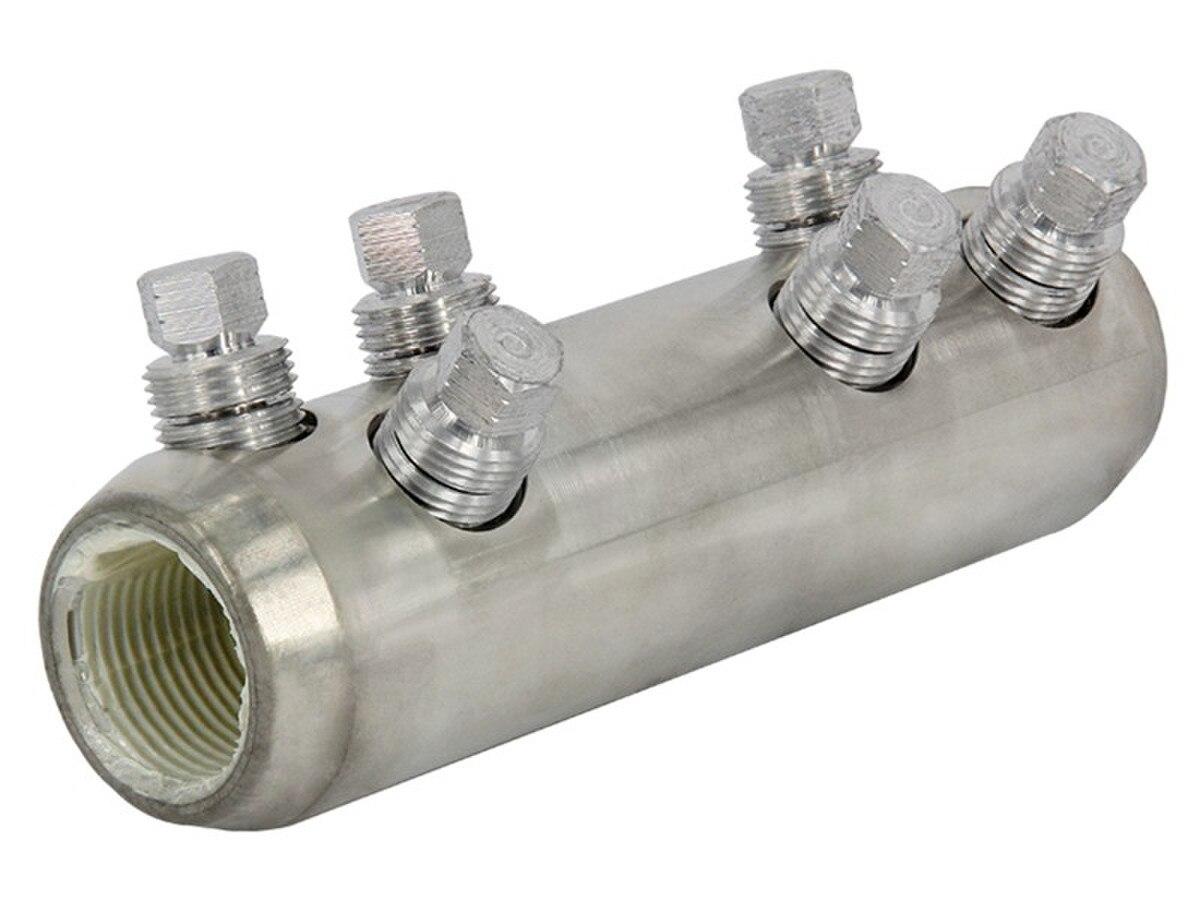

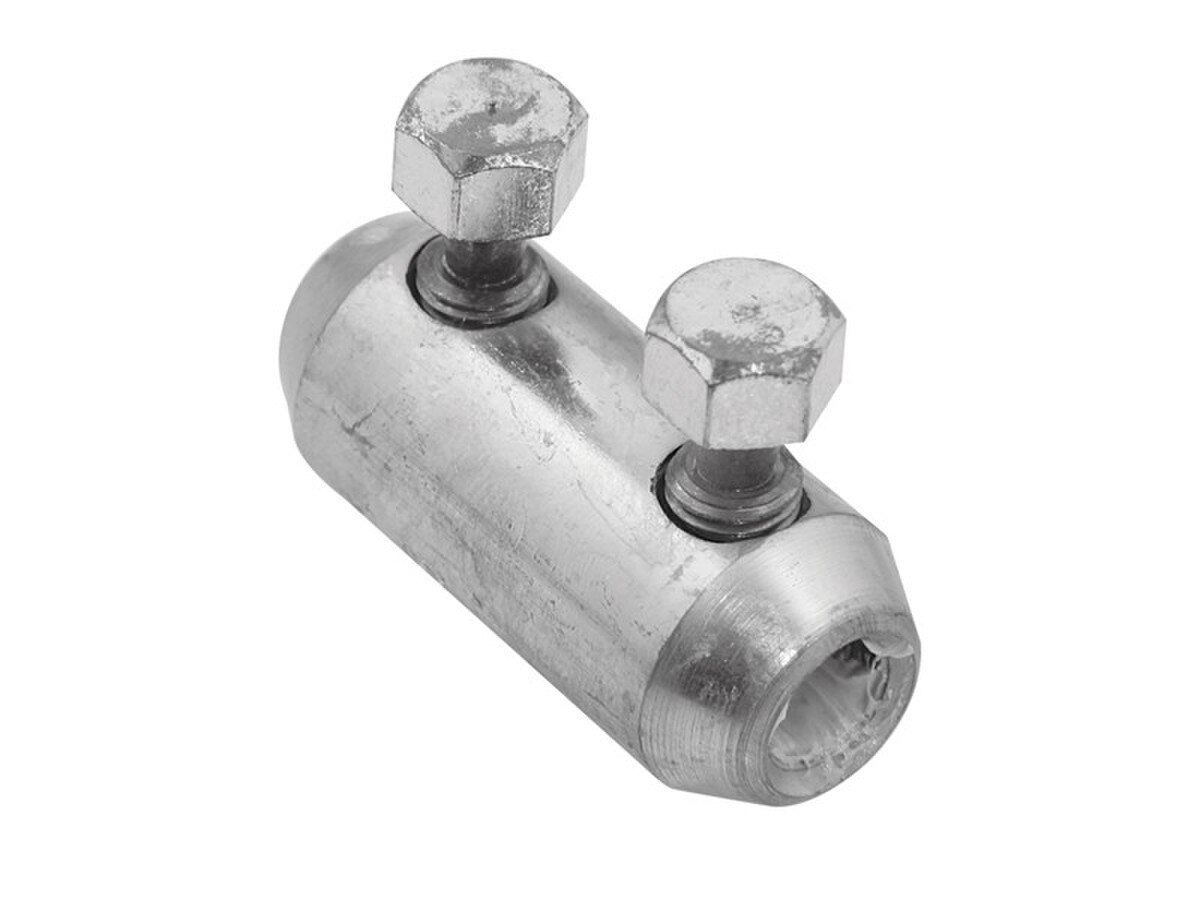

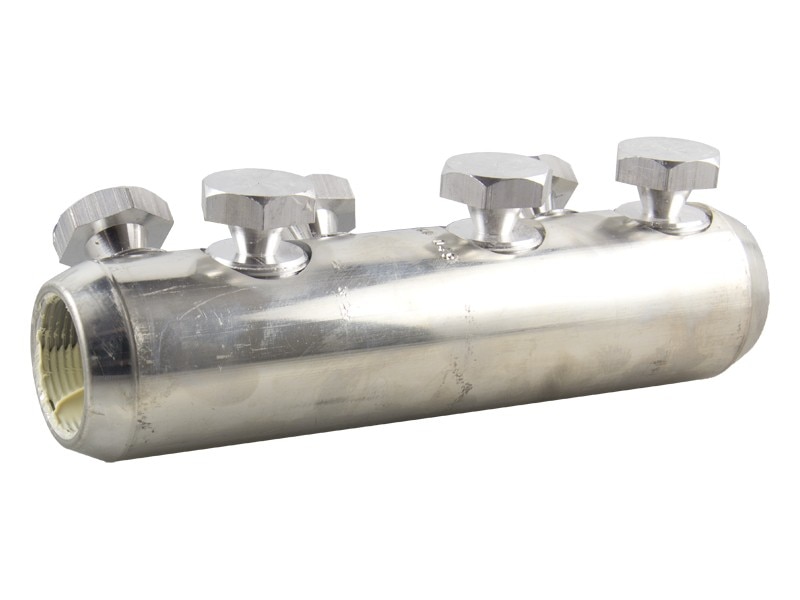

These connectors are designed for use on Al or Cu conductors and are suitable for applications up to 36kV.

Wide application range
Shear head bolts with predetermined shear torque
Connector bodies are made of high-tensile, tin-plated Aluminium alloy and bolts from special Aluminium alloy
Centered hole and inserts

		AL Circular Stranded	AL Circular Solid	AL Sector Stranded	AL Sector Solid	CU Circular Stranded	CU Circular Solid	CU Sector Stranded
BSMB-10/35	mm² mm² mm	10-35 - 3.7-7.5	10-50 - 3.4-7.8	10-25 35* -	10-35 - -	10-35 - 3.7-7.5	10-35 - 3.4-6.7	10-25 35* -
BSMB-25/95	mm² mm² mm	25-95 - 5.7-12.5	25-95 - 5.5-11	25-70 95* -		16-95 - 4.8-12.5	10-50 - 3.6-8	25-70 95* -
BSMB-35/150	mm² mm² mm	35-150 - 6.8-15	35-150 - 6.5-14	50-95 120-150* -	50-120 - -	35-150 - 6.6-15		50-95 120-150* -
BSMB-95/240	mm² mm² mm	95-240 - 11-19.2	95-240 - 10.5-18	95-150 185-240* -	95-150 185(90°) -	95-240 - 11-19.2		95-150 185-240* -
BSMB-120/300	mm² mm² mm	120-300 - 12.7-23.1	150-300 - 12.9-19.8	120-185 240-300* -	120-240 - -	120-300 - 12.7-22.6		120-185 240-300* -

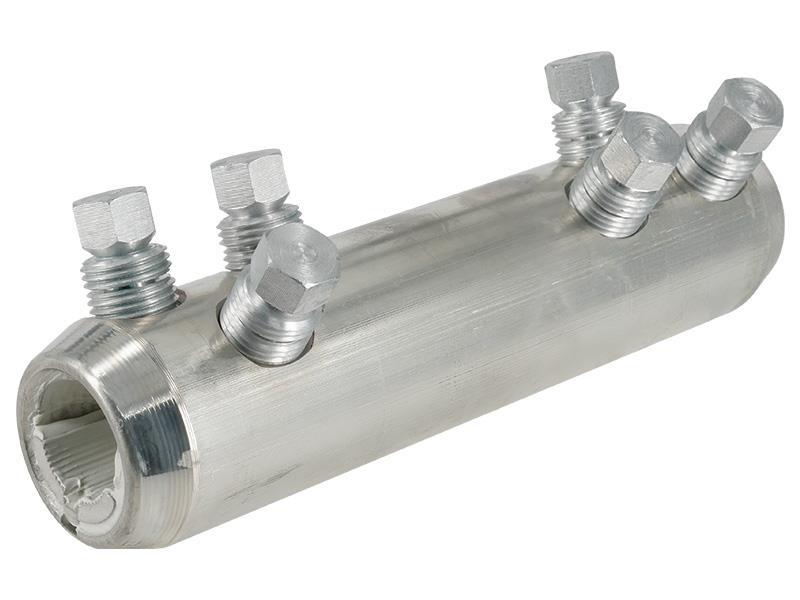

BSMB-150/400	mm² mm² mm	150-400 - 12.7-23.1	150-400 - 12.9-22.2	150-240 - -	185-300 300(90°) -	150-400 - 13.7-24.6		240-300 (Class 5) 19-21 (240) 23.5-25 (300)
BSMB-185/400	mm² mm² mm	185-400 - 25.3-28.9	185-400 - 24-25.1	185-240 300-400* -	185-240 300(90°) -	185-400 - 25.3-28.6		185-240 300-400* -

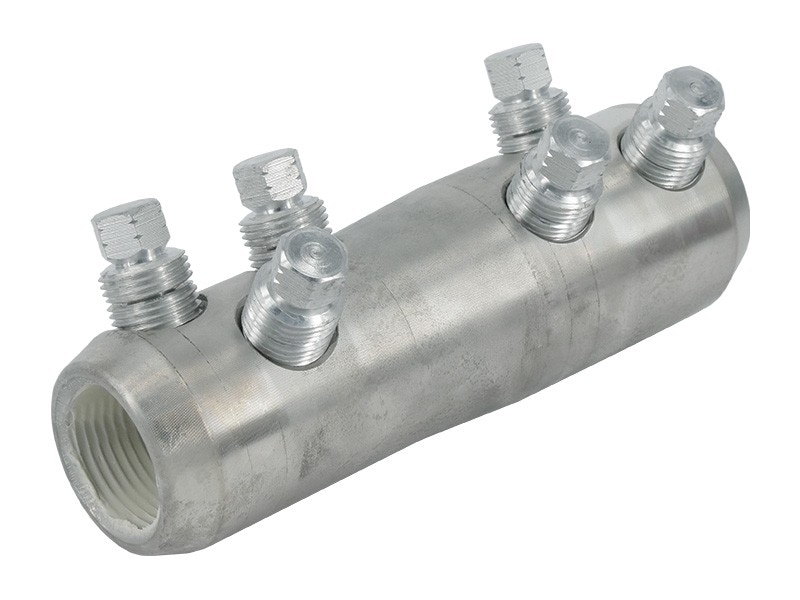

BSMB-500-MK2	mm² mm	500 25.3-28.9	500 24-25.1			500 25.3-28.6

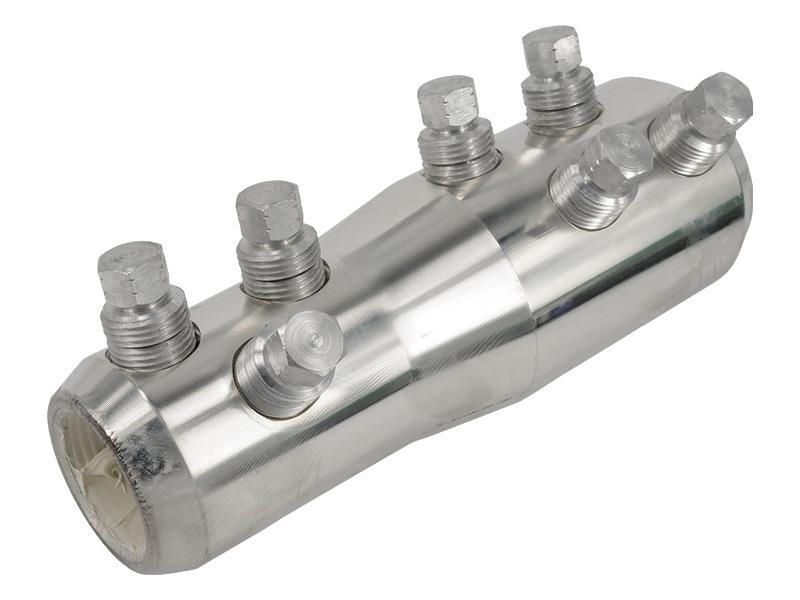

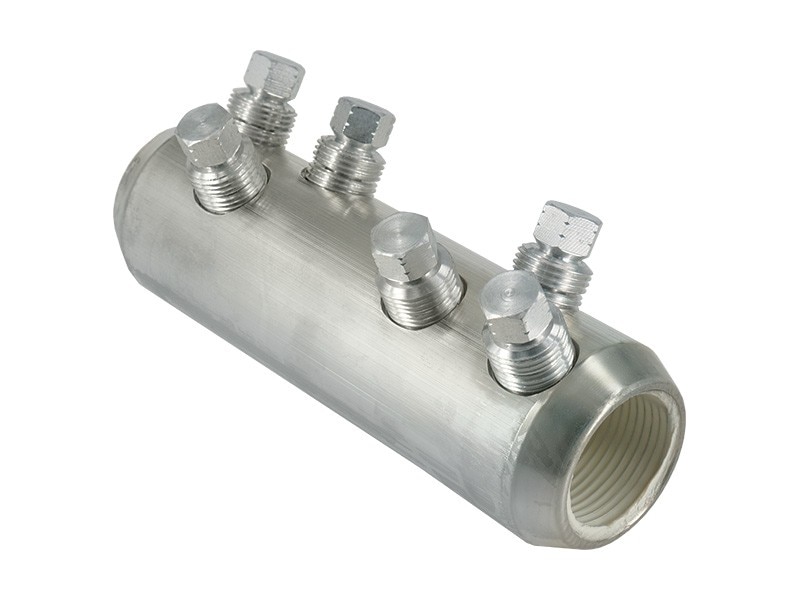

BSMB-630-MK2	mm² mm	630 28.7-32.5	630 27.3-28.4			630 28.7-32.5
BSMB-800-MK2	mm² mm	800 32.5-35.3	800 30.9-32.1			800 32.5-35.3
BSMB-1000-MK2	mm² mm	1000 37-39.3	1000 34.8-36			1000 37-39.5
