Mechanical Lugs Centre Palm for Applications up to 36kV

(0)No Reviews yet

These lugs are designed for use with Aluminium or Copper conductors for switchgear installations. They are suitable for applications up to 36kV.

Designed for switchgear applications
Shear head bolts with predetermined shear torque
Lug bodies are made of high-tensile, tin-plated Aluminium alloy and bolts from special Aluminium alloy
Centered hole and inserts
Centralised palm

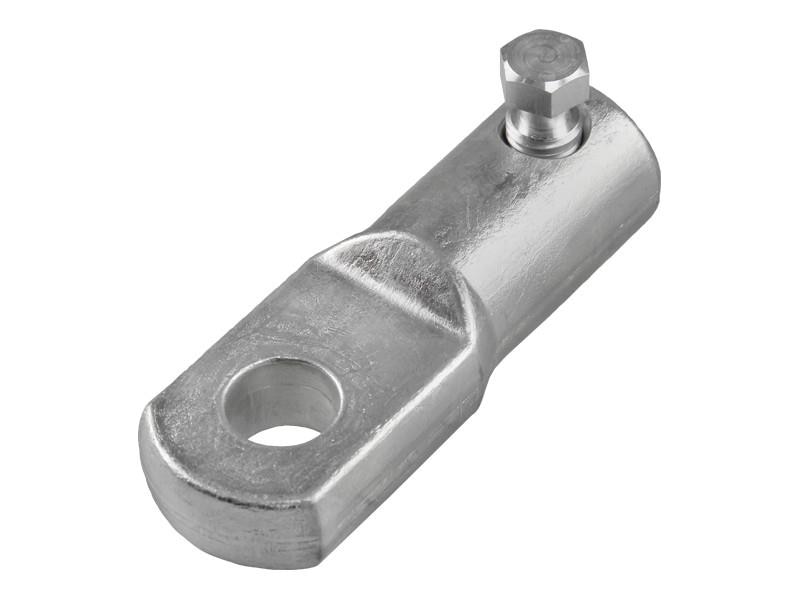

BLMC-25/95-16-800A 25-95 16 77.5 30 29 12.8 1 13

Quantity

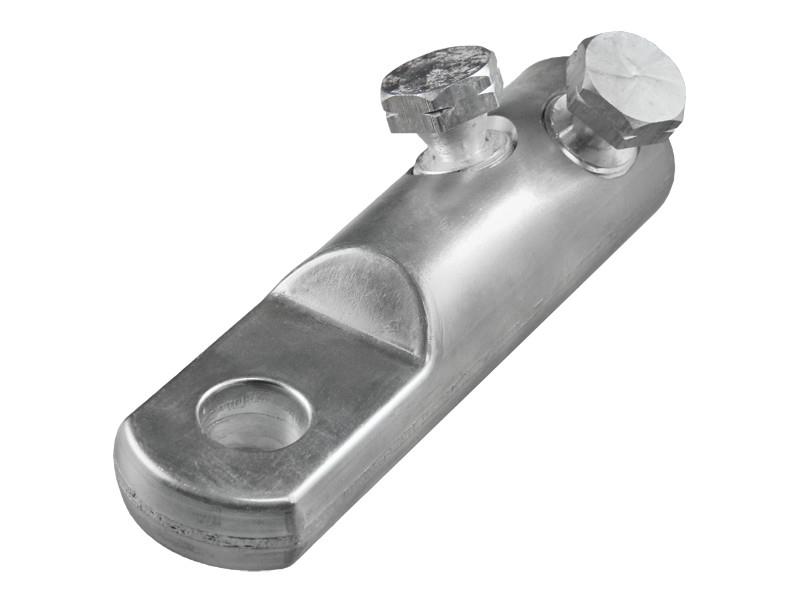

BLMC-95/240-16-800A 95-240 16 107.5 60 34.5 19.5 2 19

Quantity

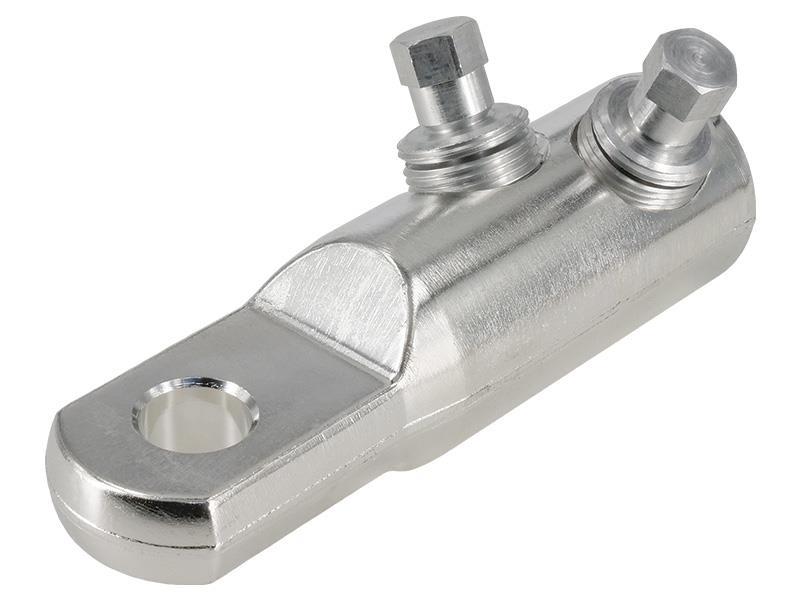

BLMC-150/300-16-800A 150-300 16 112.5 65 38 24 2 13

Quantity

BLMC-150/400-16-1250 150-400 16 155 100 50 26 3 13

Quantity

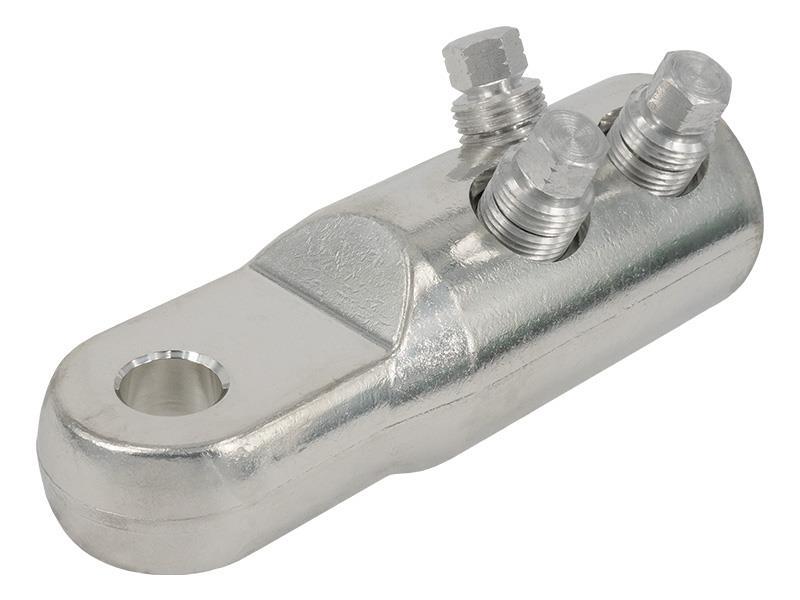

BLMC-240/400-16-800A 240-400 16 112.5 75 38 25.5 3 22

Quantity

BLMC-500/630-16-1250 500-630 16 155 100 50 33 3 27

Quantity

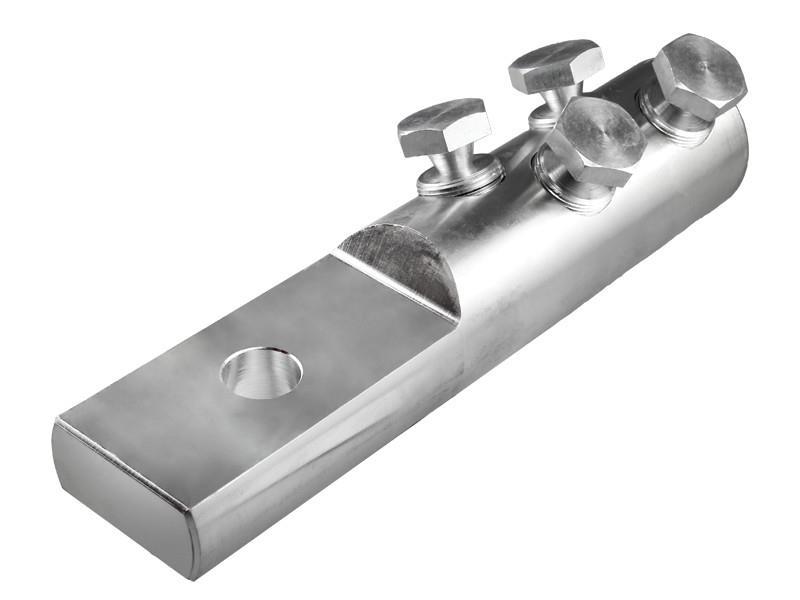

BLMC-800-16-1250A 800 16 185 130 56 36 4 27

Quantity

BLMC-800-21 800 21 185 130 56 36 4 27

Quantity

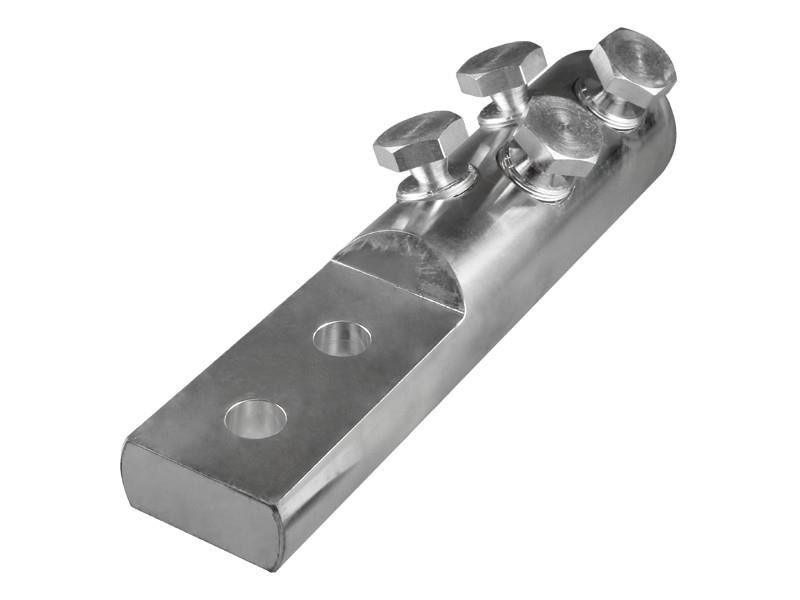

BLMC-800-2X17 800 2 x 17 180 (to first hole) 130 56 36 4 27

Quantity

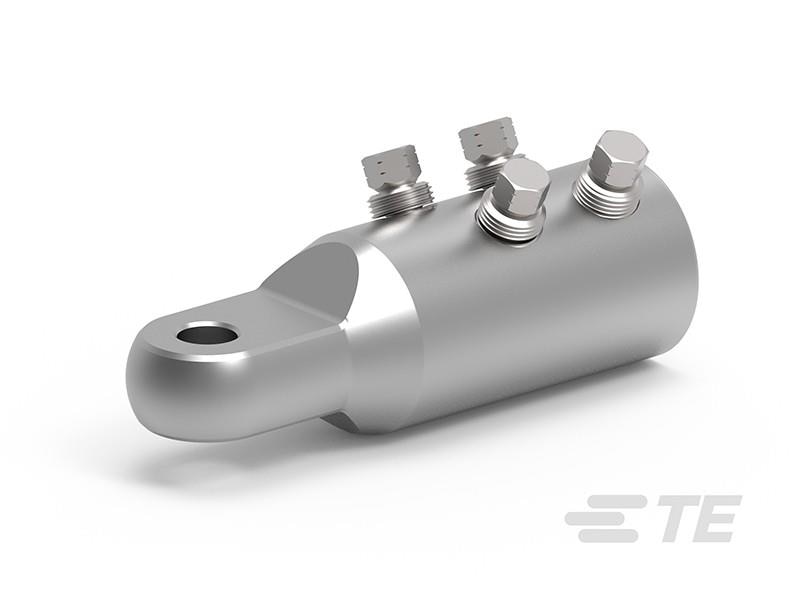

BLMC-1000-16-1250A 1000 16 150 86 56 4 4 13

Quantity

				Dimensions (mm)				Contact Bolts
	Cat No.	Application Range (mm²	Stud Size LB	L1	L2	D1	D2	Quantity	Head Size AF (mm)	Qty	Price
