Mechanical Reducing Connectors up to 36kV

(0)No Reviews yet

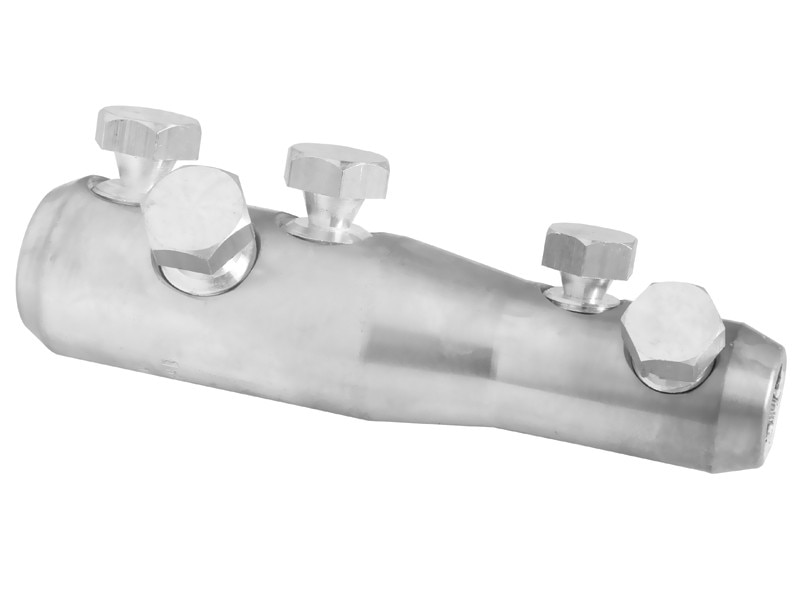

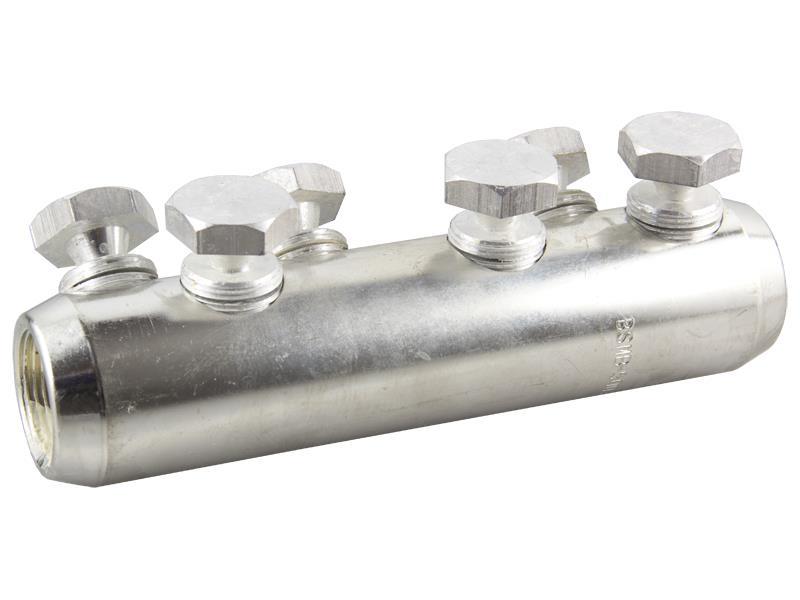

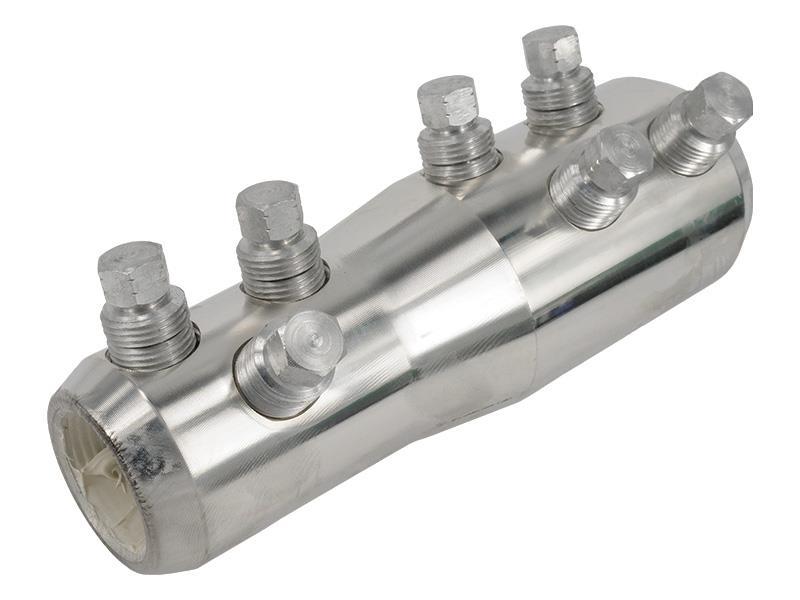

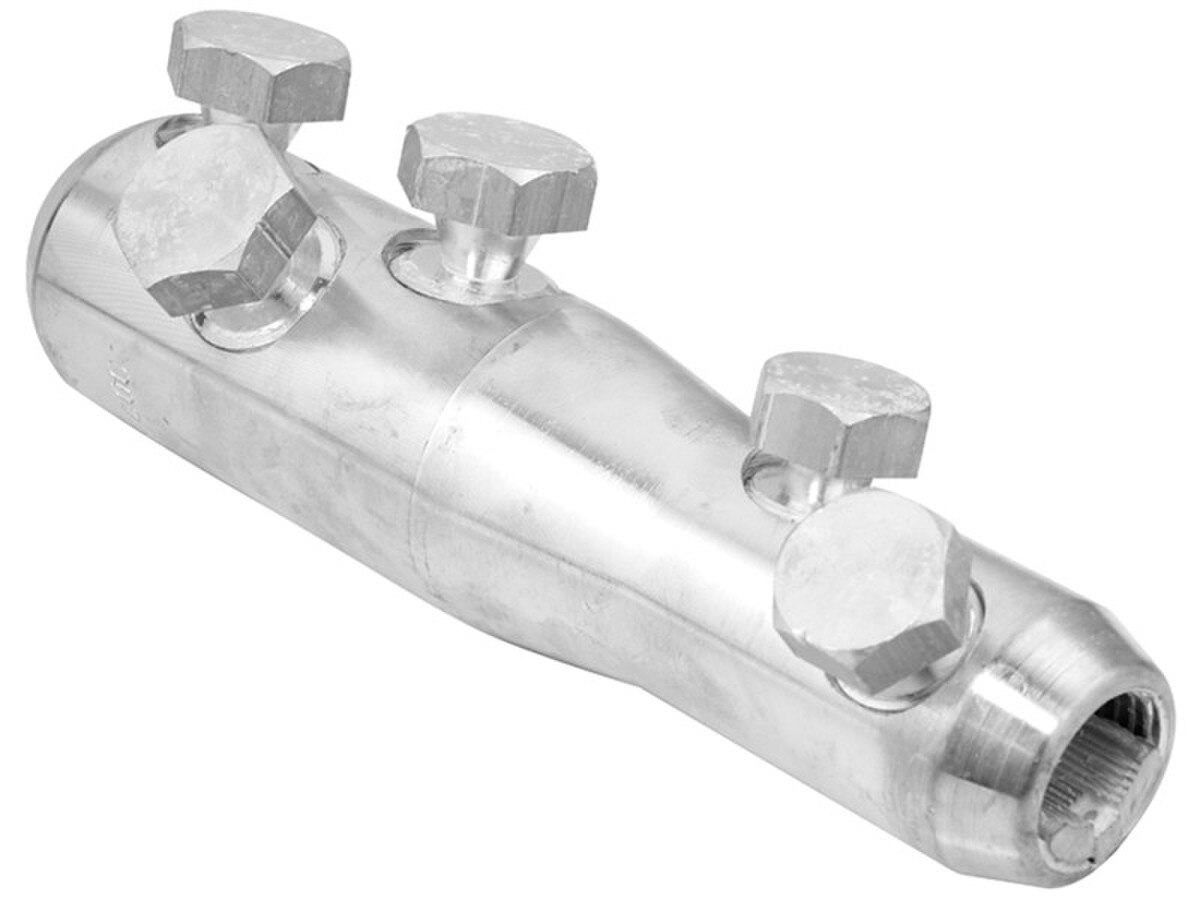

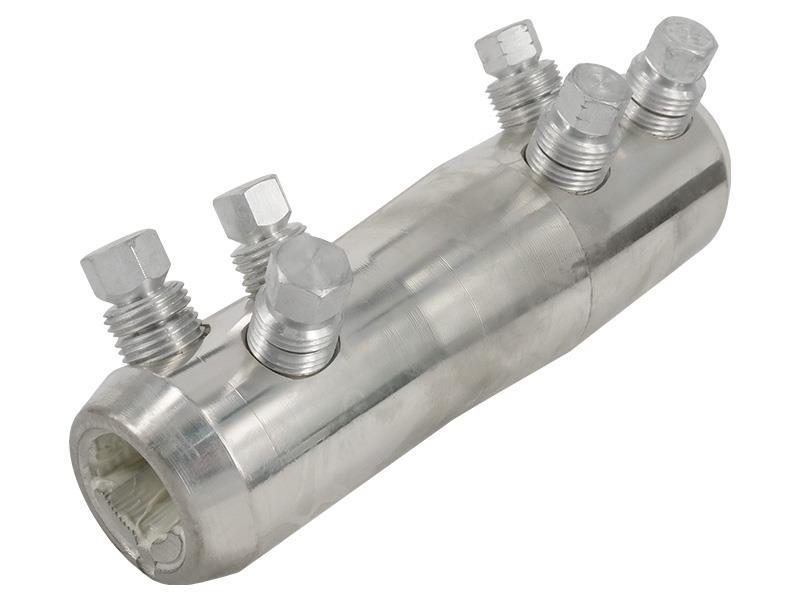

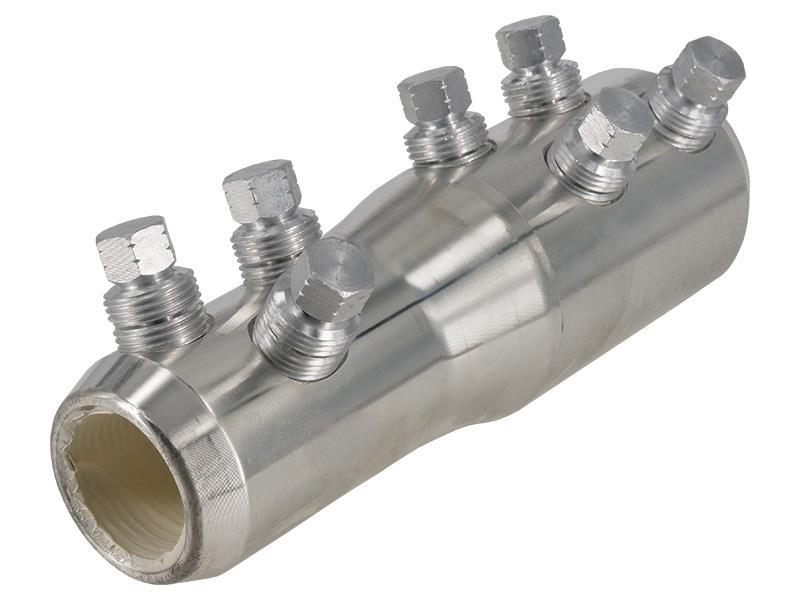

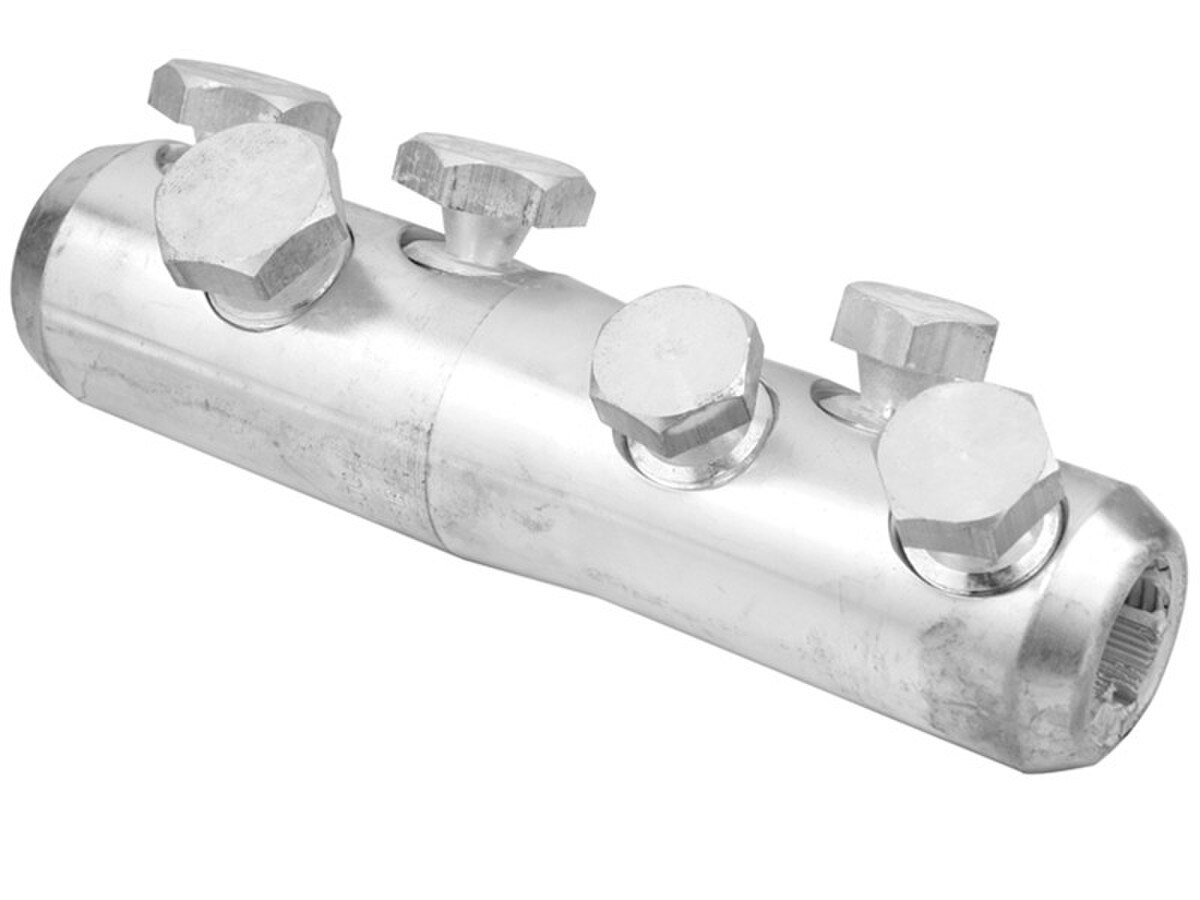

This product is designed for use on both Aluminium (Al) and Copper (Cu) conductors and is suitable for applications up to 36kV. It features a wide application range and includes shearhead bolts with predetermined shear torque for reliable connections. The centred hole and inserts ensure precise alignment, while the blocked connector prevents moisture tracking, enhancing durability and performance.

Back

Selection and Application Table

CAT NO.		AL ROUND STRANDED	AL ROUND SOLID	AL SECTOR STRANDED	AL SECTOR SOLID	CU ROUND STRANDED	CU ROUND SOLID	CU SECTOR STRANDED
BSMB-25/95-95/240 (25-95mm² SIDE)	mm² mm² -	25-95 5.7-12.5 -	25-95 5.5-11 -	25-70 95* -		16-95 4.8-12.5 -	10-50 3.6-8 -	25-70 95* -
(95-240mm² SIDE)	mm² mm² -	95-240 11-19.2 -	95-240 10.5-18 -	95-150 185-240 -	95-150 185(90°) -	95-240 11-19.2 -		95-150 185*-240 -
BSMB-95/240-185/400 (95-240mm² SIDE)	mm² mm² -	95-240 11-19.2 -	95-240 10.5-18 -	95-150 185-240* -	95-150 185(90°) -	95-240 11-19.2 -		95-150 185-240* -
(185-400mm² SIDE)	mm² mm² -	185-400 15.5-24.6 -	185-400 14.8-24.6 -	185-240 300-400* -	185-240 300(90°) -	185-400 15.5-24.6 -		185-240 300-400* -
BSMB-185/400-500 (185-400mm² SIDE)	mm² mm² -	185-400 15.5-24.6 -	185-400 14.8-24.6 -	185-240 300-400* -	185-240 300(90°) -	185-400 15.5-24.6 -		185-240 300-400* -
(500mm² SIDE)	mm² mm²	500 25.3-28.9	500 24.25-1			500 25.3-28.6
BSMB-185/400-630 (185-400mm² SIDE)	mm² mm² -	185-400 15.5-24.6 -	185-400 14.8-24.6 -	185-240 300-400* -	185-240 300(90°) -	185-400 15.5-24.6 -		185-400 300-400* -
(630mm² SIDE)	mm² mm²	630 28.7-32.5	630 27.3-28.4			630 28.7-32.5
BSMB-500-630 (500mm² SIDE)	mm² mm²	500 25.3-28.9	500 24-25.1			500 25.3-28.6
(630mm² SIDE)	mm² mm²	630 28.7-32.5	630 27.3-28.4			630 28.7-32.5
