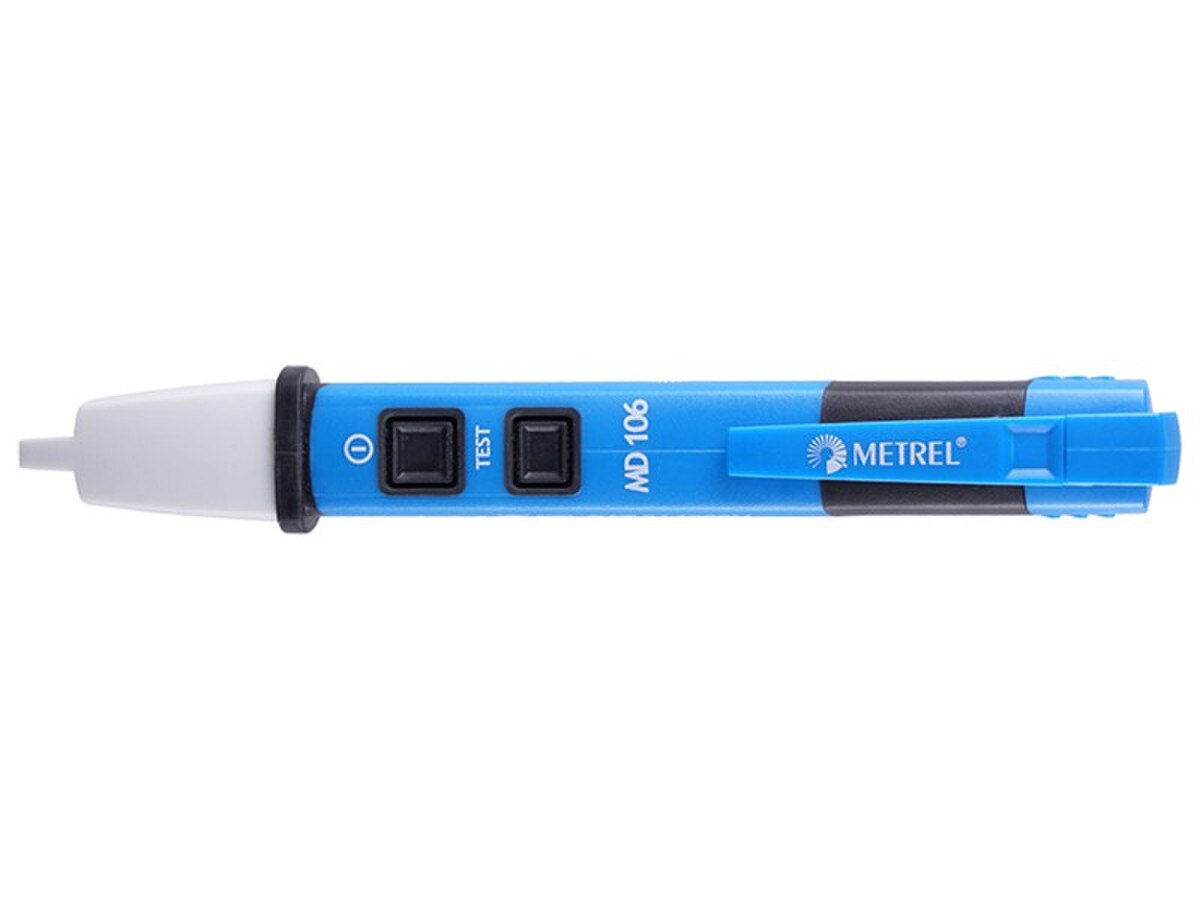

Metrel Non-Contact Voltage Detectors
The MD106 and MD116 are easy-to-operate non-contact voltage testers that are essential tools for both home hobbyists and professionals. They are available with optical, acoustical, and vibrating indicator options, and feature a pocket clip for portability. The MD106 and MD116 can detect live voltage wires in splices, cable plugs, cable drums, sockets, switches and junction boxes. These voltage detectors use a capacitive measuring process – in contrast to inductive measurements, no flow of current is required.
Applications
- General purpose detection
- Low level electrical testing
- Hobby work
Features
- Cat IV/1000V overvoltage protection
- IP65 rating
- Lightweight and portable
- Easy to operate
Measuring Functions

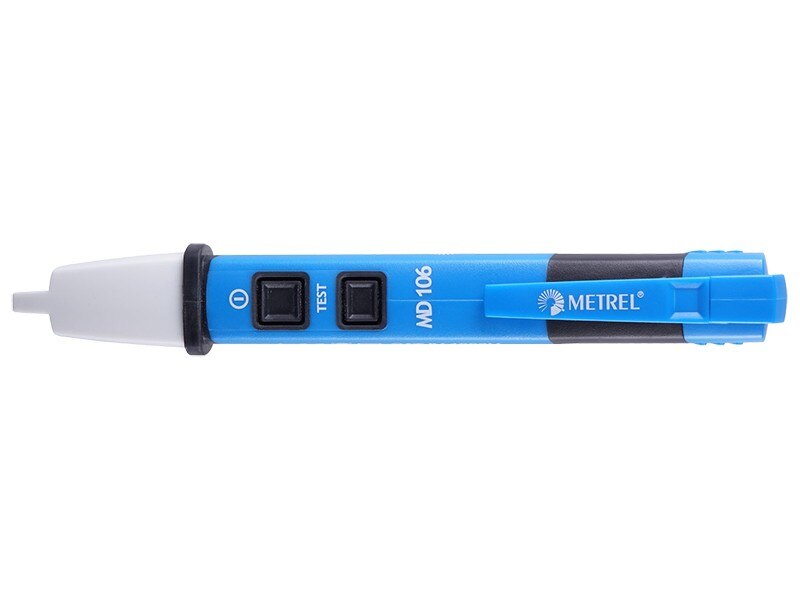

MD106- Non-contact voltage detection from 90 V AC
- Optical and acoustical indication in case of power
- 90 V – 1000 V AC measurement range
- Self-test button for verification of operation

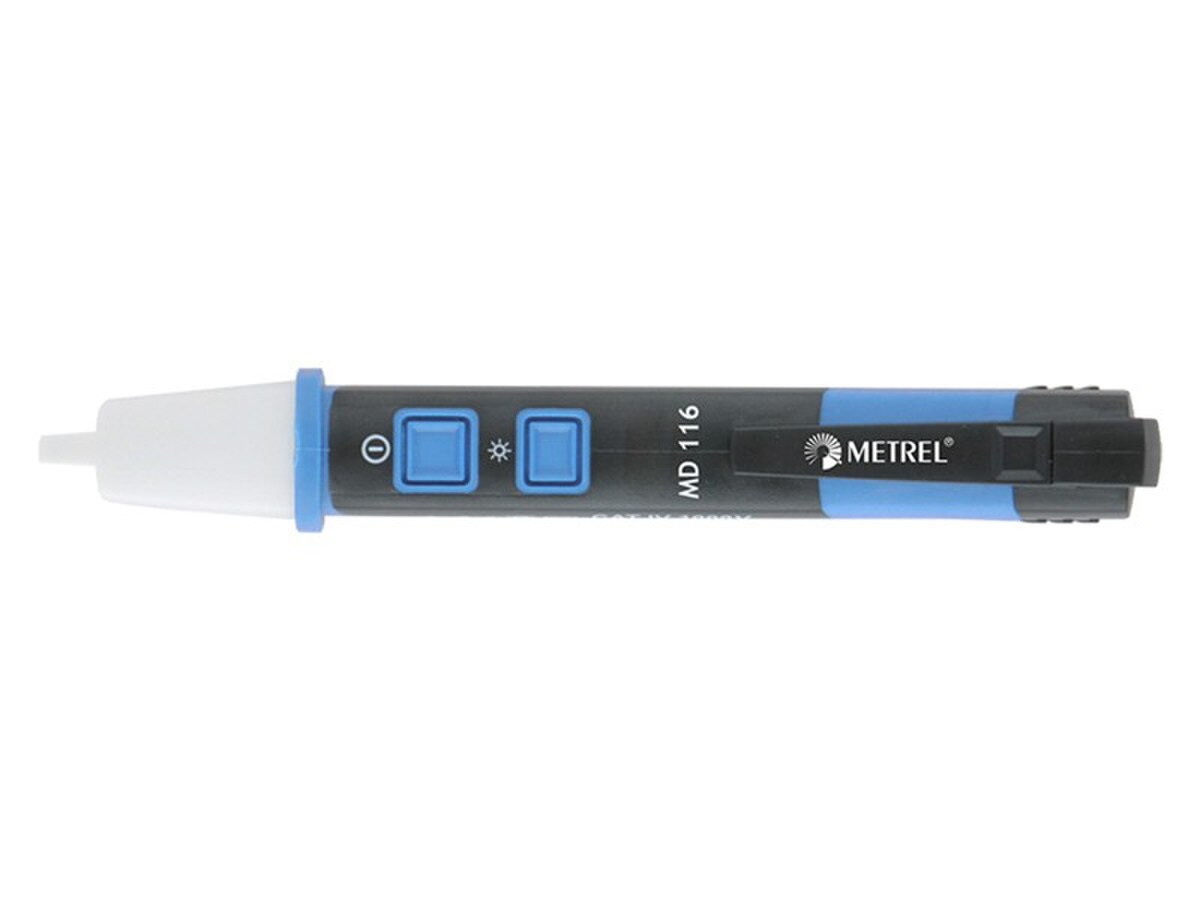

MD116
- Non-contact voltage detection from 12 V AC
- Optical, acoustical, and vibrating indication in case of power
- 12 V – 1000 V AC measurement range
- Automatic self-test
- LED Flashlight
- Vibrating Indicator
Standards
- IEC60529
- IEC/EN61010
- IEC/EN61140
- IEC/EN61326-1
Contents
- Non-contact voltage detector MD106 or MD116
- 1.5V AAA batteries x2
- Instruction manual
- Warranty
