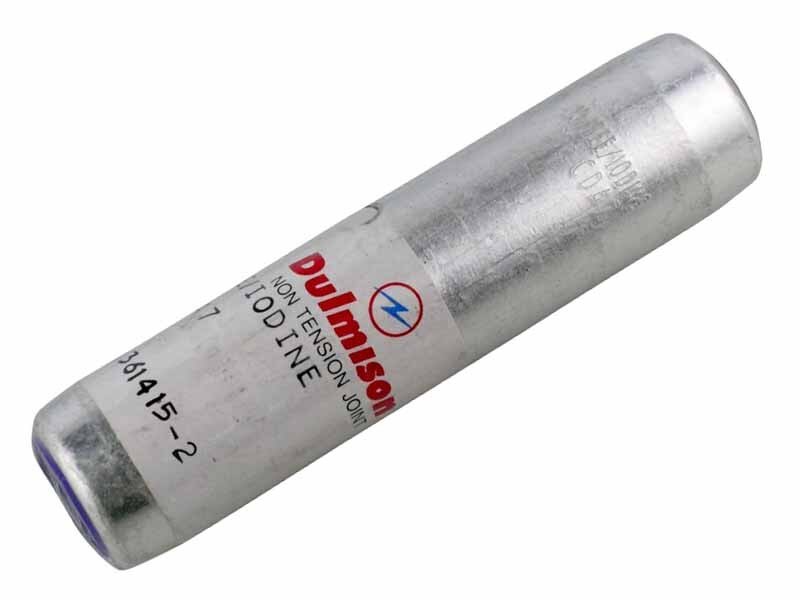

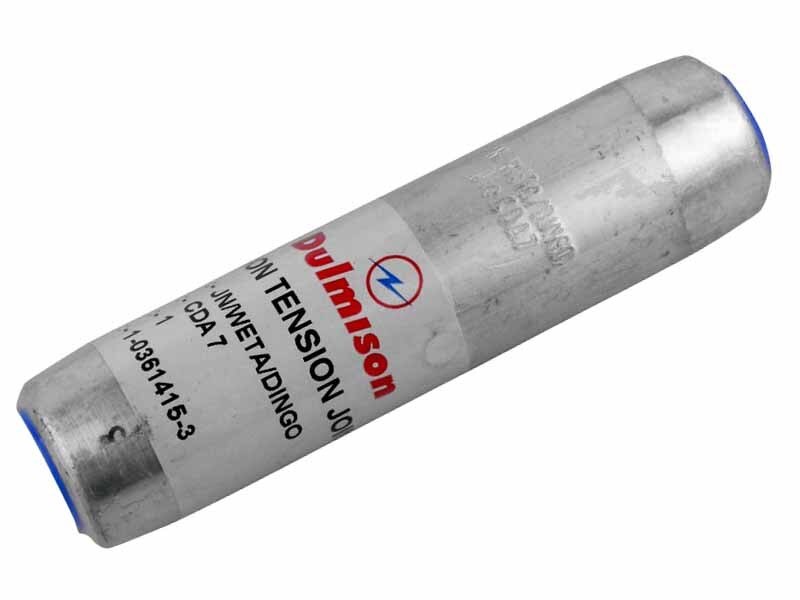

Mid Span Compression Joints - Non Tension
Non Tension Mid Span Joints are manufactured from an Aluminium Extrusion, as these joints are installed at low tension values, one fitting can be used for all cable types of the same size (OD).
Each fitting is clearly marked with the compression length, the applicable conductor size and the appropriate hexagonal compression die size. These fittings are designed to join same sized overhead Aluminium conductors and feature a stopper in the centre to ensure correct insertion of each conductor.
Filled with jointing compound and capped to protect from contaminants, Utilux Non Tension Joints are ready to use.
DIMENSIONS
Cat No. | Conductor Name | Outside | Dimension | Hexagonal | Qty | Price | ||
|---|---|---|---|---|---|---|---|---|
