Pre-Insulated Compression Connectors - Lugs & Links
Description
Pre-insulated compression connectors include both lugs and links.

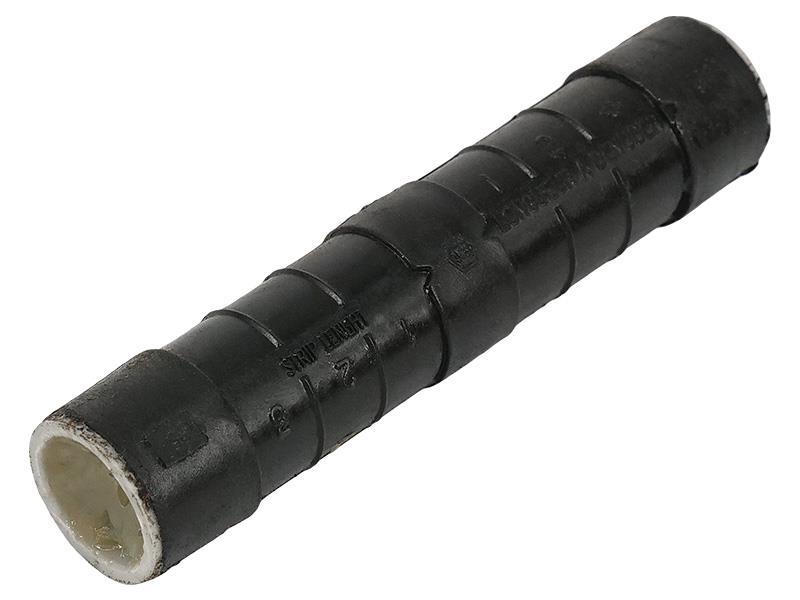

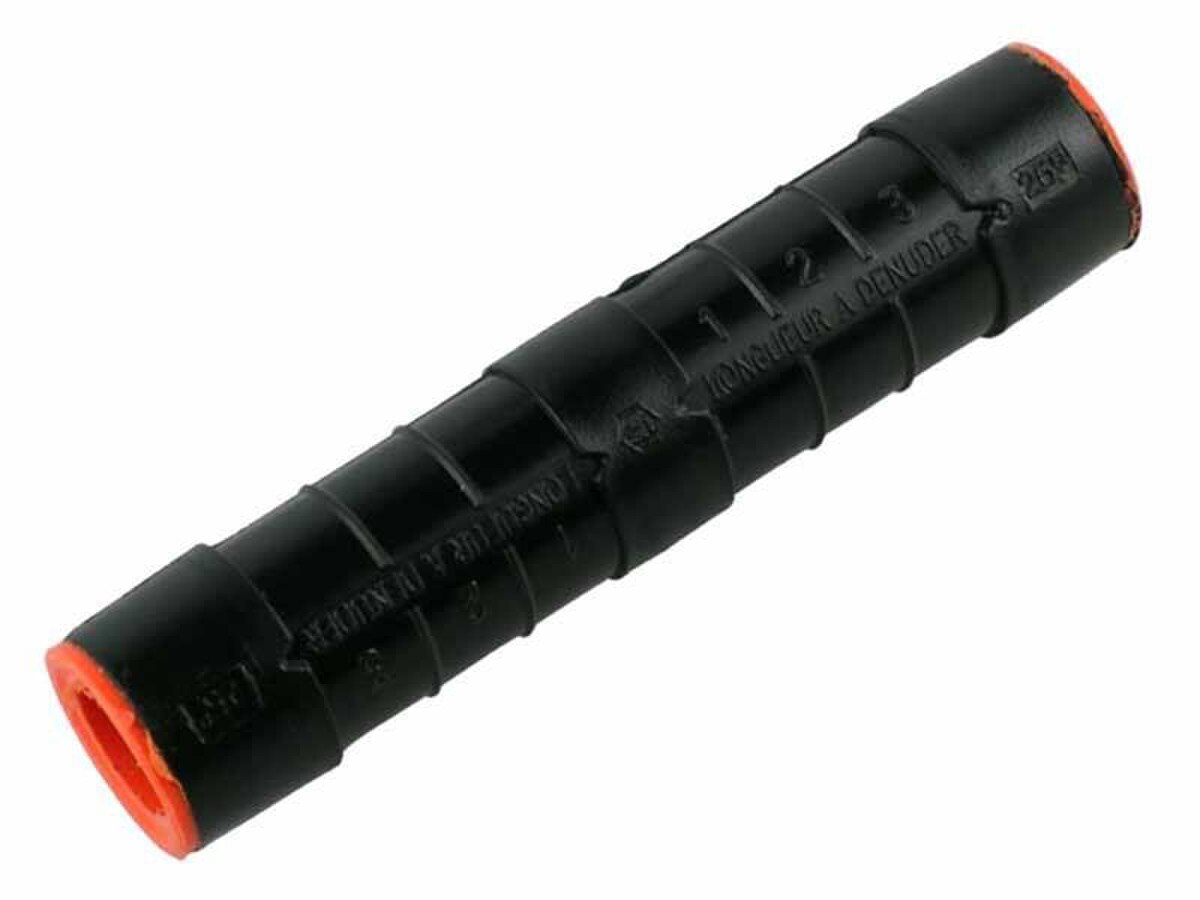

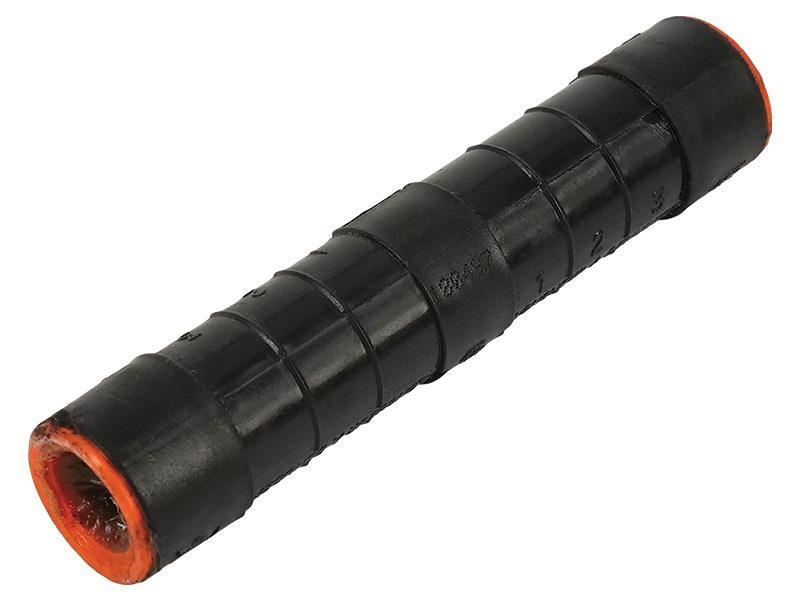

Pre-insulated links are used to make an electrical joint between two aerial bundled conductors. Our range is designed for full tension applications but of course they can be used in non tension applications. There are other links available on request for both non and full tension applications.

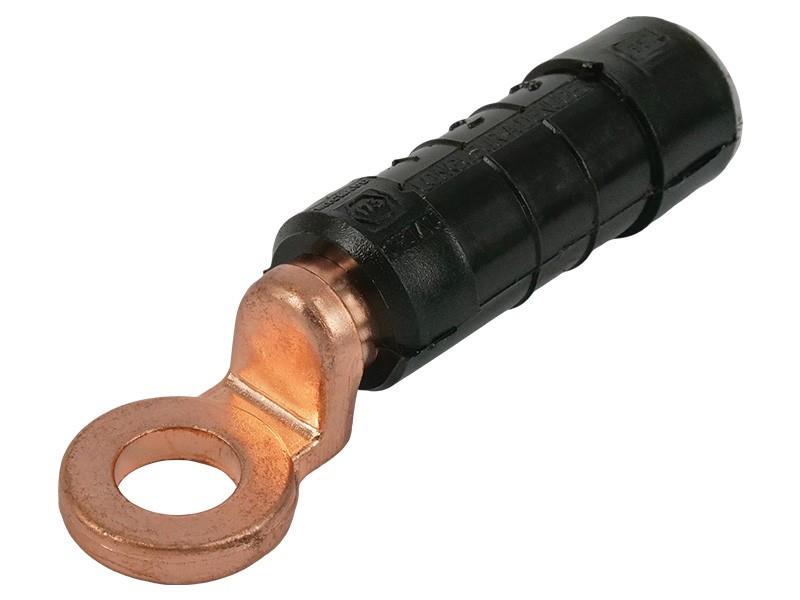

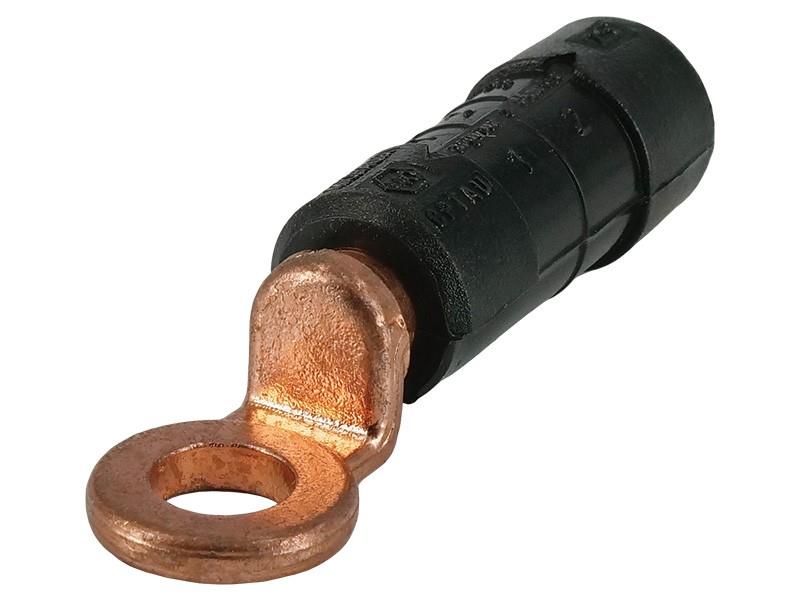

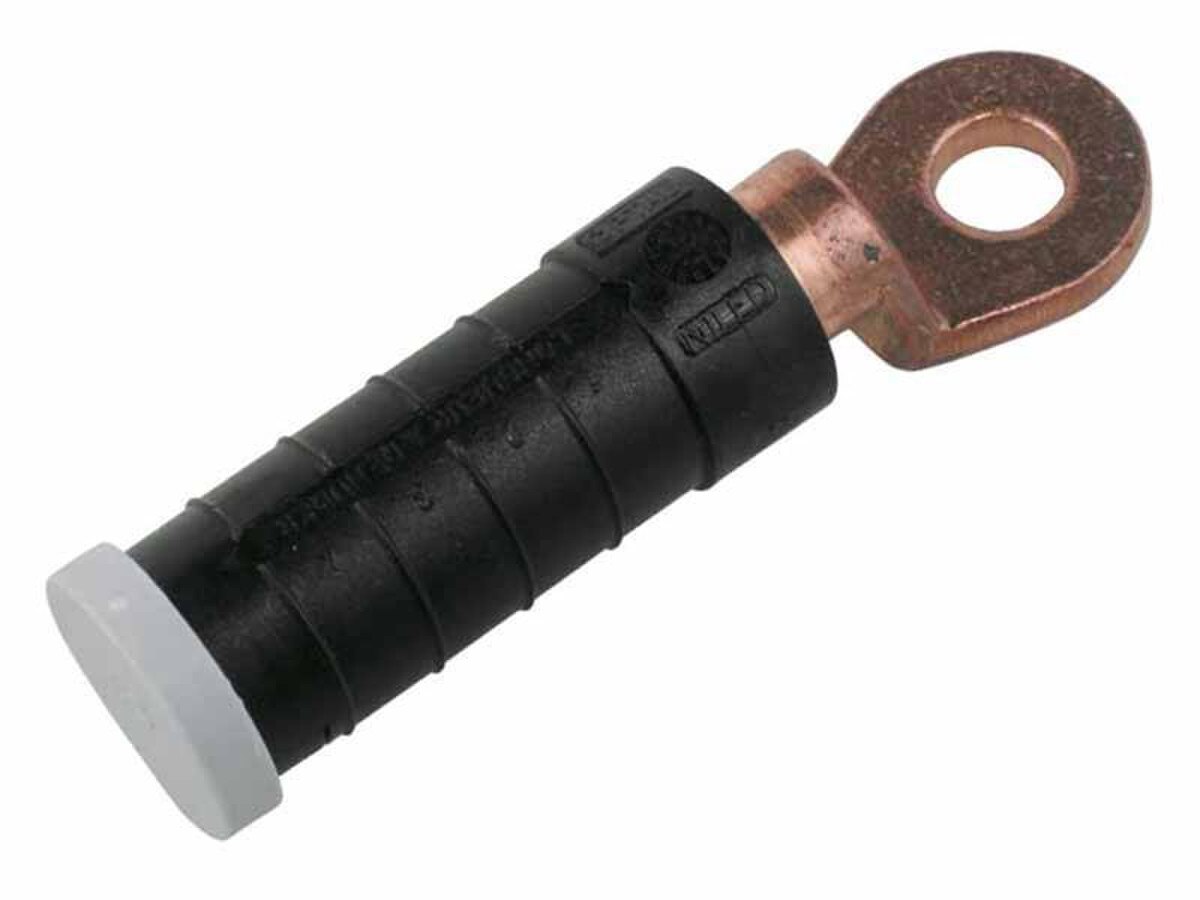

Pre-insulated lugs are used to terminate aerial bundled conductors onto switchgear, busbars or isolators. The range we stock is for bi-metallic applications, there are other bi-metallic or aluminium lugs available on request.
Features
- Totally insulated and waterproof.
- Colour coded to easily identify applicable cable size.
- Labelled with cable size, die size, strip length, and locations of crimps.
- Permanently engraved with traceability data.
Crimping
- Use a tool equipped with a suitable hexagonal die: E140 (14mm), E173 (17.3mm), or E215 (21.5mm).
- Crimp in the indicated area starting from the center and going towards the end of the lug/link.
Colour Coding
- 16mm = Blue
- 25mm = Orange
- 35mm = Red
- 50mm = Yellow
- 70mm = White
- 95mm = Grey
- 120mm = Pink
- 150mm = Violet
Cat No. | Type | End Cap Colour | Conductor Size (mm2) | Lug Palm Size (mm) OD | Lug Hole Size (mm) ID | Connector Diameter (mm) | 12 Tonne Die | A/F (mm) | Total Length (mm) | Qty | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
