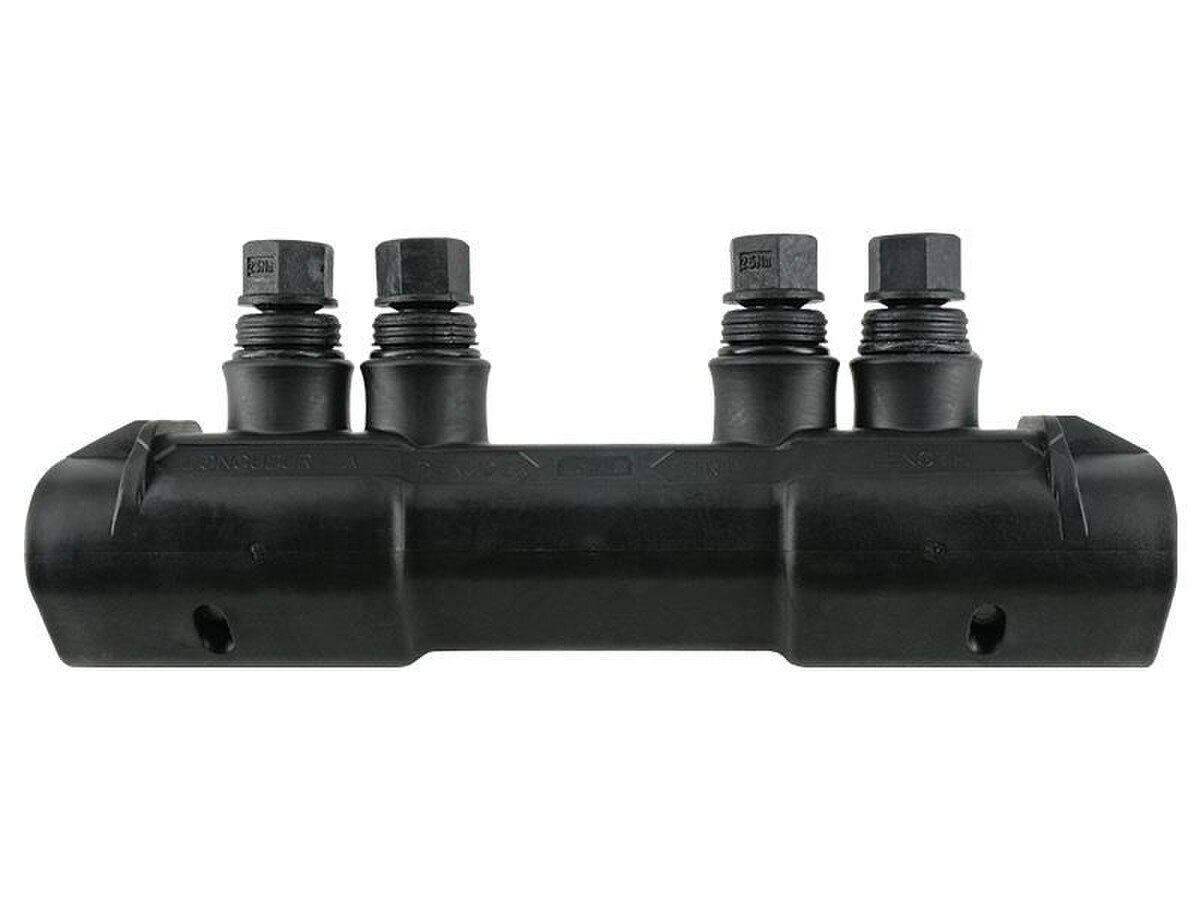

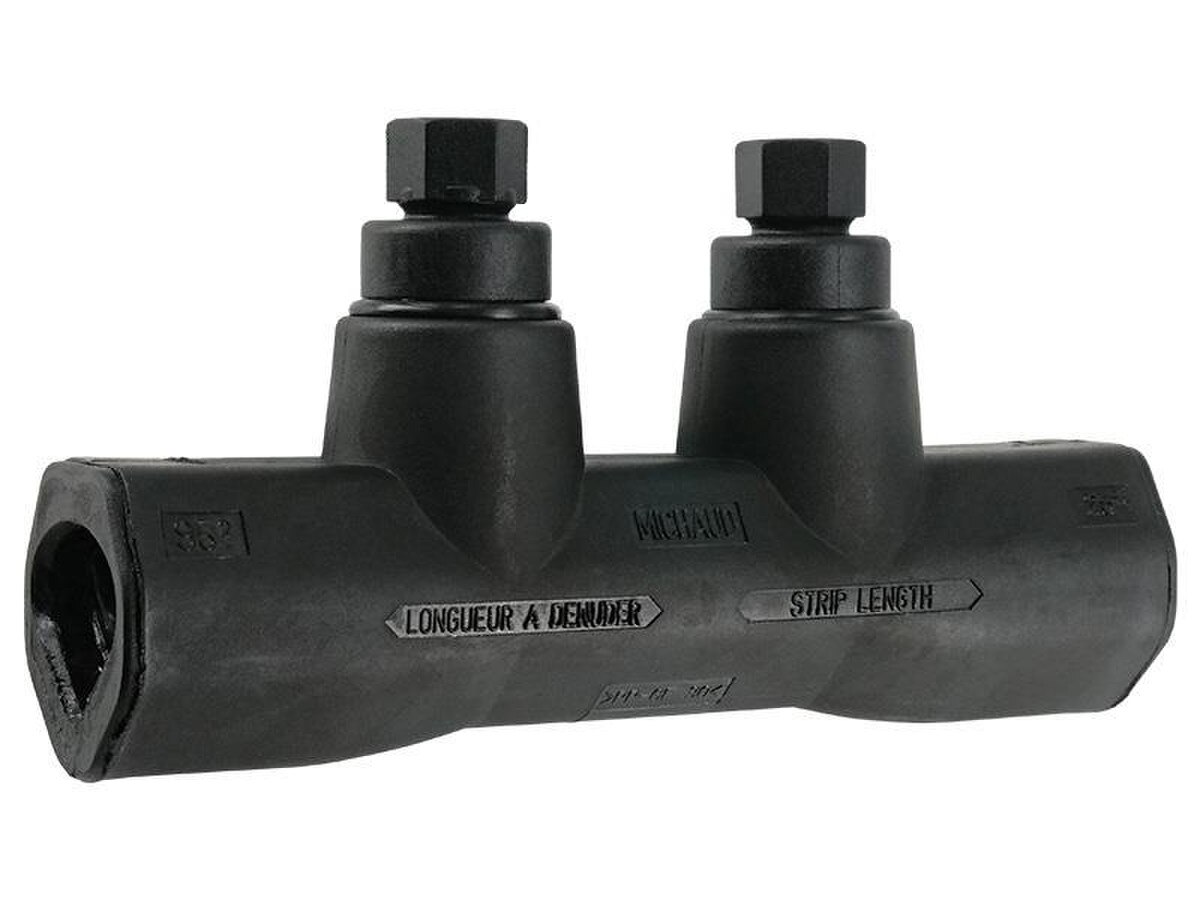

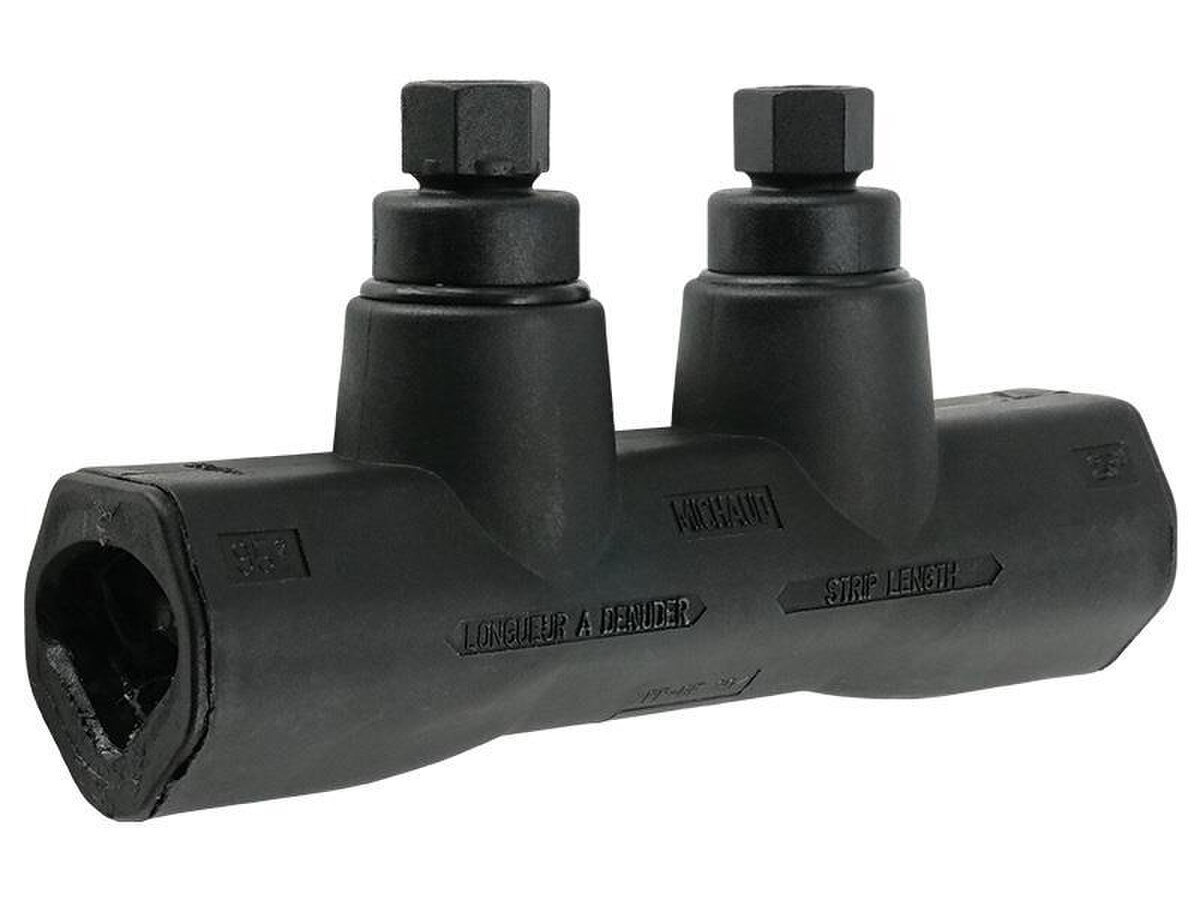

Pre-Insulated Sleeves
Description
Pre-insulated sleeves (or links as they’re also known) are used to make an electrical joint between two aerial bundled conductors. Our range is designed for full tension applications but of course they can be used in non-tension applications.
Features
- Totally insulated and waterproof
- Colour coded to easily identify applicable cable size
- Labelled with cable size, die size, strip length and locations of crimps
- Permanently engraved with traceability data
Installation
Crimping:- Use a tool equipped with a suitable hexagonal die
- Standard 12T crimp tool can be used (with suitable dies)
- Crimp in the indicated area starting from the centre and moving out
Colour Coding
- 16mm = Blue
- 25mm = Orange
- 35mm = Red
- 50mm = Yellow
- 70mm = White
- 95mm = Grey
- 120mm = Pink
- 150mm = Violet
Cat No. | Description | Qty | Price |
|---|
