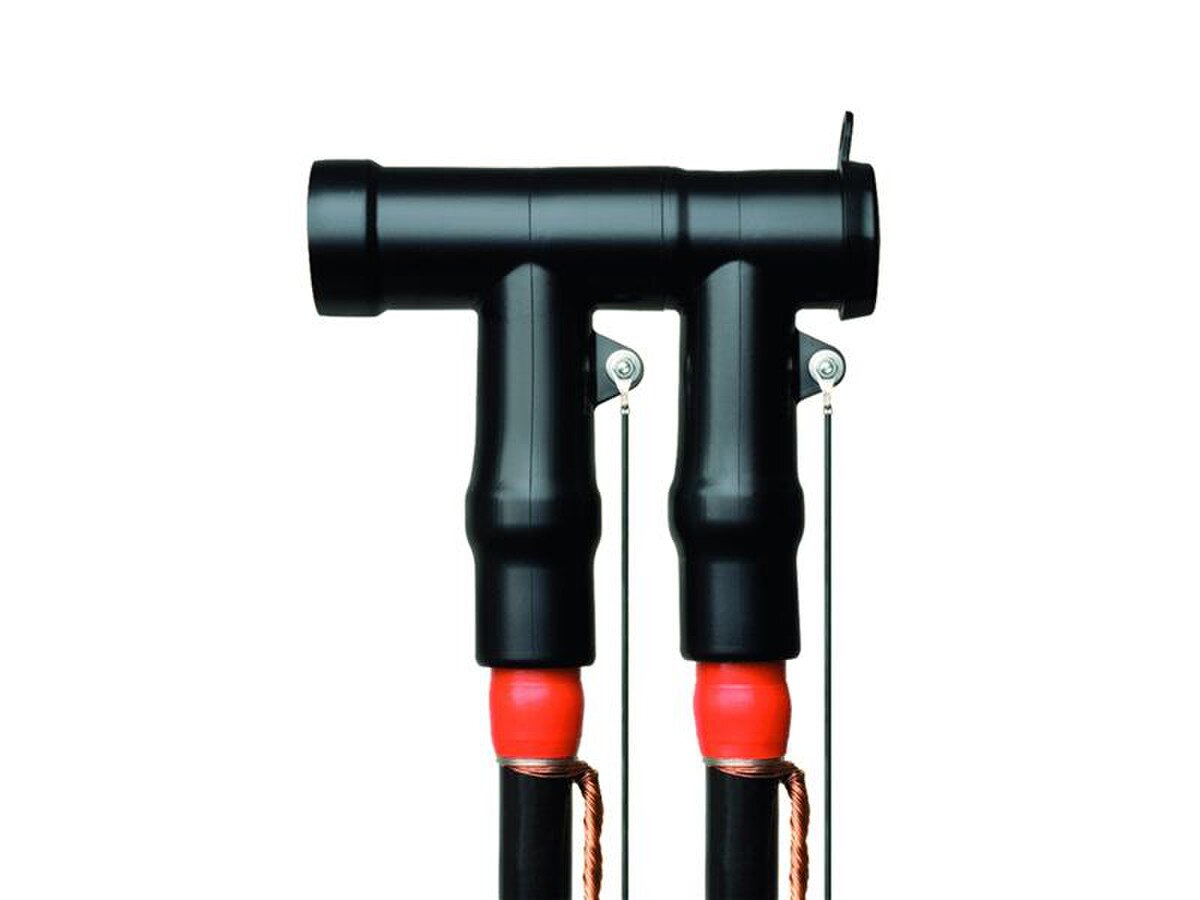

RSTI - Screened Separable Connector for Type C1/C2 Bushing (Piggyback)

(0)No Reviews yet

RSTI - Screened Separ

Description

The Raychem RSTI family of screened separable elbows provide perfect sealing, electrical insulation and electrical connection to switchgear. The range offers solutions right up to 42kV for piggyback elbows. Stand alone elbows can be found here.


Designed and tested to meet the requirements of all applicable international standards.

Back

Downloads


RSTI-CC-58xx.pdf

RSTI-CC-x9.pdf

RSTI-SA-05_EPP_1615_EN_6-13.pdf

RSTI-SA-10_EPP_1865_EN_4-13.pdf
Back
RSTI-CC-3953-NZ COUPLING CONNECTOR 630 34.0 - 45.4 11
RSTI-CC-5851-CTS-01 COUPLING CONNECTOR 11kV 35-95 / 22kV 35-70 12.7 - 23.4 11-22
RSTI-CC-5851-NZ COUPLING CONNECTOR 11kV 35-95 / 22kV 35-70 12.7 - 23.4 11-22
RSTI-CC-5853-NZ COUPLING CONNECTOR 11kV 95-240 / 22kV 95-185 17.0 - 30.1 11-22
RSTI-CC-5854-CTS-01 COUPLING CONNECTOR 95 - 240 21.2 - 34.6 22
RSTI-CC-5854-NZ COUPLING CONNECTOR 95 - 240 21.2 - 34.6 22
RSTI-CC-5855-NZ COUPLING CONNECTOR 185 - 300 21.2 - 34.6 11-22
RSTI-CC-5952-NZ COUPLING CONNECTOR 500 34.0 - 45.4 22
RSTI-CC-5953-CTS-01 COUPLING CONNECTOR 630 39.1 - 59.0 22
RSTI-CC-5953-NZ COUPLING CONNECTOR 630 39.1 - 59.0 22
RSTI-CC-6851-NZ COUPLING CONNECTOR 35 - 95 22.4 - 35.5 33
RSTI-CC-6855-NZ COUPLING CONNECTOR 185 - 300 28.9 - 42.0 33
RSTI-CC-6951-W COUPLING CONNECTOR 400 34.0 - 45.4 33
RSTI-CC-6952-NZ COUPLING CONNECTOR 500 - 630 39.1 - 59.0 33
RSTI-CC-6953-NZ COUPLING CONNECTOR 800 39.1 - 59.0 33

Cat No.

Elbow Type

Cross Section (mm2)

Core Insulation Diameter (mm)

Voltage Class (kV)

Qty

Price
