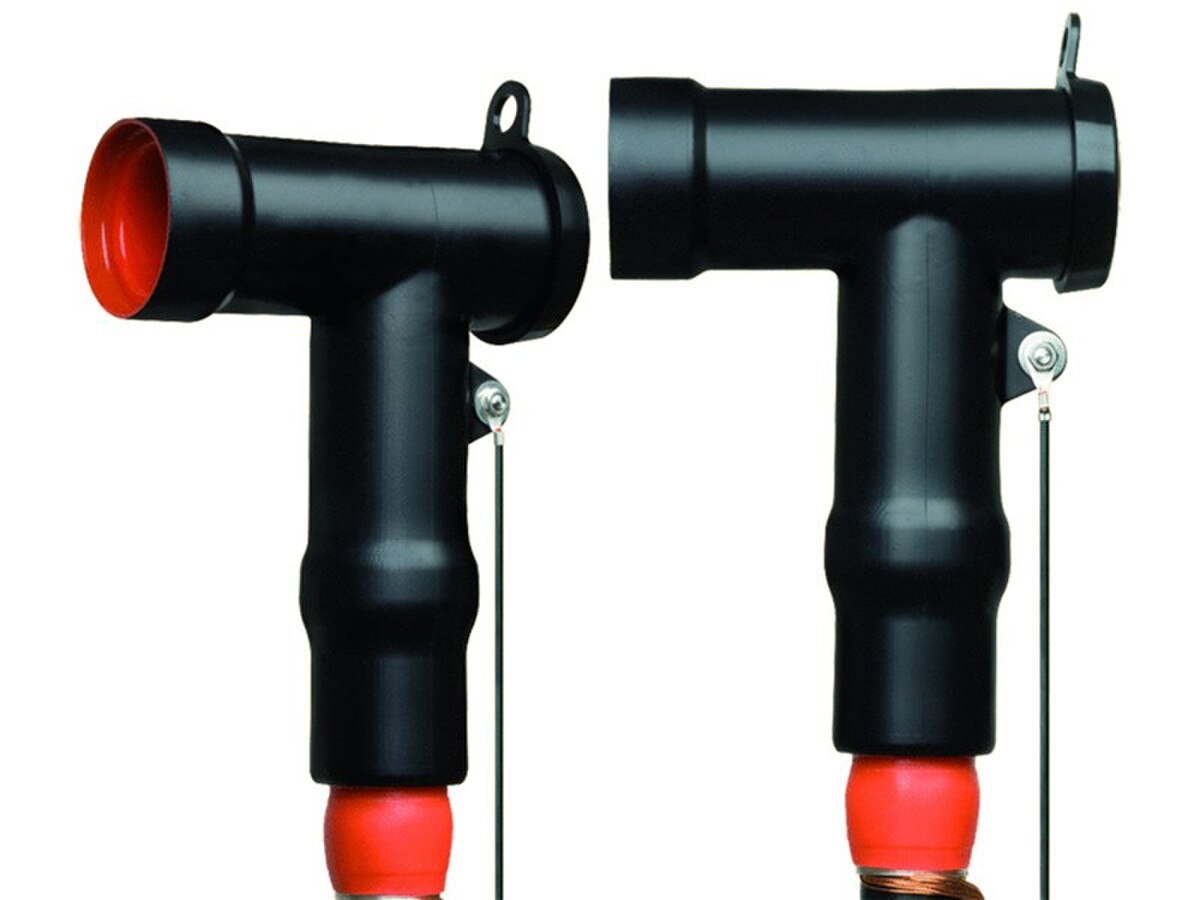

RSTI - Screened Separable Connector for Type C1/C2 Bushing (Straight)

(0)No Reviews yet

The Raychem RSTI family of screened separable elbows provide perfect sealing, electrical insulation and electrical connection to switchgear. The range offers solutions right up to 42kV for stand alone elbows. Piggyback elbows can be found here

Designed and tested to meet the requirements of all applicable international standards.

C1 Bushings are rated at 630A

C2 Bushings are rated at 1250A

Maximum current through RSTI elbows is 800A each

RSTI-x9_series.pdf

RSTI-3951-NZ SWITCHGEAR CONNECTOR 400 28.9 - 36.4 11 1250

Quantity

RSTI-3953-NZ SWITCHGEAR CONNECTOR 630 34.0 - 45.4 11 1250

Quantity

RSTI-5851-CTS-01 SWITCHGEAR CONNECTOR 35 - 95 12.7 - 23.4 11-22 800

Quantity

RSTI-5851-NZ SWITCHGEAR CONNECTOR 35 - 95 12.7 - 23.4 11-22 800

Quantity

RSTI-5853-NZ SWITCHGEAR CONNECTOR 95 - 240 17.0 - 30.1 11-22 800

Quantity

RSTI-5854-CTS-01 SWITCHGEAR CONNECTOR 150 - 240 21.2 - 34.6 11-22 800

Quantity

RSTI-5854-NZ SWITCHGEAR CONNECTOR 150 - 240 21.2 - 34.6 11-22 800

Quantity

RSTI-5855-NZ SWITCHGEAR CONNECTOR 185 - 300 21.2 - 34.6 11-22 800

Quantity

RSTI-5856-NZ SWITCHGEAR CONNECTOR 240 - 400 21.2 - 34.6 11-22 800

Quantity

RSTI-5951-NZ SWITCHGEAR CONNECTOR 400 34.0 - 45.4 22 1250

Quantity

RSTI-5952-NZ SWITCHGEAR CONNECTOR 500 - 630 34.0 - 45.4 22 1250

Quantity

RSTI-5953-CTS-01 SWITCHGEAR CONNECTOR 630 39.1 - 59.0 22 1250

Quantity

RSTI-5953-NZ SWITCHGEAR CONNECTOR 630 39.1 - 59.0 22 1250

Quantity

RSTI-6851-NZ SWITCHGEAR CONNECTOR 35 - 95 22.4 - 35.5 33 800

Quantity

RSTI-6852-NZ SWITCHGEAR CONNECTOR 95 - 150 22.4 - 35.5 33 800

Quantity

RSTI-6853-NZ SWITCHGEAR CONNECTOR 120 - 240 28.9 - 42.0 33 800

Quantity

RSTI-6855-NZ SWITCHGEAR CONNECTOR 185 - 300 28.9 - 42.0 33 800

Quantity

RSTI-6856-NZ SWITCHGEAR CONNECTOR 240 - 400 28.9 - 42.0 33 800

Quantity

RSTI-6951-NZ SWITCHGEAR CONNECTOR 400 34.0 - 45.4 33 1250

Quantity

RSTI-6952-NZ SWITCHGEAR CONNECTOR 500 - 630 39.1 - 59.0 33 1250

Quantity

RSTI-6952-NZ-LAT SWITCHGEAR CONNECTOR 500 - 630 39.1 - 59.0 33 1250

Quantity

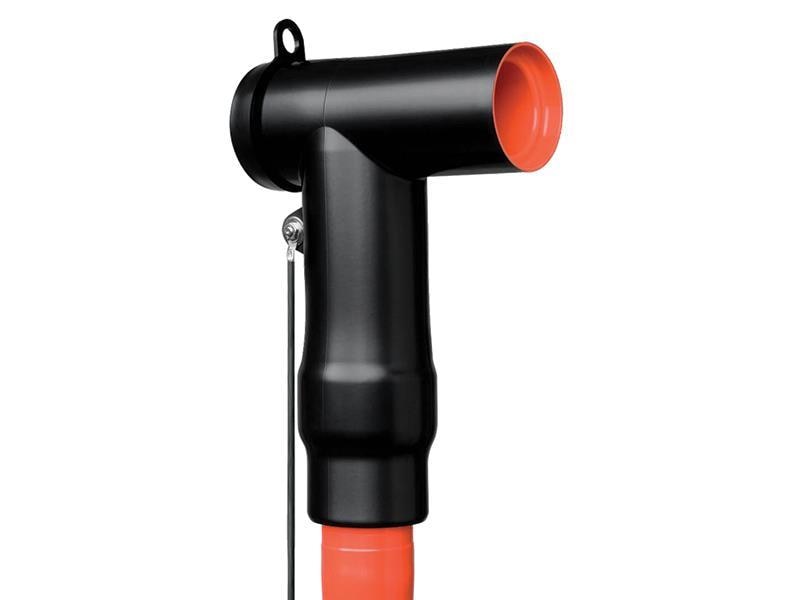

RSTI-6953-NZ SWITCHGEAR CONNECTOR 800 39.1 - 59.0 33 1250

Quantity

RSTI-6954-W SWITCHGEAR CONNECTOR 1000 39.1 - 59.0 33 1250

Quantity


	Cat No.	Elbow Type	Cross Section (mm²)	Core Insulation Diameter (mm)	Voltage Class (kV)	Amps	Qty	Price
