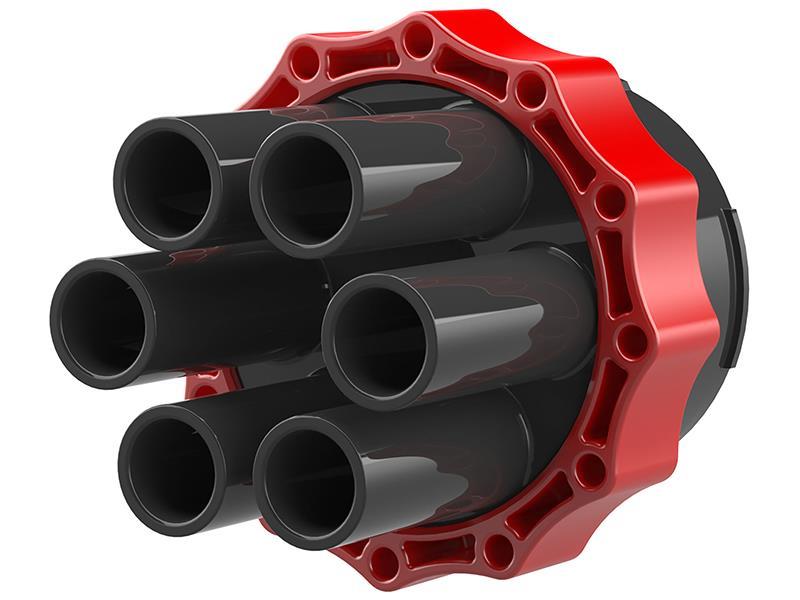

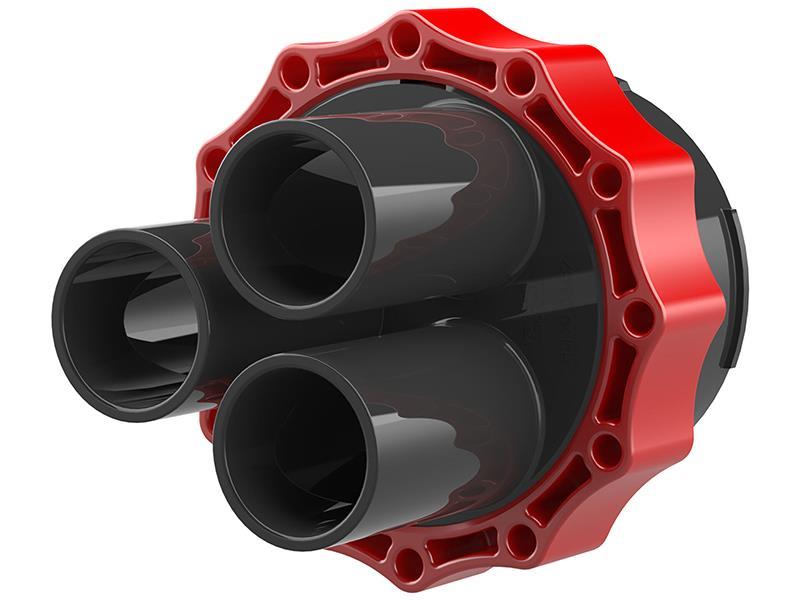

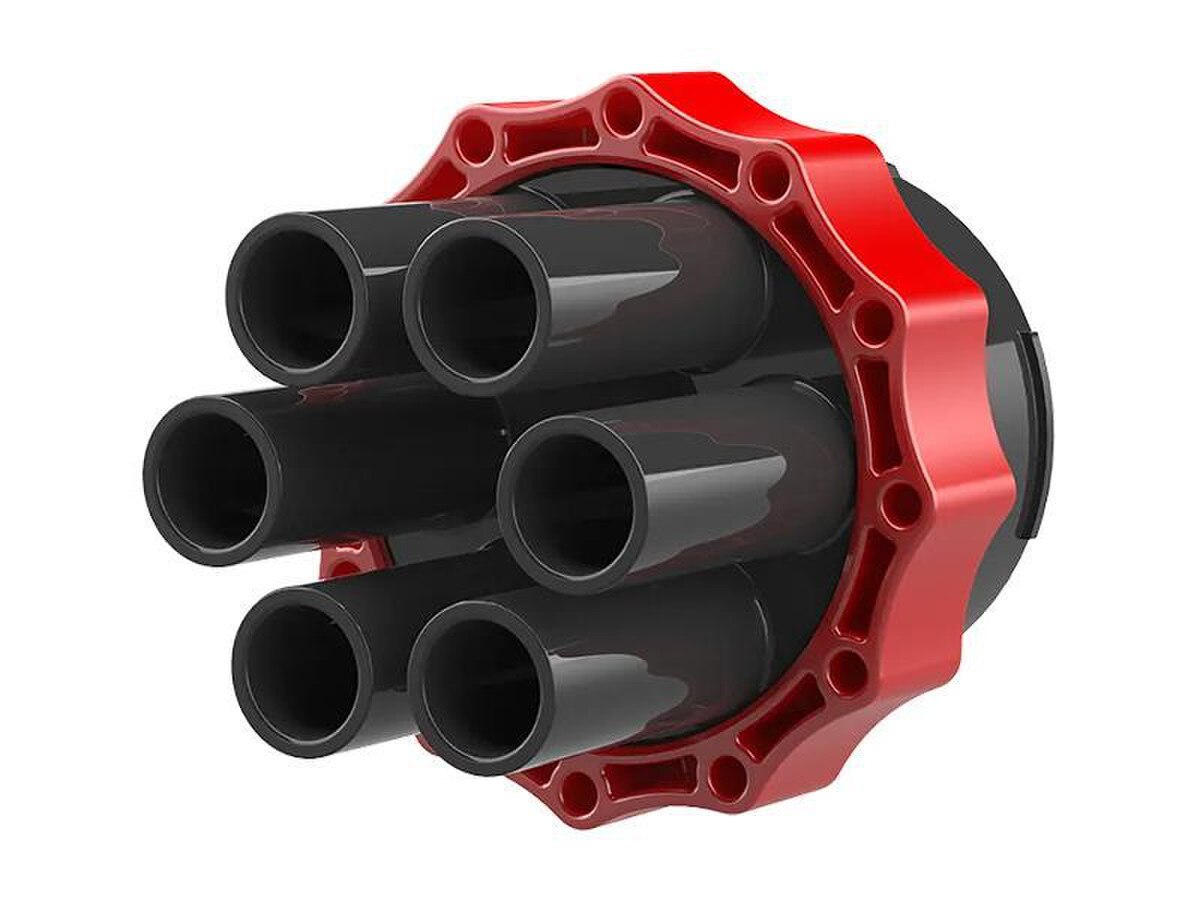

System Cover, Heatshrink Cable Seal

Cable Seal with Heat Shrink Technology

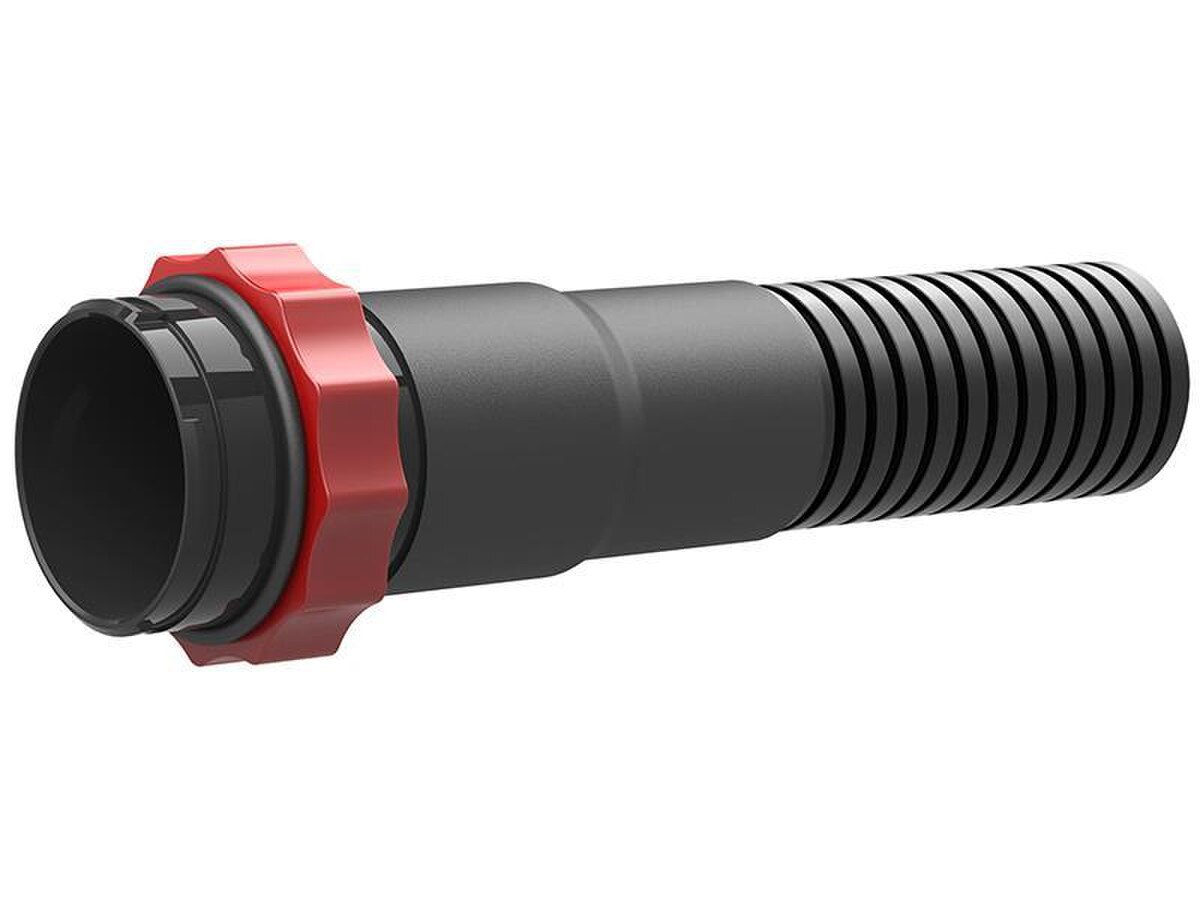

For use in wall insert and aluminium flange HSI90. The thermal sleeves support a wide area of application, they are shrunk onto the cables by means of the application of heat from the system cover socket. Empty system cover sockets can be sealed with blind plugs.

Advantages

• Wide area of application
• Best possible shrink result thanks to centring straps
• Hot-melt adhesive in thermal sleeve creates seal with cable

Scope of delivery

• Mechanical fixing (bayonet) and seal (clamping nut) act independently
• Bayonet system with return lock and locking screw connection (for protection against automatic opening)
• Thermal sleeves
• Centring strap for HSI 90-D1/75

Material

• System cover with socket: polycarbonate
• Clamping nut: PC/PBT blend
• Thermal sleeve with hot-melt adhesive: polyolefin
• Centring strap: EPDM

Tightness

Gastight and watertight to 2.0 bar
