Smart® Band Flex - Composite Band & Buckle System

(0)No Reviews yet

Smart Band Flex Com

The Ultimate Strapping System – Safer | No Sharp Edges | Non-Conductive | Easier to Install

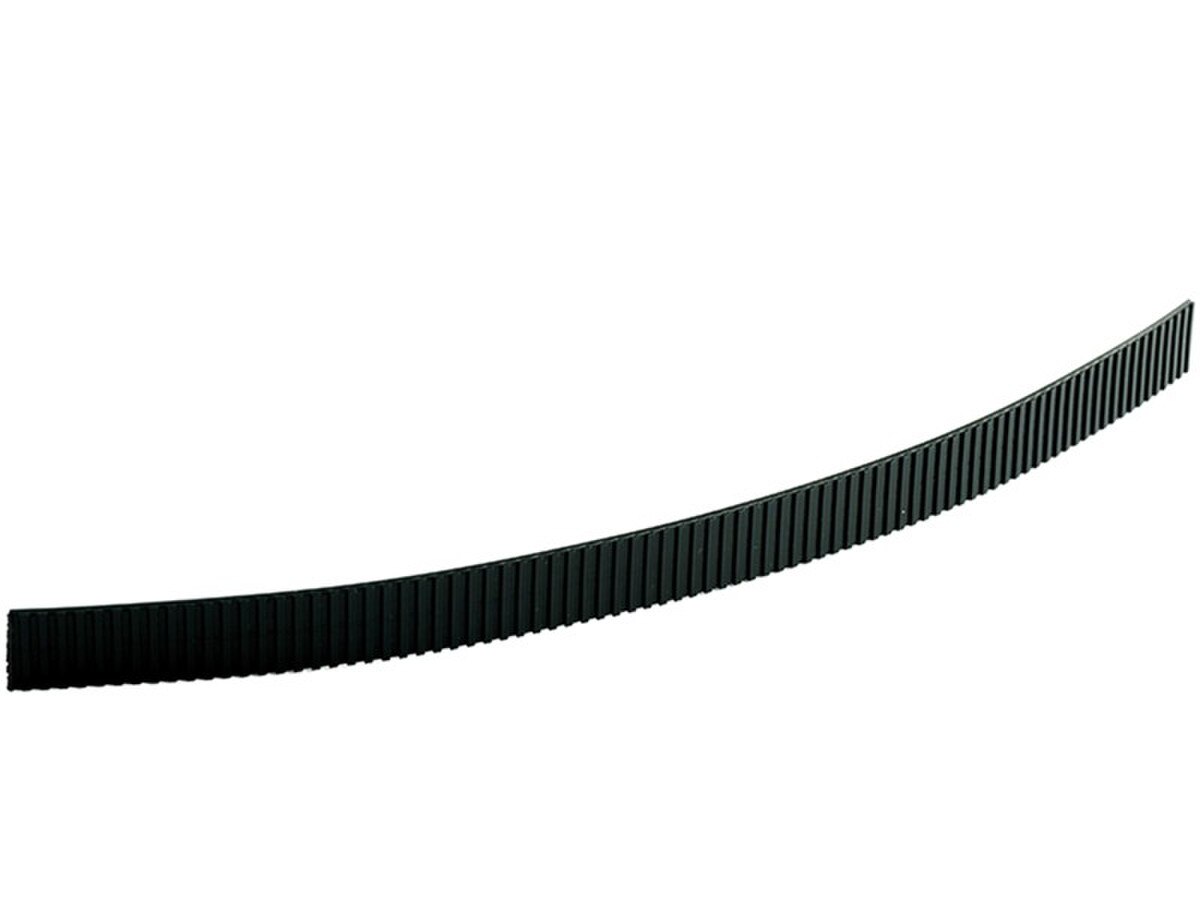

Smart® Band is a 12.7mm (½") Band & Buckle system that once installed is stronger, tighter and maintains its tension longer than competitive products. The simplicity of the buckle design allows for ease of use & application.


Smart® Band is non-metallic and non-conductive it offers long-life and non-corrosive properties, making it the ideal alternative to many high grade stainless steel strapping solutions.


Features

  • No sharp edges - operator and cable friendly.
  • Tough, rugged and quick to fit.
  • Lightweight Acetal Material (Black).
  • UV stable with high temperature resistance.
  • Corrosion resistant (no metal parts), non-magnetic and non-conductive.
  • Strength rated to 2100N (210kgf).
  • Perfect for coaxial, fibre optic, and all other communication and electrical cables.

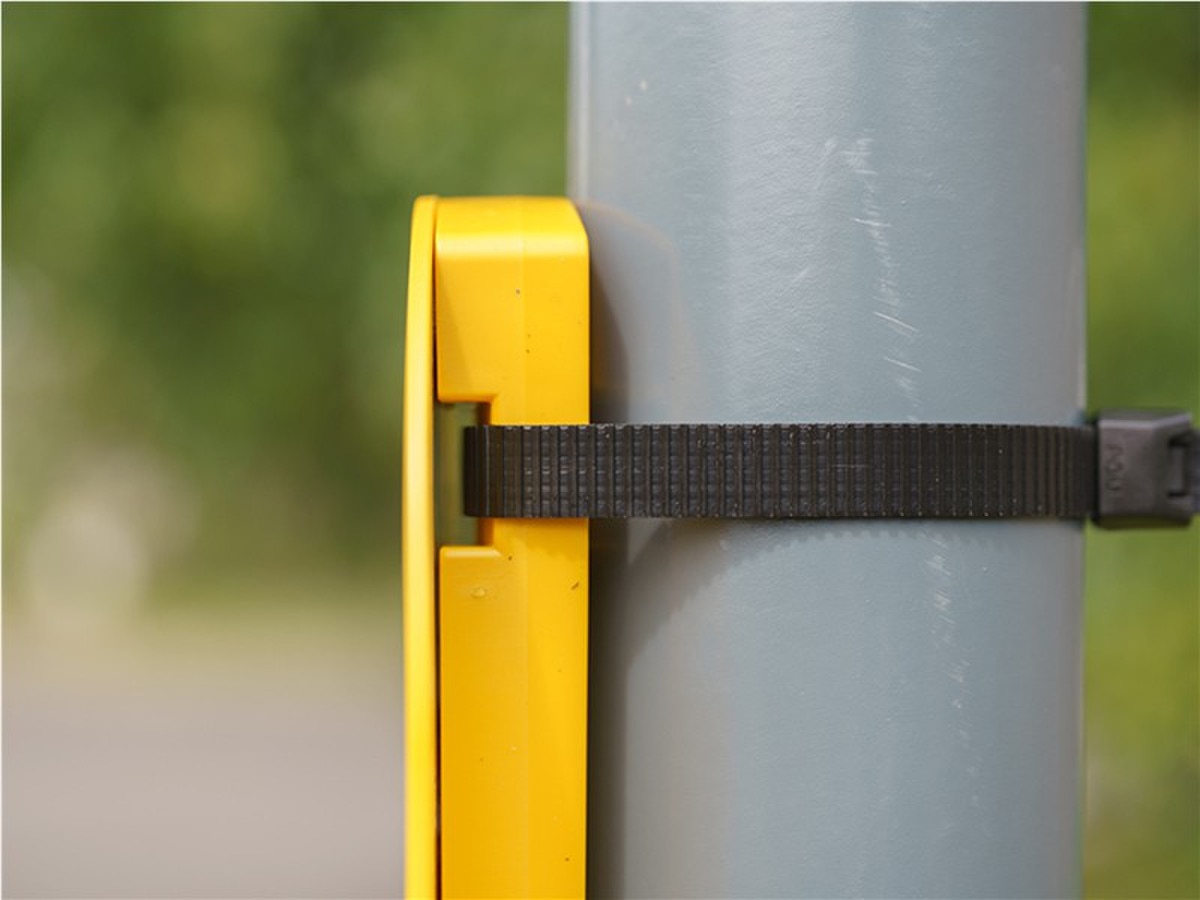

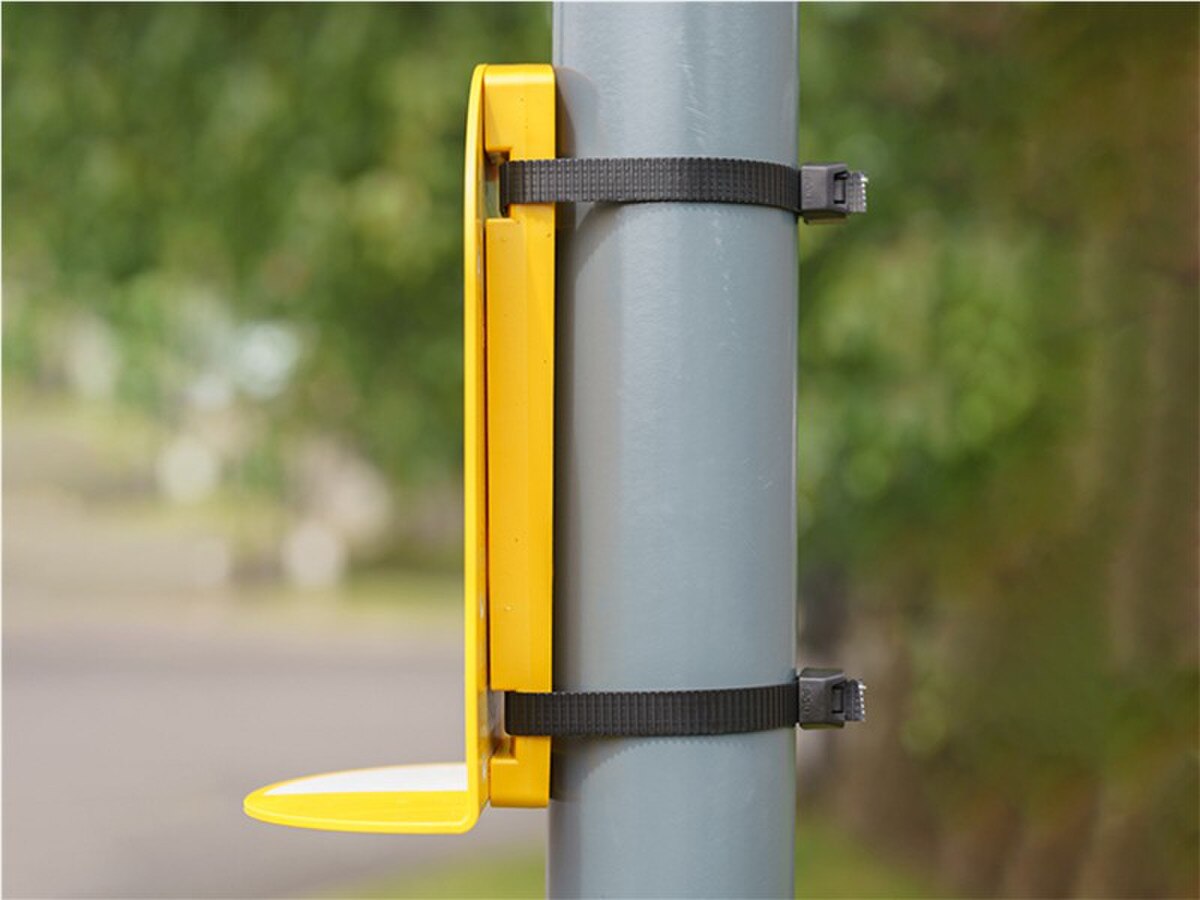

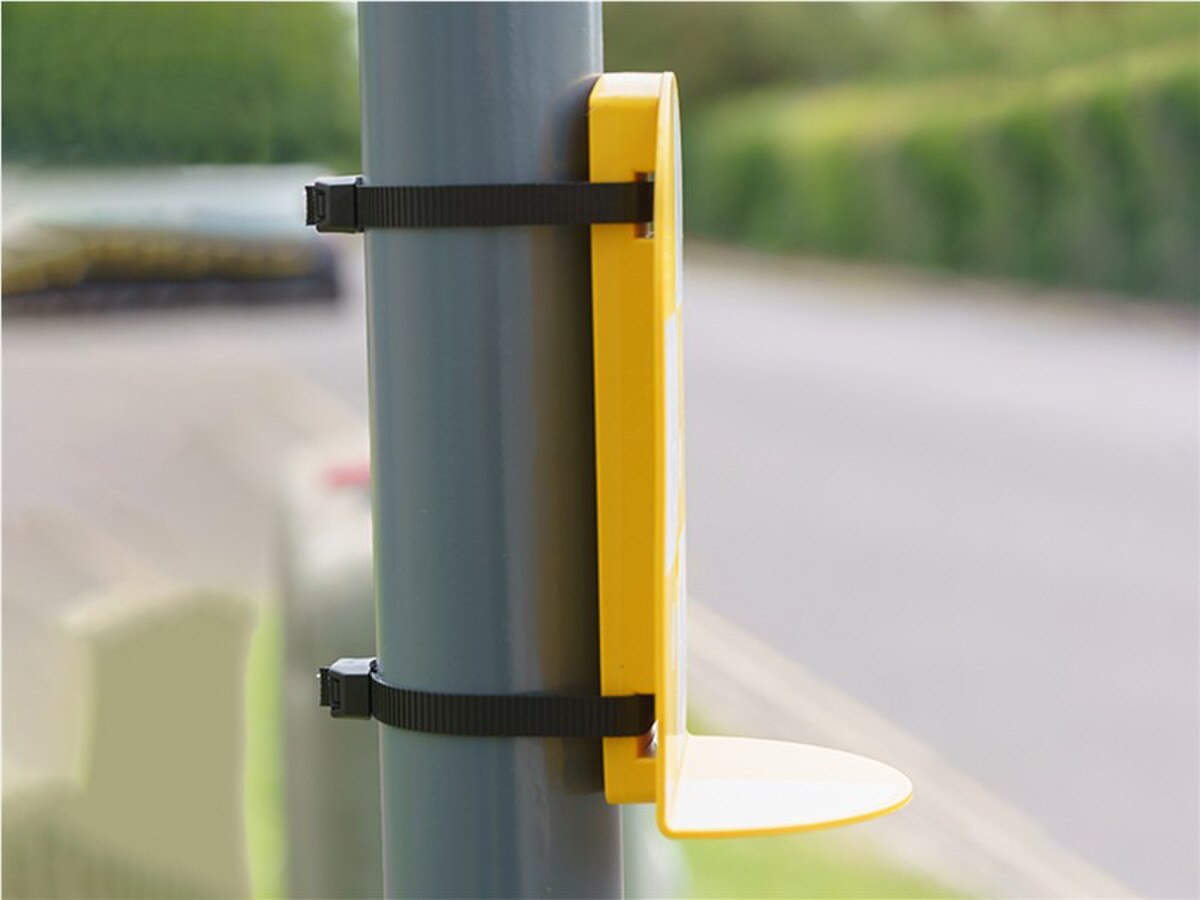

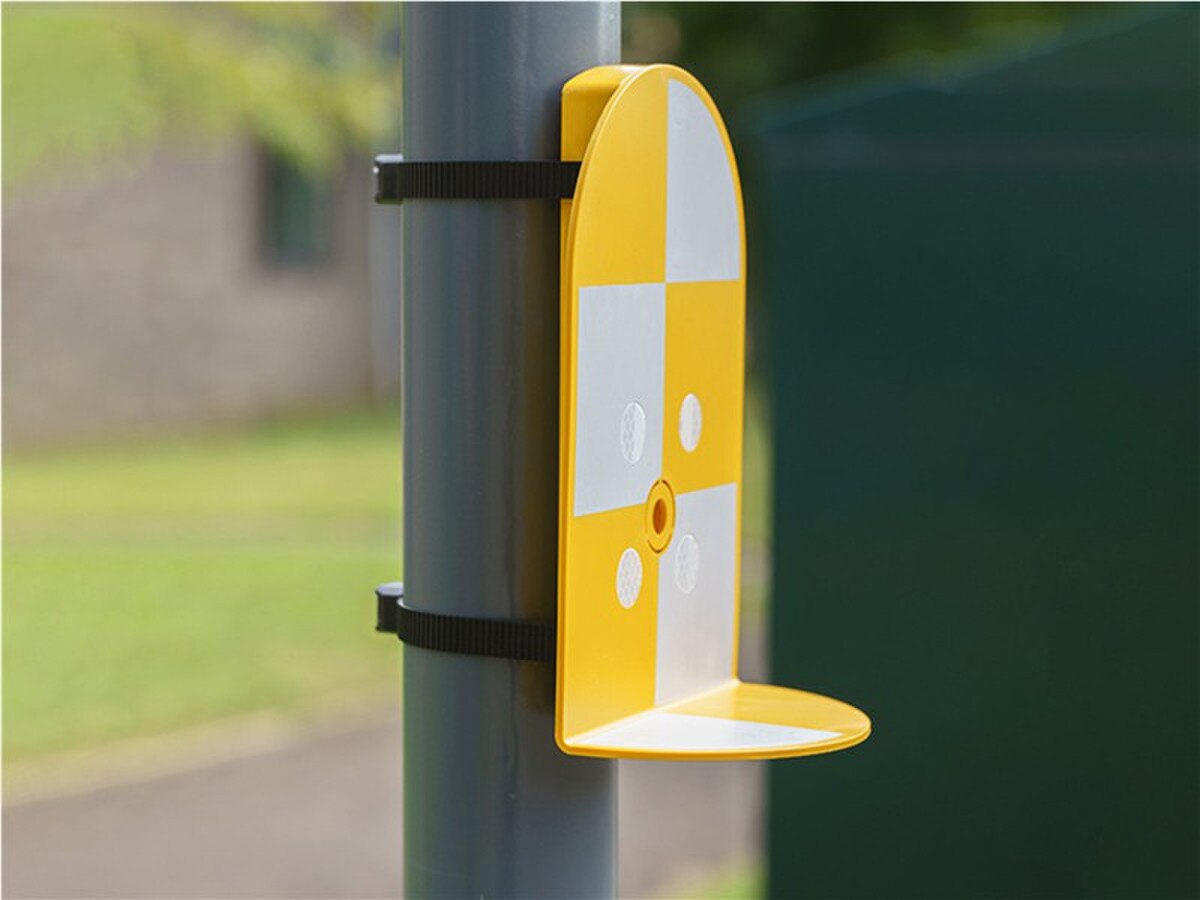

  • Highly suited for applications where stainless steel strapping is currently used.

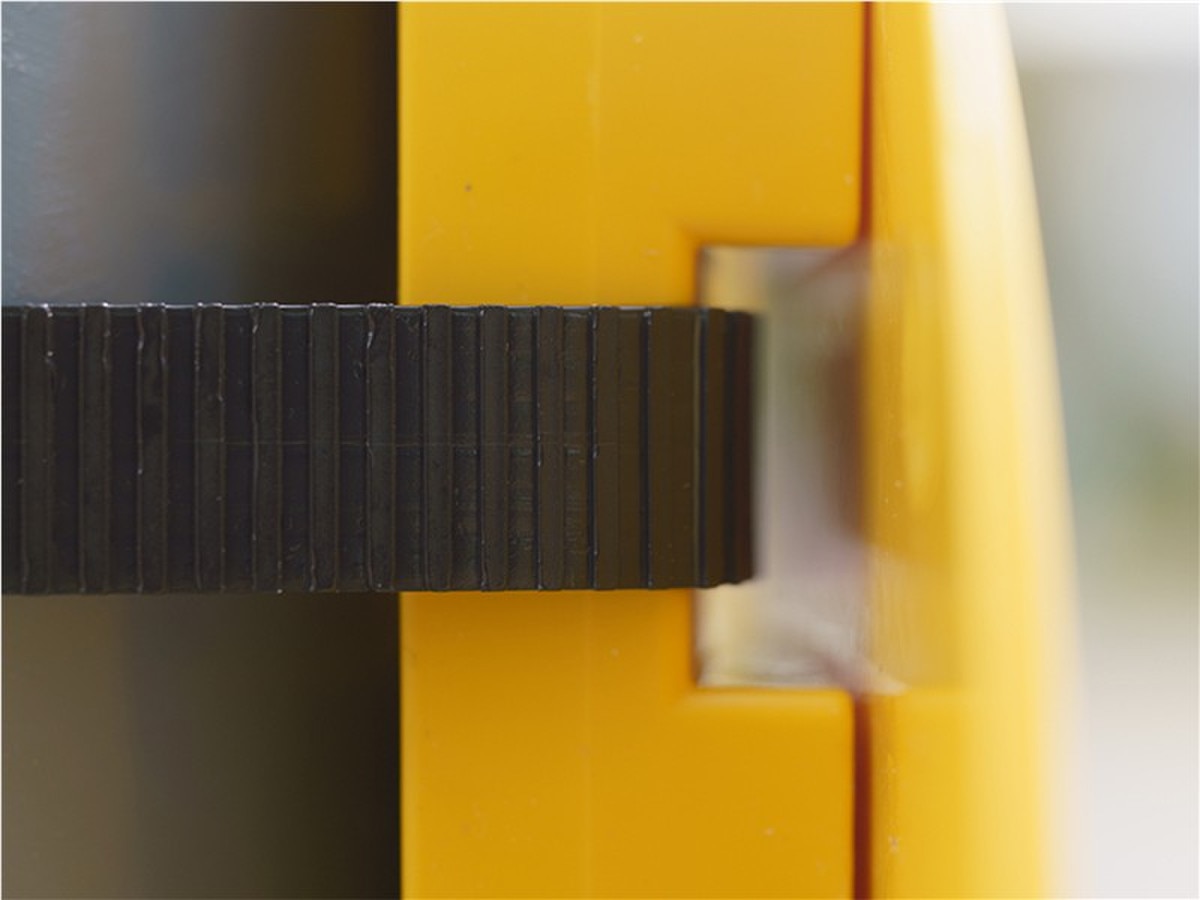

  • Glass Fibre Strands within band provide superior strength and retention.
  • Proprietary tool enables band to be tightened to a higher force than competitive products.
  • Meets requirements for installation in High-Risk PIM (Passive Intermodulation) Zones. It won’t cause interference in wireless networks.
  • Meets or exceeds Telcordia TR-TSY-00789.
MaterialMax Strength
N (kgf)
Min Retention
N (kgf)
Service Temp
°C
Recommended Installation Temp
°C
Flammability
UL94
Chemical ResistanceWeathering & UV Stability
POM2100 (210)400 (40)-40955 HBGOOD+20 YEARS

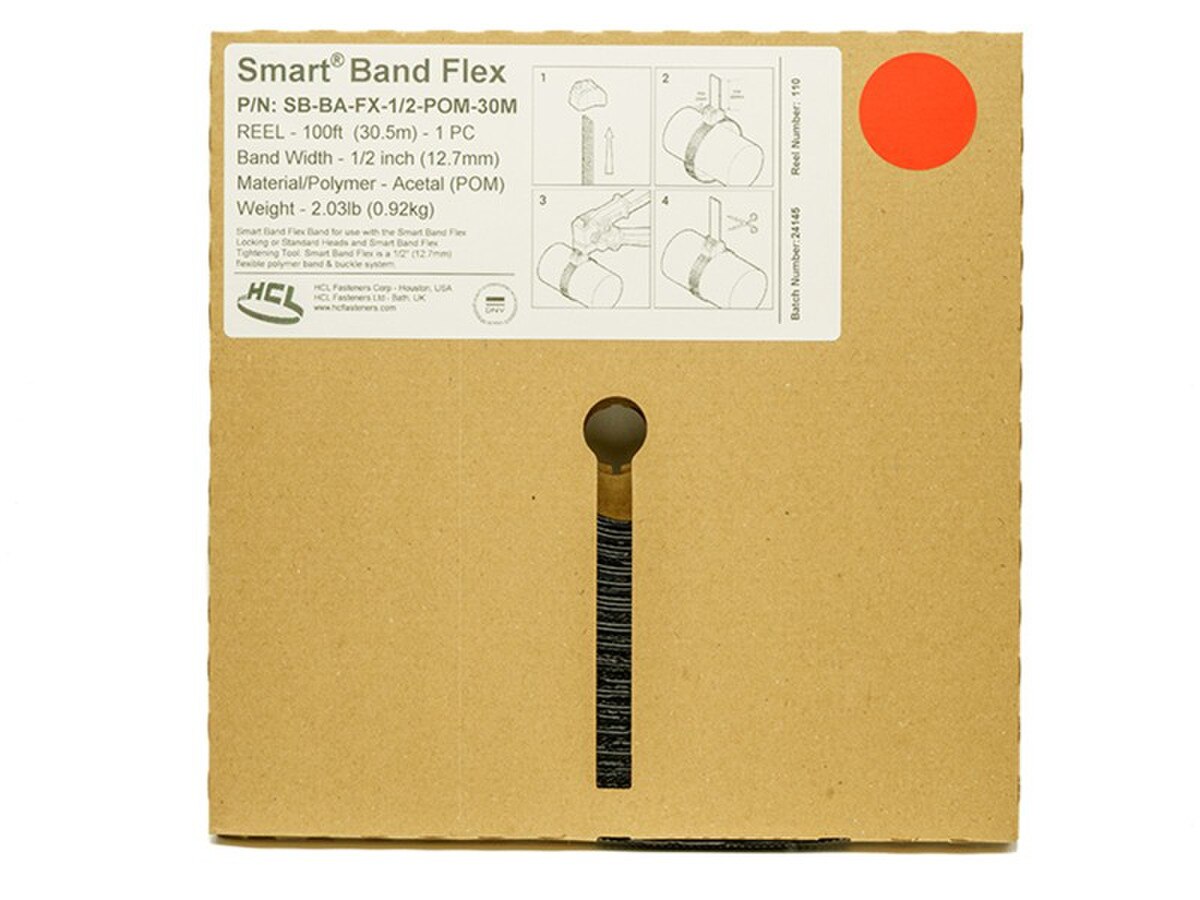

SB-BA-FX-1/2-POM-30M 12.7MM SMART BAND FLEX REEL 30m

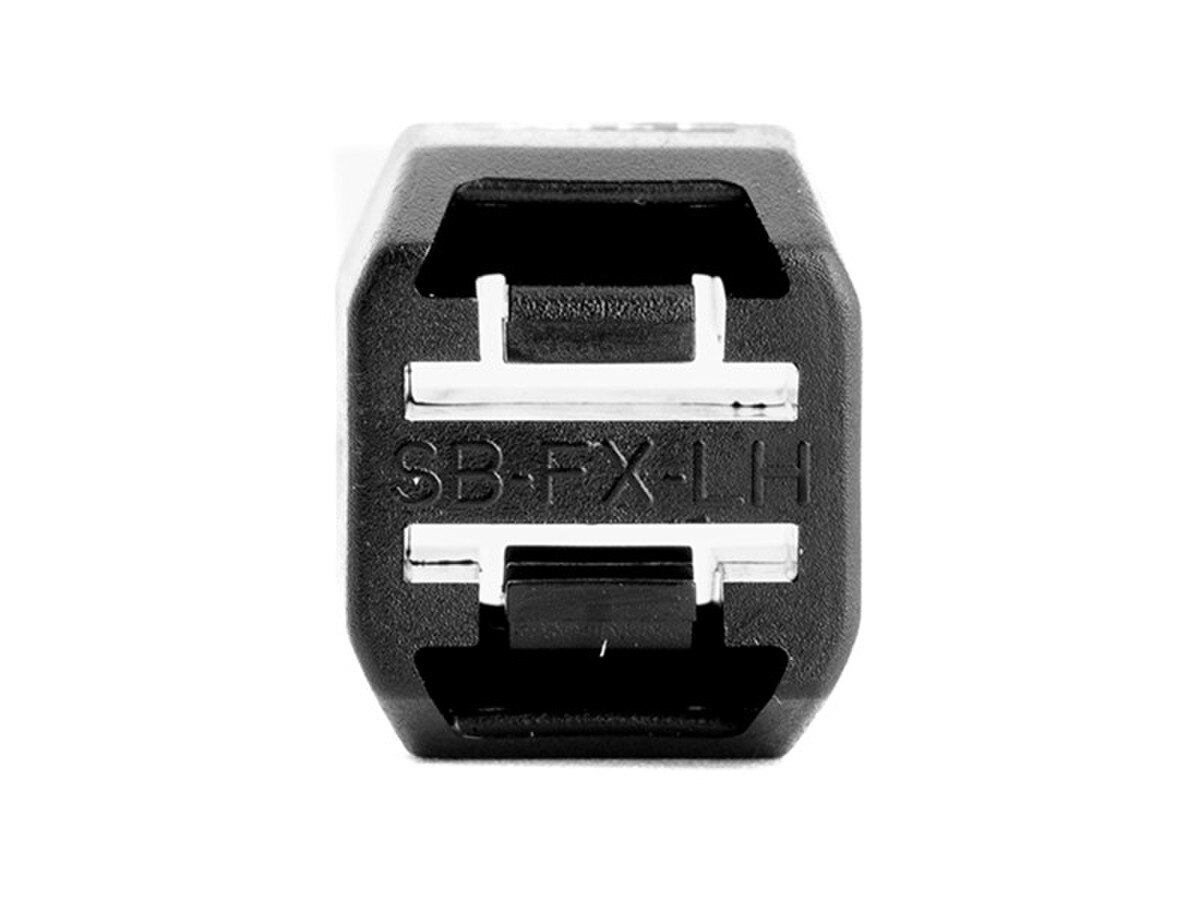

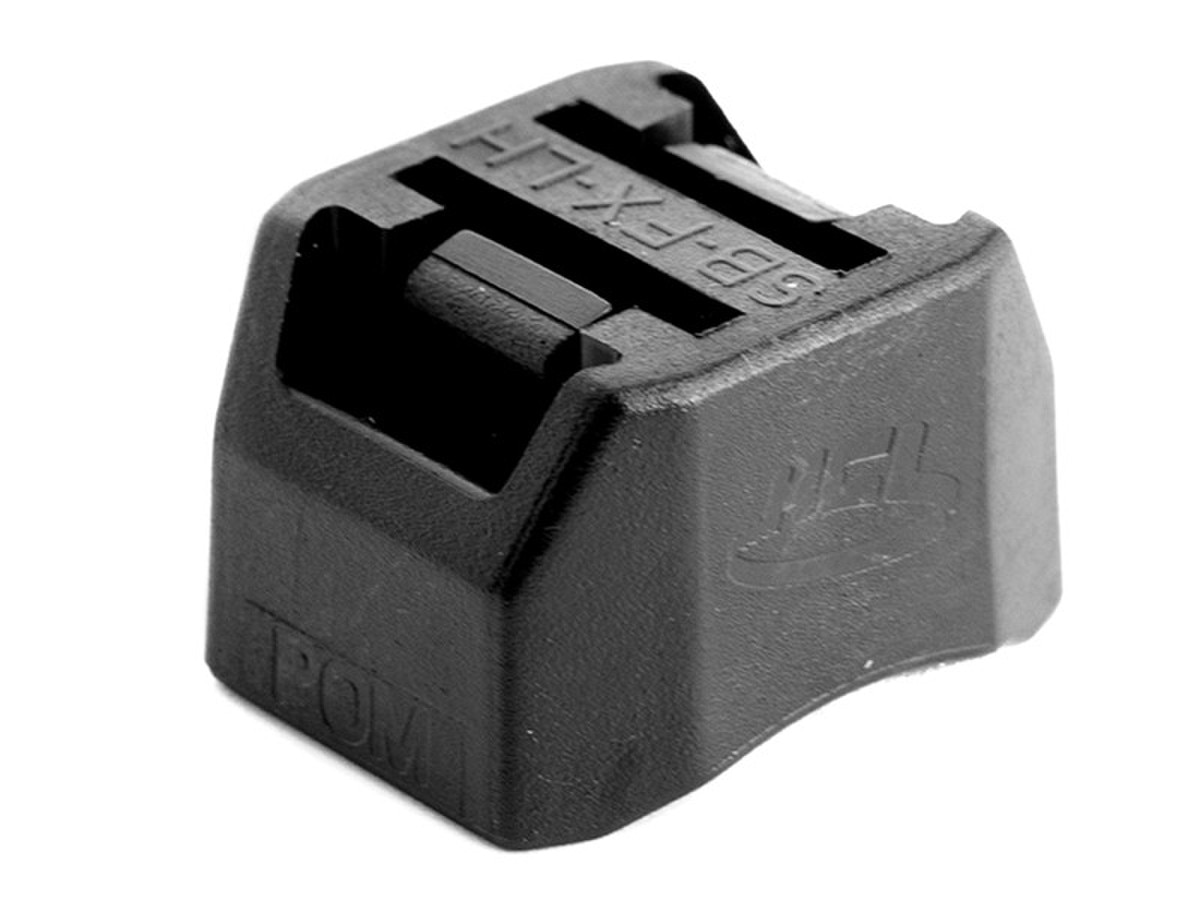

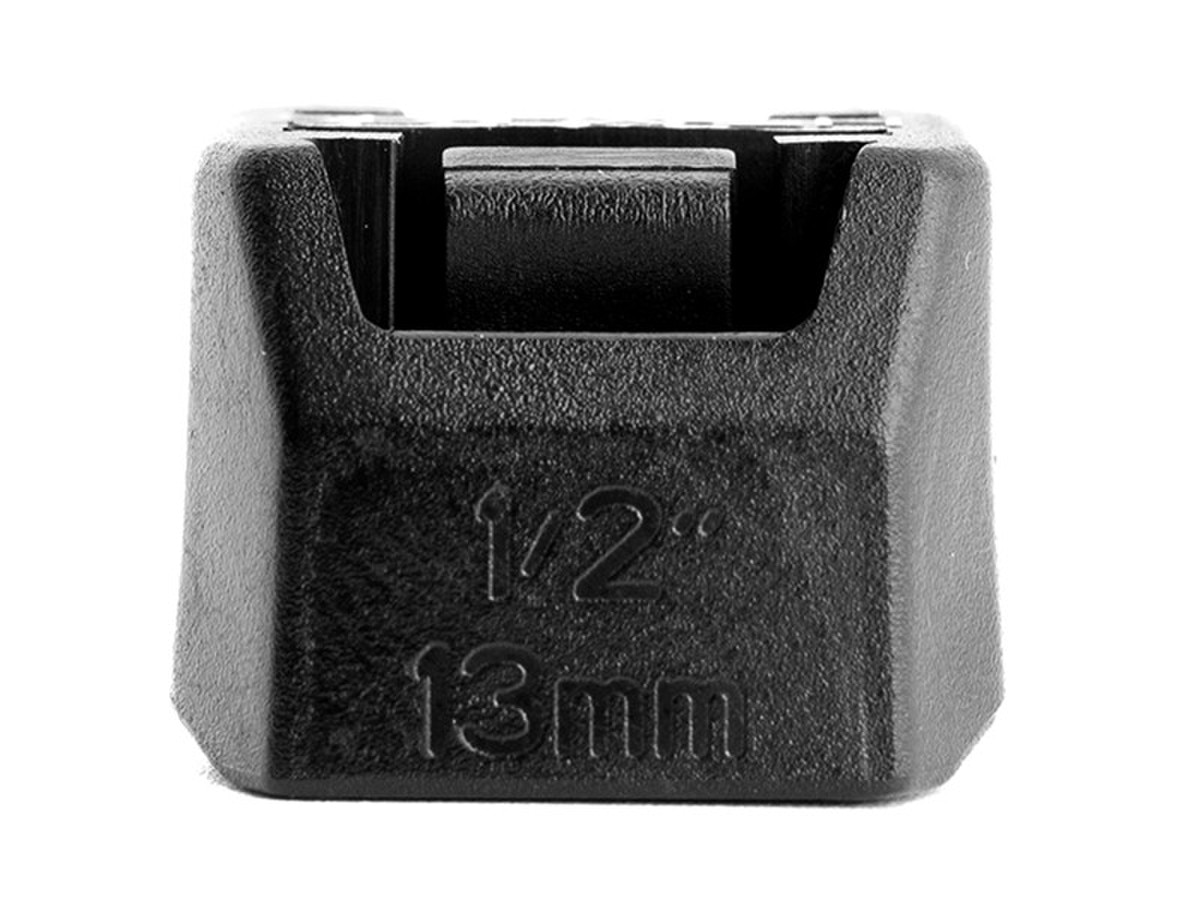

SB-BU-FX-1/2-LH-POM 12.7MM SMART BAND FLEX BUCKLES 50 piece pack

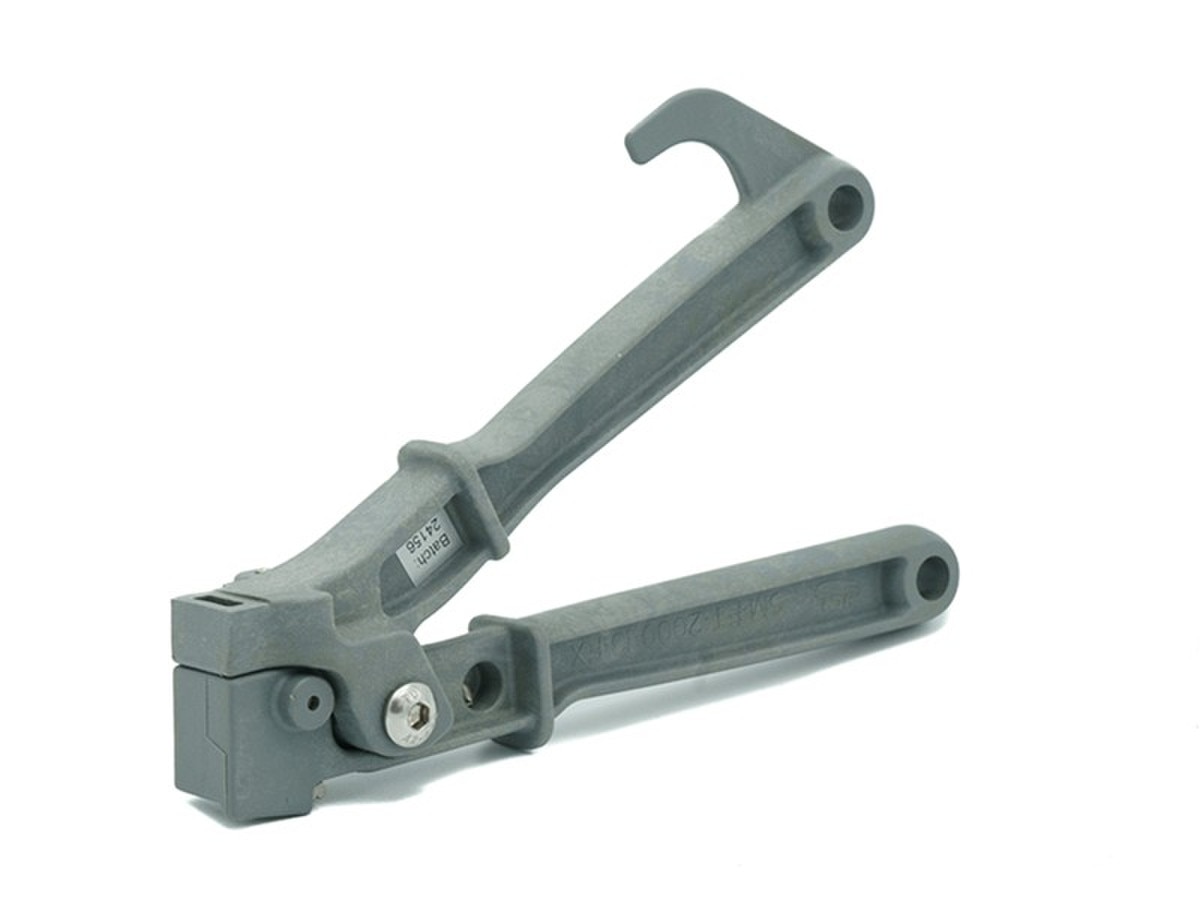

SM-FT-2000-13-FX 12.7MM SMART BAND FLEX MANUAL FITTING TOOL 1

Cat No.

Description

Pack Size

Qty

Price
