Supergrip Fork Terminals

(0)No Reviews yet

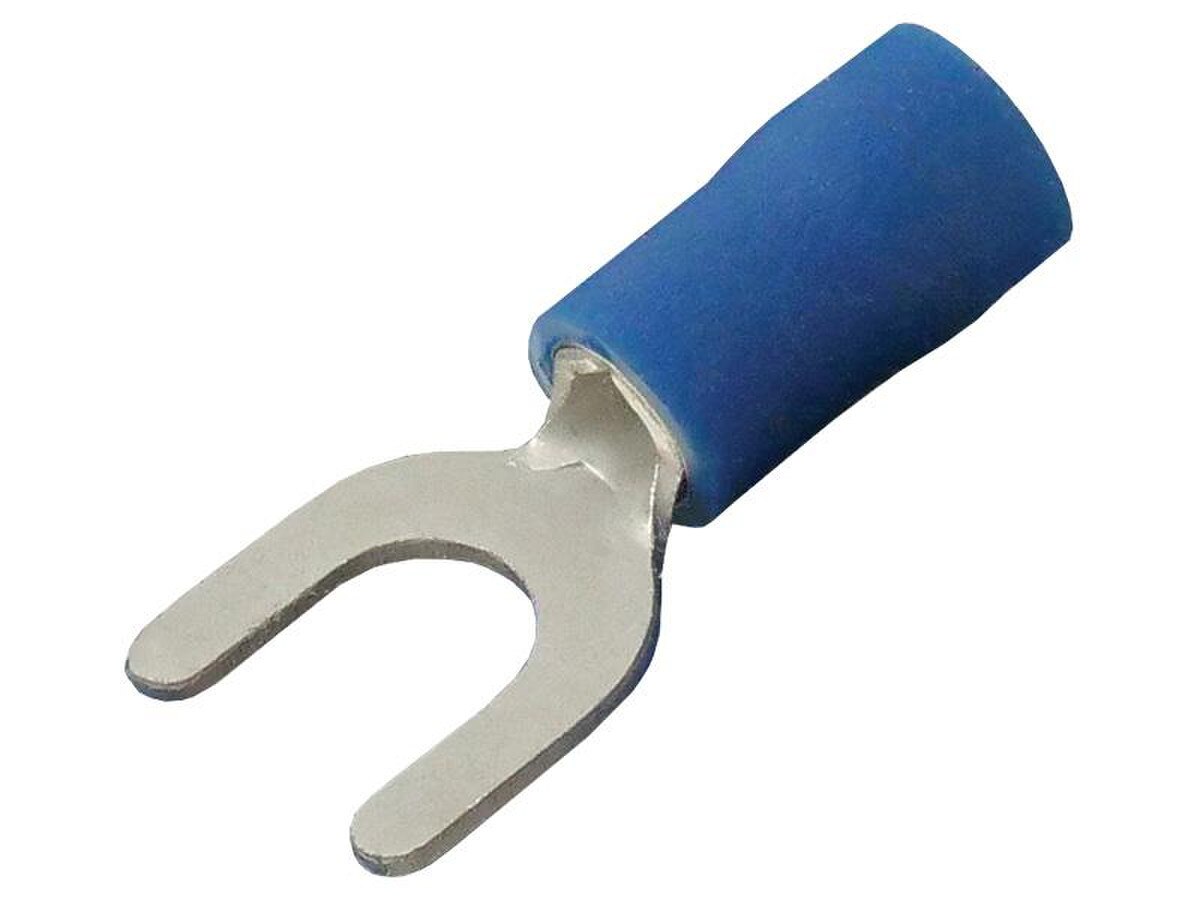

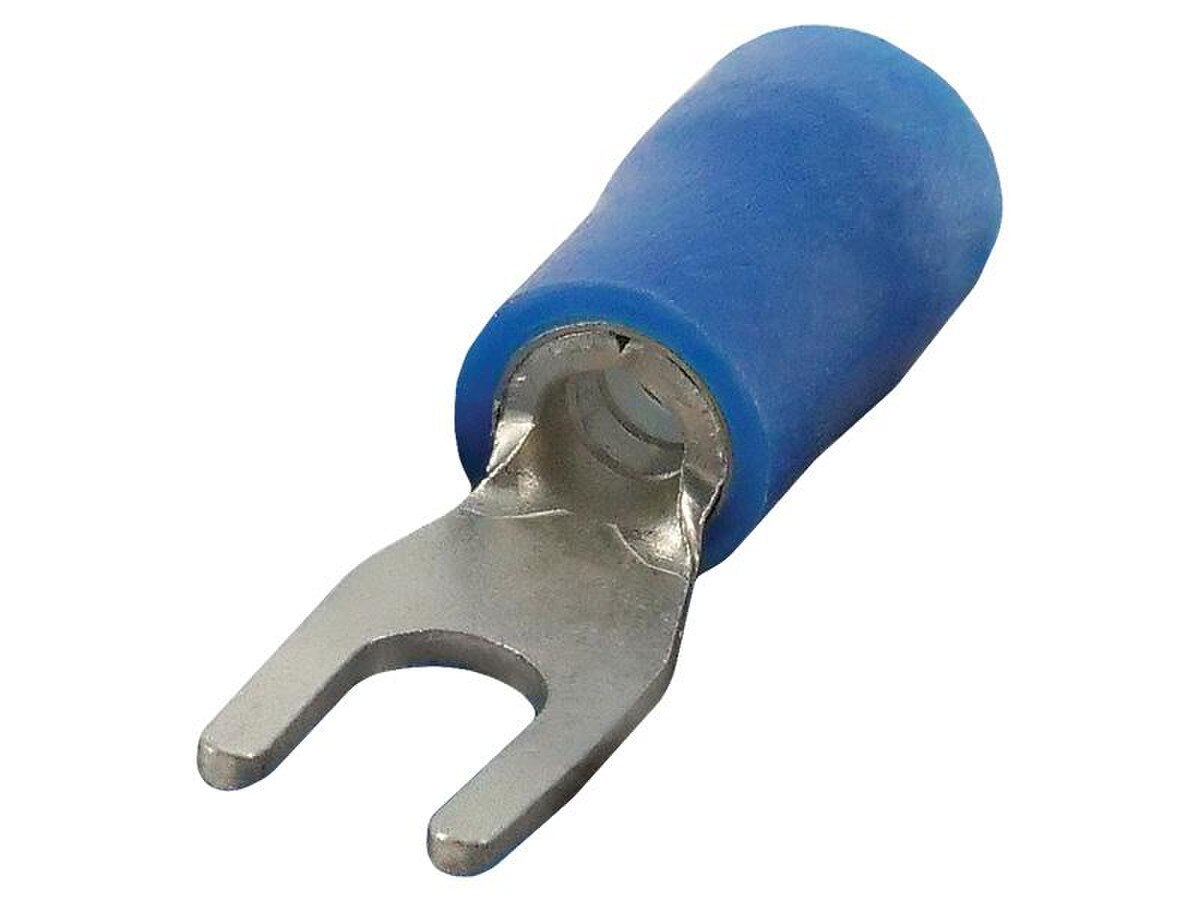

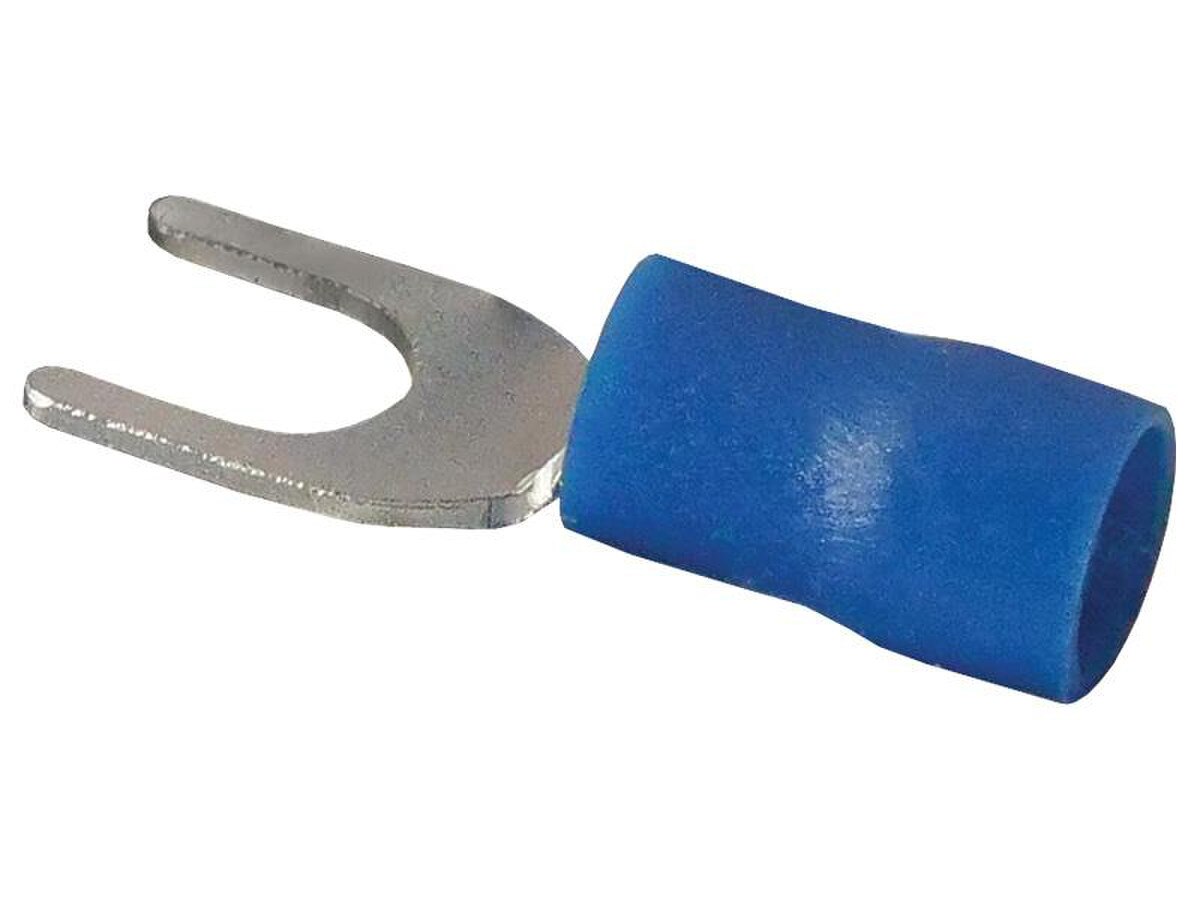

Supergrip fork Utilug terminals by Utilux

Electro tinned to minimise corrosion
Square sides provide a non-turn capability
Suits terminal blocks

DIMENSIONS

L4 3C

Terminal Style

Dimensions

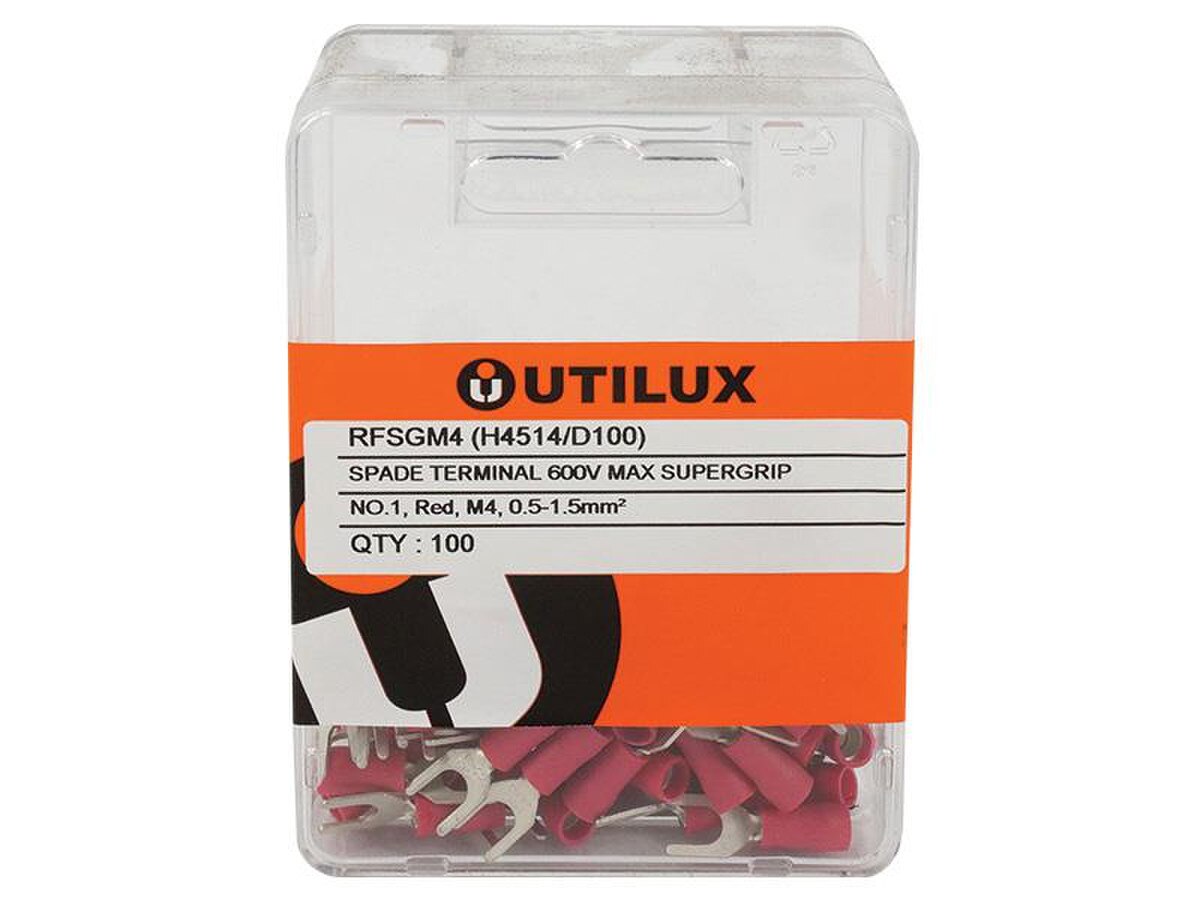

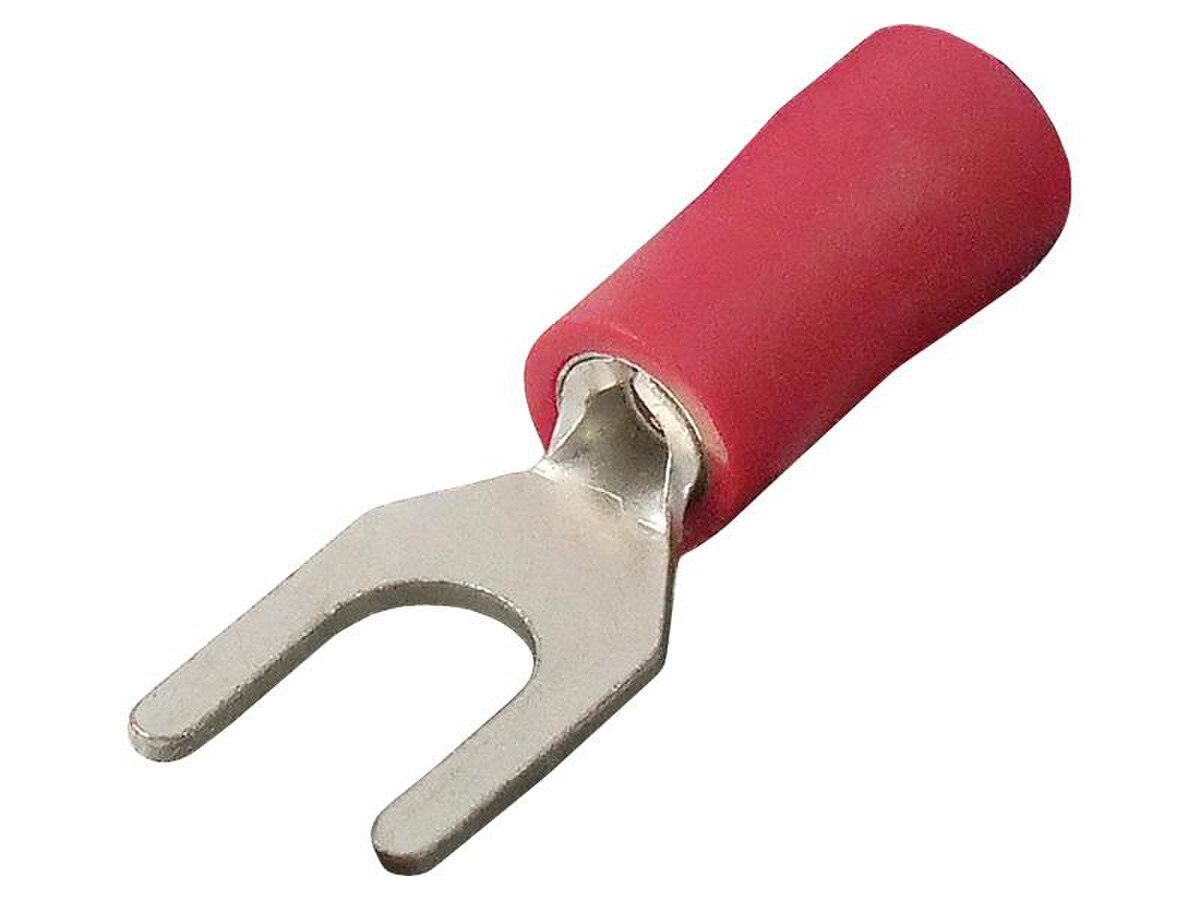

H4514/D100 No. 1 Red 22-16AWG 0.5 to 1.5 M4 21.0 7.2 0.7 4.0 10.0 3.5 #102/1

Quantity

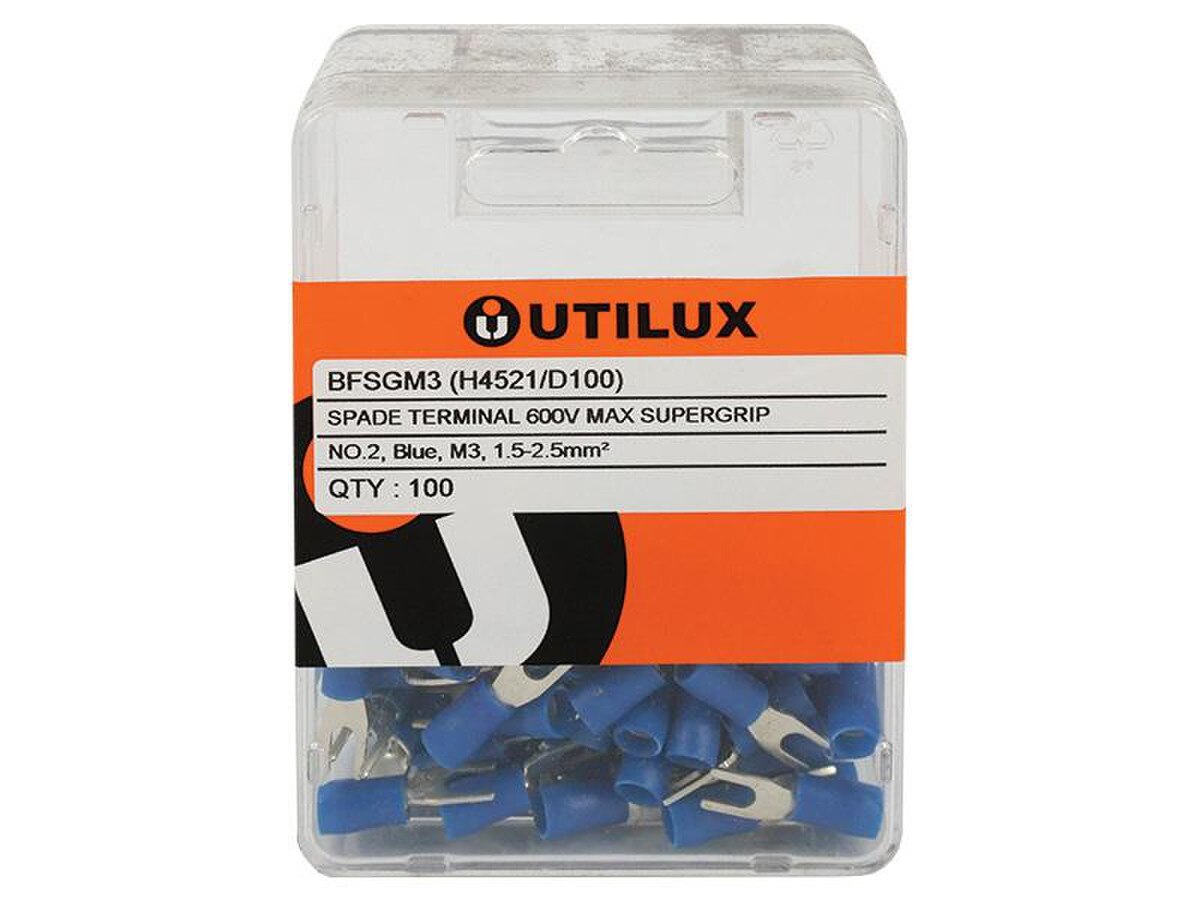

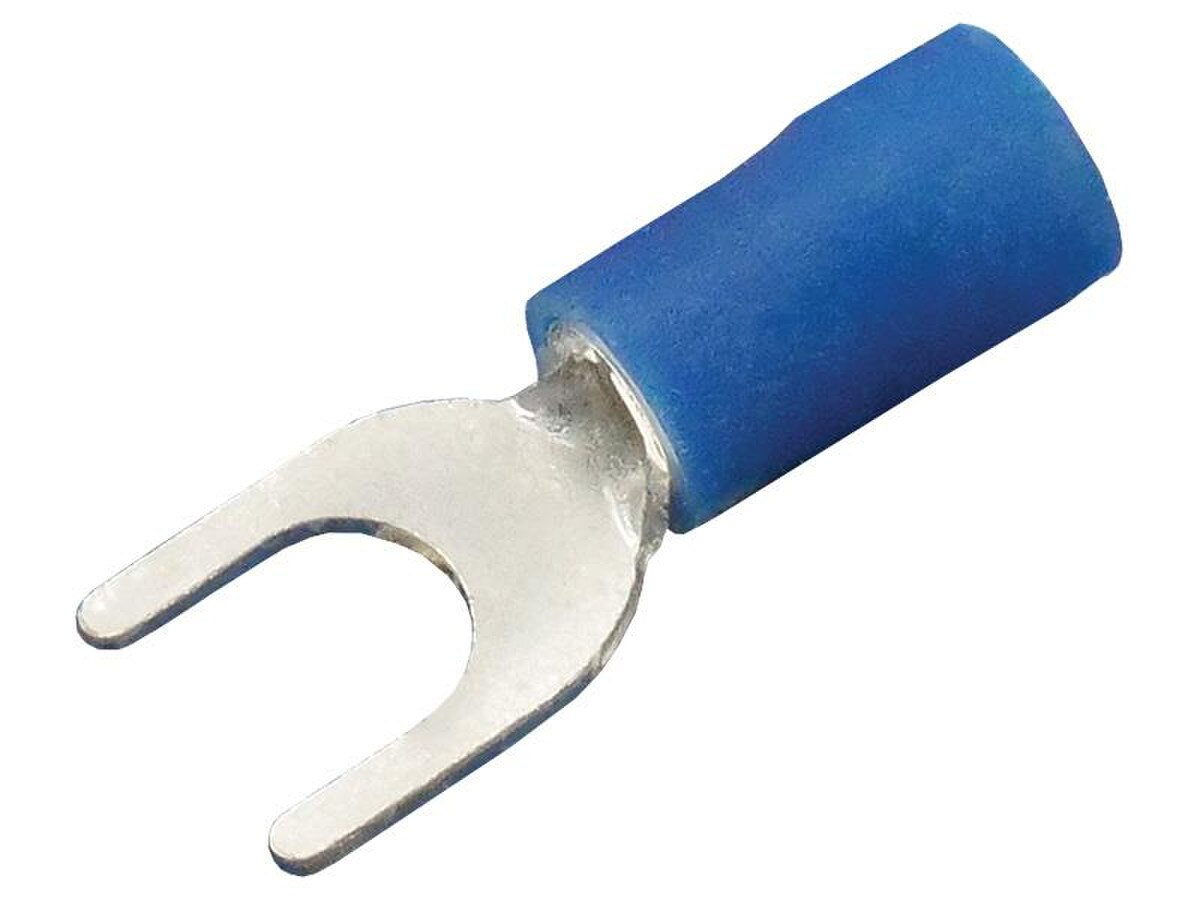

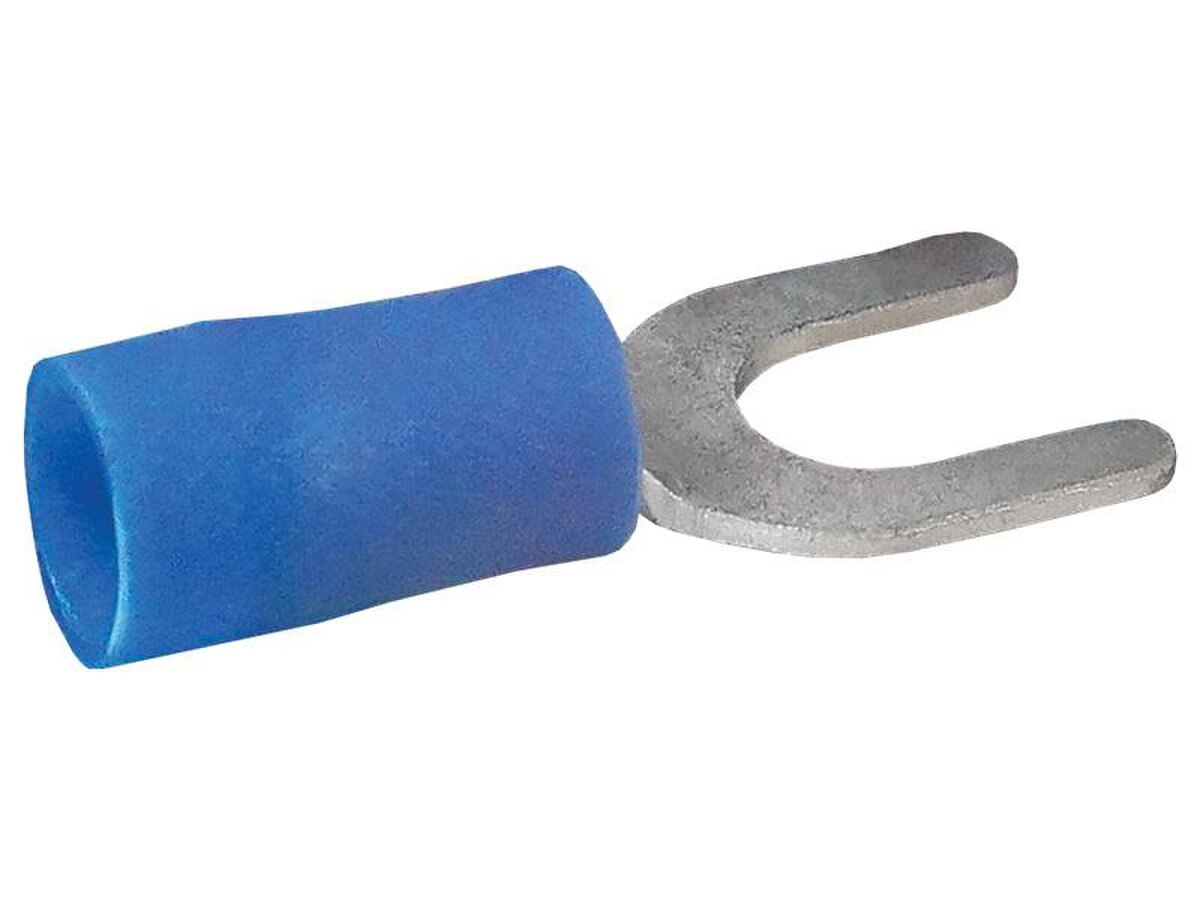

H4521/D100 No. 2 Blue 16-14AWG 1.5 to 2.5 M3 21.0 6.0 0.8 3.7 10.0 4.3 #76B/1, #102/1

Quantity

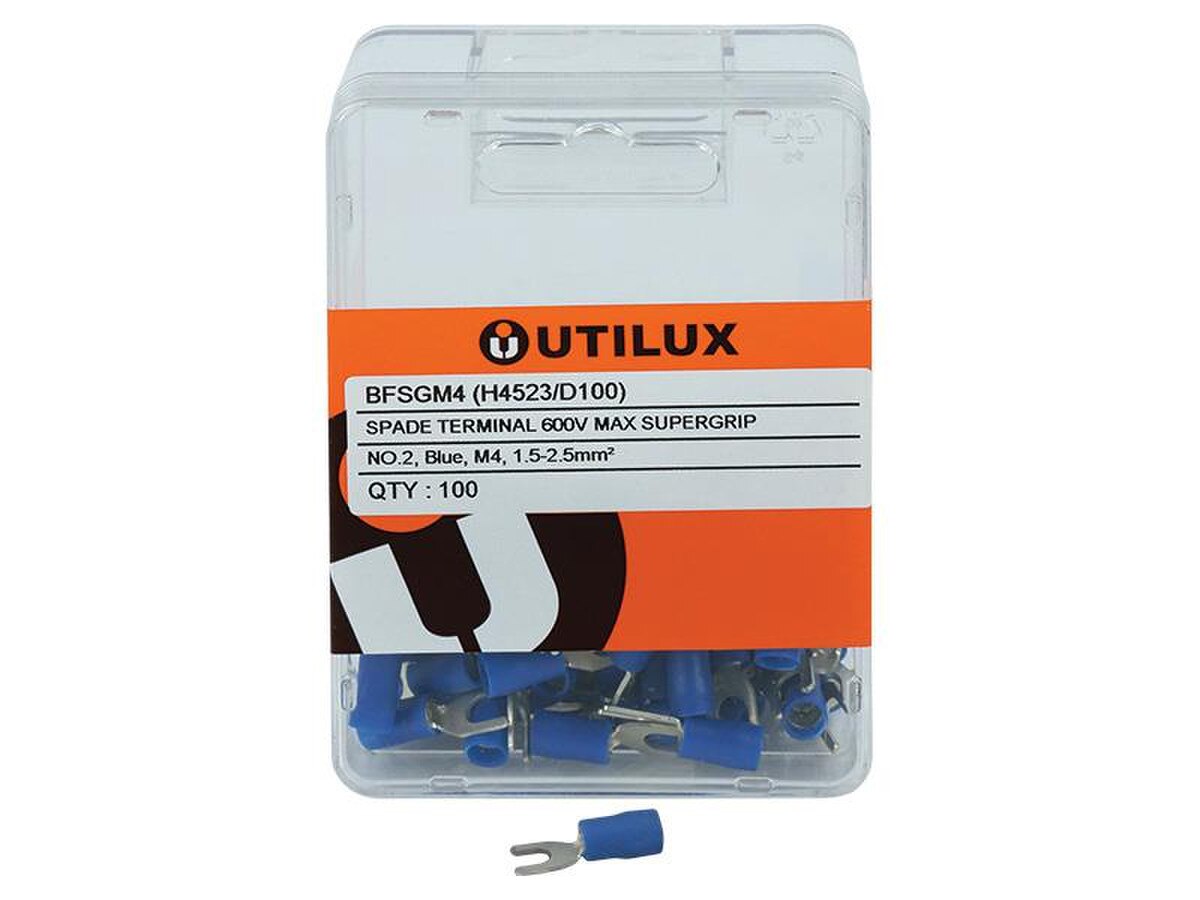

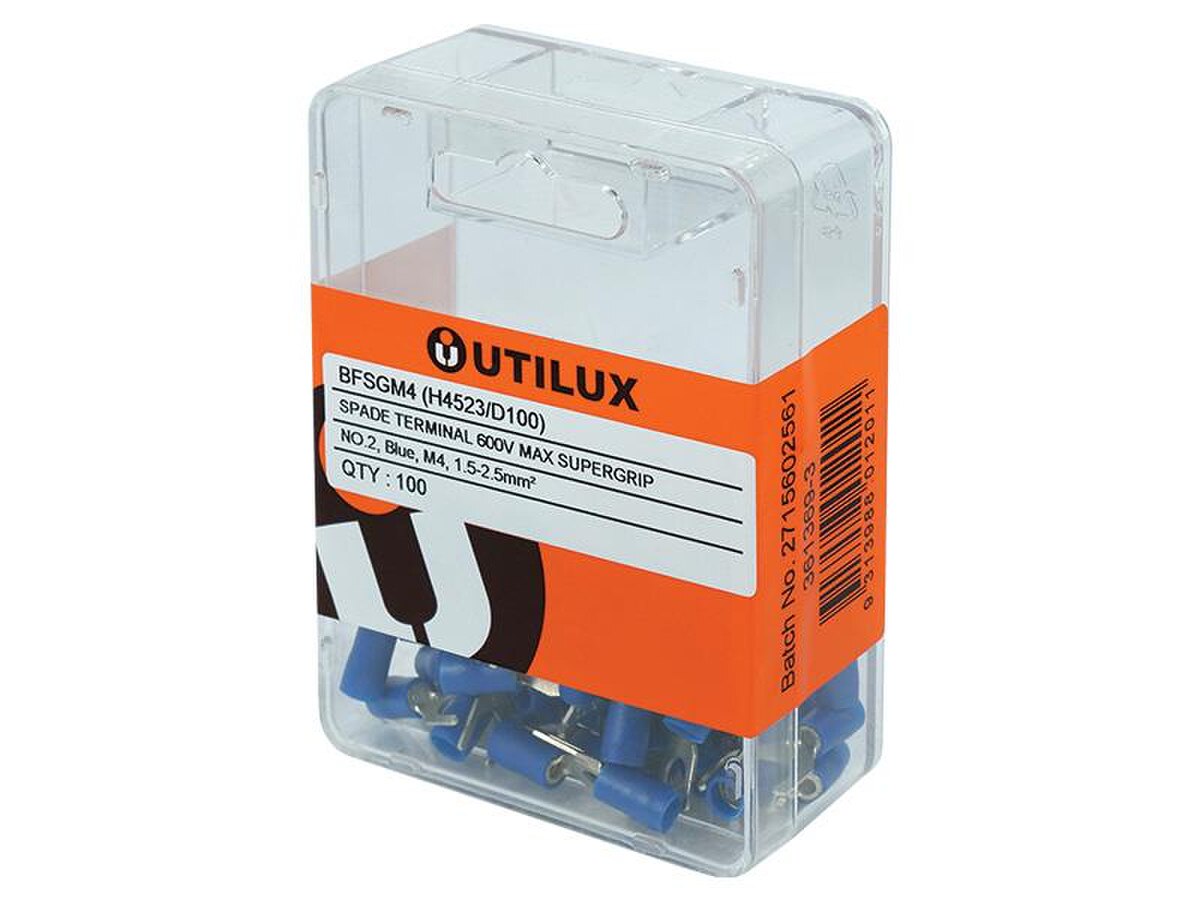

H4523/D100 No. 2 Blue 16-14AWG 1.5 to 2.5 M4 21.0 7.2 0.8 4.3 10.0 4.3 #76B/1, #102/1

Quantity

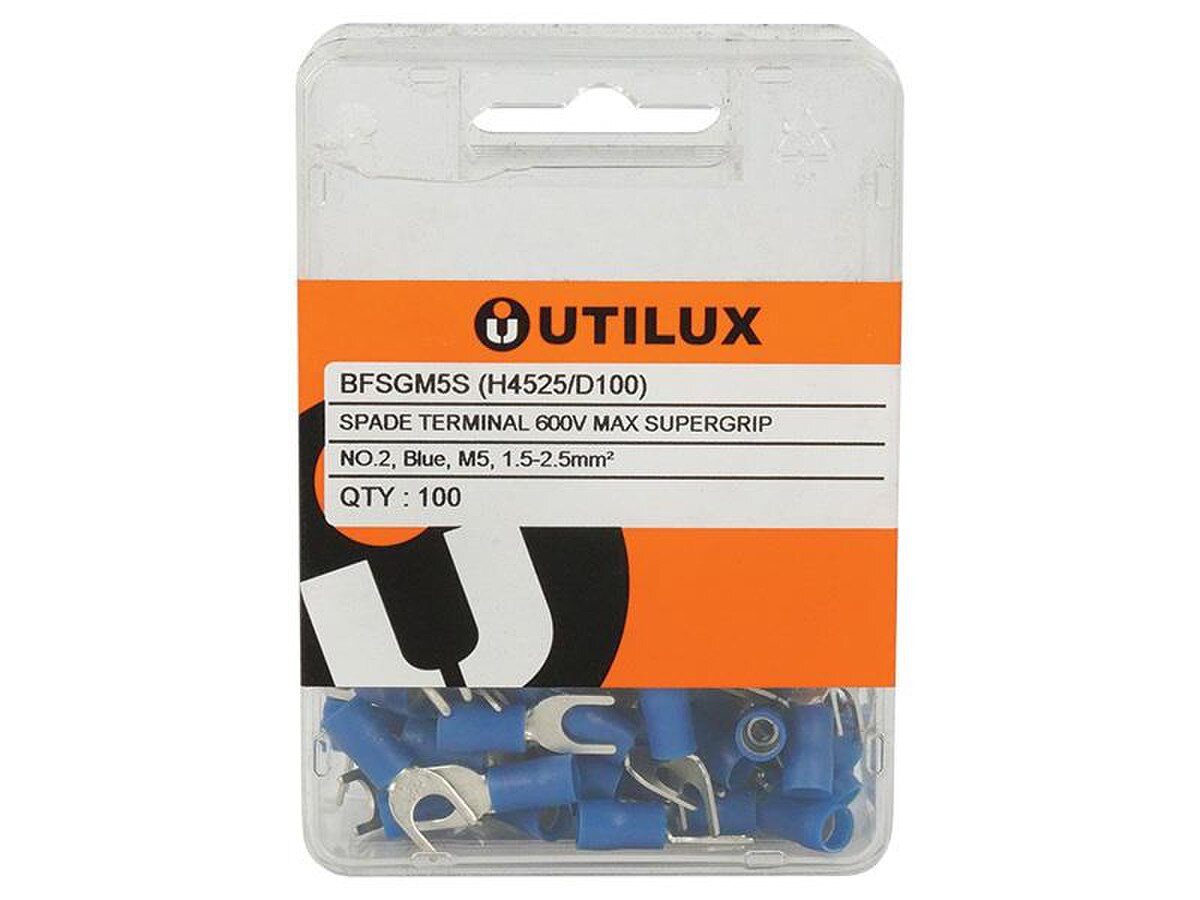

H4525/D100 No. 2 Blue 16-14AWG 1.5 to 2.5 M5 21.0 7.9 0.8 5.3 10.0 4.3 #76B/1, #102/1

Quantity

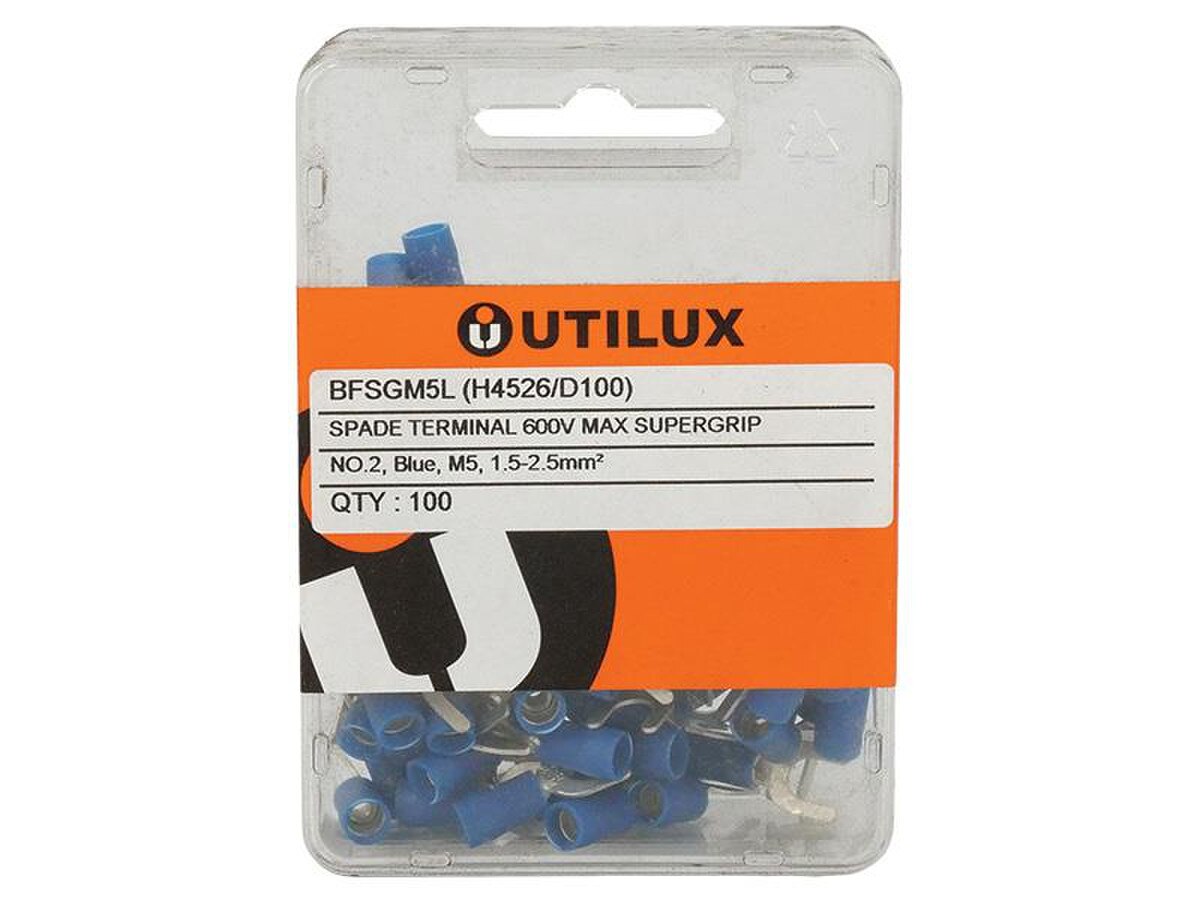

H4526/D100 No. 2 Blue 16-14AWG 1.5 to 2.5 M5 21.0 9.3 0.8 5.3 10.0 4.3 #76B/1, #102/1

Quantity

					Dimensions (mm)
	Cat No.	Terminal Size	Conductor Area (mm²)	Stud Size	A	B	C	E	F	Max Insulation Diameter (mm)	Tool No	Qty	Price
